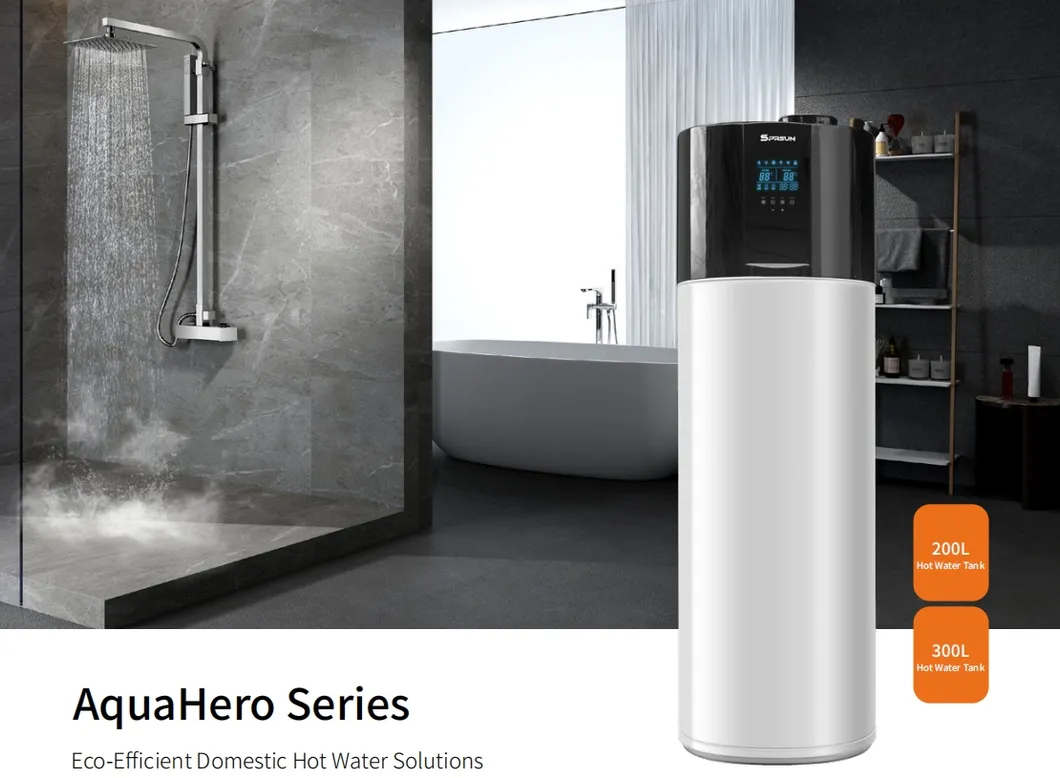

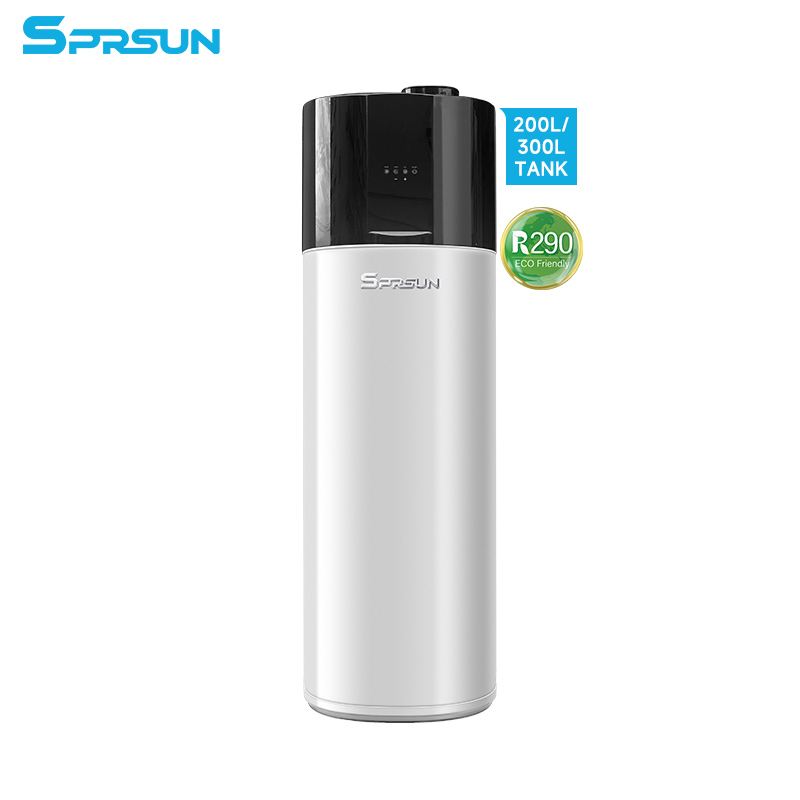

Domestic All in One Inverter Monoblock Hot Water Heat Pump for Home

📋

Basic Specifications

Model NO.

CGK010V4T200-A / 300-A

Heat Source

Air-source

Heating Type

Water-Circulating Heat Pump

Certification

CE, ISO9001, CCC, CB, RoHS, MCS, Keymark, SG Ready

Warranty

2 Years

Control Method

WiFi Control

Refrigerant

R290 Eco-friendly

Capacity

5000 PCS/Month

💎

Product Highlights

🛡️

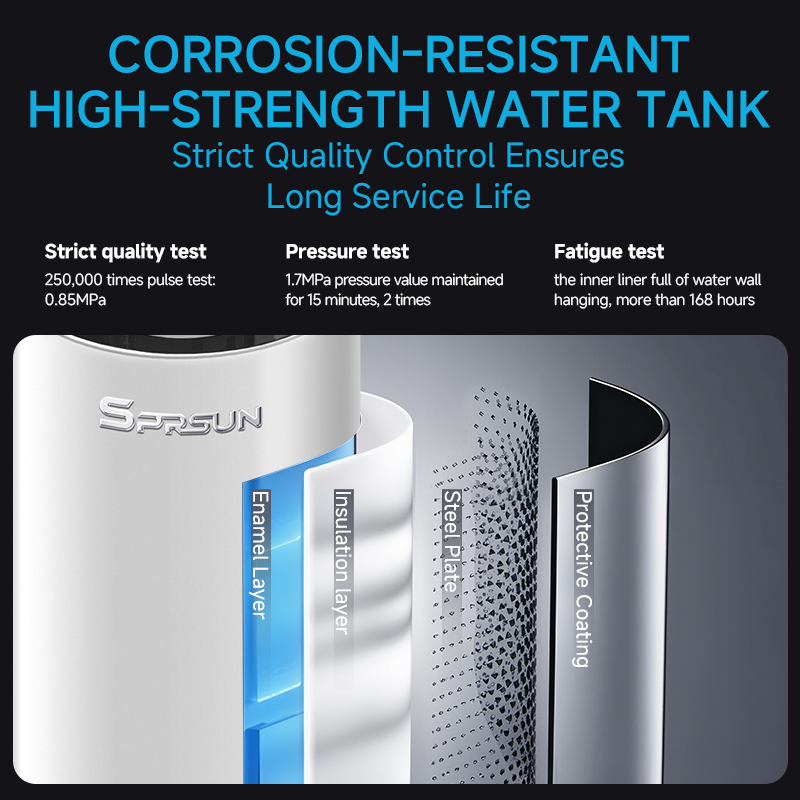

HIGH QUALITY WATER TANK
Strict Quality Test: 250,000 times pulse test at 0.85MPa. Pressure Test: 1.7MPa maintained for 15 minutes. Fatigue Test: Full water wall hanging for more than 168 hours.

⚙️

Inverter Technology & Components

RELIABLE INTERNAL COMPONENTS

Key Features:

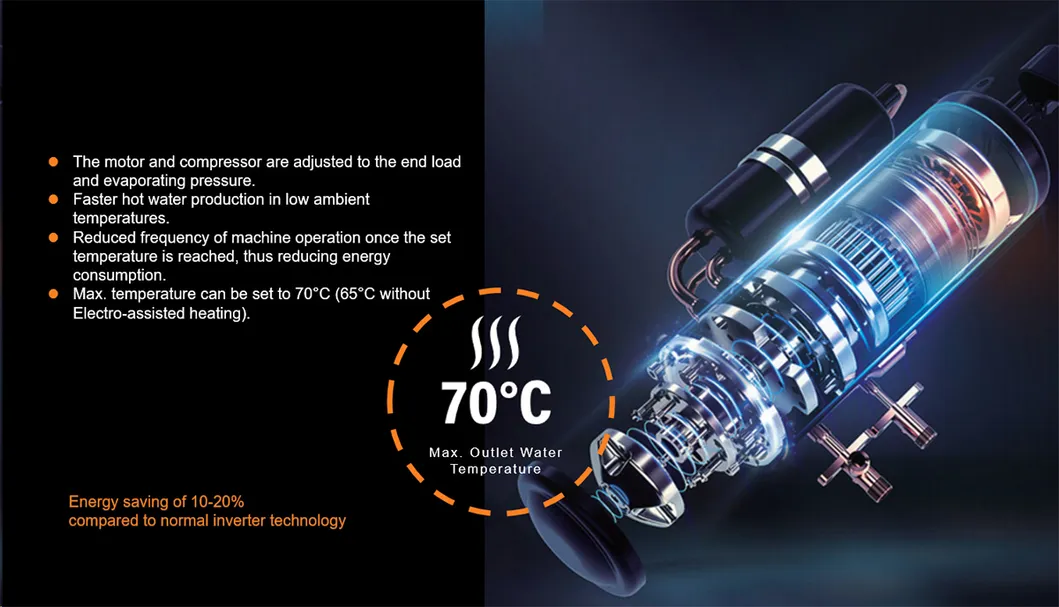

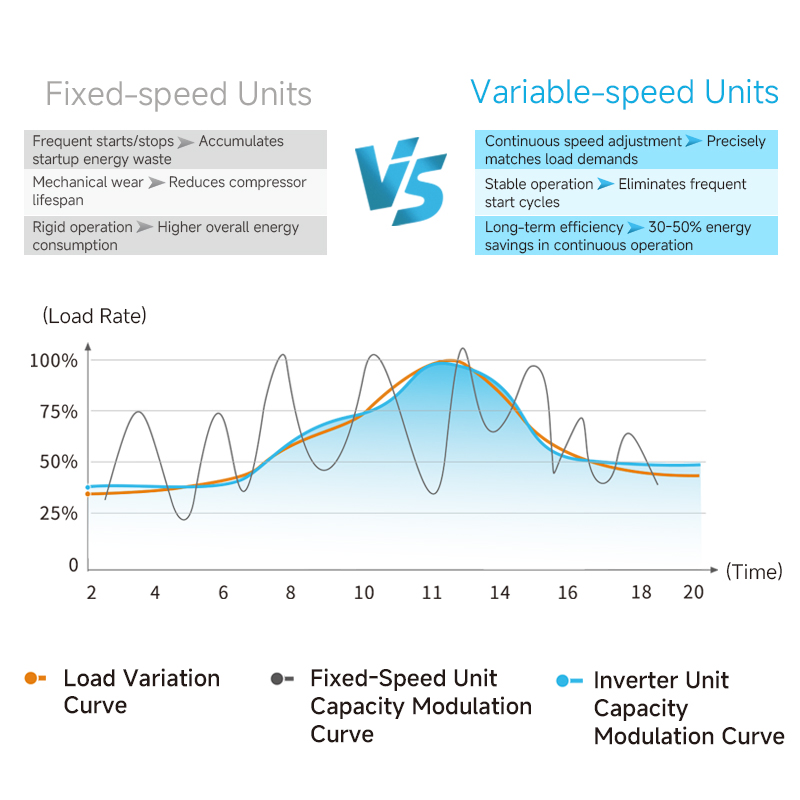

DC INVERTER TECHNOLOGY: Infinite variable capacity adjustment for fast and efficient heating up to 70ºC.

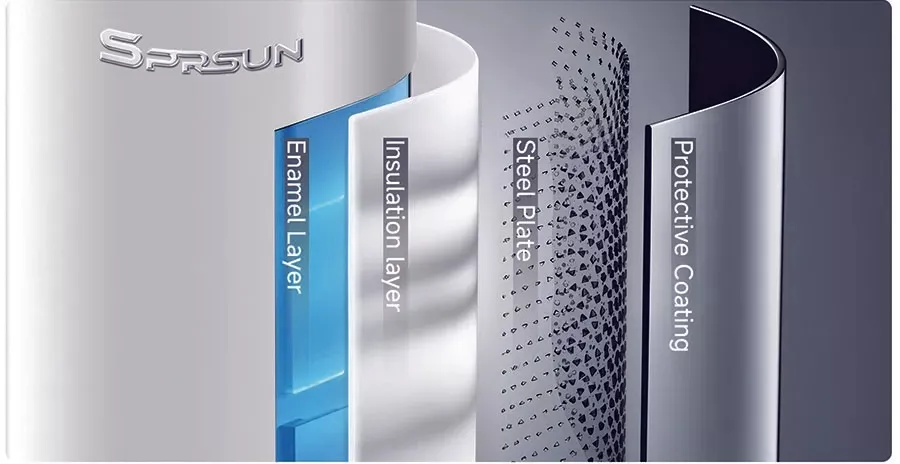

LONGER LIFESPAN: Enamelled water tanks and multiple anti-corrosion technologies.

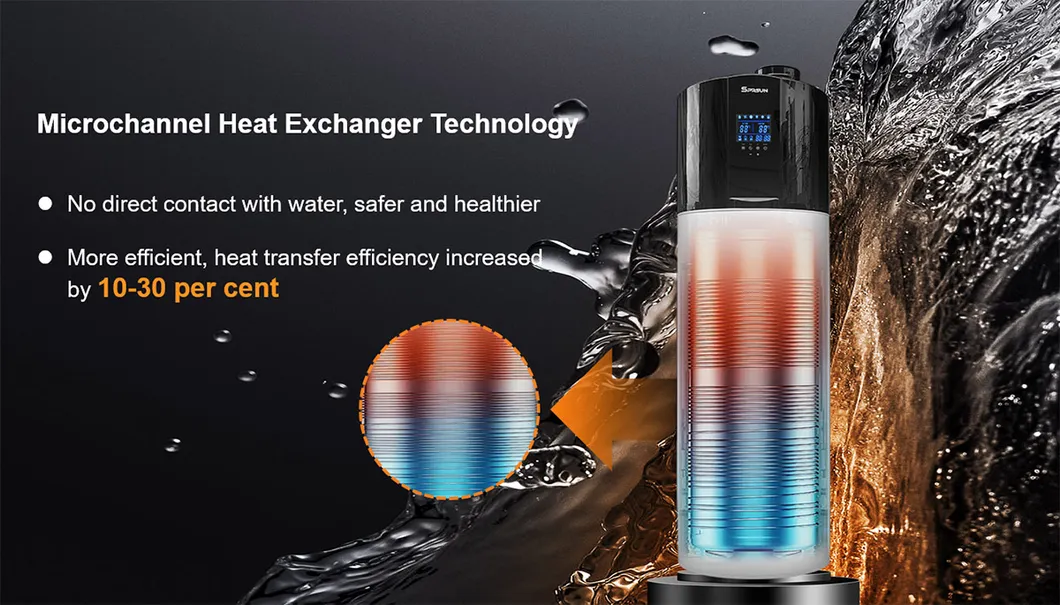

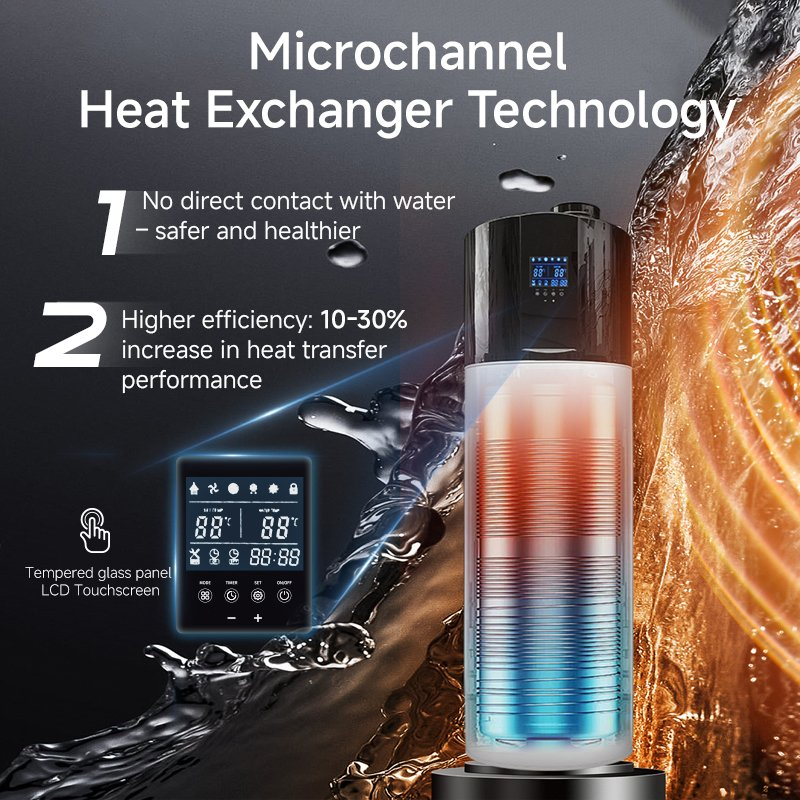

SAFE HEATING: Microchannel heat exchanger ensures efficient heating without direct contact with water.

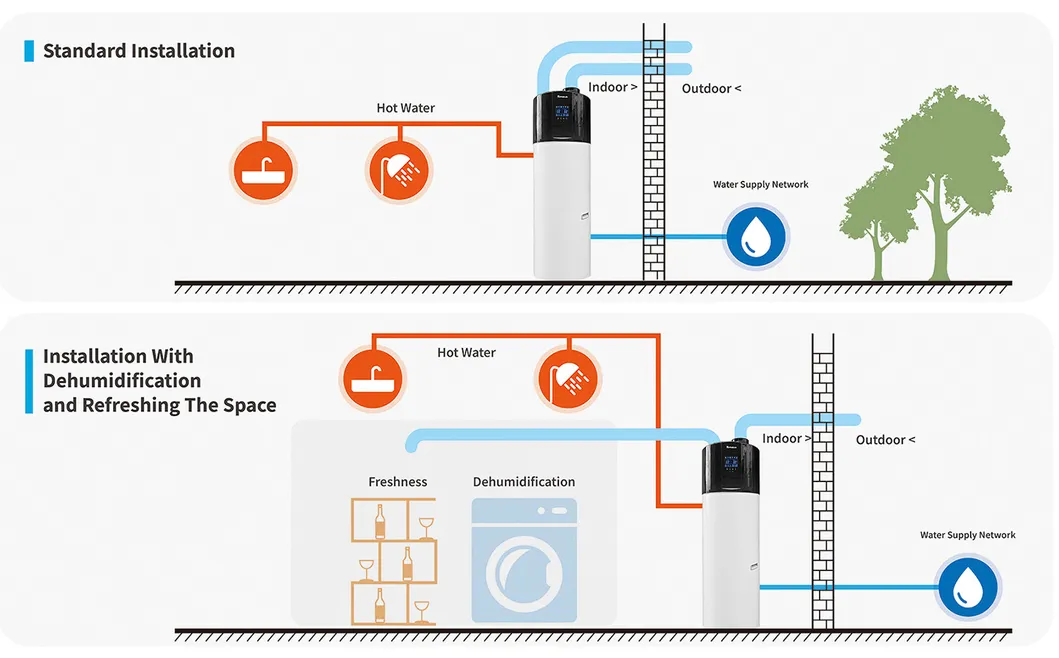

QUICK INSTALLATION: No outdoor unit required; easy to place anywhere with user-friendly handles.

🏠

Applications & Scenarios

Suitable for residential houses, flats, villas, and apartments to meet domestic shower and kitchen hot water needs. Supports free cooling functionality.

📊

Technical Parameters

Parameter	Unit	CGK010V4T200-A	CGK010V4T300-A
Power Supply	V/Hz/Ph	220-240/50/1	220-240/50/1
Rated Heating Capacity	kW	2.2	2.4
Rated Power	kW	0.55	0.66
COP	W/W	3.42	3.40
Electric Heating	kW	1.5	1.5
Max. Outlet Temp	ºC	65 (70 with E-heater)	65 (70 with E-heater)
Sound Power Level	dB(A)	50	52
Refrigerant	-	R290	R290
Tank Volume	L	200	300
Net Dimensions	mm	φ570*1810	φ630*1855

🏭

Manufacturing Excellence

Our manufacturer is a professional heat pump provider established in 1999. Products are manufactured in accordance with EN14511 standards and carry international certifications including TUV, CE, ERP, and RoHS. We cooperate with global leaders like Panasonic, CAREL, and Copeland to ensure premium quality.

❓

Frequently Asked Questions

What is the advantage of using R290 refrigerant?

R290 is an eco-friendly natural refrigerant with extremely low Global Warming Potential (GWP), making it a sustainable choice for modern home heating.

Does this system require an outdoor unit?

No, this is an "All-in-One" monoblock design. It does not require an outdoor unit, making installation much simpler and suitable for various indoor locations.

What is the maximum water temperature it can reach?

The unit can reach up to 65ºC through the heat pump alone, and up to 70ºC when utilizing the built-in electric heater.

Is it possible to control the heat pump remotely?

Yes, the system supports WiFi control, allowing you to manage and monitor your hot water settings via a smartphone.

What kind of maintenance is required?

The unit features an enamelled tank and anti-corrosion technology for a long lifespan. We provide professional technical support and lifetime maintenance guidance.

Can this unit provide cooling?

Yes, the design allows for "Free Cooling" as a secondary benefit during the hot water production process.
