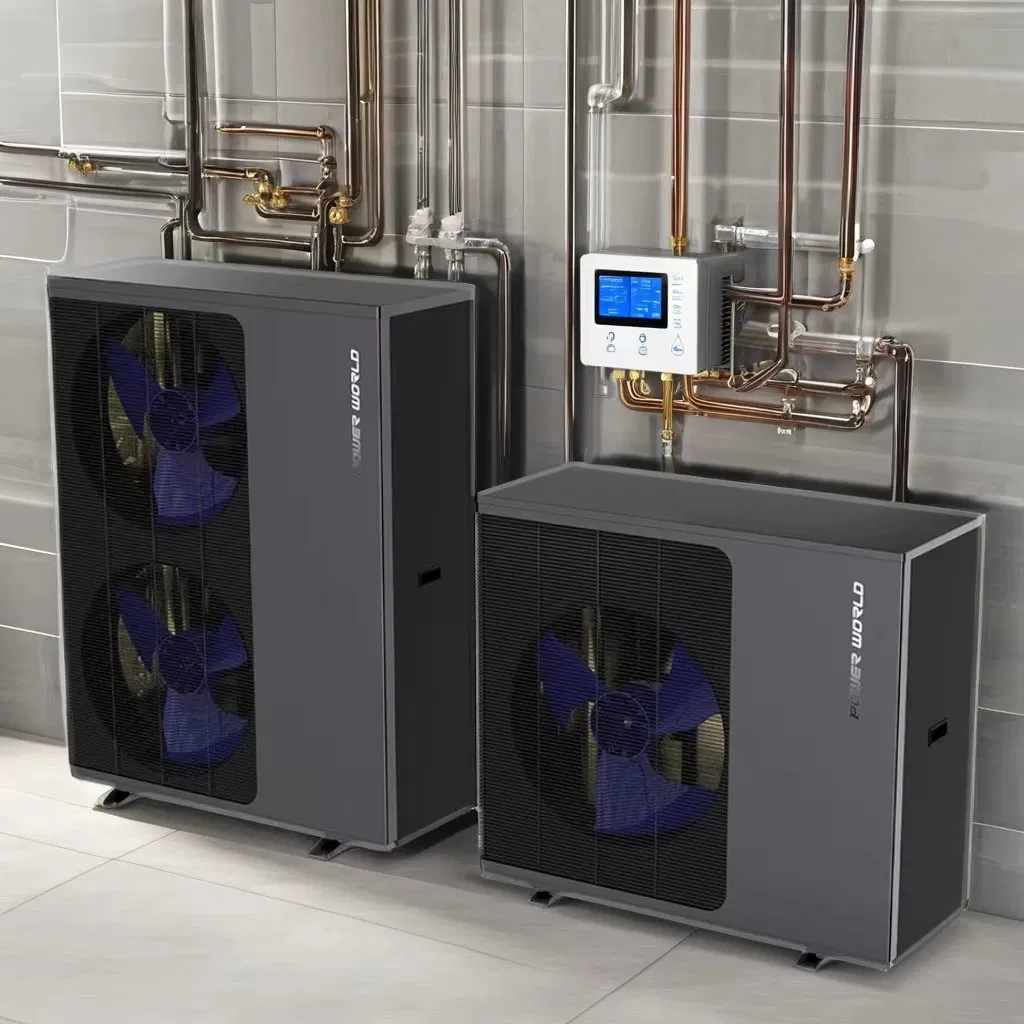

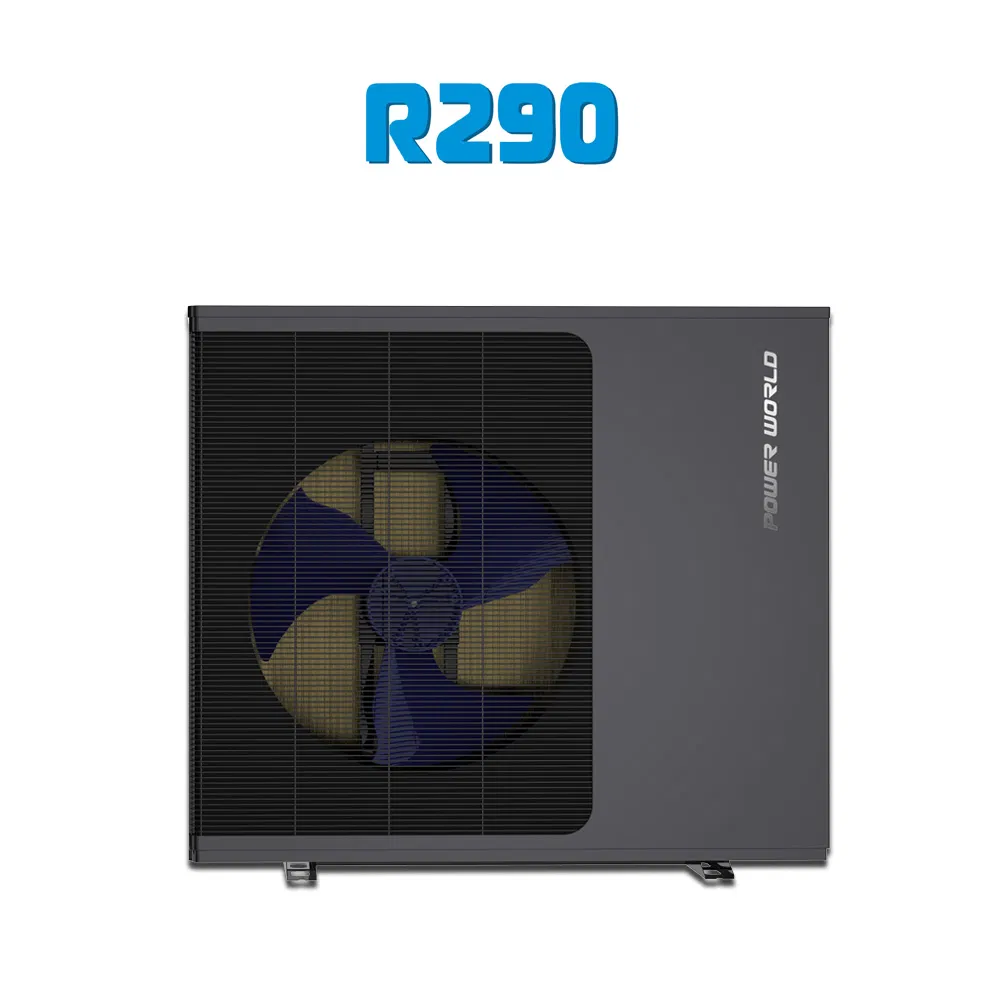

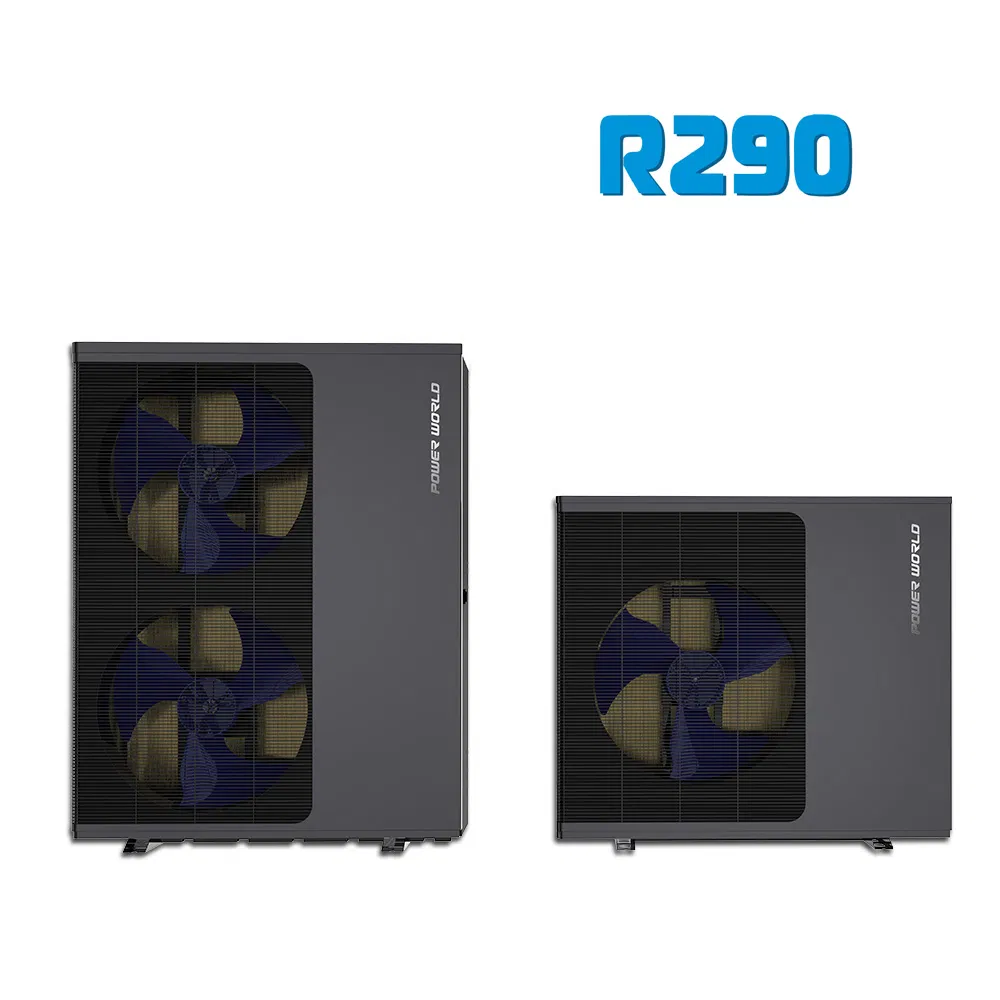

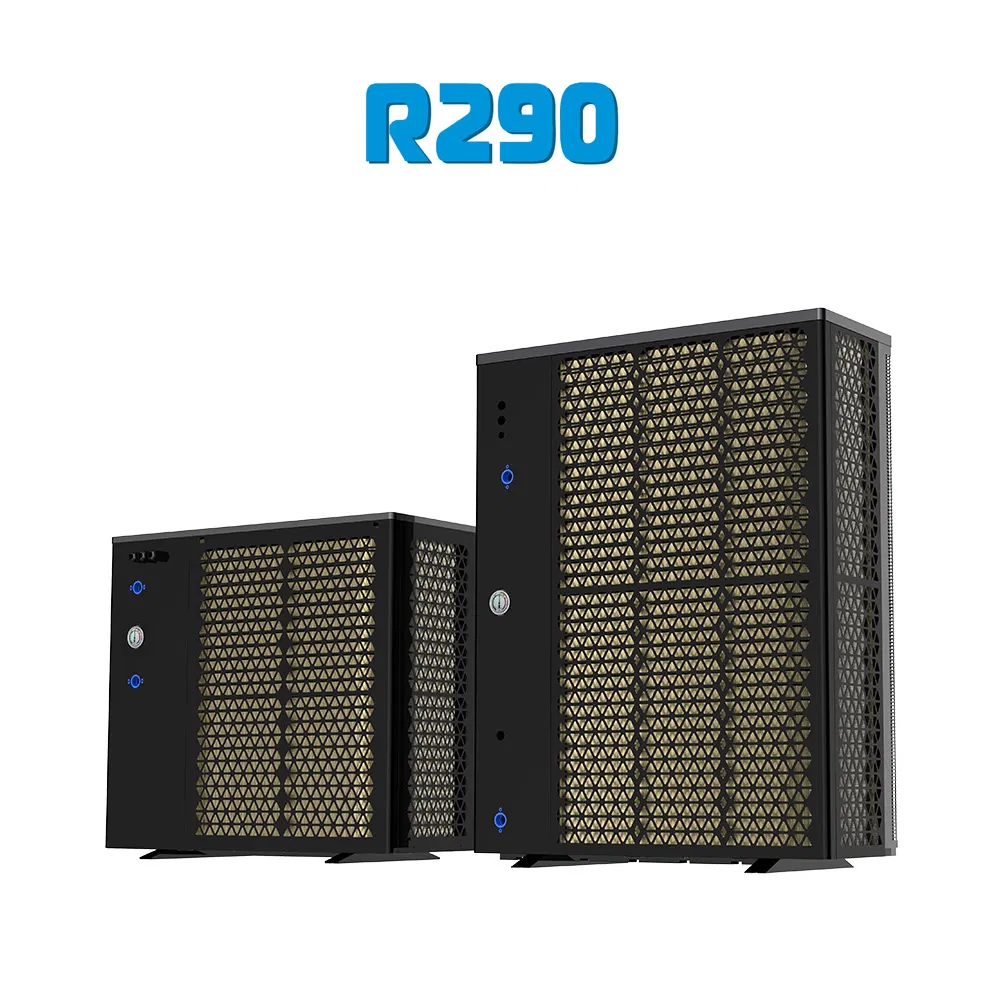

To reduce carbon emissions and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. R290 has a GWP of less than 20 and is recognized as the most eco-friendly refrigerant with immense development potential compared to R410A (GWP 2100) and R32 (GWP 675).

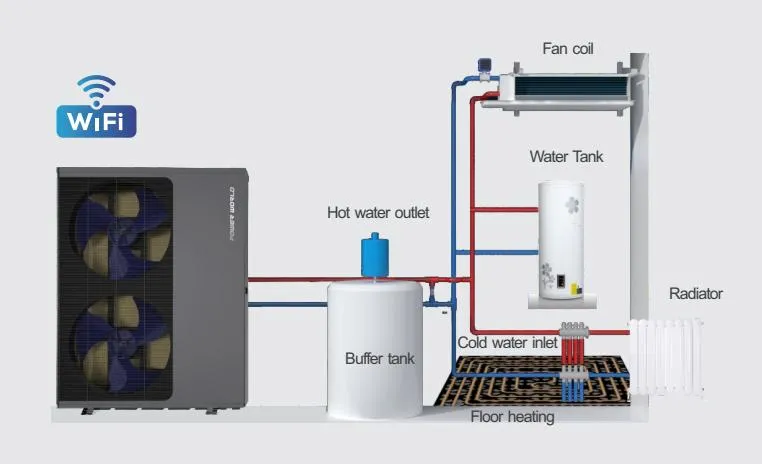

The unit meets all-year needs for house heating, cooling, and domestic hot water (DHW) via a 3-way valve:
The R290 FULL DC INVERTER heat pump operates efficiently in extreme cold without EVI technology, maintaining high COP and outputting 75°C hot water to satisfy domestic demands.

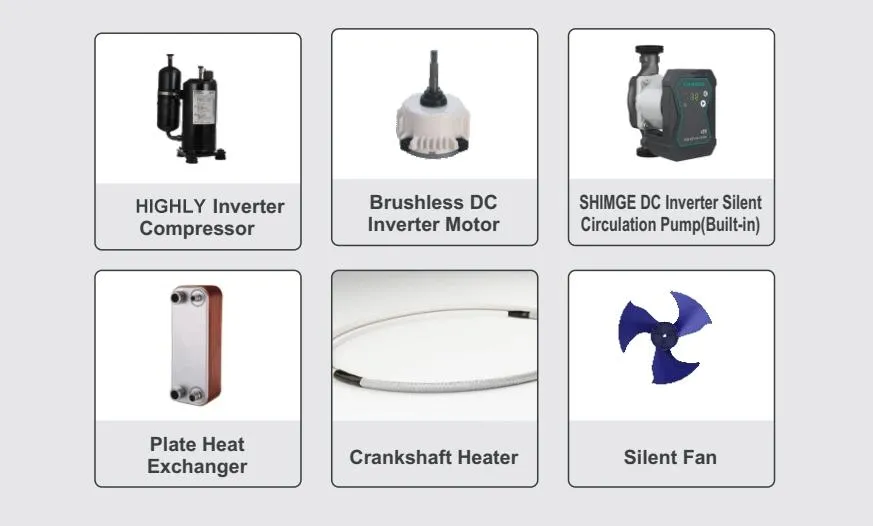

Intelligently adjusts operating frequency and water temperature to maintain a constant room temperature. Saves up to 50% energy compared to ON-OFF units and up to 75% compared to traditional boilers. Features include DC Inverter Compressors and Stepless Fan Motors.

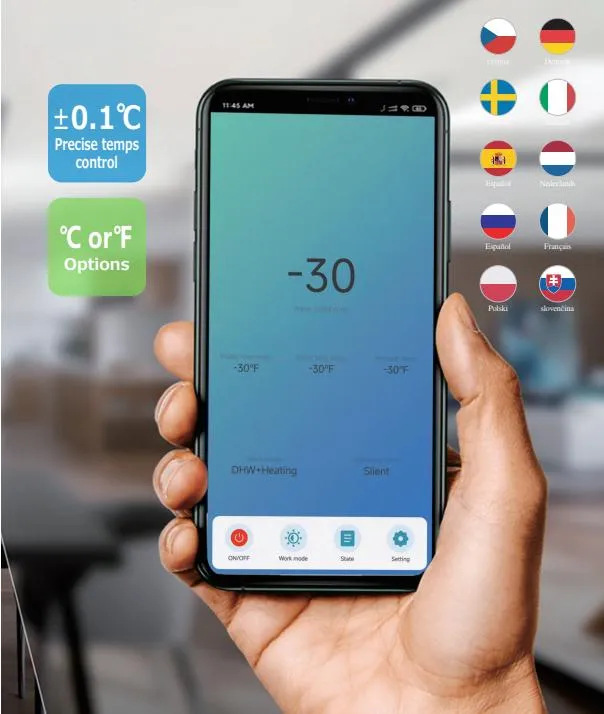

5-Inches large LCD touch screen and "Smart Life" Wi-Fi App support multiple languages, facilitating local market expansion and user operation.

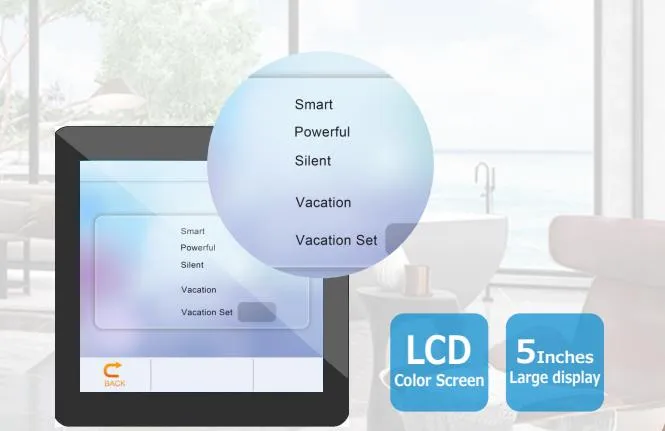

Powerful Mode, Smart Mode, Silent Mode, and Vacation Mode. Choose the frequency that fits your needs to maximize electricity bill savings.

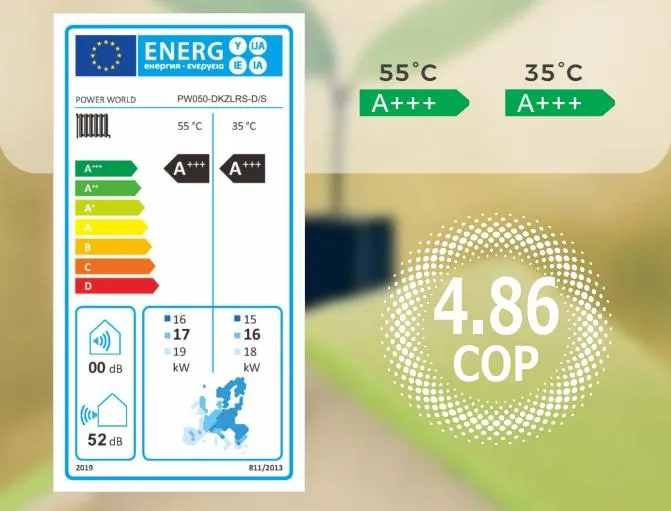

Passed ERP A+++ energy class test. Efficiency reaches A+++ at both 35°C and 55°C water temperatures, with SCOP as high as 4.86.
Uses three-layer sound insulation cotton and advanced noise reduction technology for smooth operation without mechanical noise.

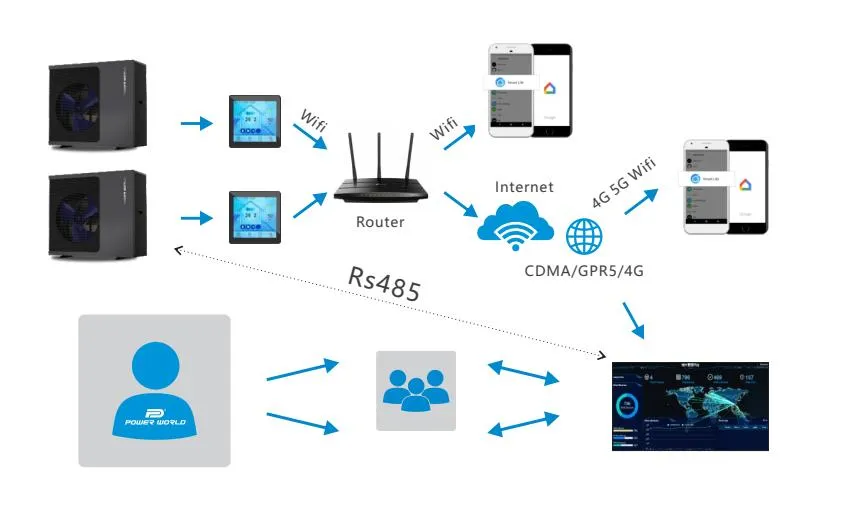

Remote monitoring via Wi-Fi or DUT allows synchronization of operating parameters. Real-time error reporting helps provide immediate solutions, reducing after-sales costs.
| Model | PW030-E/S | PW040-E/S | PW050-E/S | PW040-E | PW050-E | PW060-E |
|---|---|---|---|---|---|---|
| Heating (Ambient 7/6ºC, Water 30/35ºC) | ||||||
| Capacity Range (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| DHW Condition (Ambient 7/6ºC, Water 15/55ºC) | ||||||
| Capacity Range (kW) | 2.5~7.2 | 3.3~9.4 | 4.5~12.8 | 3.3~9.4 | 4.5~12.8 | 6.2~17.6 |
| General Info | ||||||
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||||
| Power Supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||
| Net Weight (kg) | 105 | 115 | 160 | 115 | 160 | 165 |
| Dimensions (mm) | 970×475×820 | 1080×475×970 | 1050×480×1380 | 1080×475×970 | 1050×480×1380 | 1050×480×1380 |
A leading high-tech enterprise established in 2004, focusing on the research, development, and production of air source heat pumps. With a complete industry chain, the product range covers swimming pool heaters, residential heating/cooling, and domestic hot water solutions. EVI inverter heat pumps have consistently ranked among the top in export volume for years, reaching over 60 countries including Germany, France, and Sweden.

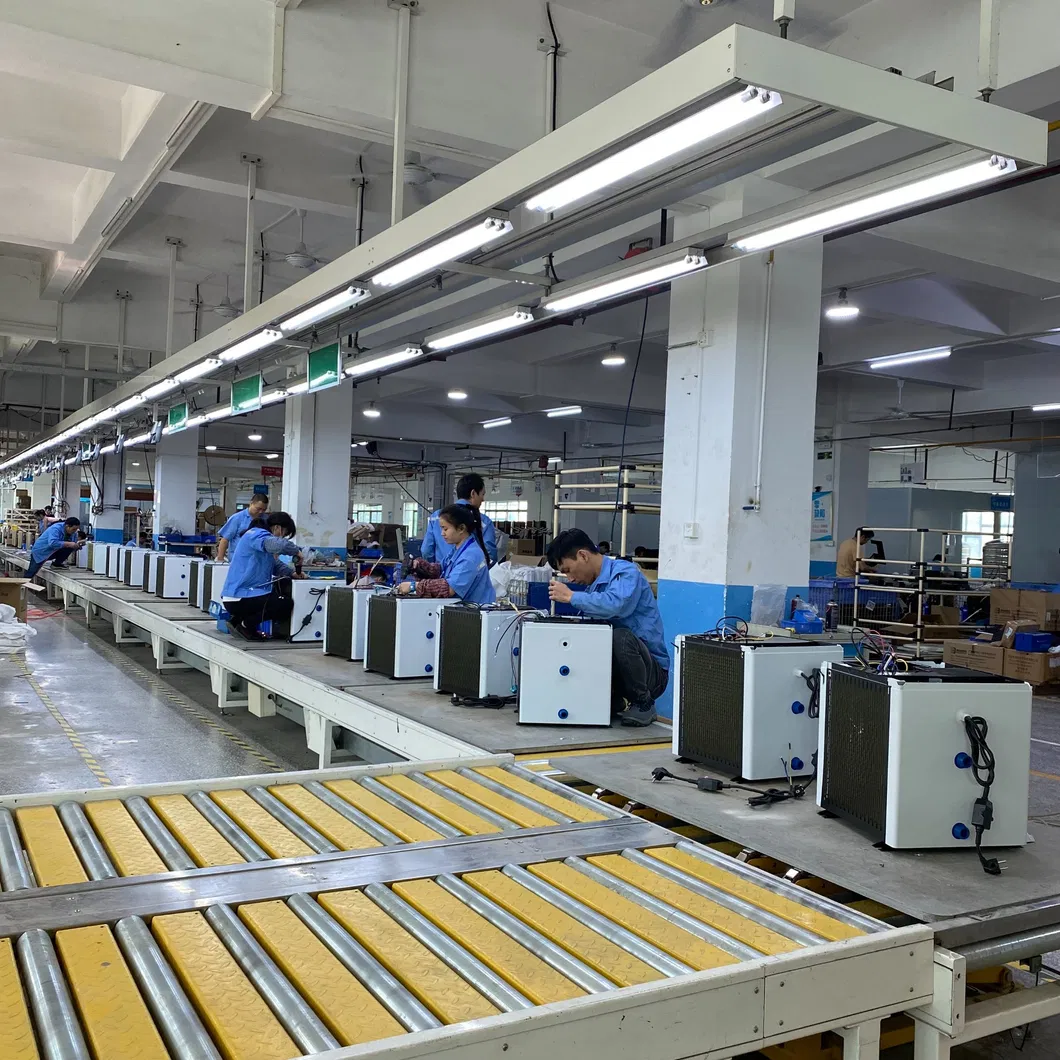

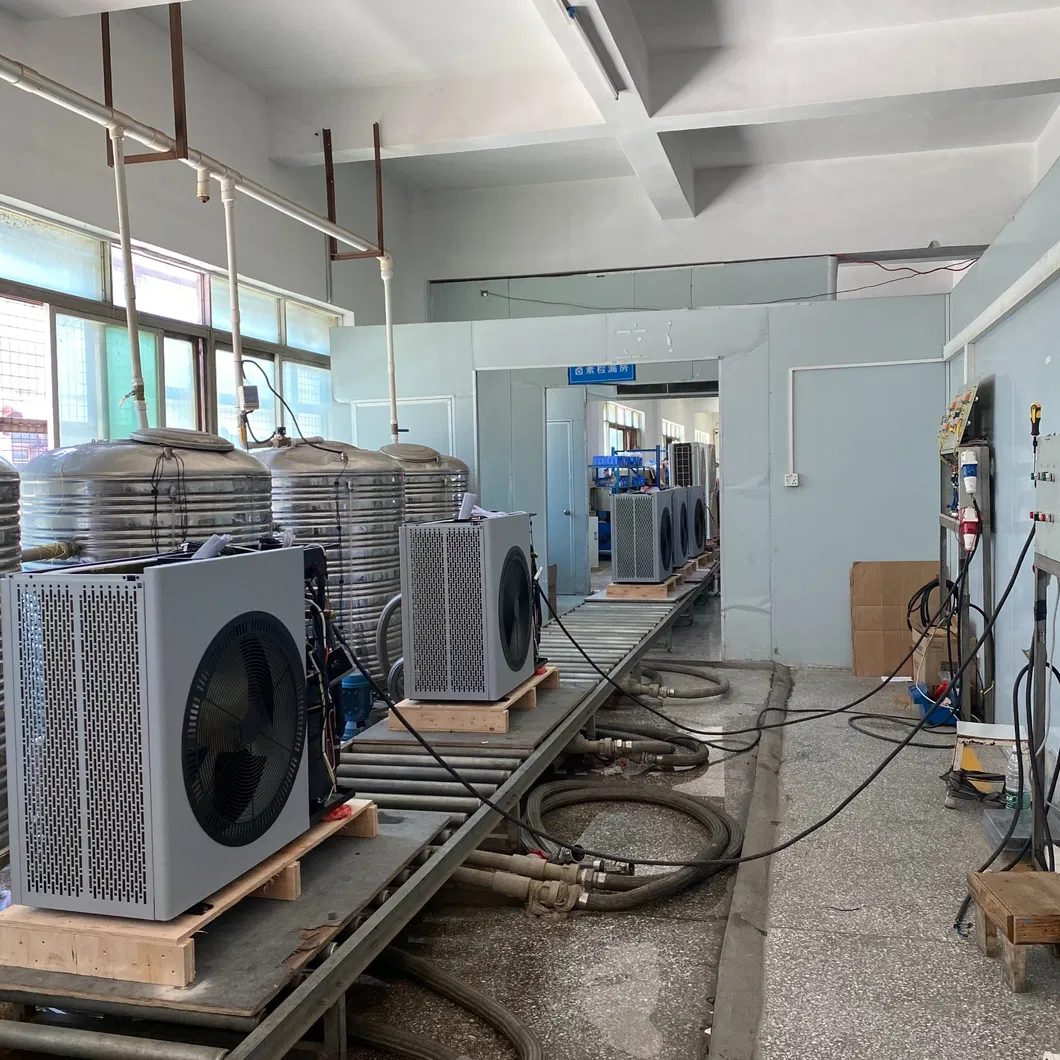

The facility maintains a strong R&D structure with senior engineers and over 500 experienced production staff. Holding over 80 patents, the units are ISO 9001, CE, and ERP certified. We are dedicated to repayment through quality and service.
