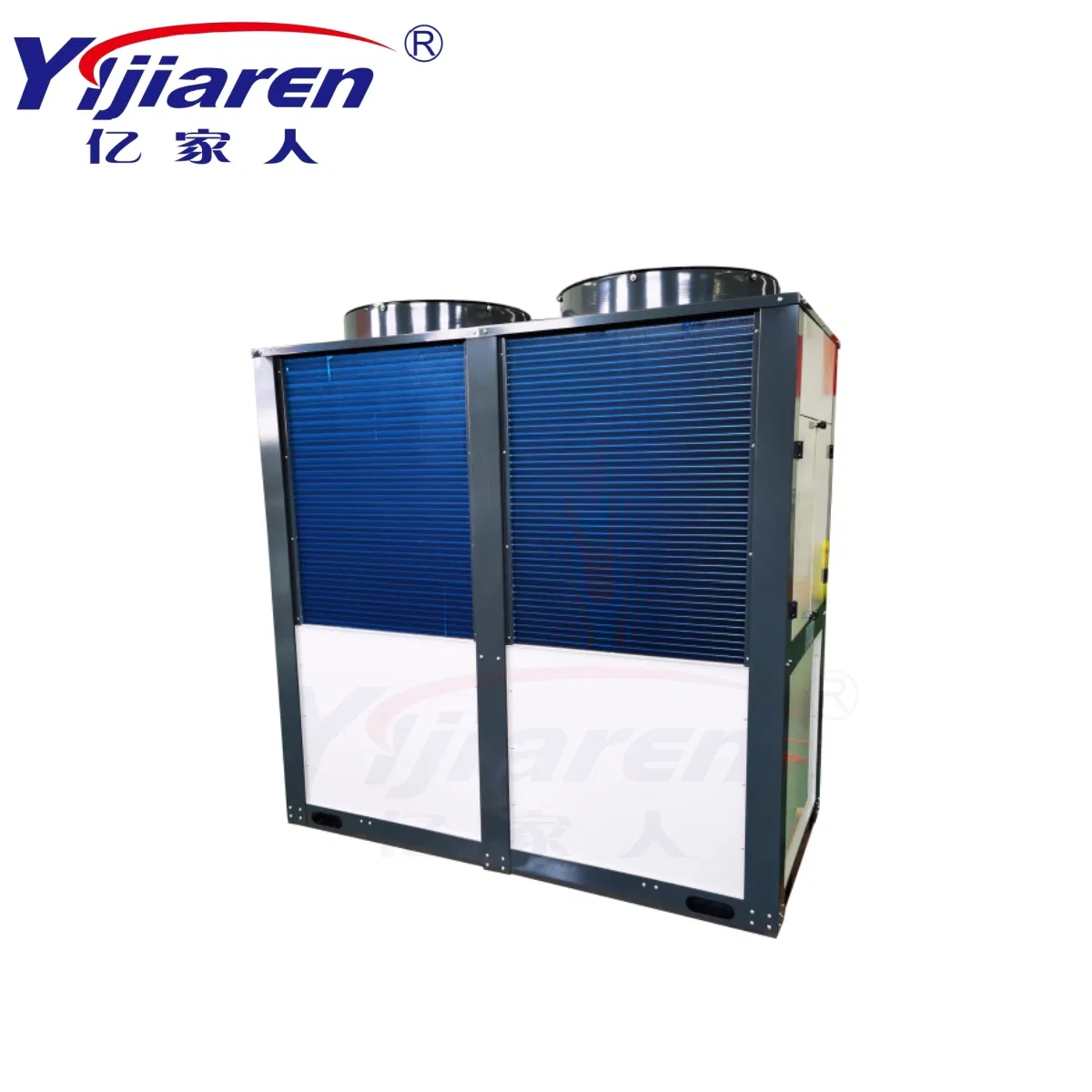

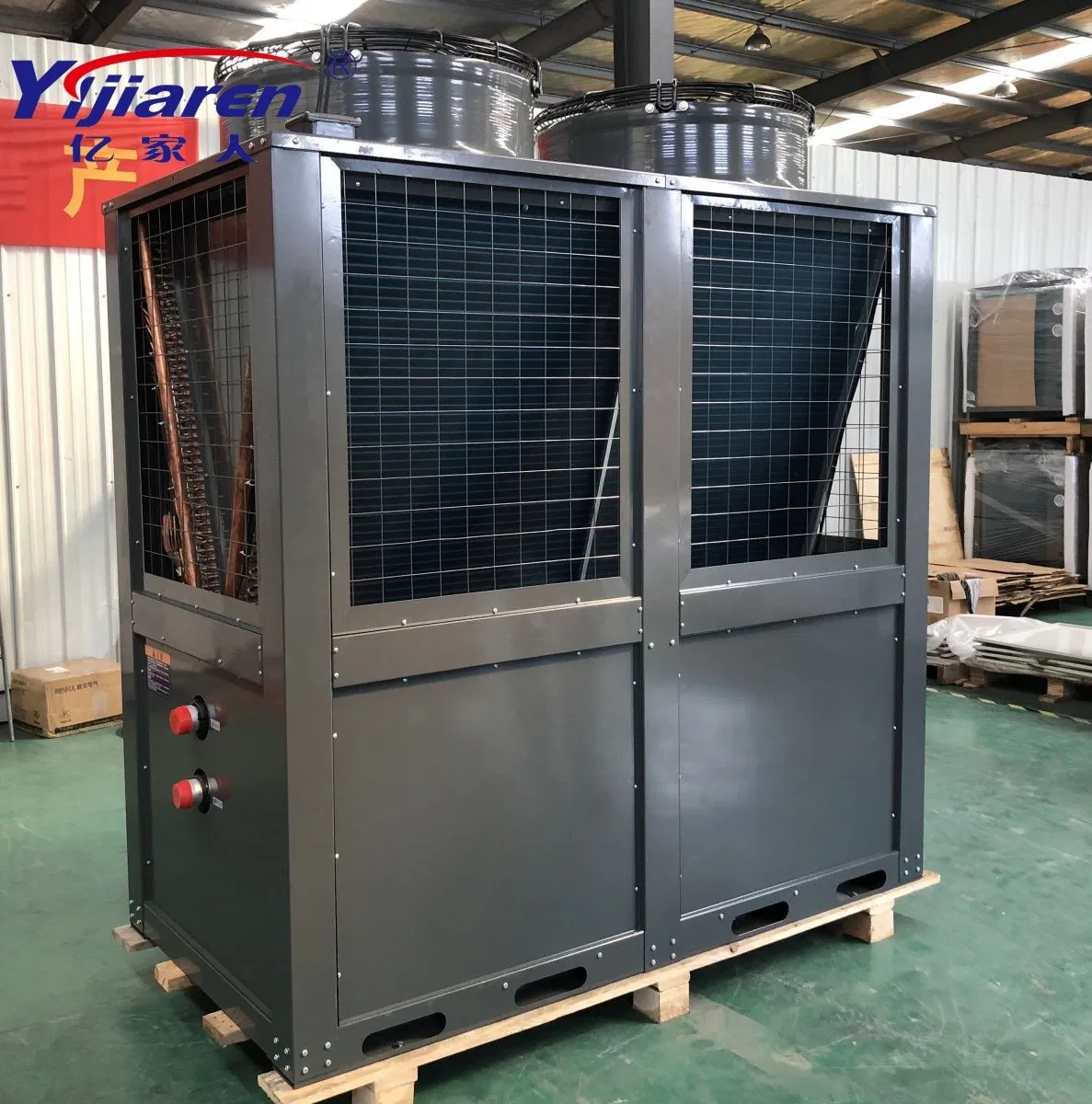

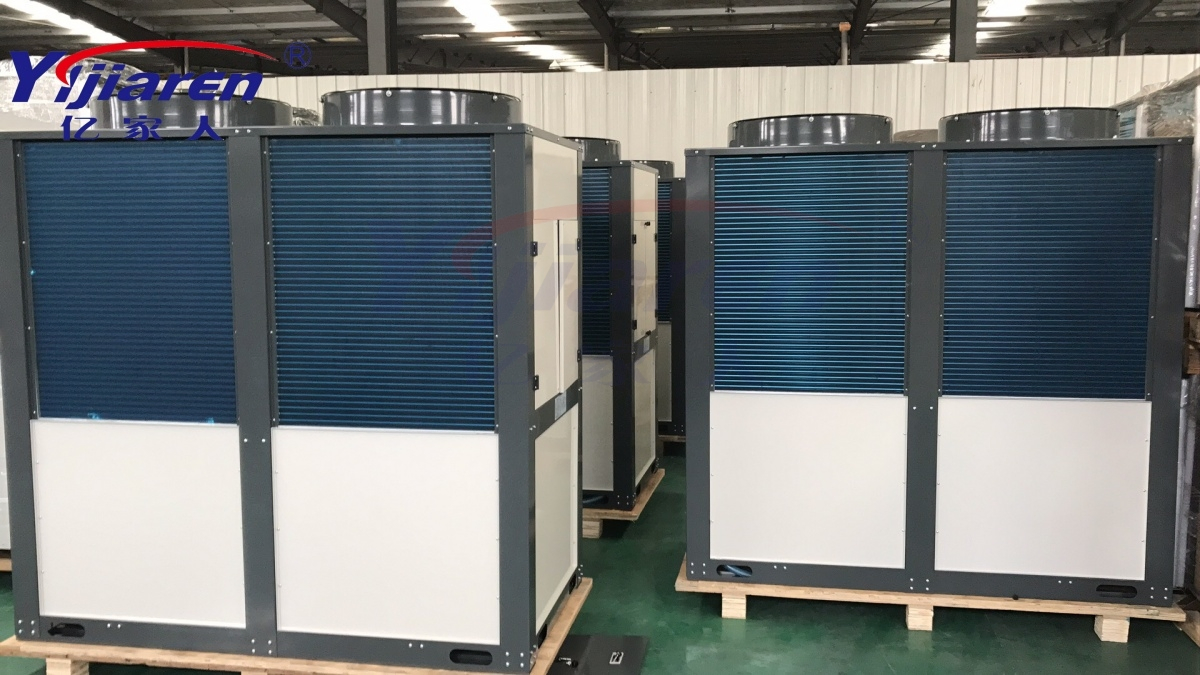

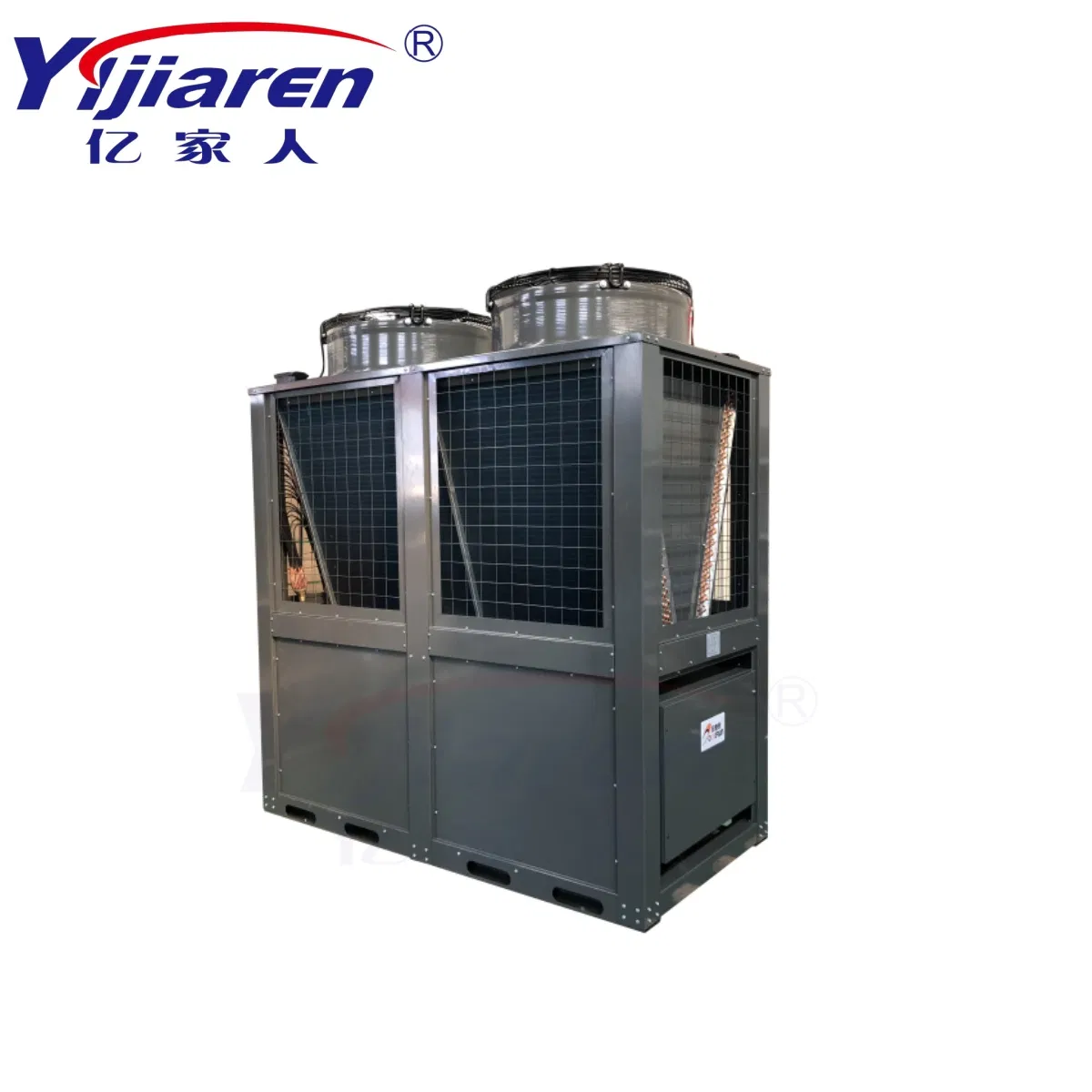

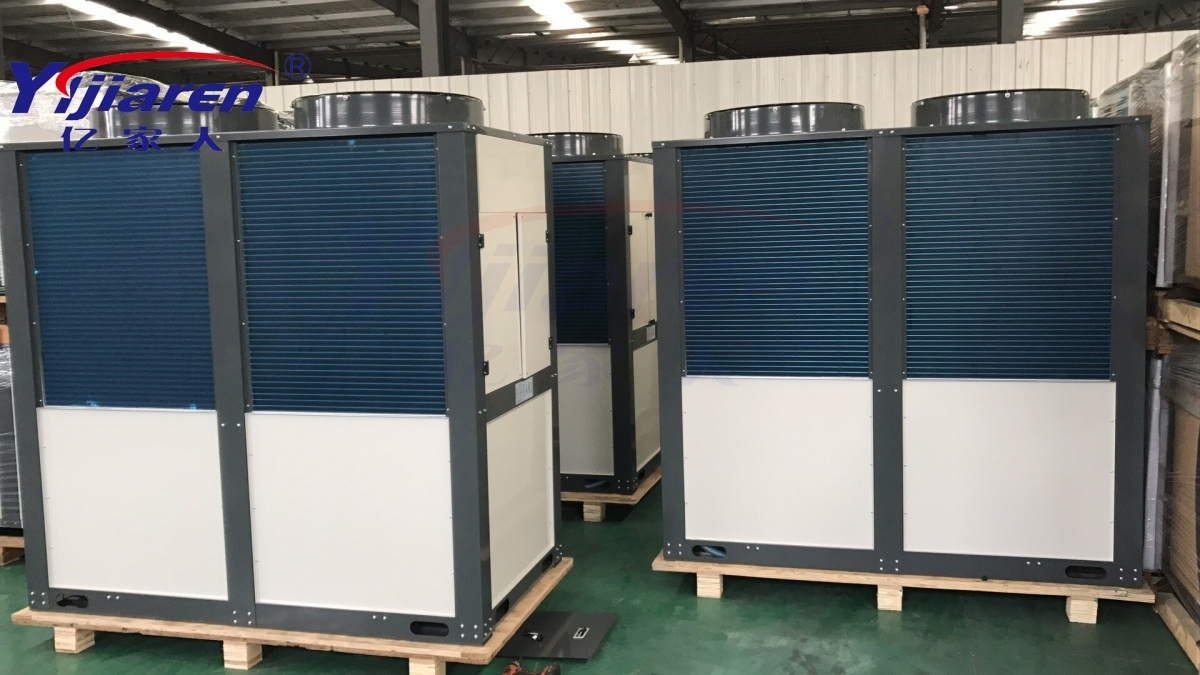

This professional commercial heat pump is designed for swimming pool cooling, heating, and dehumidifying. Utilizing advanced air source technology, it provides an energy-efficient and eco-friendly solution for commercial facilities such as hotels and fitness clubs.
| Model | YJR-C-05HP | YJR-C-10HP-B | YJR-C-15HP-B | YJR-C-20HP | YJR-C-30HP |
|---|---|---|---|---|---|
| Heating Capacity (kw) | 22 | 40 | 60 | 80 | 116 |
| Water Production (L/h) | 472 | 856 | 1289 | 1715 | 2494 |
| Rated Power (kw) | 4.58 | 8.85 | 13.64 | 18.2 | 27.6 |
| COP | 4.8 | 4.52 | 4.39 | 4.4 | 4.21 |
| Rated Current (A) | 7.6 | 14.5 | 25.7 | 31.6 | 43.6 |
| Compressor Qty | 1 | 2 | 2 | 4 | 4 |
Using famous brand ZW series scroll compressors with mature technology. Optimized design improves heating capacity and ensures a long service life.
Internally threaded copper casing with hydrophilic aluminum foil. Rapid discharge of condensation water prevents frosting and ensures uniform heat exchange.
Coaxial spiral heat exchange technology with no solder joints inside. Corrosion-resistant design avoids water scale and improves energy efficiency ratio.
Utilizes top-brand electronic expansion valves for automatic adjustment, ensuring stable operation even in cold winter conditions.
New three-dimensional design turbine fan. High torque and low speed operation reduce noise while automatically adjusting to ambient temperatures.
