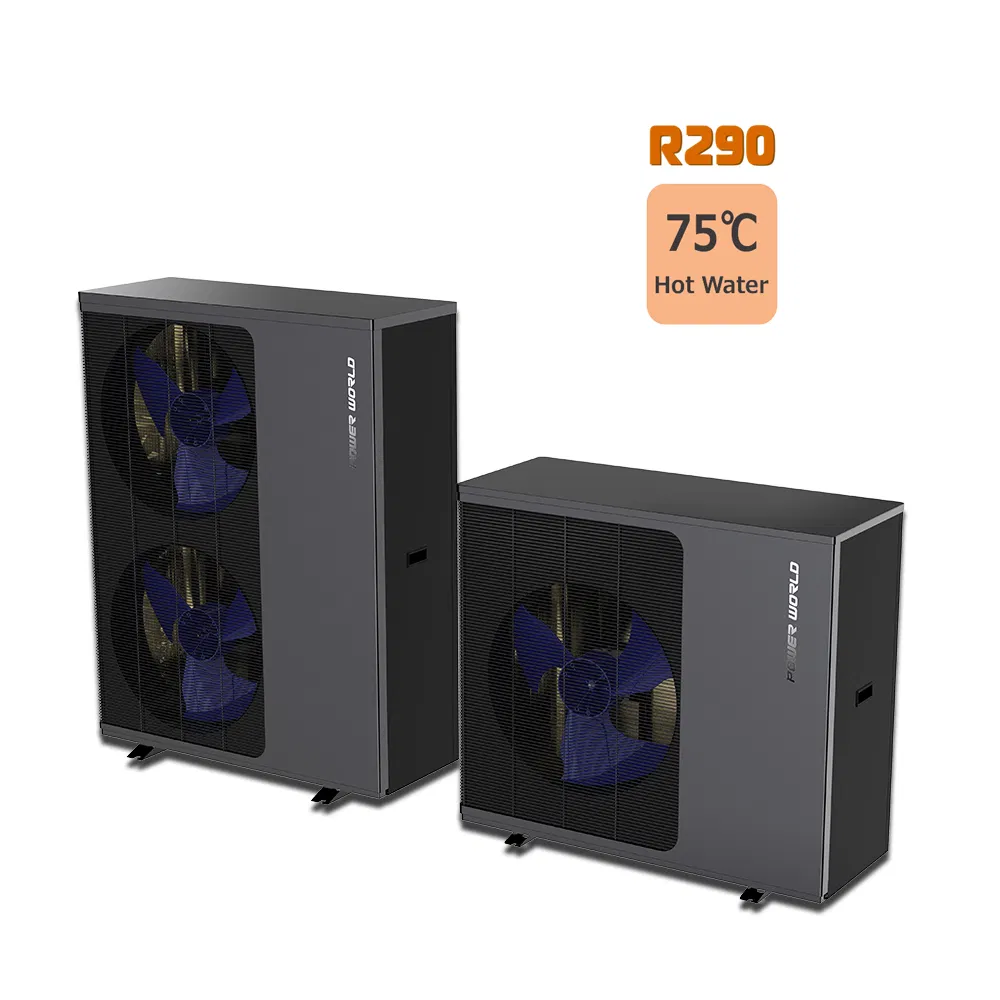

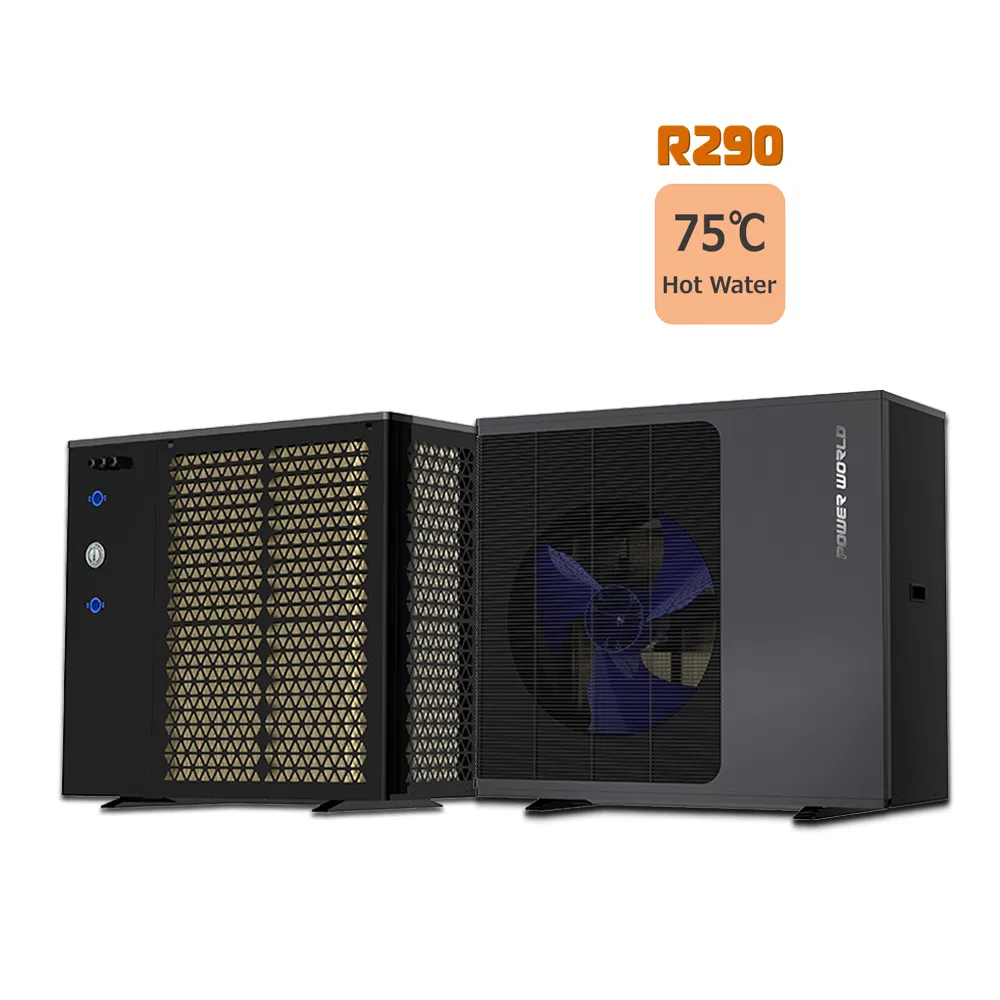

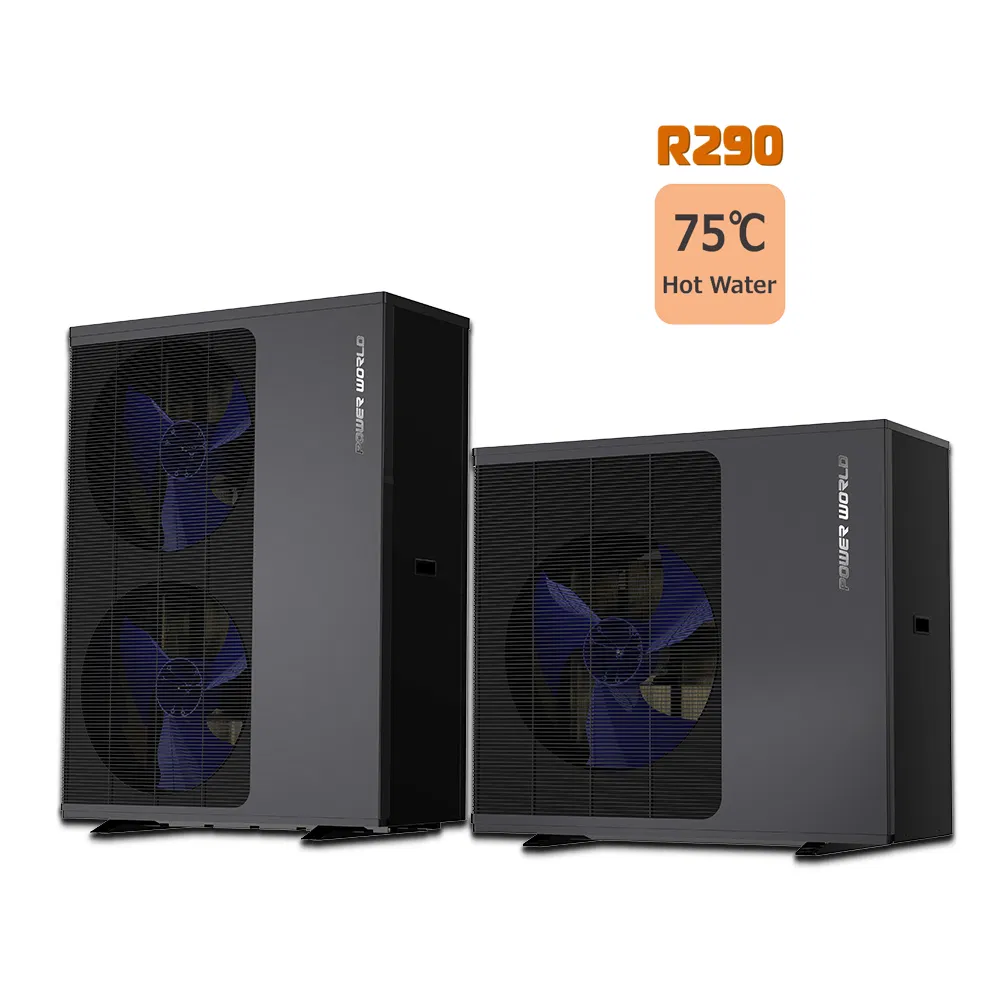

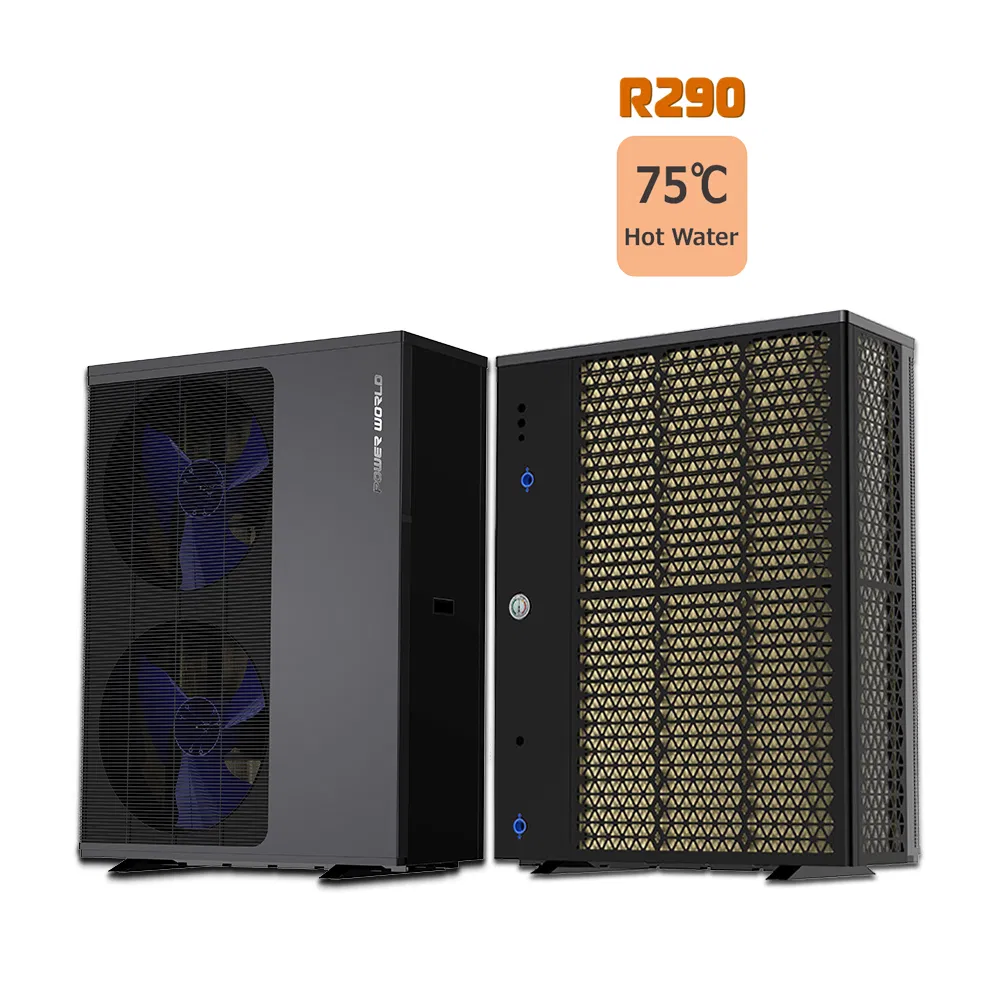

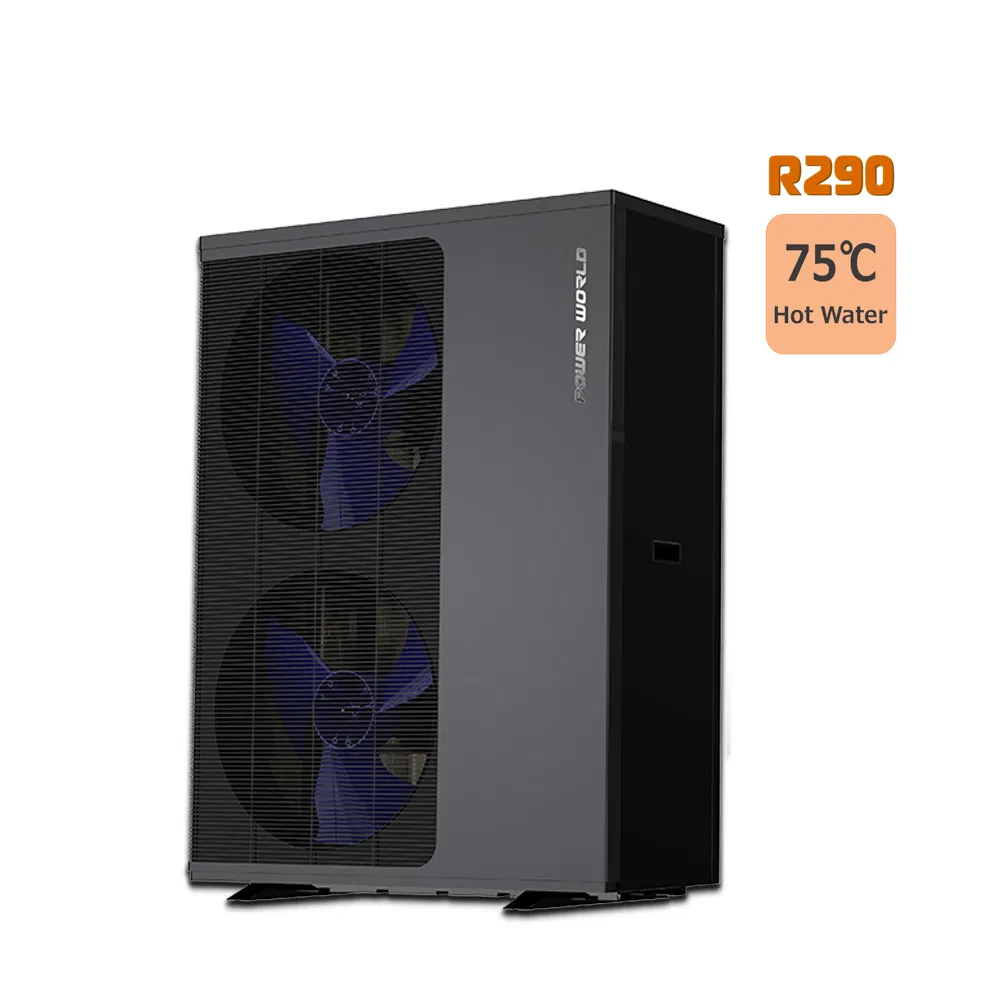

To reduce carbon emissions to the environment and curb global warming, the R290 Full DC Inverter Heat Pump has been developed. Compared to R410A (GWP of 2100) and R32 (GWP of 675), R290 has a GWP of less than 20 and is recognized as the most eco-friendly refrigerant.

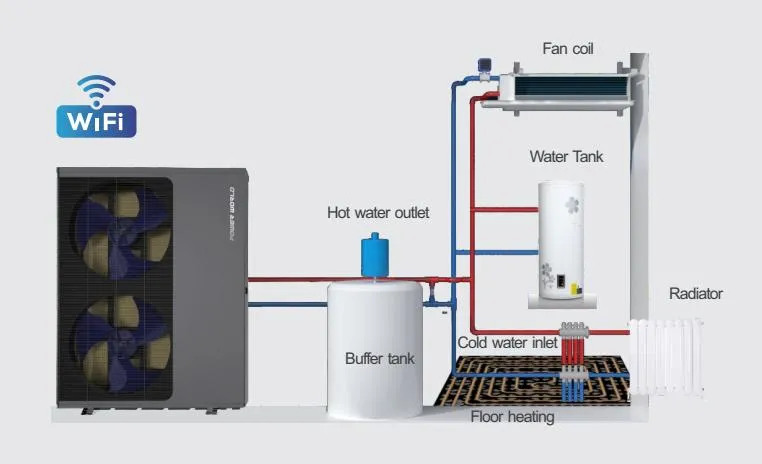

The perfect performance of the R290 FULL DC INVERTER Heat Pump meets needs for house heating, cooling, and domestic hot water (DHW) throughout the year via 3-way valve:
The unit can operate stably and efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water to ensure house heating needs.
Full DC inverter technology allows the unit to intelligently adjust operating frequency. Save up to 50% energy compared to ON-OFF units and up to 75% compared to traditional electric boilers.

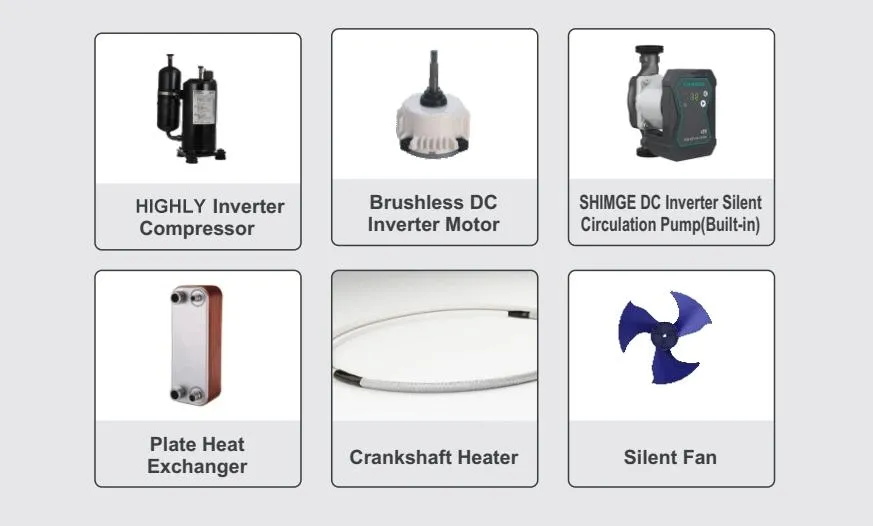

Core Components: DC Inverter Panasonic Compressor, Stepless DC Inverter Fan Motor, DC Inverter Water Circulation Pump.

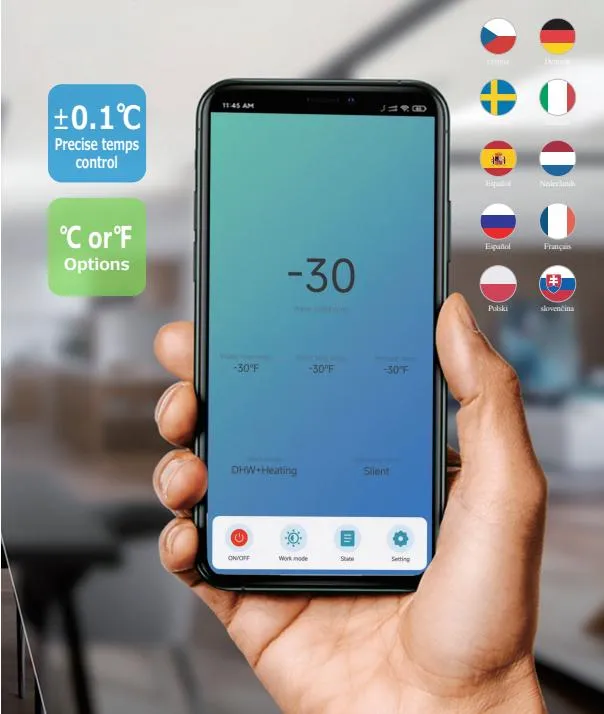

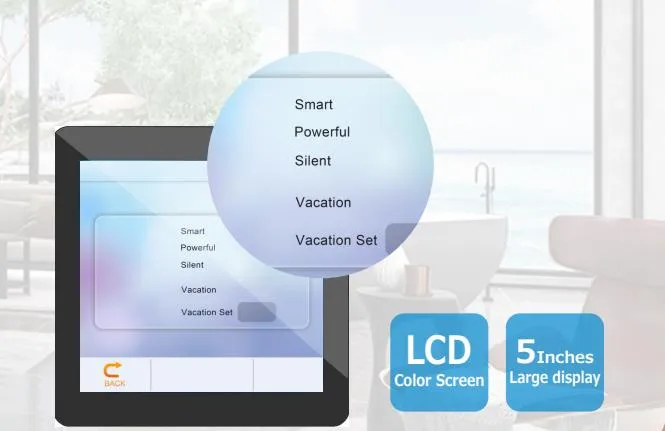

5-Inches large LCD touch screen and "Smart Life" Wi-Fi App support local languages + English, reducing language barriers for users and distributors.
Powerful Mode, Smart Mode, Silent Mode, and Vacation Mode help users optimize performance based on actual needs and save on electricity bills.
Energy efficiency grade reaches A+++ at both 35°C and 55°C water temperatures. SCOP as high as 4.86 ensures perfect performance.
Special three-layer sound insulation cotton combined with noise reduction technology ensures smooth, quiet operation without mechanical noise.

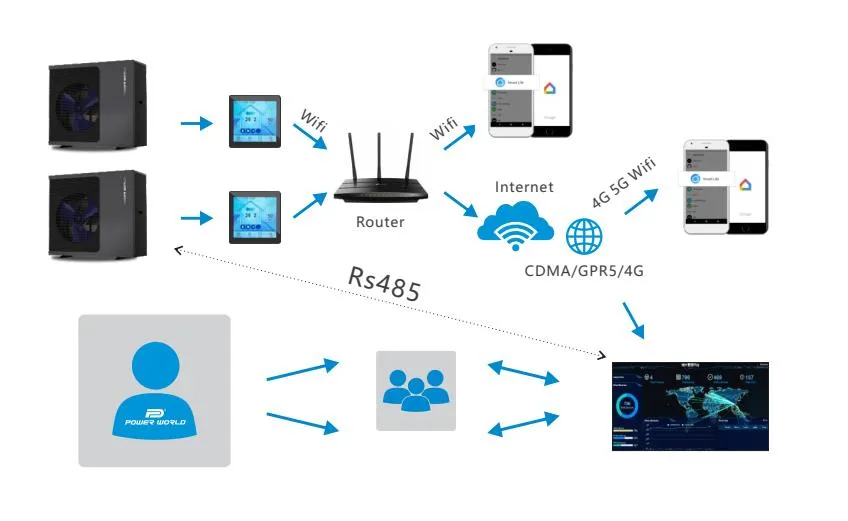

Remote monitoring via Wi-Fi or DUT allows for recording operating parameters. In case of an error, reports synchronize to service providers for rapid solutions, saving time and costs.
| Model | PW030-D/S | PW040-D/S | PW050-D/S | PW040-D | PW050-D | PW060-D |
| Heating (Ambient 7/6ºC, Water 30/35ºC) | ||||||
| Capacity Range (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| Cooling (Ambient 35/24ºC, Water 12/7ºC) | ||||||
| Capacity Range (kW) | 2.1~5.8 | 2.9~8.2 | 4.5~12.8 | 2.9~8.2 | 4.5~12.8 | 5.4~15.3 |
| EER Range | 2.65~3.04 | 2.67~3.06 | 2.71~3.10 | 2.67~3.06 | 2.71~3.10 | 2.73~3.12 |
| General Specifications | ||||||
| Refrigerant | R290 | |||||
| ErP Level (35°C) | A+++ | |||||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤50 | ≤52 | ≤53 |
Established in 2004, this high-tech enterprise focuses on the research, development, production, and sales of air source heat pump products. With a complete industry chain, the product range includes swimming pool heat pumps, residential heating and cooling solutions, domestic hot water units, and industrial drying systems.
The company maintains a strong technical backbone with over 500 experienced personnel and 80 product patents. Certified with ISO 9001/14001, CE, CCC, and ERP, the products are exported to more than 60 countries including Sweden, Germany, France, and Spain.
