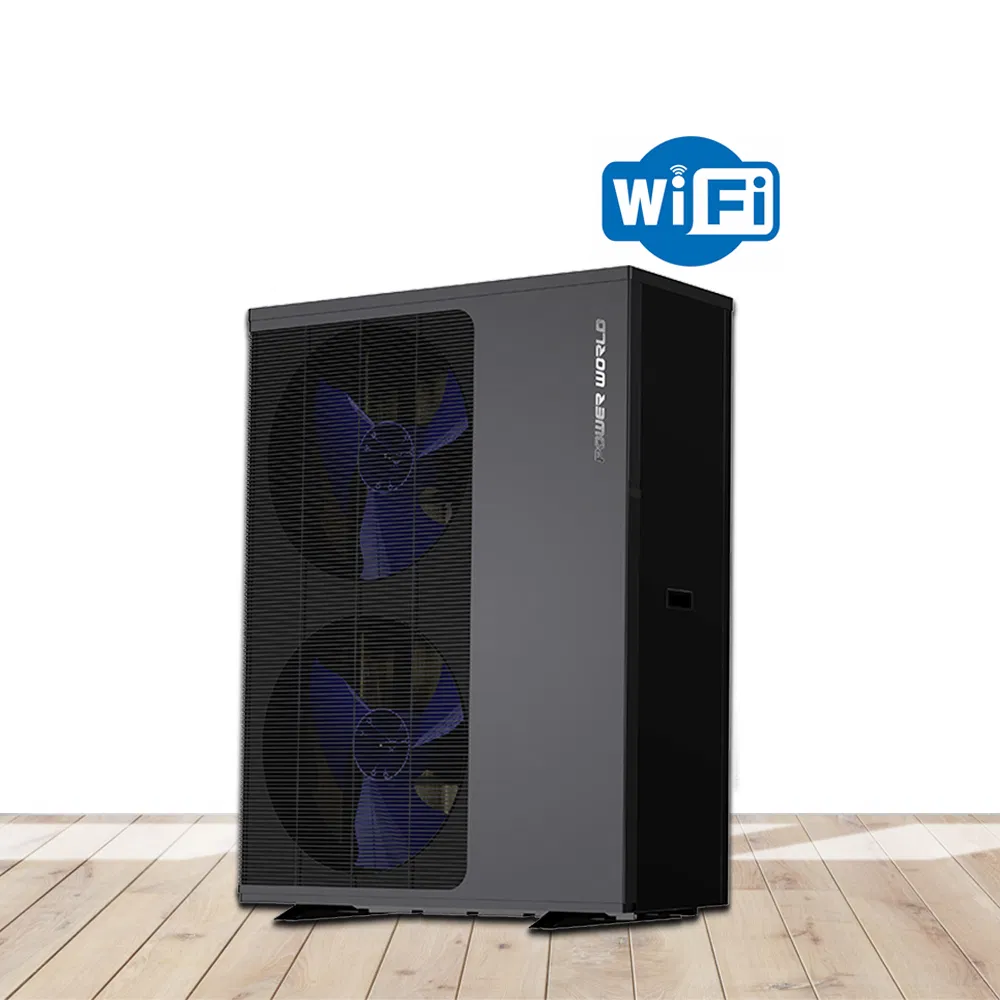

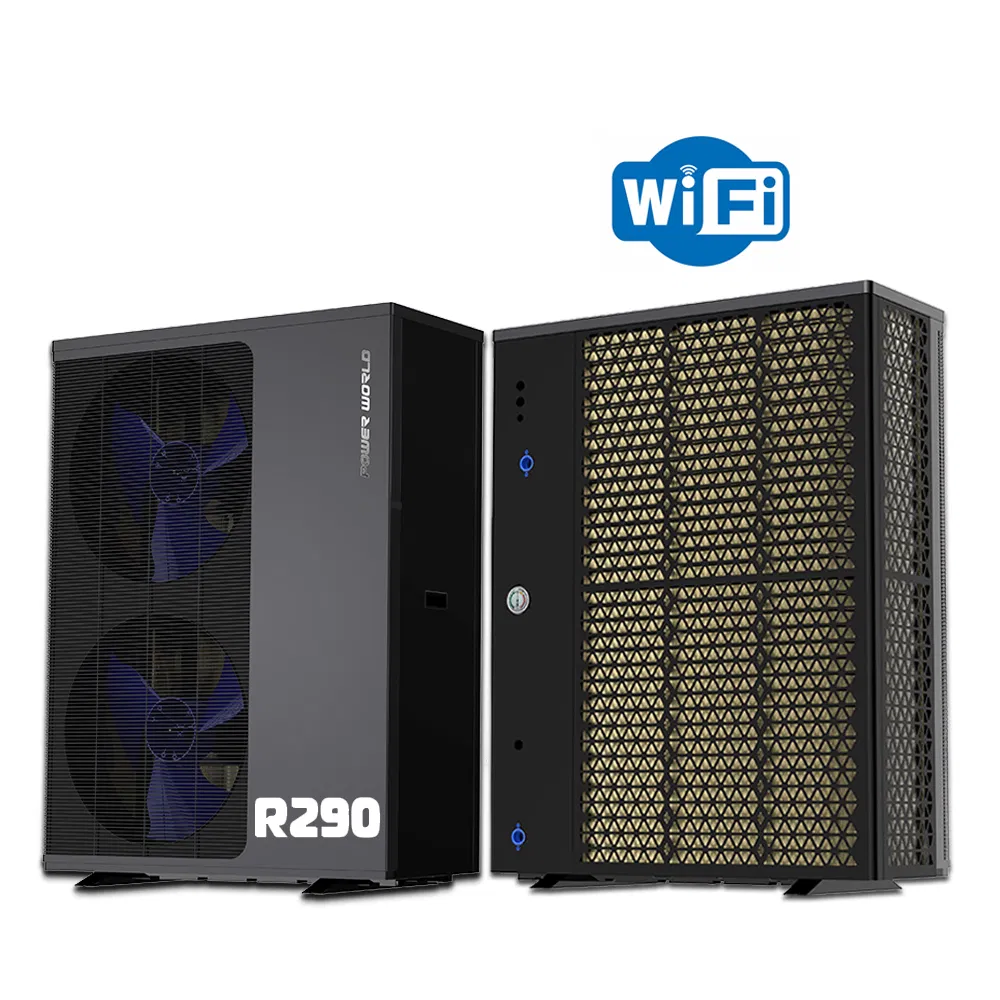

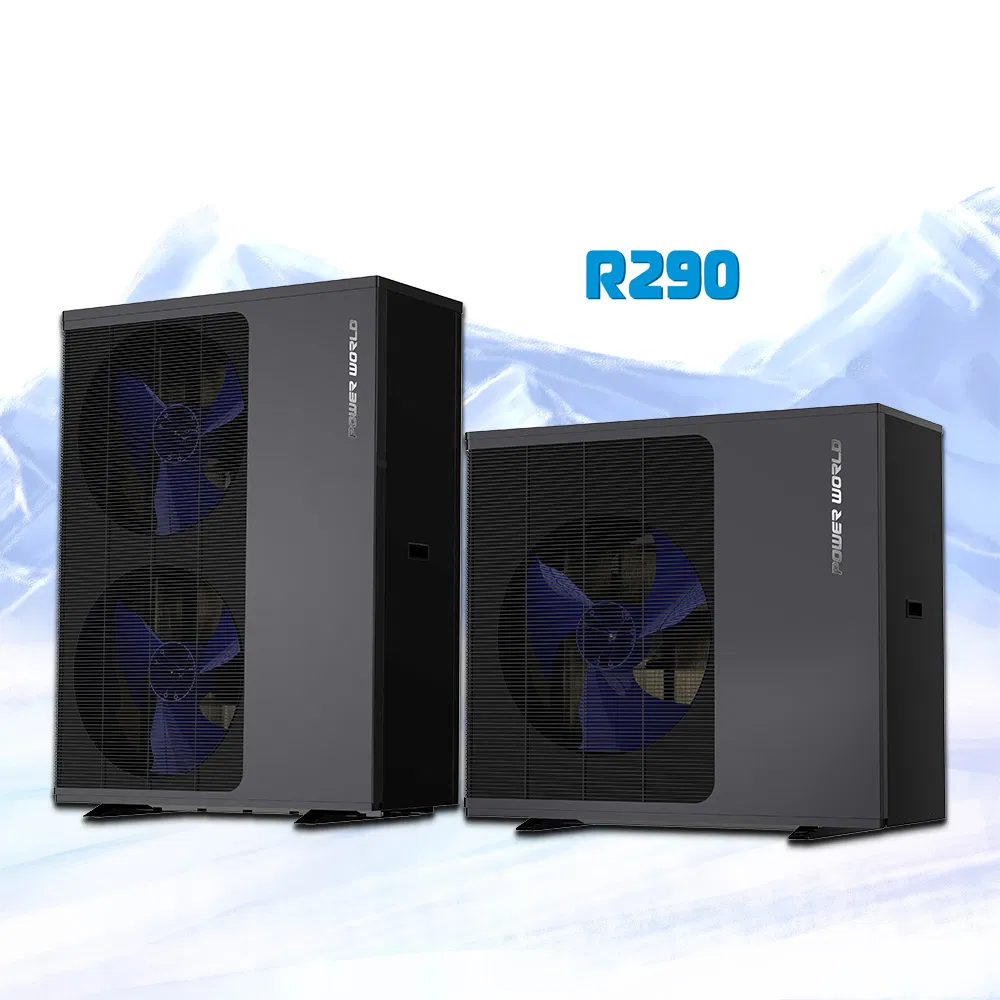

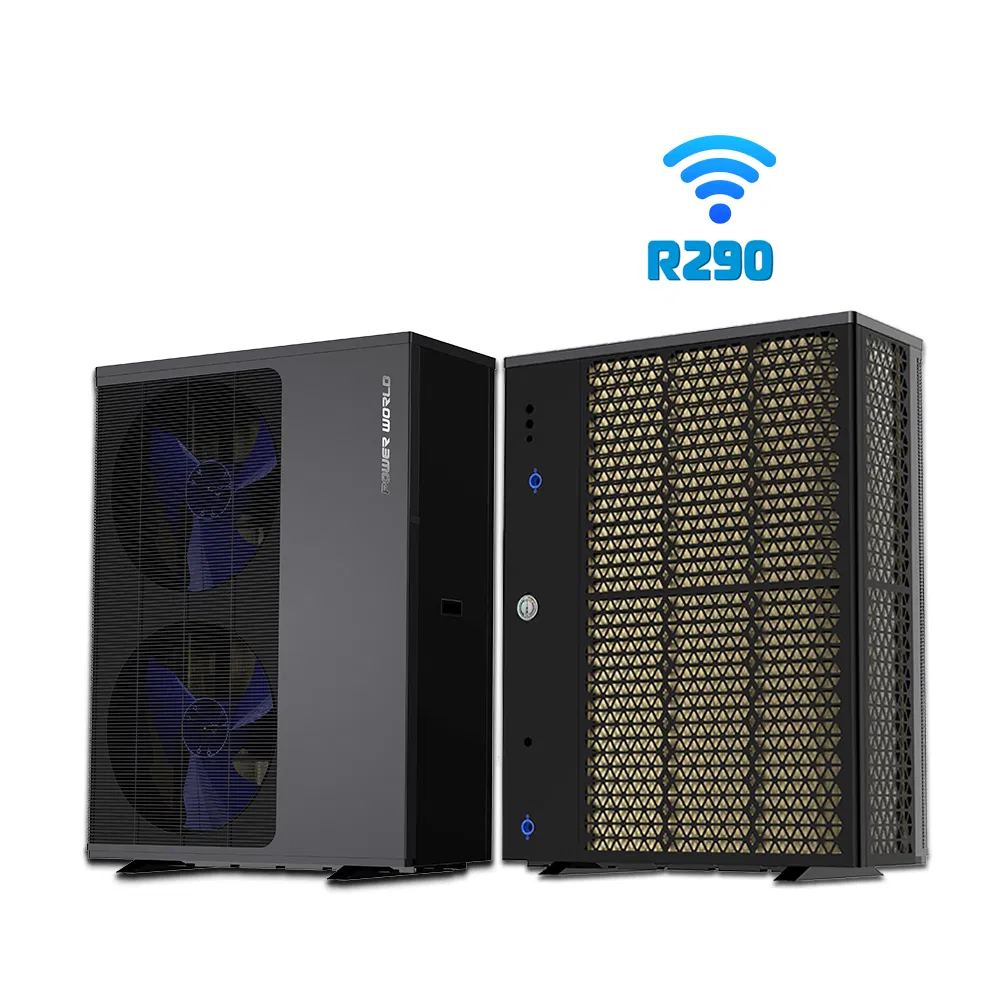

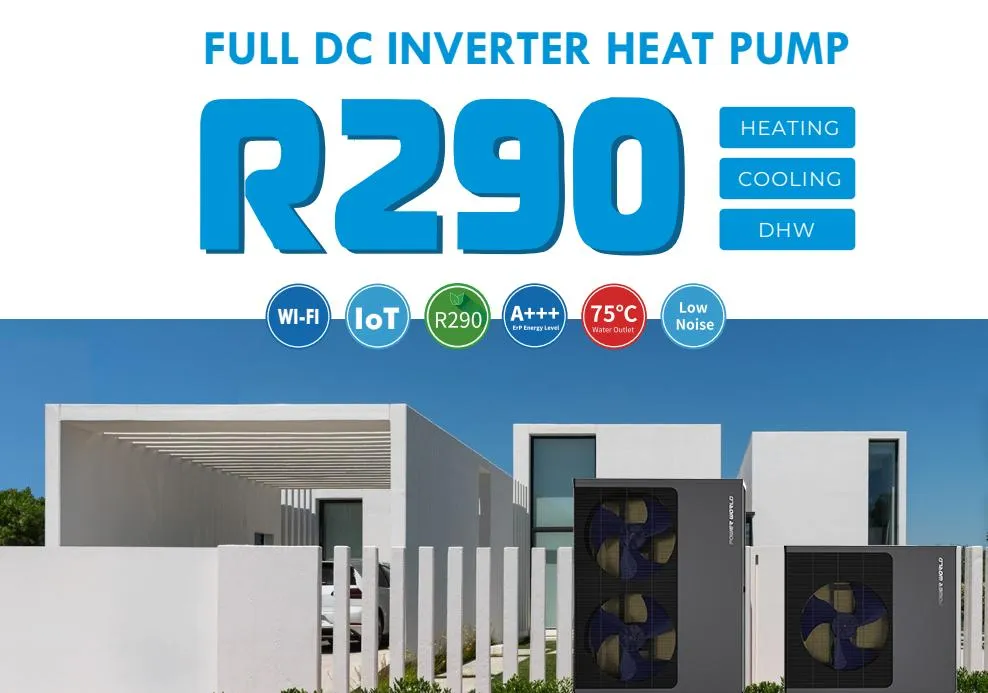

To reduce carbon emissions to the environment and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most development potential and eco-friendly refrigerant.

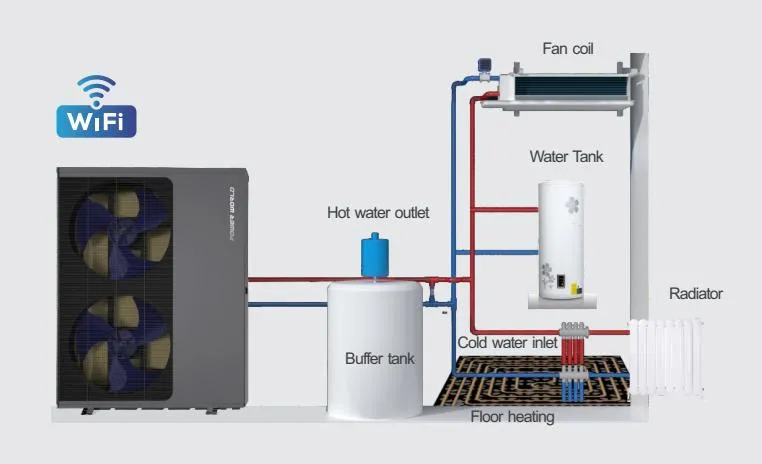

The perfect performance of the R290 FULL DC INVERTER Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year (by 3-way valve):
Under low ambient temperature, the performance of normal heat pumps will be limited. This R290 FULL DC INVERTER heat pump can operate stably and efficiently in extremely cold regions of -25ºC, maintaining a high COP and outputting 75ºC hot water.

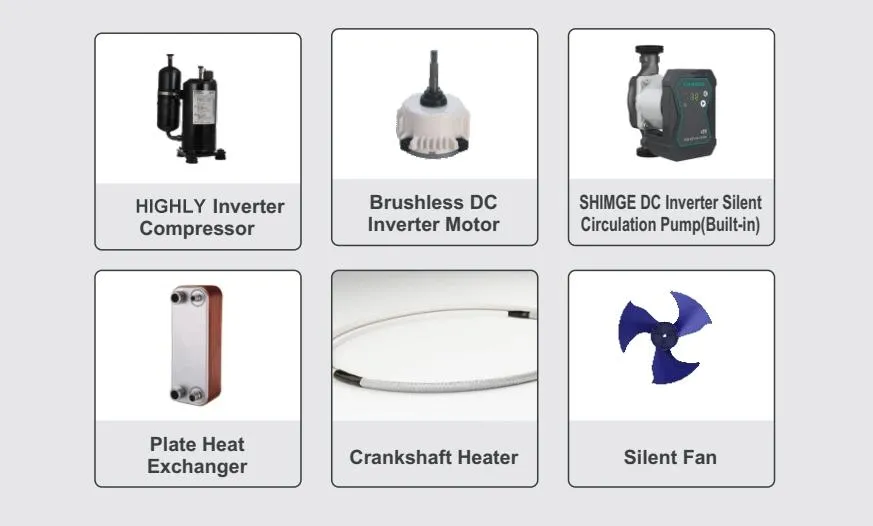

The Full DC inverter technology intelligently adjusts the operating frequency and controls the water temperature to keep the room at a constant temperature. It can save up to 50% energy compared to ON-OFF units and up to 75% energy compared to traditional boiler electric heat pumps.

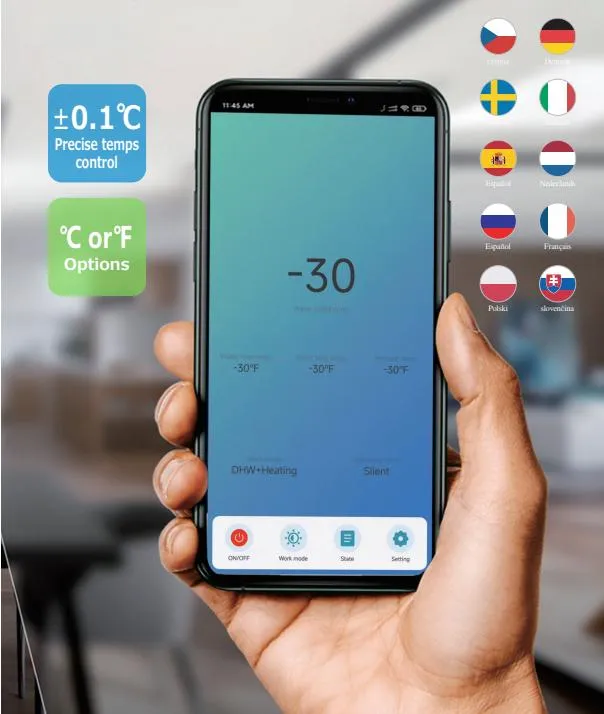

5-Inches large LCD touch screen control panel and "Smart Life" Wi-Fi App support local language + English options. This user-friendly design reduces foreign language dyslexia and facilitates market expansion.

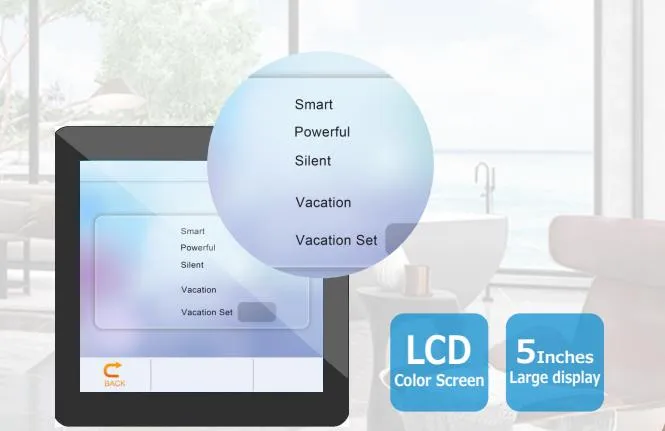

4 operating modes: Powerful Mode, Smart Mode, Silent Mode, Vacation Mode. Users can choose modes according to actual needs to save on electricity bills.

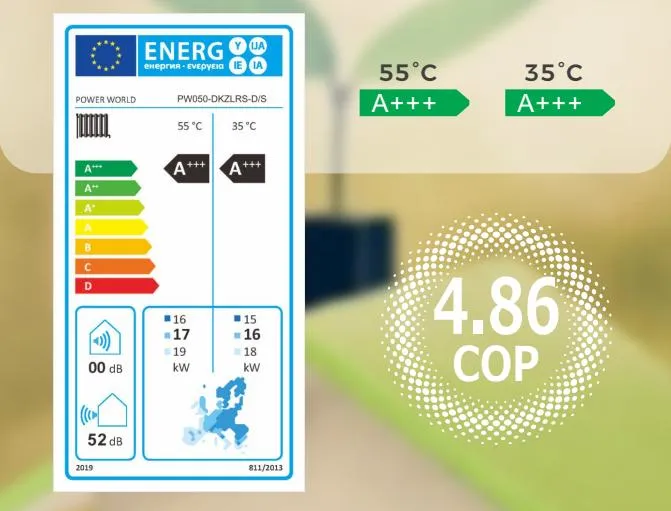

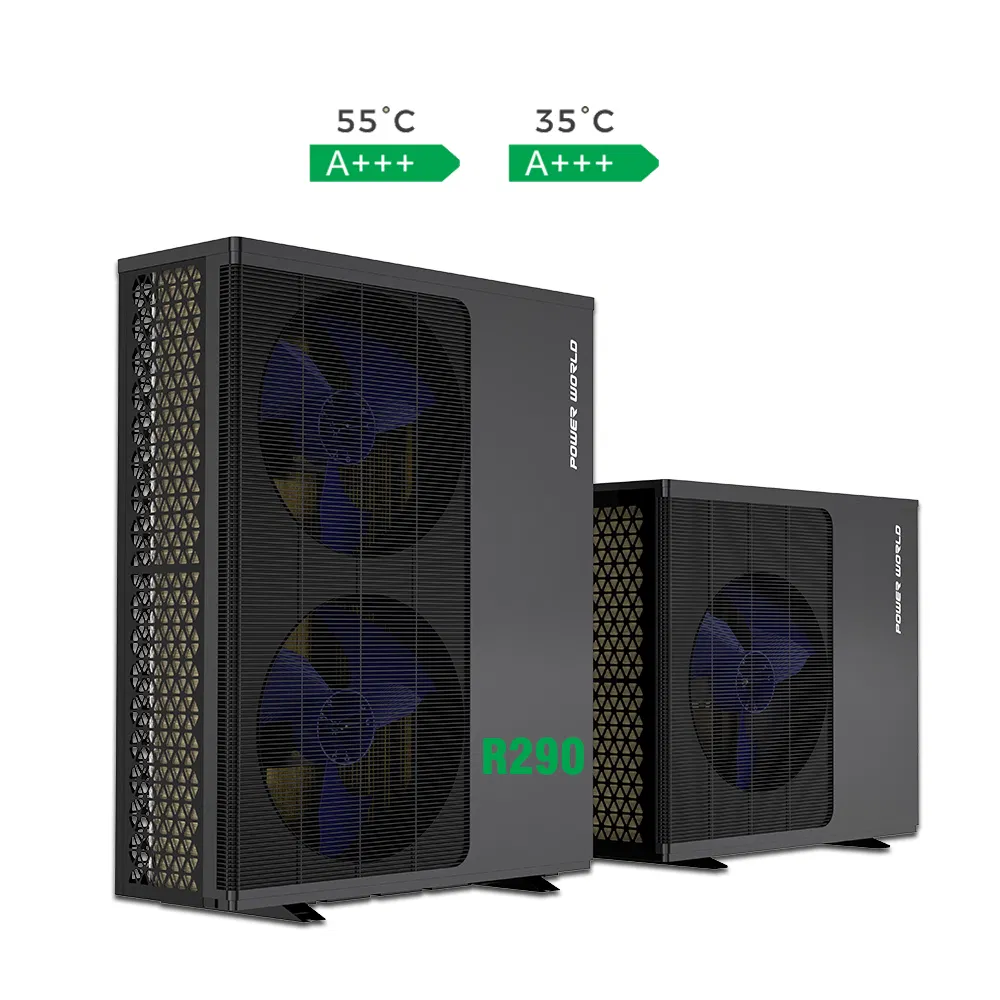

Passed the ERP A+++ energy class test. Energy efficiency grade reaches A+++ at both 35°C and 55°C. SCOP can be as high as 4.86.

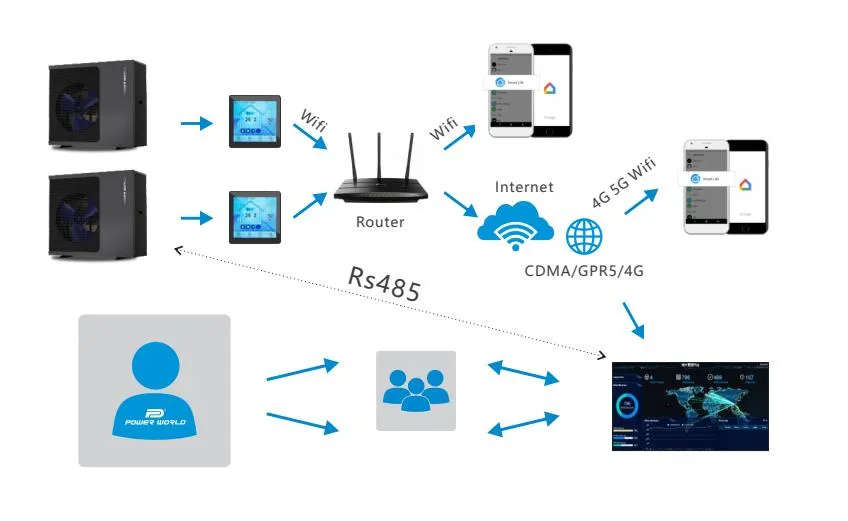

The IoT cloud management platform can be connected with Wi-Fi or DUT to realize remote monitoring. If an error occurs, the report is synchronized to the service provider for quick solutions, saving time and communication costs.
| Model | PW030-DKZLRS-D/S | PW040-DKZLRS-D/S | PW050-DKZLRS-D/S | PW060-DKZLRS-D |
|---|---|---|---|---|
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤53 |
| Net Weight (kg) | 105 | 115 | 160 | 165 |

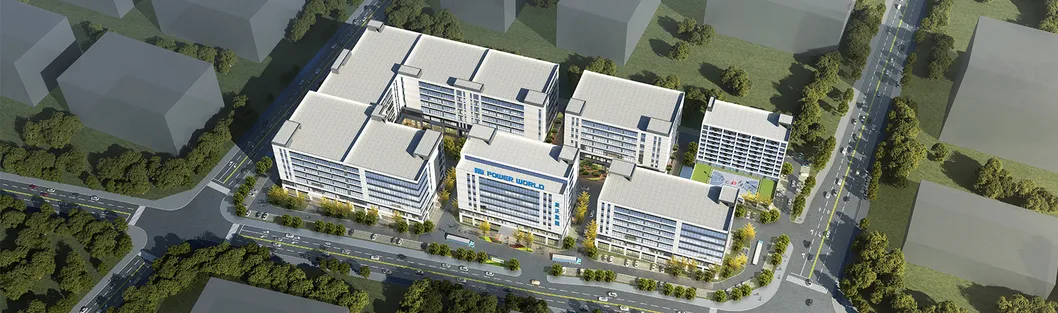

Established in 2004, the company is a high-tech enterprise focusing on the research, development, production and sales of air source heat pump products. With a complete heat pump industry chain, the products involve swimming pool heat pumps, residential heating and cooling, domestic hot water, and industrial solutions. The export volume of inverter heat pumps has consistently ranked among the top for many years.

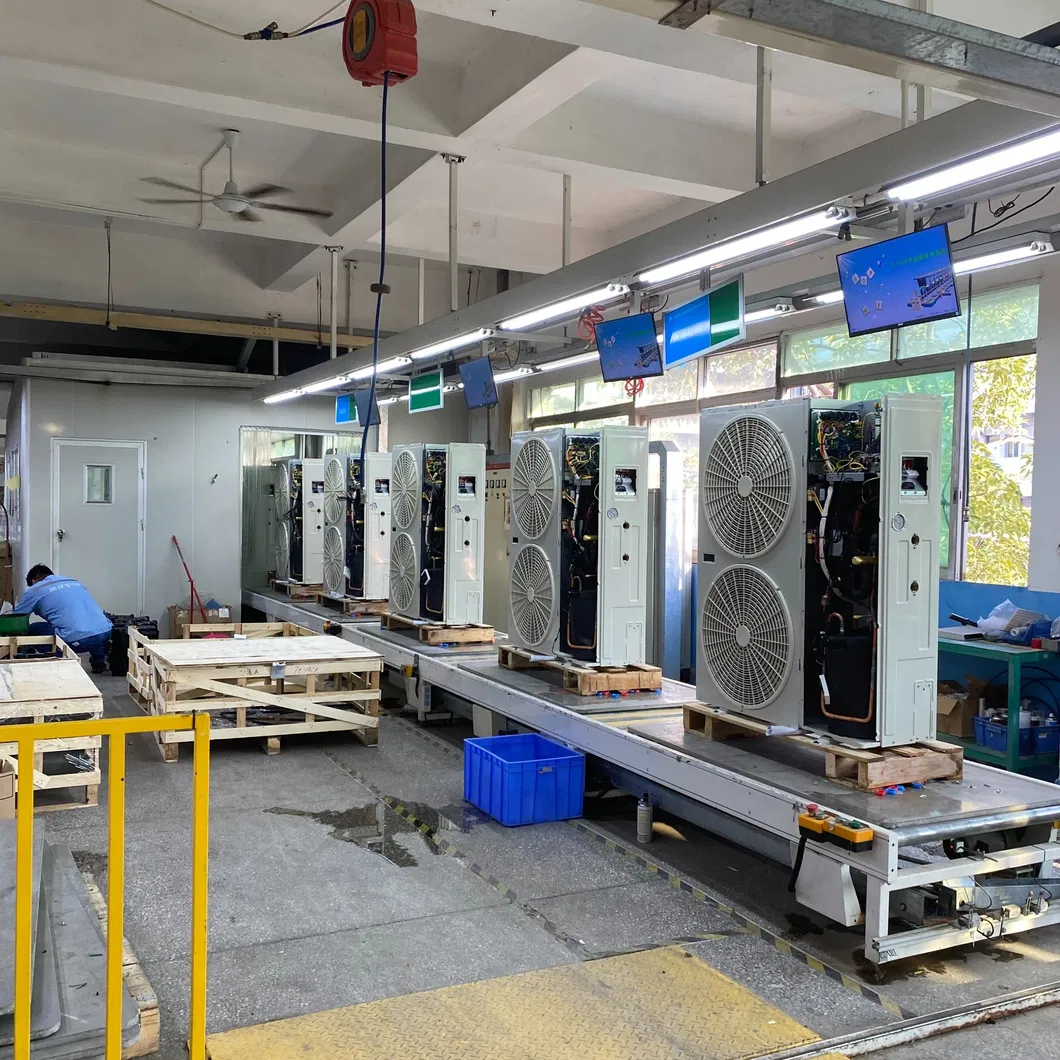

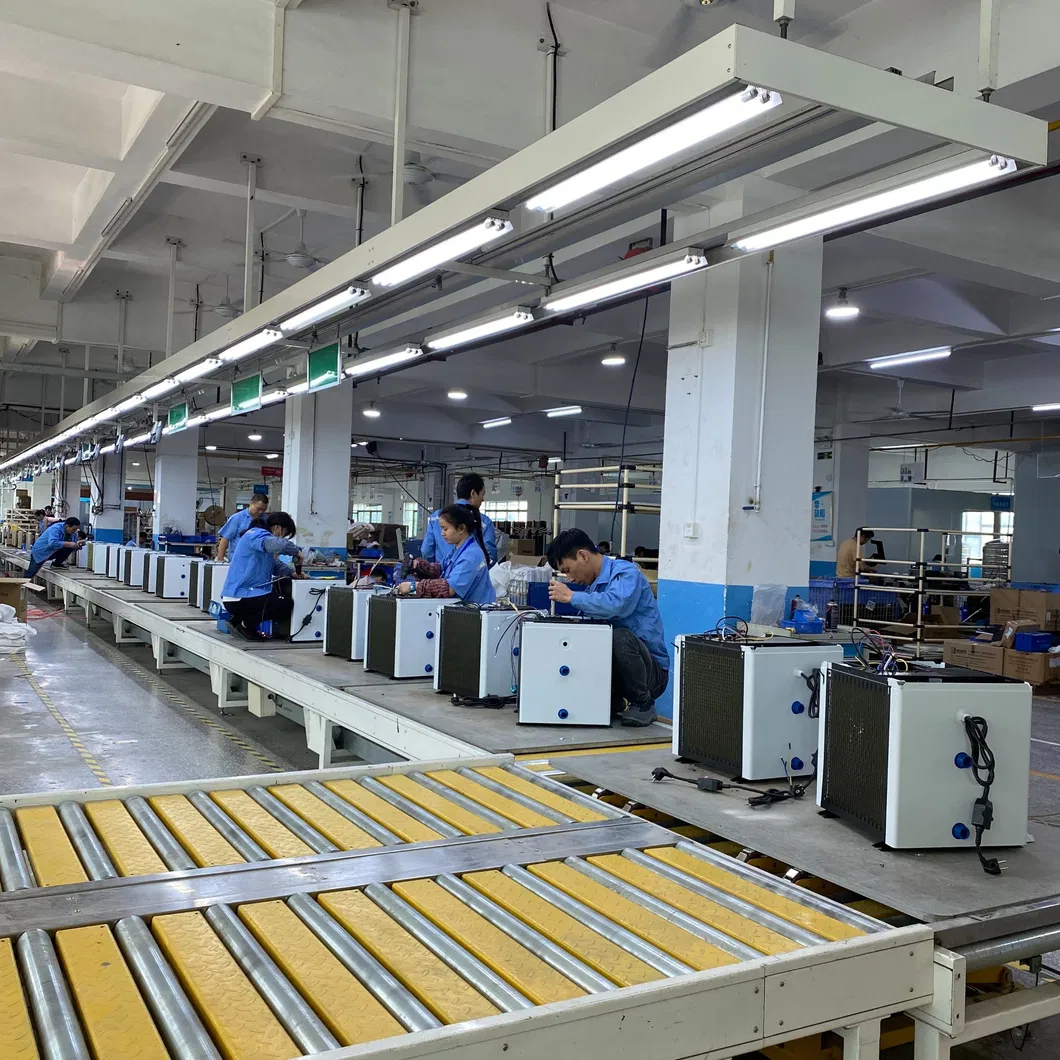

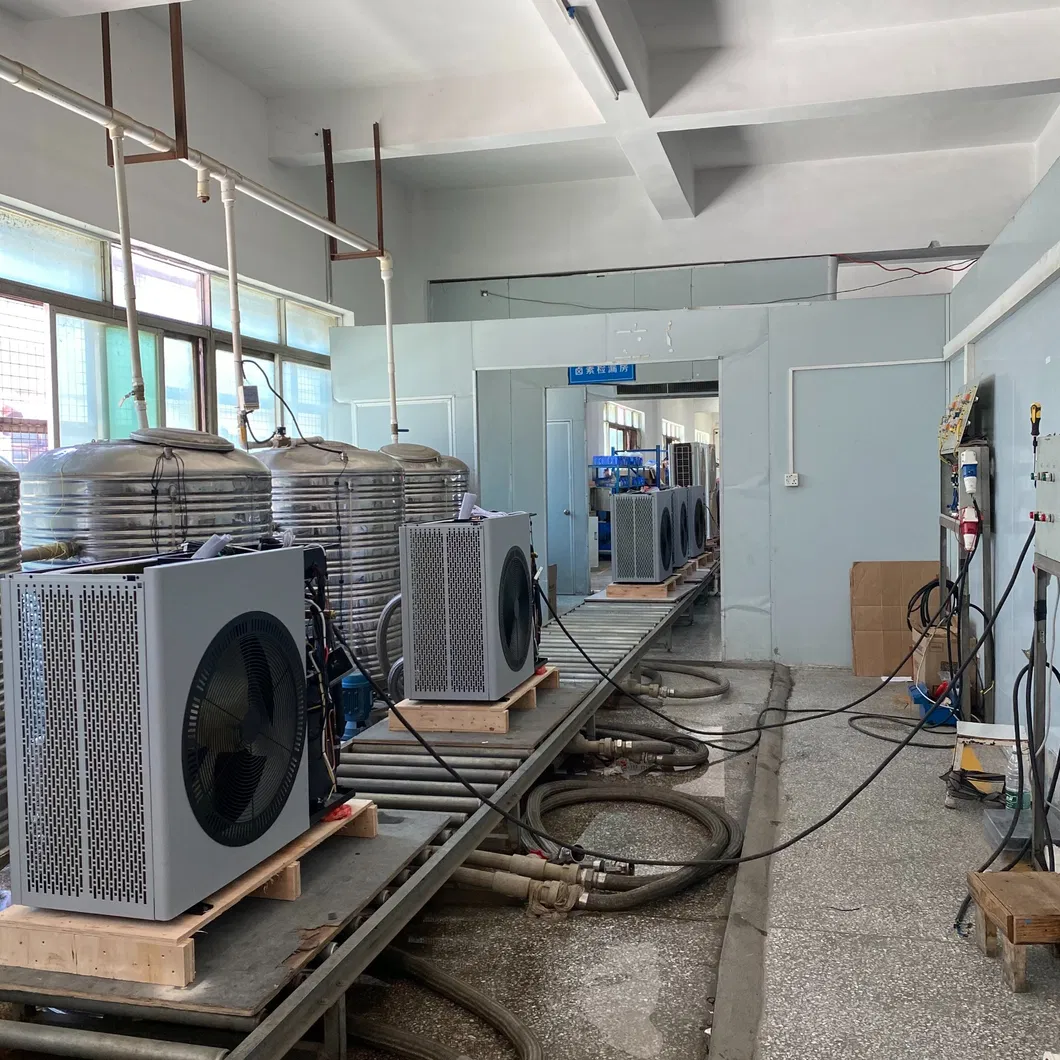

The company maintains a strong talent structure with senior engineers and over 500 experienced production personnel. Committed to technology R&D, it has obtained more than 80 product patents. Products are ISO 9001/ISO 14001, CE, CCC, and ERP certified.
