PeakWay Pump
1 / 5
| Model NO. | KAWM-ND2-WW1(GN) |
|---|---|
| Heat Source Type | Air Source Heat Pump |
| Function | House Heating Cooling Hot Water |
| Refrigerant | R290 |
| Heating Capacity | 6~16kw |
| Compressor | Evi DC Inverter Compressor |
| Ambient Temperature | Minus 30~43 Degree |
| Power Supply | 220-240V/50Hz/1pH |
| Max Water Temp | 24-85 degree |
| Noise | <66dB(a) |

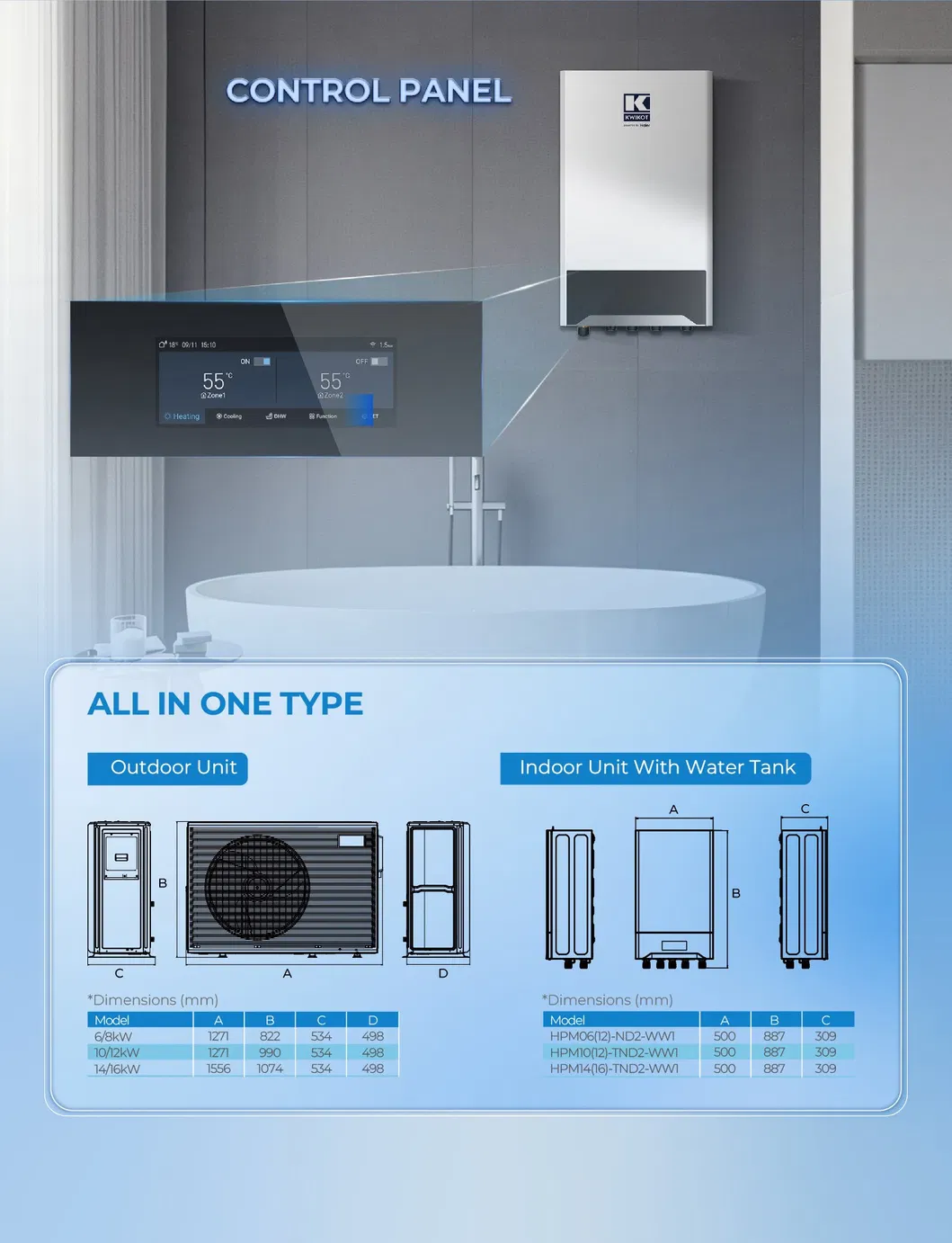

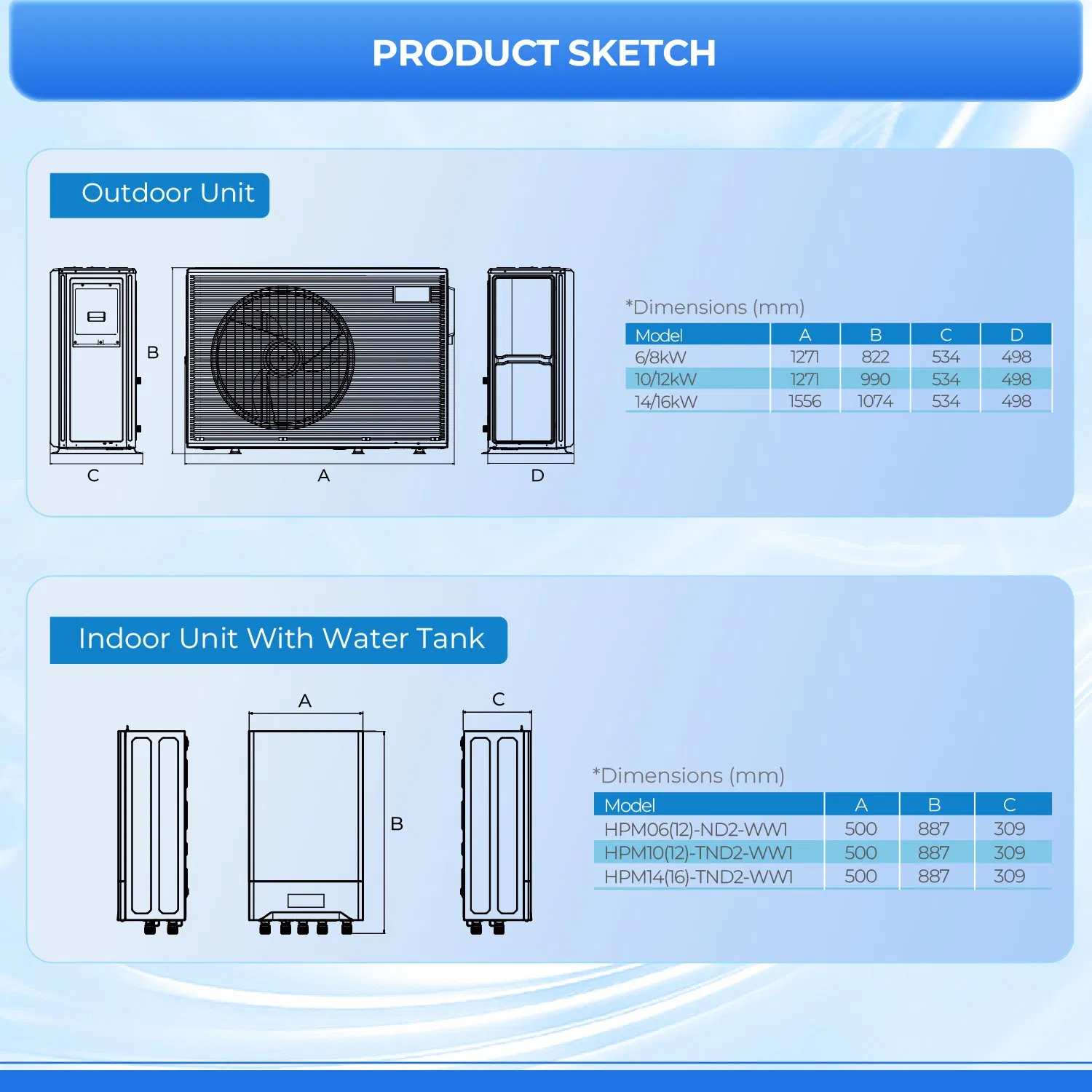

| Indoor Unit With Water Tank | |||

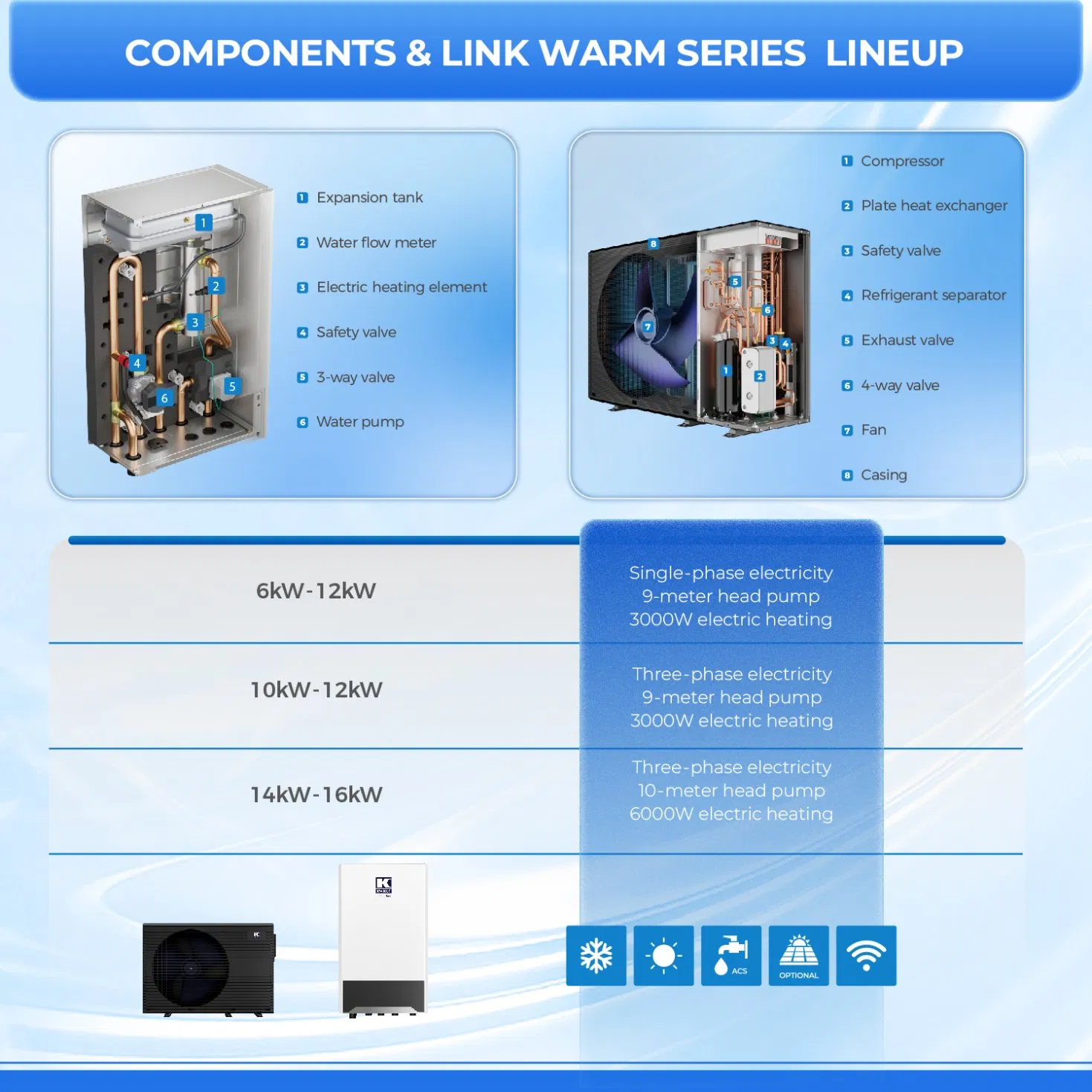

| Model | KAWM06(12)-ND2-WW1(GN) | KAWM10(12)-TND2-WW1(GN) | KAWM14(16)-TND2-WW1(GN) |
| Power source (V/Hz) | 220/50 | 380/50 | 380/50 |
| Expansion tank (L) | 8 | 8 | 8 |
| Electric heating (kW) | 3 | 6 | 6 |
| Max pump head (m) | 9 | 9 | 10 |
| Outdoor Unit Specifications | ||||
| Model Type | KAWM06-ND2 | KAWM10-ND2 | KAWM14-TND2 | KAWM16-TND2 |
| Rated Heating (kW) | 6 | 10 | 14 | 16 |
| Energy Class (35°C) | A+++ | |||
| Refrigerant | R290 | |||
| Heating Temp Range | -30°C to 35°C | |||

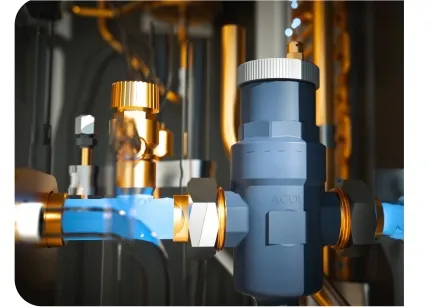

To deal with the R290 refrigerant which is combustible, we have adopted silver brazing welding technology to ensure stronger welding and avoid leakage.
Refrigerant separator can quickly discharge the refrigerant from the water system in case of leakage. A fully sealed control cabinet is used to avoid potential fire hazards and provide strong protection for user safety.
