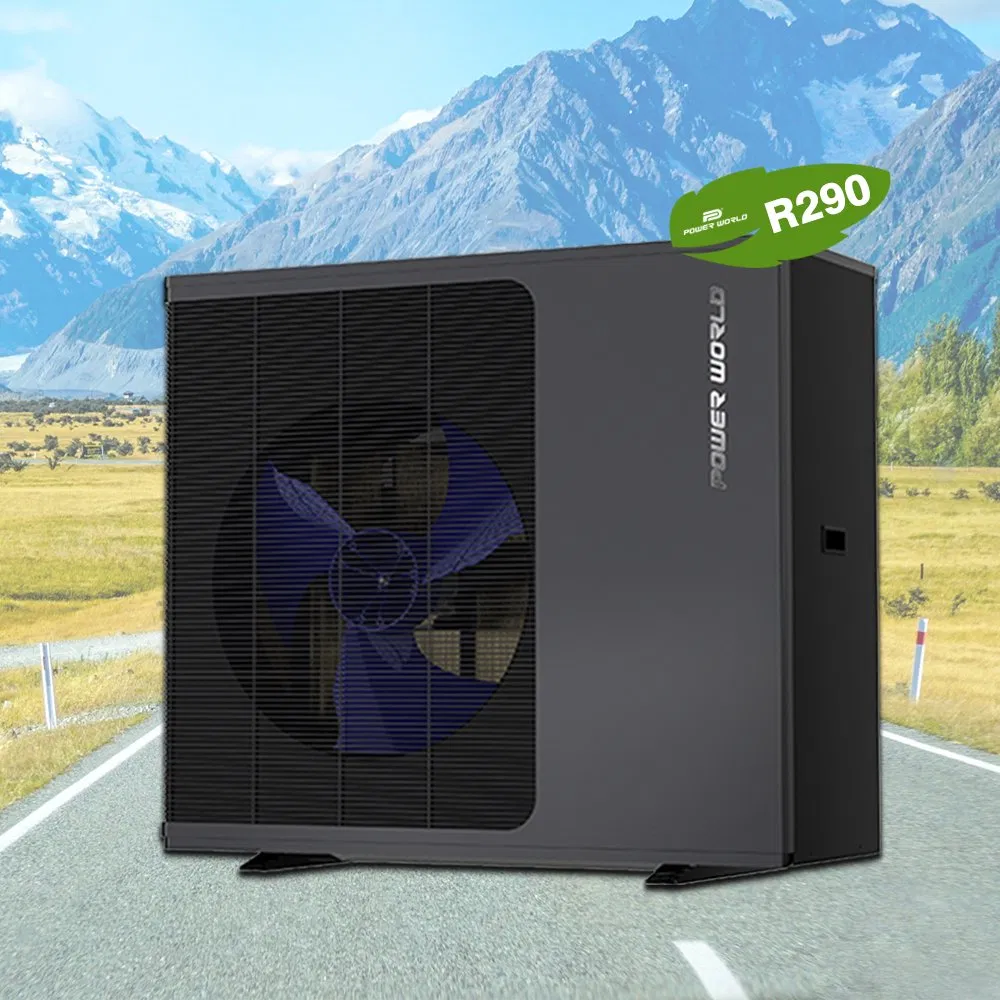

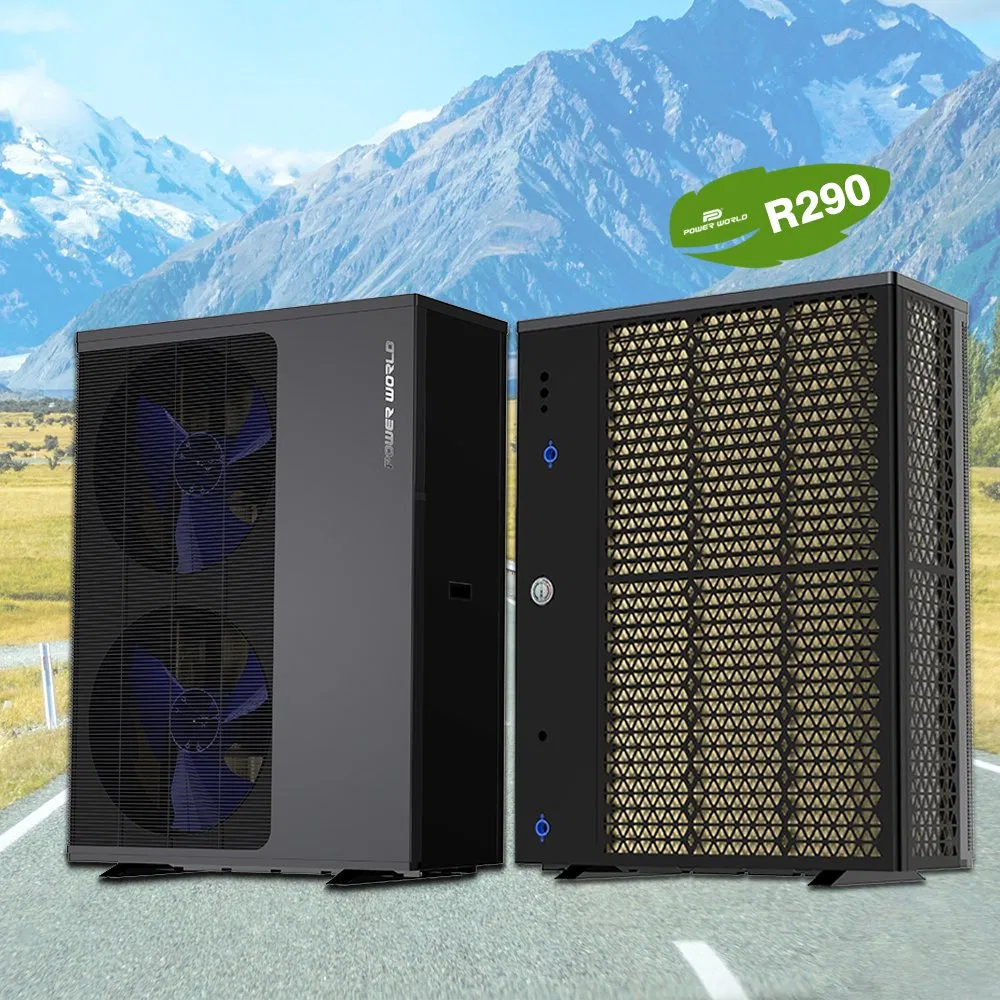

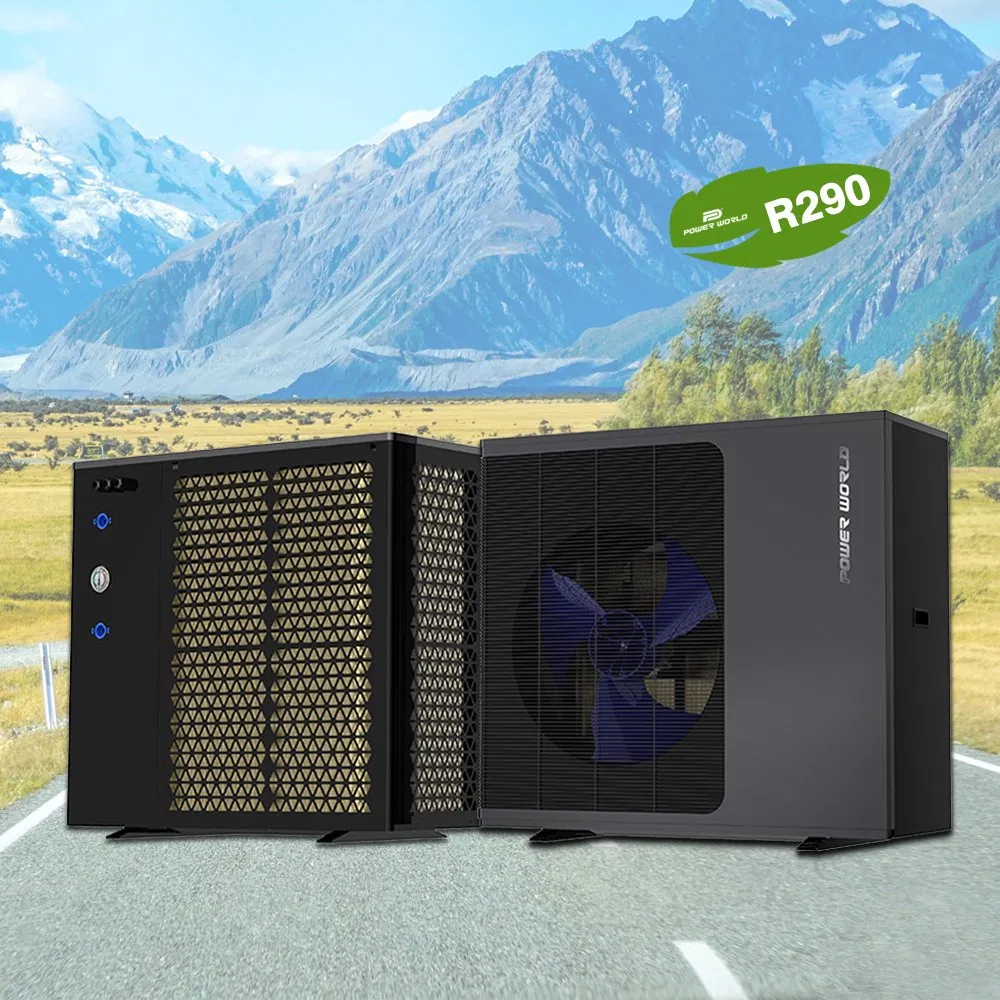

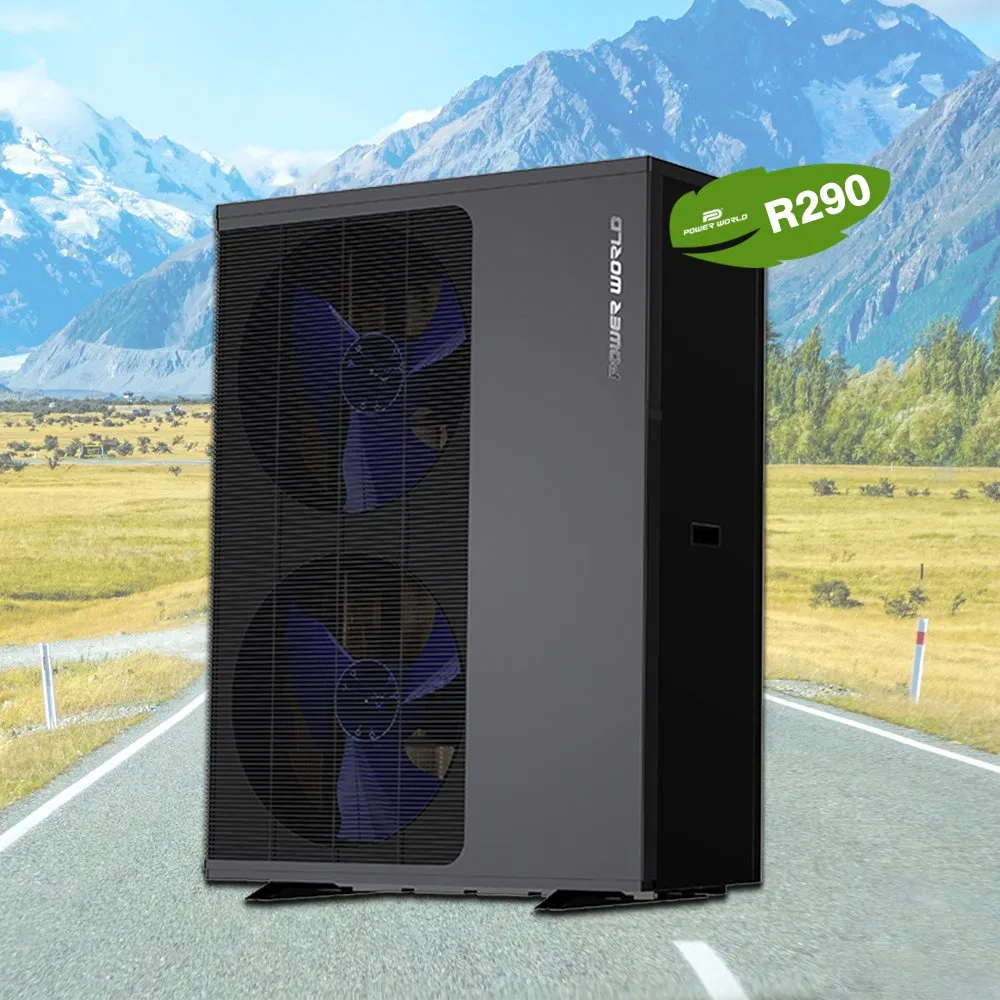

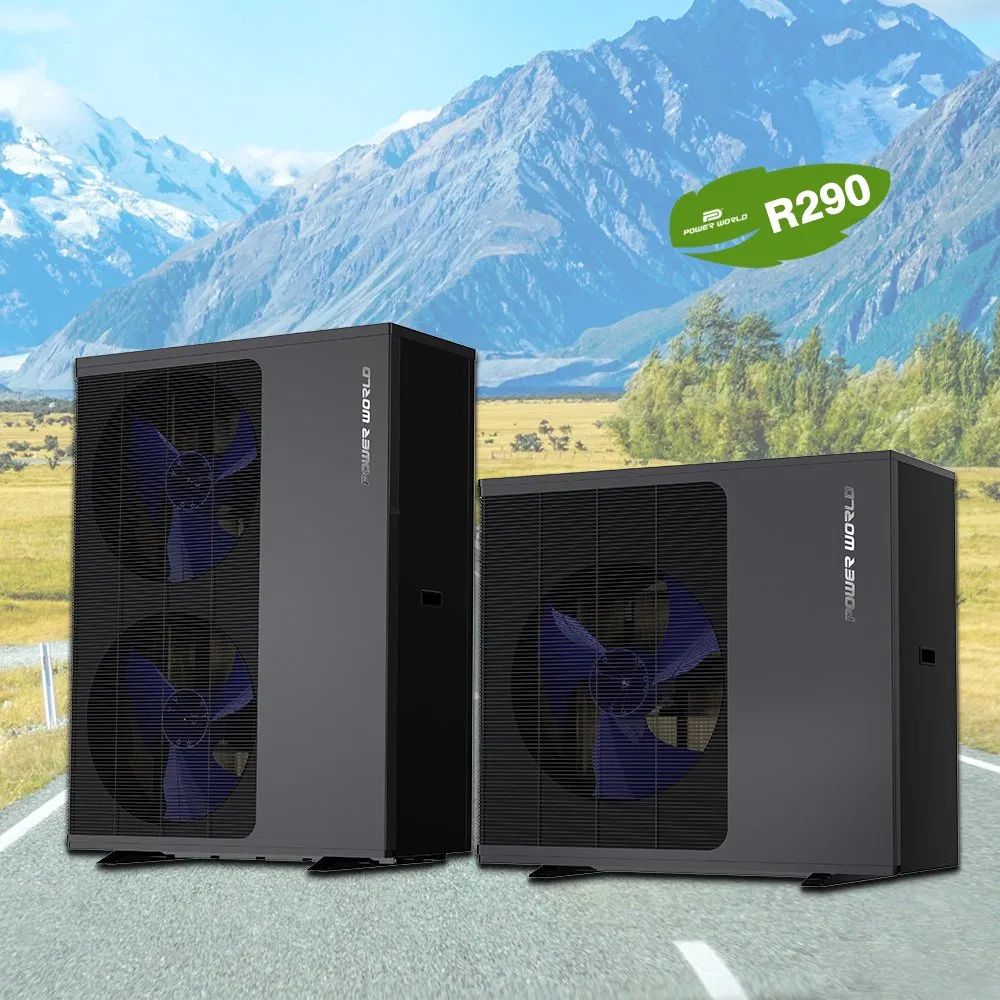

To reduce carbon emissions to the environment and curb global warming, we have developed an R290 Full DC Inverter Heat Pump. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most development potential and eco-friendly refrigerant.

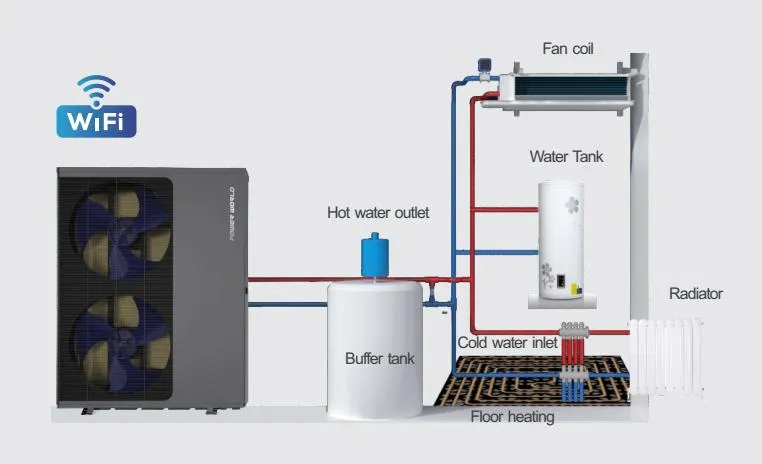

The perfect performance of the R290 FULL DC INVERTER Heat Pump can meet the user's needs throughout the year:
Under low ambient temperature, the performance and operational stability of normal heat pumps will be limited. This R290 FULL DC INVERTER heat pump can operate stably and efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water.

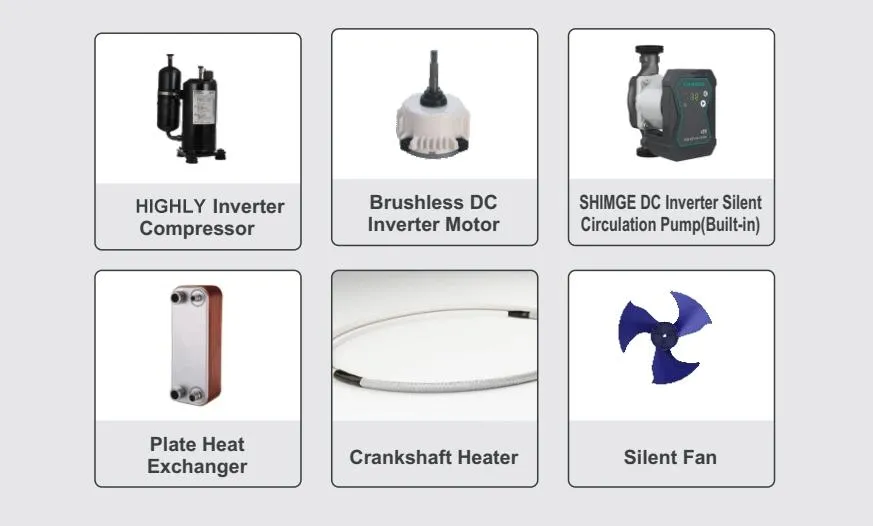

The Full DC inverter technology enables the unit to intelligently adjust operating frequency and control water temperature. It can save up to 50% energy compared to ON-OFF units and up to 75% energy compared to traditional electric heat pumps.

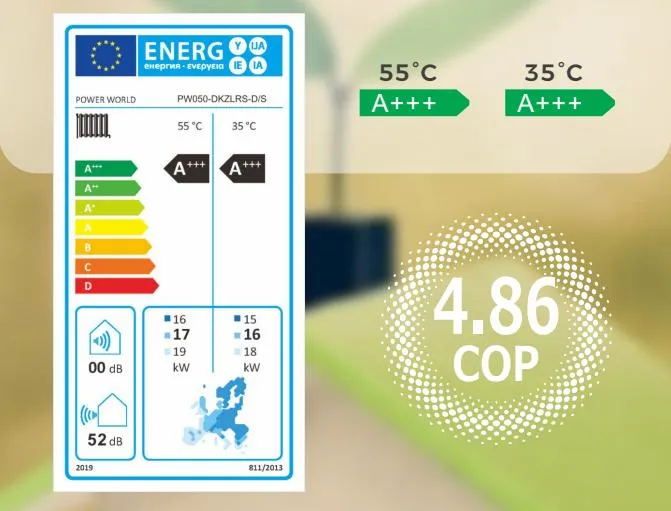

The unit has passed the ERP A+++ energy class test. Its energy efficiency grade reaches A+++ at both 35°C and 55°C. With a SCOP as high as 4.86, it ensures perfect performance and ultra-high energy efficiency.

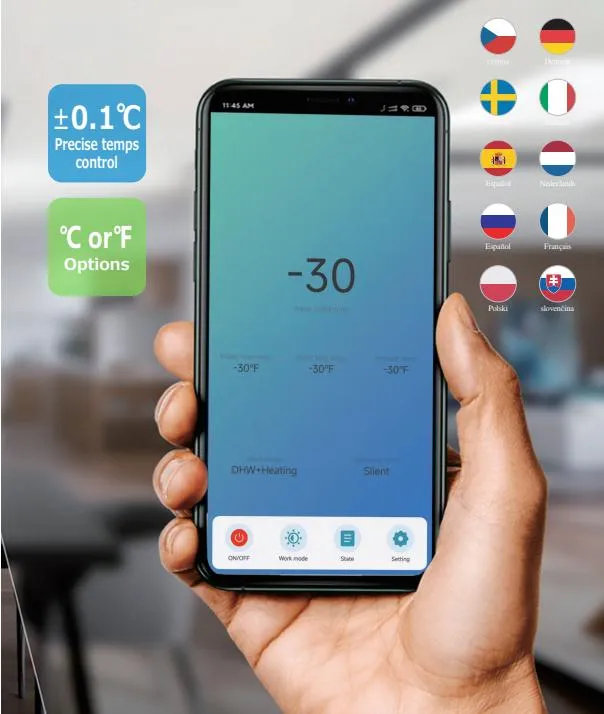

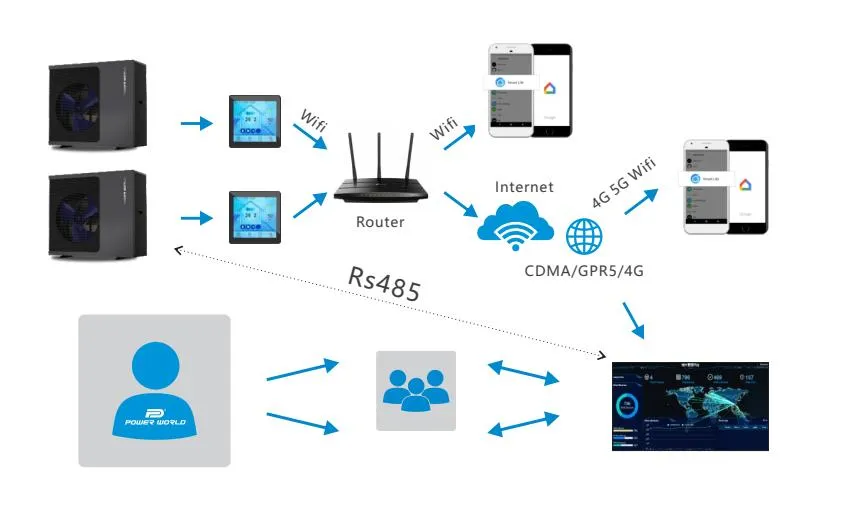

The IoT cloud management platform connects via Wi-Fi or DUT for remote monitoring. If an error occurs, reports are synchronized to the service provider for quick solutions, saving communication and time costs.
| Model | PW030-DKZLRS-E/S | PW040-DKZLRS-E/S | PW050-DKZLRS-E/S | PW040-DKZLRS-E | PW050-DKZLRS-E | PW060-DKZLRS-E |
| Heating Condition - Ambient Temp: 7/6ºC, Water Temp: 30/35ºC | ||||||
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| General Specifications | ||||||
| Refrigerant | R290 | |||||
| Power Supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤50 | ≤52 | ≤53 |
| Ambient Temp (ºC) | -25 ~ 43 ºC | |||||

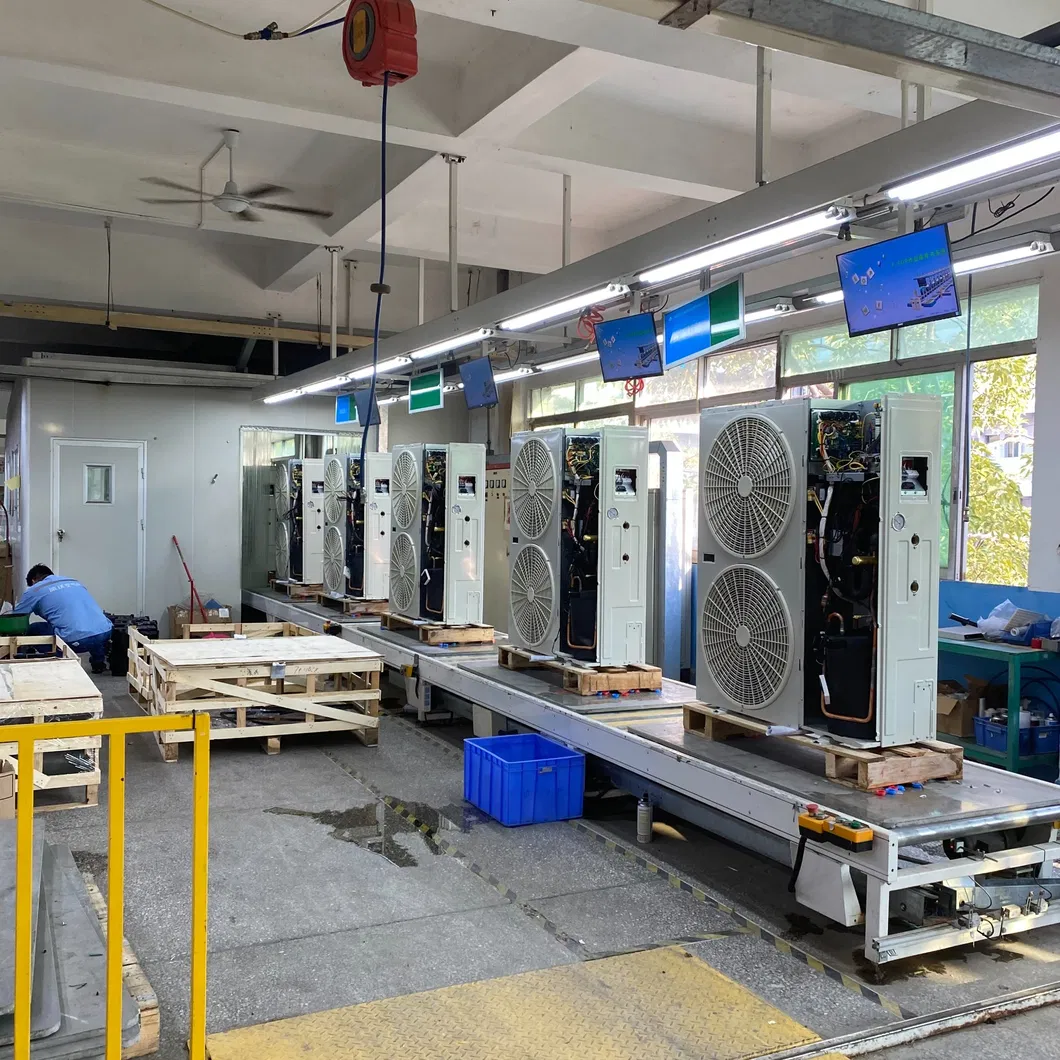

Established in 2004, we are a high-tech enterprise focusing on the research, development, production, and sales of air source heat pump products. We possess a complete heat pump industry chain, with products including swimming pool heat pumps, residential heating/cooling solutions, and domestic hot water systems.
With strong technology and R&D strength, our export volume of EVI inverter heat pumps has consistently ranked among the top in the industry. Our products are utilized in over 60 countries including Germany, France, Poland, and Sweden, offering safety, high efficiency, and environmental protection.
If you are interested in this product, please contact us. We will reply and send the latest catalog and quotation within 1 hour!
