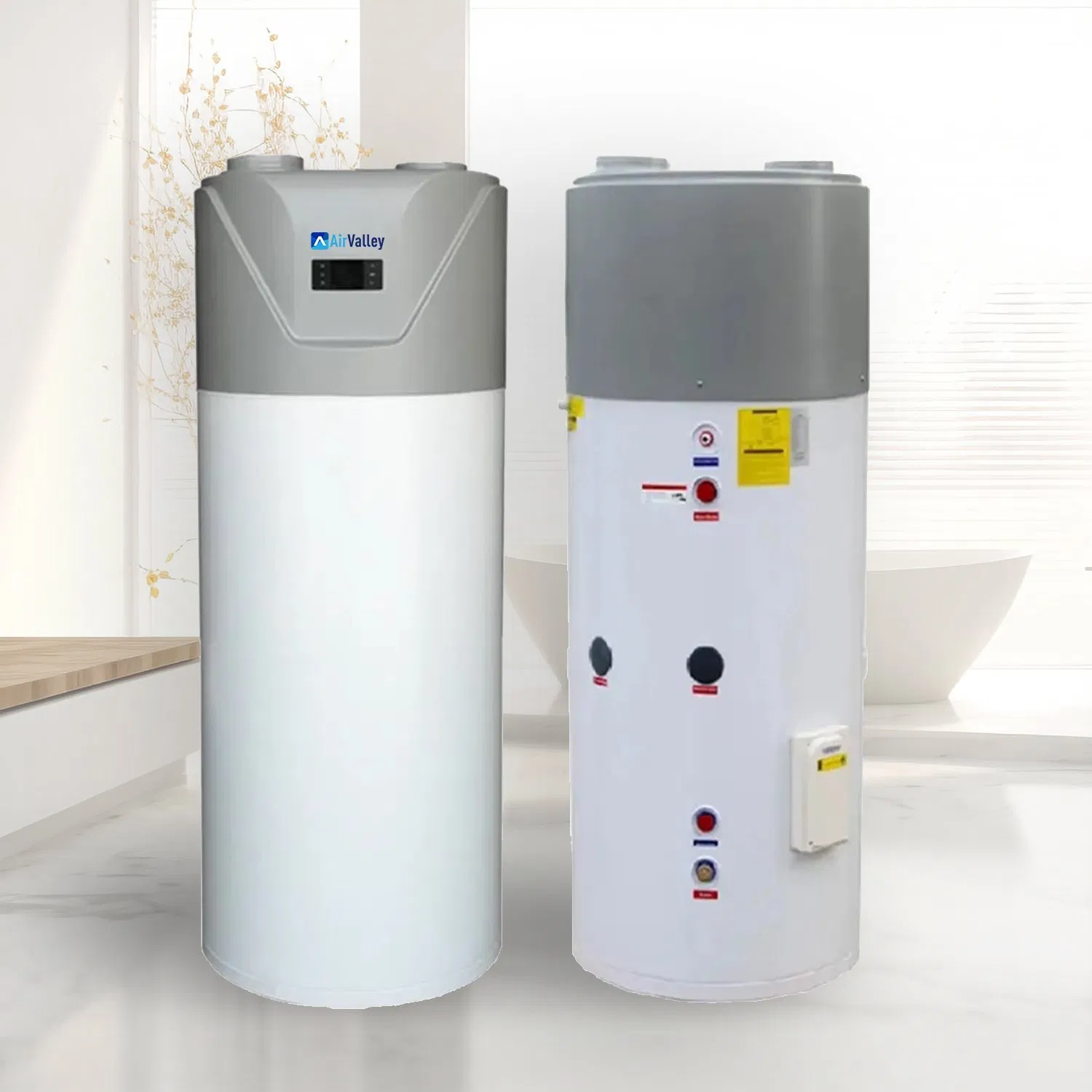

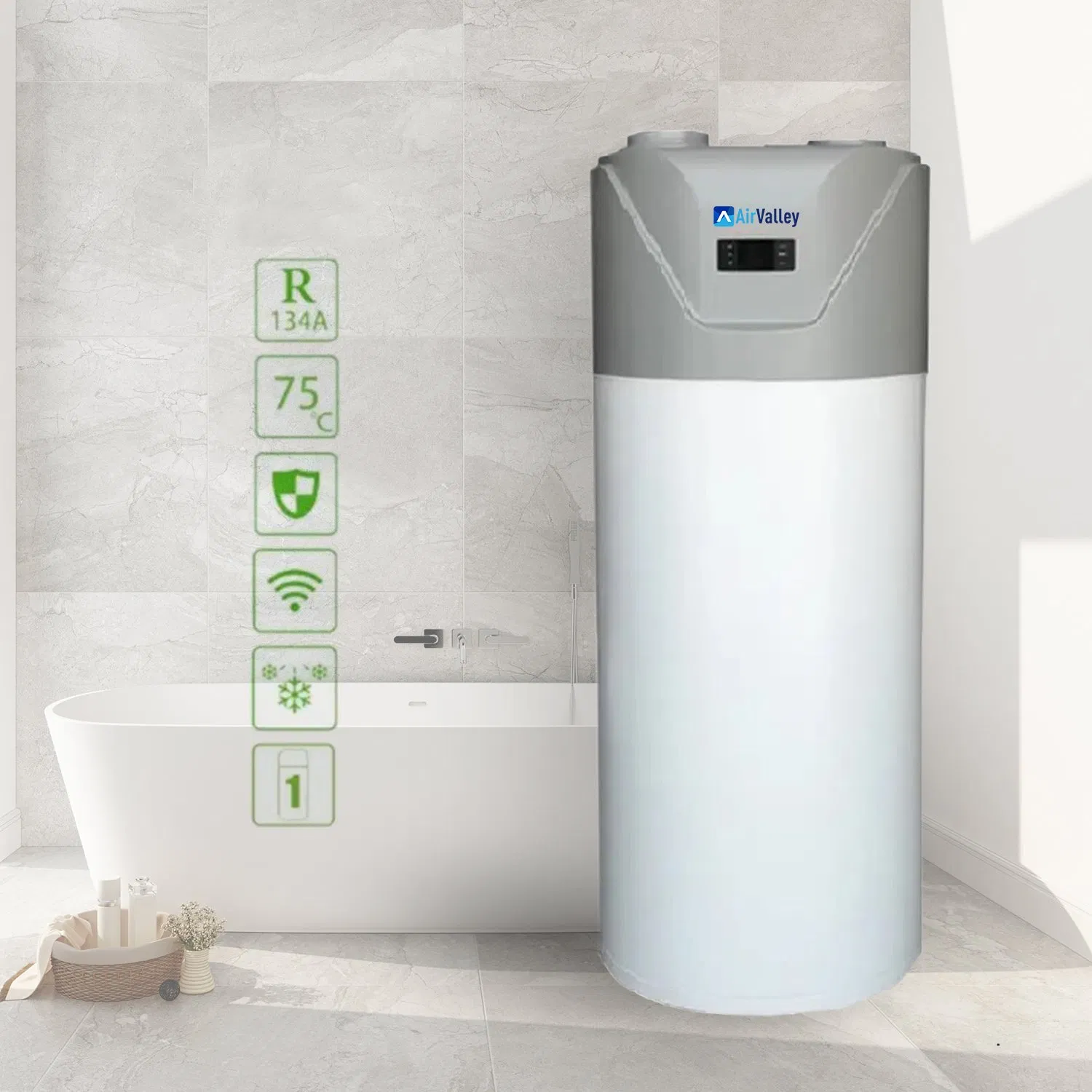

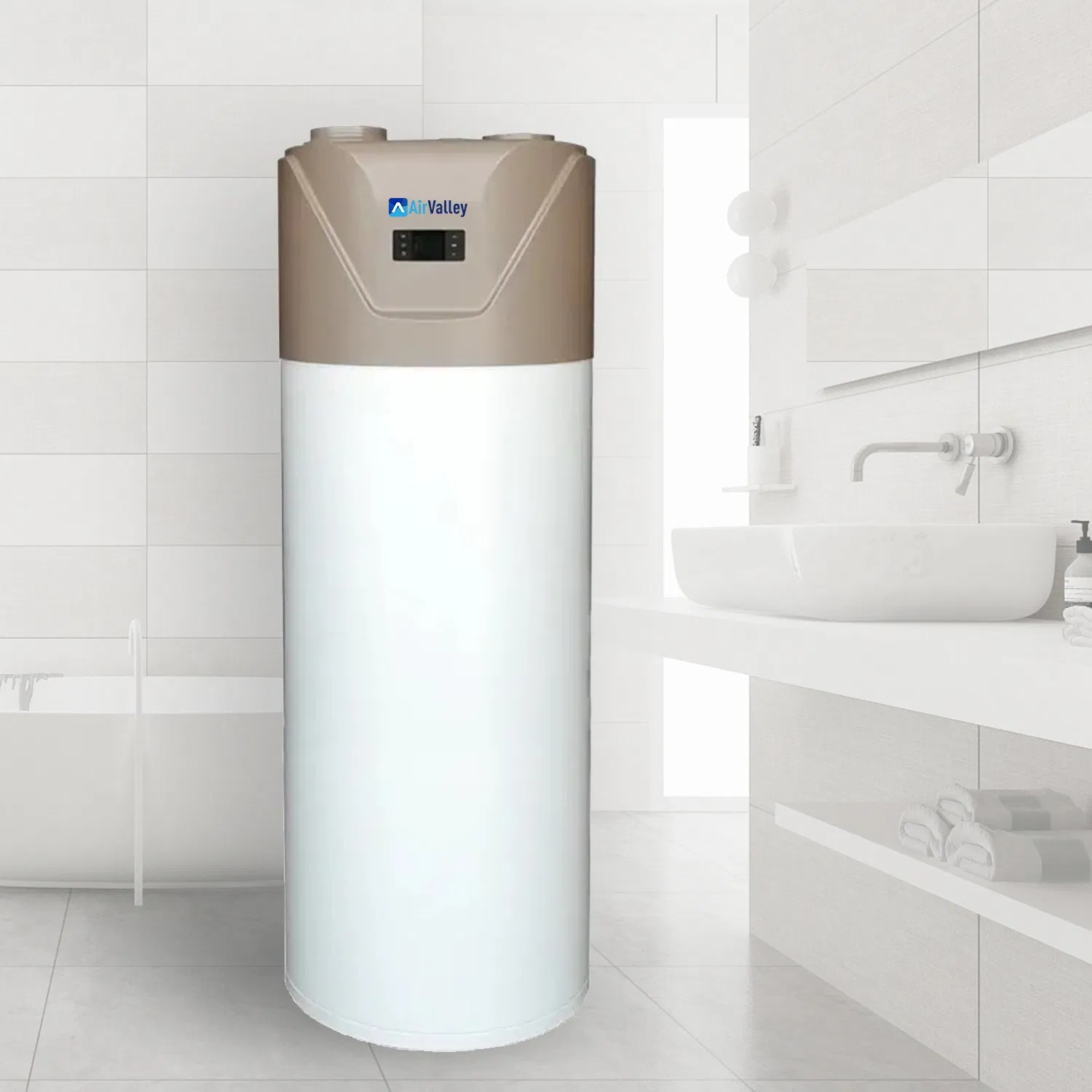

R290 All in One Air Source Heat Pump Water Heater 200L Wholesale Price

Overview & Basic Info

Model NO.

YT-200TB2

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna, Hotels, Factory Hospital

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

Refrigerant

R290

Production Capacity

5000 Units/Month

Product Description

All in one air source heat pump water heater utilizing R290 refrigerant. This advanced system achieves a maximum water output temperature of 75°C and meets European energy efficiency standards (A+). It features a durable enamel inner tank for long-term reliability.

Key Features:

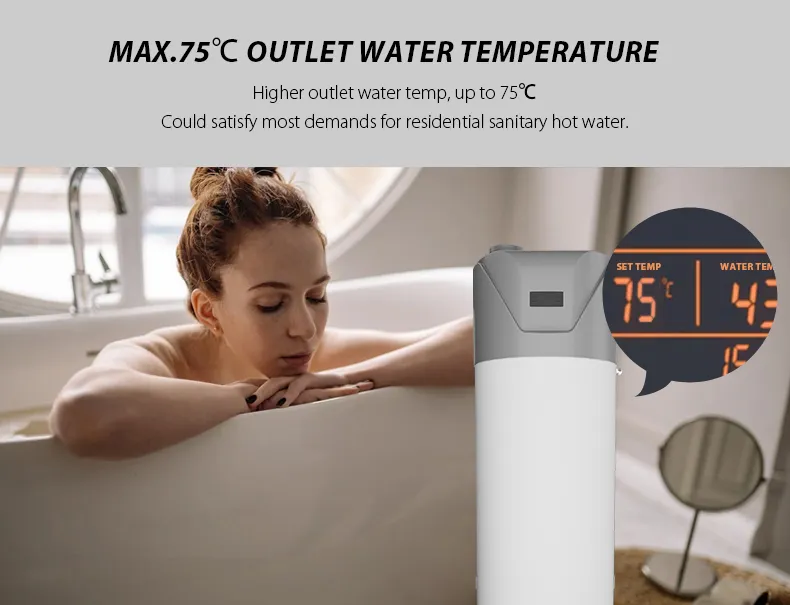

🔥 High Temperature: Output up to 75ºC.
🌍 Eco-Friendly: R290 low GWP (GWP=3) refrigerant.
📱 Smart Control: WIFI intelligent operation.
🛡️ Durability: Micro-channel heat exchanger and enamel tank.

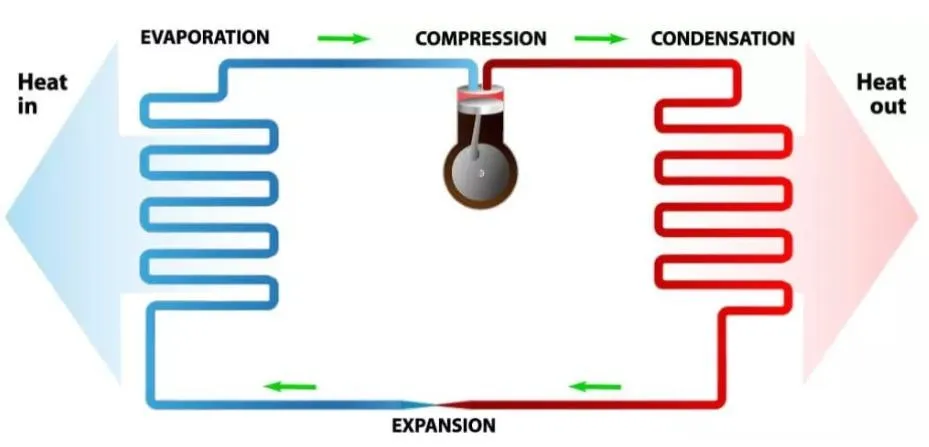

How It Works (HPWHs)

Heat Pump Water Heaters (HPWHs) use electricity to move heat from one place to another instead of generating heat directly. Imagine a refrigerator working in reverse: while a refrigerator removes heat from an enclosed box, a HPWH takes heat from the surrounding air and transfers it to the water in the tank.

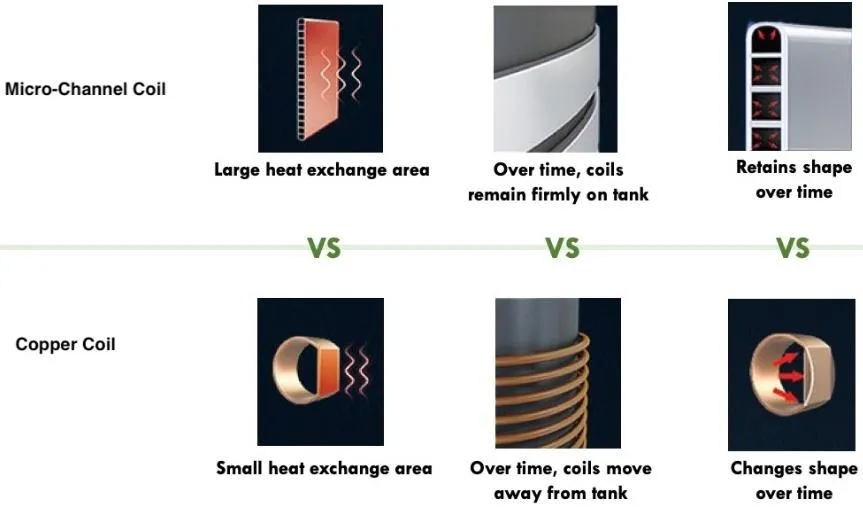

Microchannel Coil Advantage

Our microchannel coil technology provides superior heat transfer efficiency compared to traditional copper coils used by other manufacturers.

Product Parameters

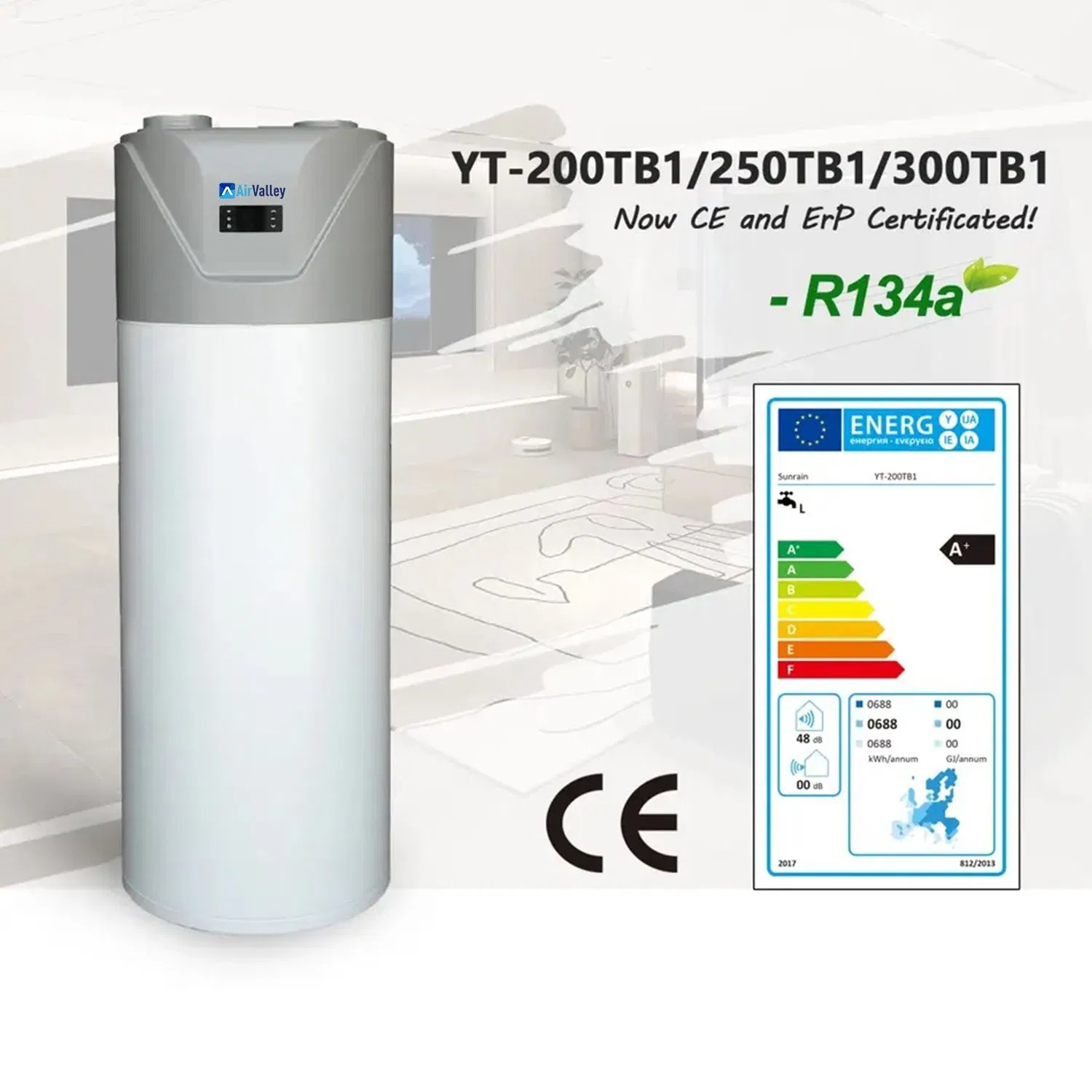

Model	YT-200TB1	YT-300TB1	YT-200TB2	YT-300TB2
Power Supply	220~240V/1/50Hz	220~240V/1/50Hz	220~240V/1/50Hz	220~240V/1/50Hz
Rated Heating Capacity (kW)	2.4	2.4	2.4	2.4
Refrigerant	R134a	R134a	R290	R290
Energy Efficient Class	A+	A+	A++	A++
COP (EN16147)	3.48	3.52	3.75	3.81
Tank Capacity (L)	200	300	200	300
Air Flow (m³/h)	450	450	450	450
Working Temp Range (ºC)	-7ºC ~ 43	-7ºC ~ 43	-7ºC ~ 43	-7ºC ~ 43
Net Weight (kg)	110	110	110	130

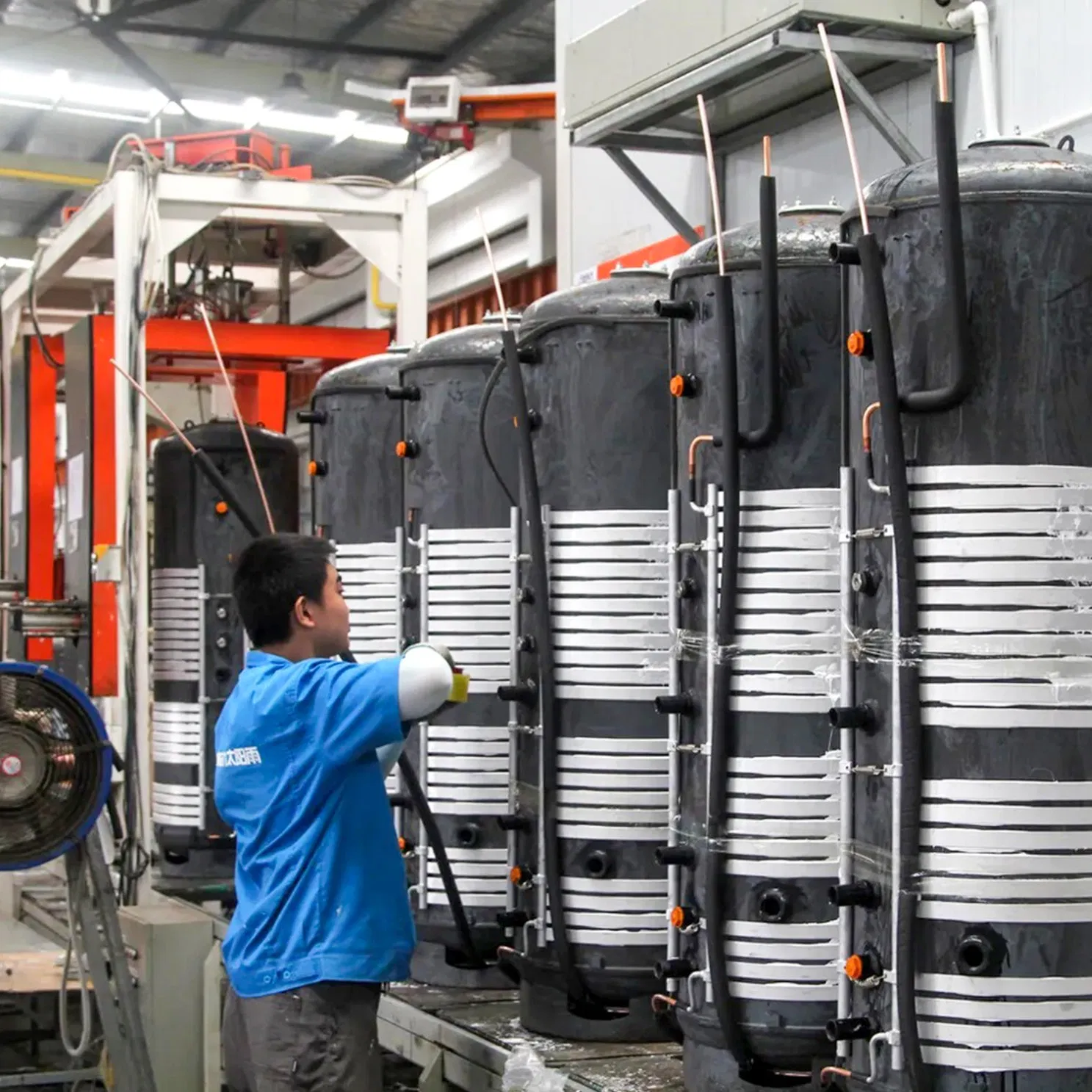

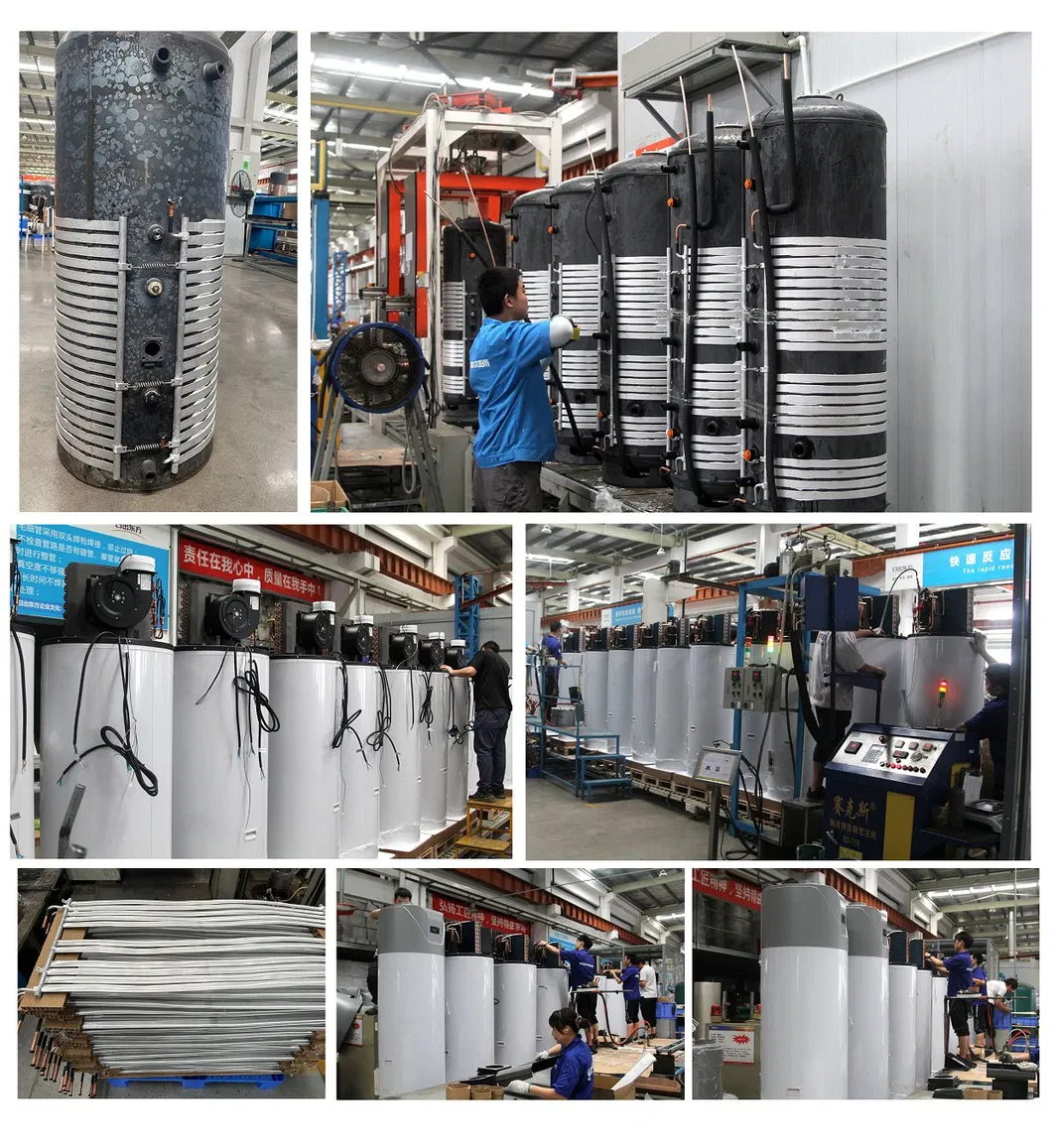

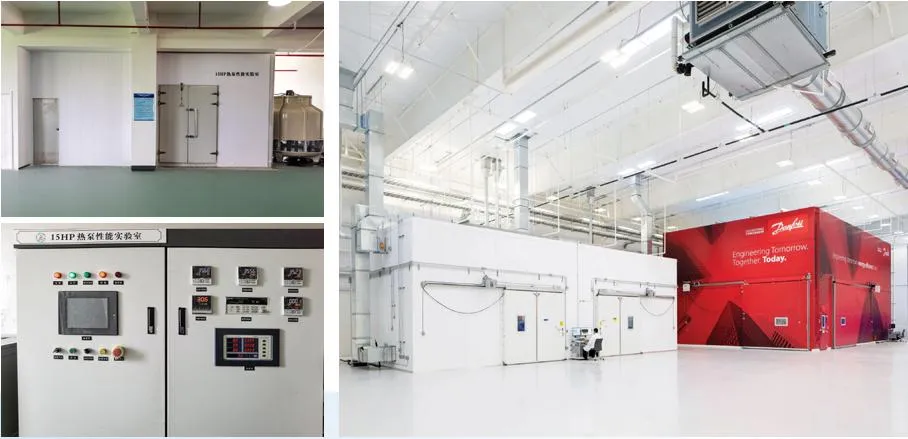

Advanced Production & Laboratory

Our facility features a professional 15HP heat pump laboratory. All units undergo rigorous testing from -40ºC to 55ºC to ensure ultra-high performance and stability.

Frequently Asked Questions

What is the advantage of an Air Source Heat Pump?

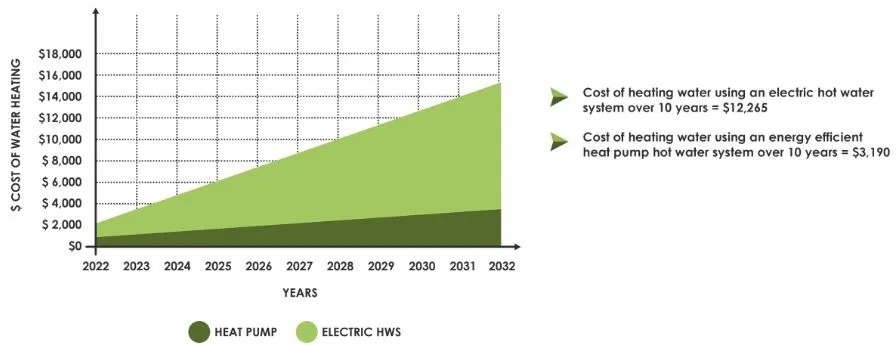

It offers high energy efficiency (saving 70%-80% compared to electric heating), is environmentally safe with no emissions, provides high comfort via water systems, and has a long service life of over 15 years.

What makes R290 refrigerant special?

R290 is a natural refrigerant with a very low Global Warming Potential (GWP=3). It is more eco-friendly than traditional fluorides and allows the heat pump to reach higher water temperatures efficiently.

Can this unit be controlled remotely?

Yes, the unit supports WIFI smart control, allowing you to manage water temperature and operation modes via your smartphone or compatible smart home interfaces.

What is the typical delivery time?

Sample orders typically take 35-45 days after receiving the deposit, while bulk orders are completed within 25-40 days.

What is the warranty period for these units?

We provide a two-year warranty after shipping. During this time, free spare parts are supplied if any manufacturing issues occur.

Is the installation difficult?

The "All-In-One" design is specifically created for space-saving and easy installation. It doesn't require complex external piping for the refrigerant, making it suitable for various housing types.
