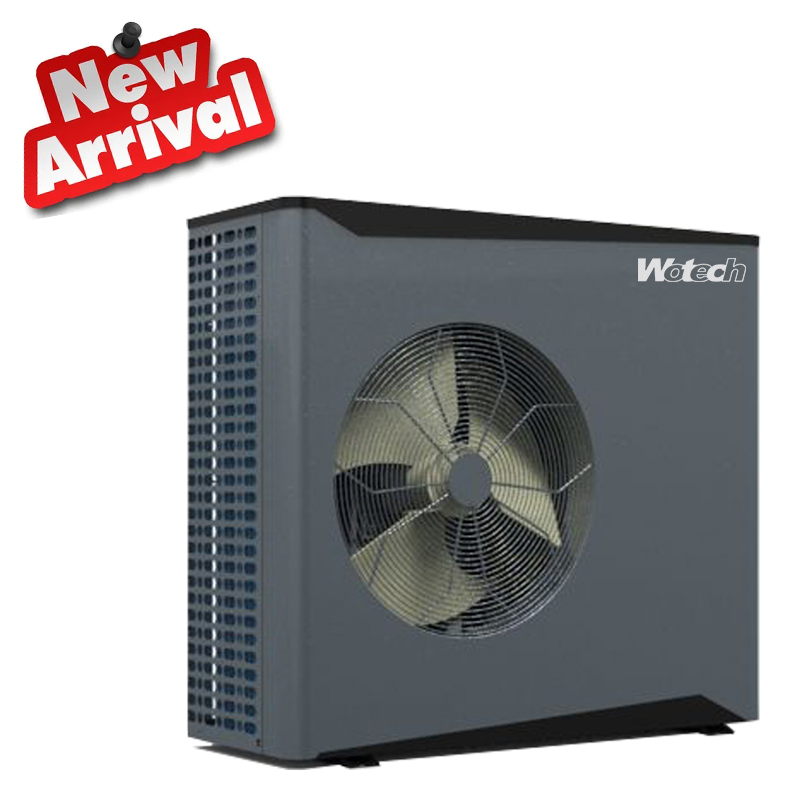

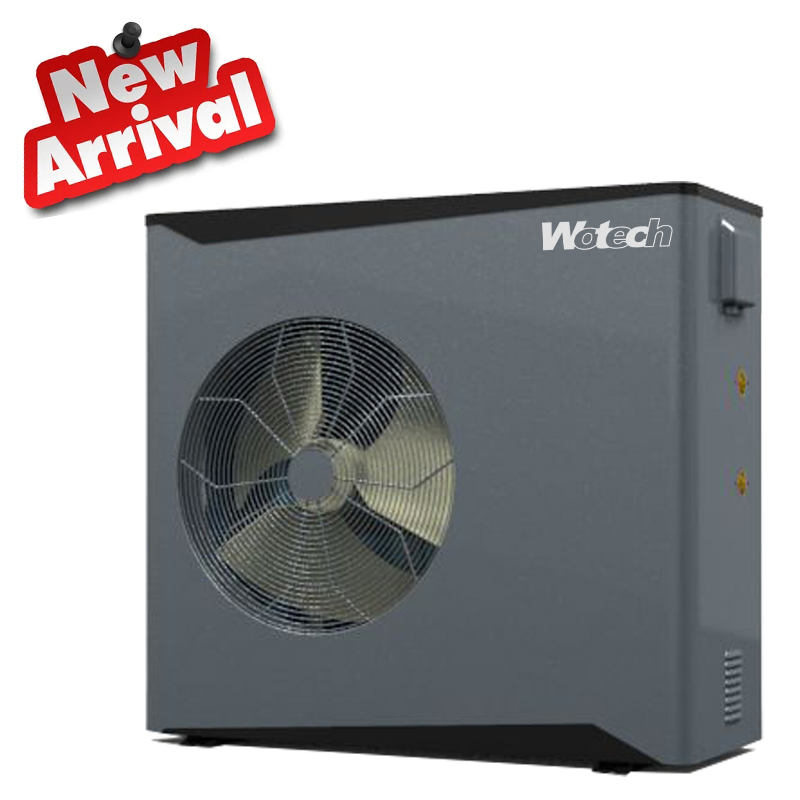

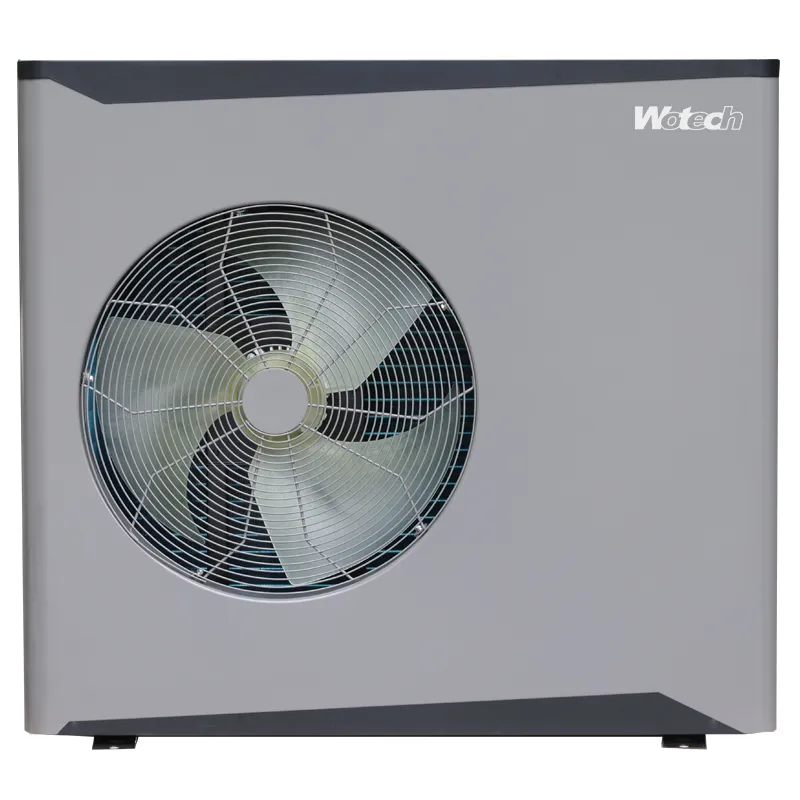

High Efficiency Solution for Heating, Cooling, and Hot Water

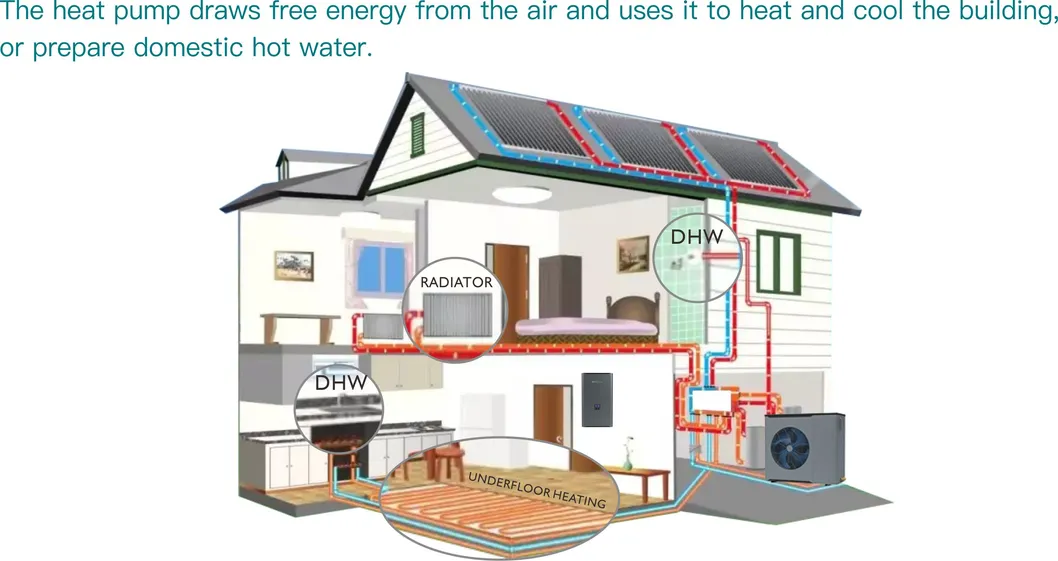

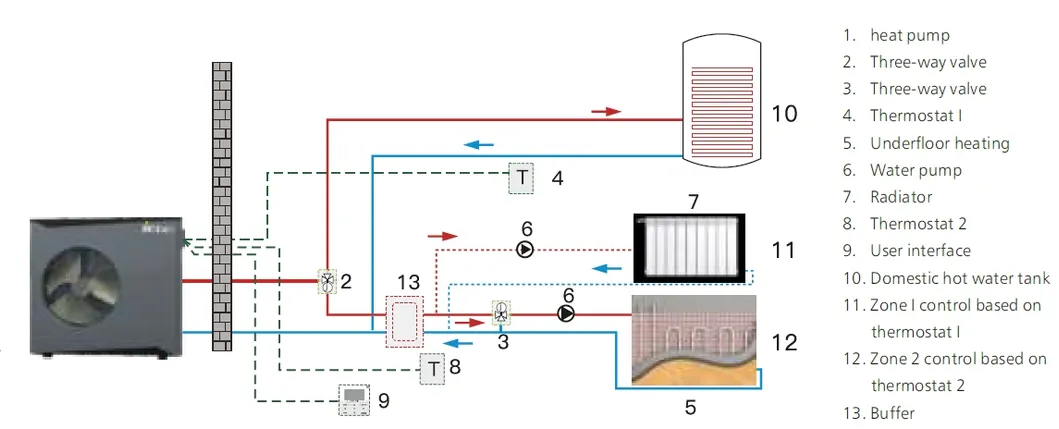

🚀 More Flexibility: Independent temperature control for underfloor heating and radiator systems via two-zone control.
📊 User Interface: Real-time display of two different zone temperatures for precise management.
| Model | WW07VM | WW09VM | WW12VM | WW15VM | WW20VT | WW22VT |
|---|---|---|---|---|---|---|
| Heating Capacity (kW) | 2.84~7.20 | 3.61~9.17 | 4.75~12.06 | 5.83~14.80 | 8.03~20.38 | 8.71~22.12 |
| COP (A7/W35) | 4.56~5.52 | 4.43~5.36 | 4.51~5.46 | 4.40~5.32 | 4.41~5.34 | 4.35~5.26 |
| Power Supply | 220-240V/1/50Hz | 380-415V/3/50Hz | ||||
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||||
| Max Outlet Water | 75°C | |||||

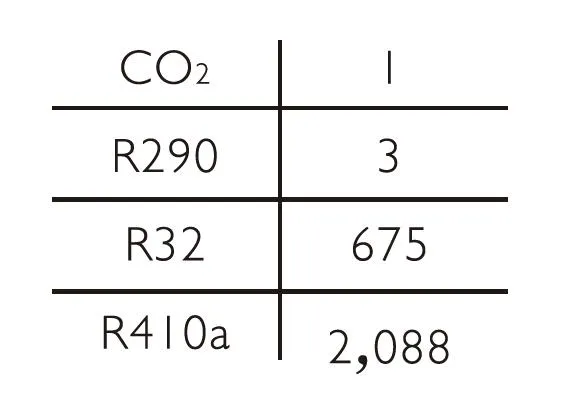

Negligible Global Warming Potential (GWP) and zero ODP. Permanent green solution with higher efficiency and lower energy consumption.

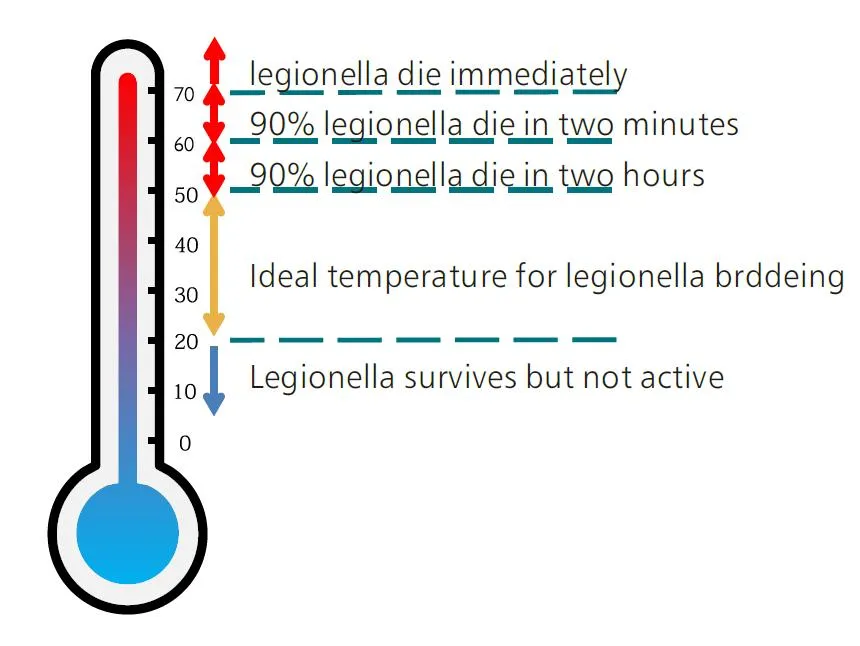

Kills legionella bacteria by heating water to 65°C, ensuring the health and safety of your domestic hot water supply.
Automatic outlet water temperature adjustment based on outdoor ambient air temperature for optimal energy saving.

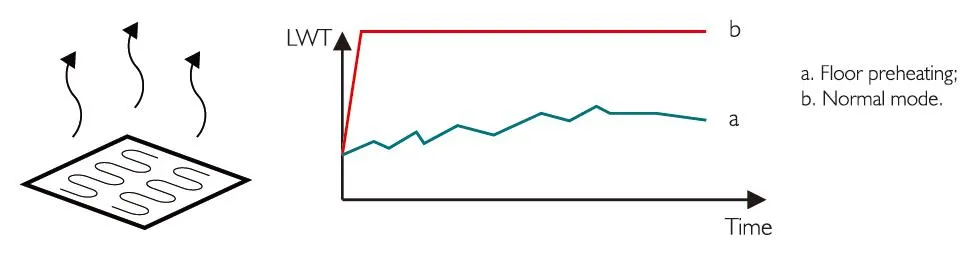

The Floor Preheating and Drying function protects newly installed floor coils by removing residual moisture and gradually increasing temperatures to avoid damage.
