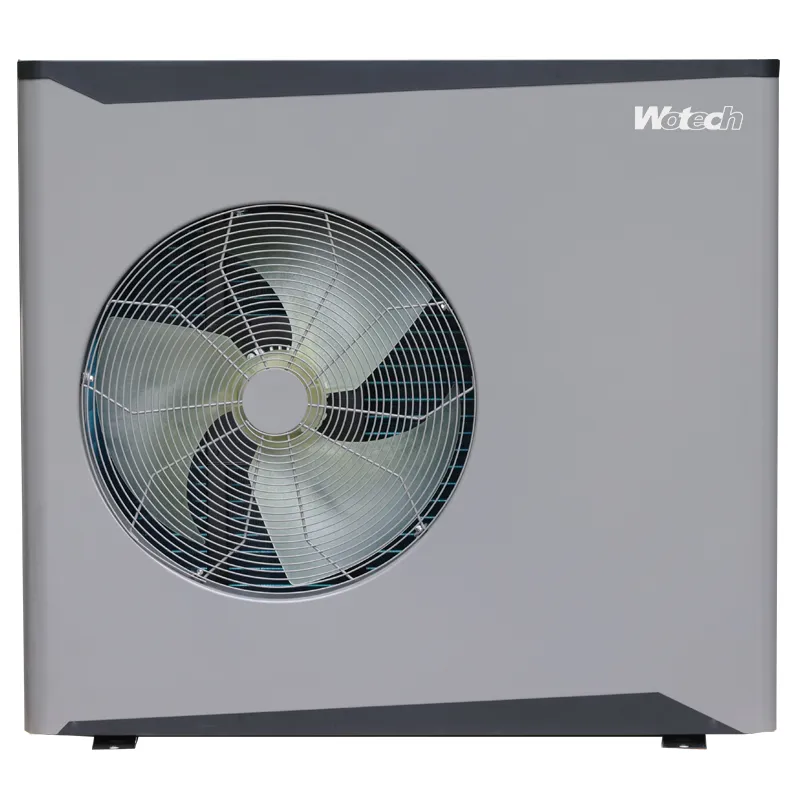

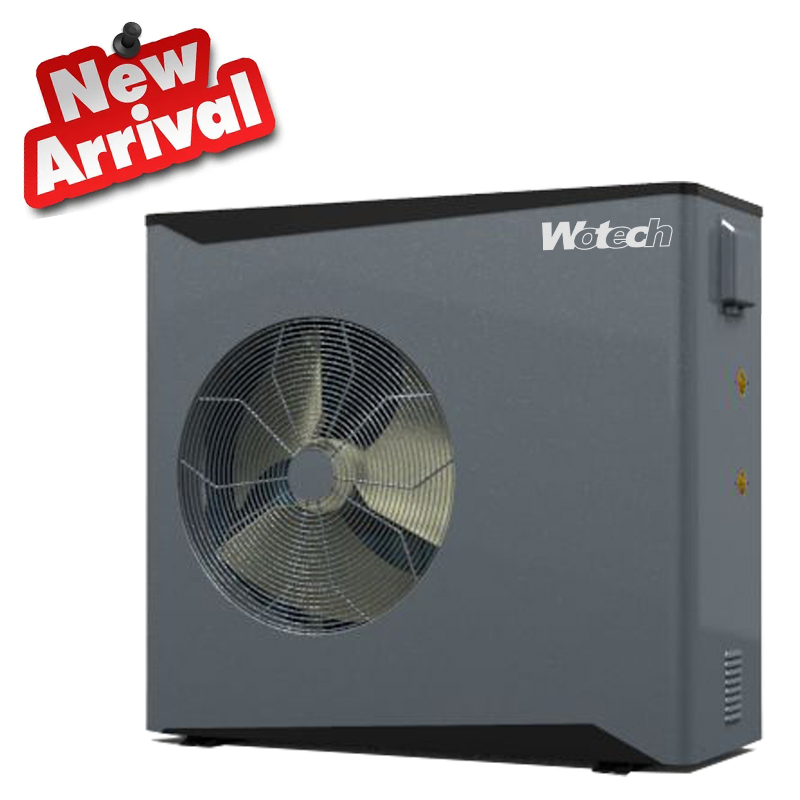

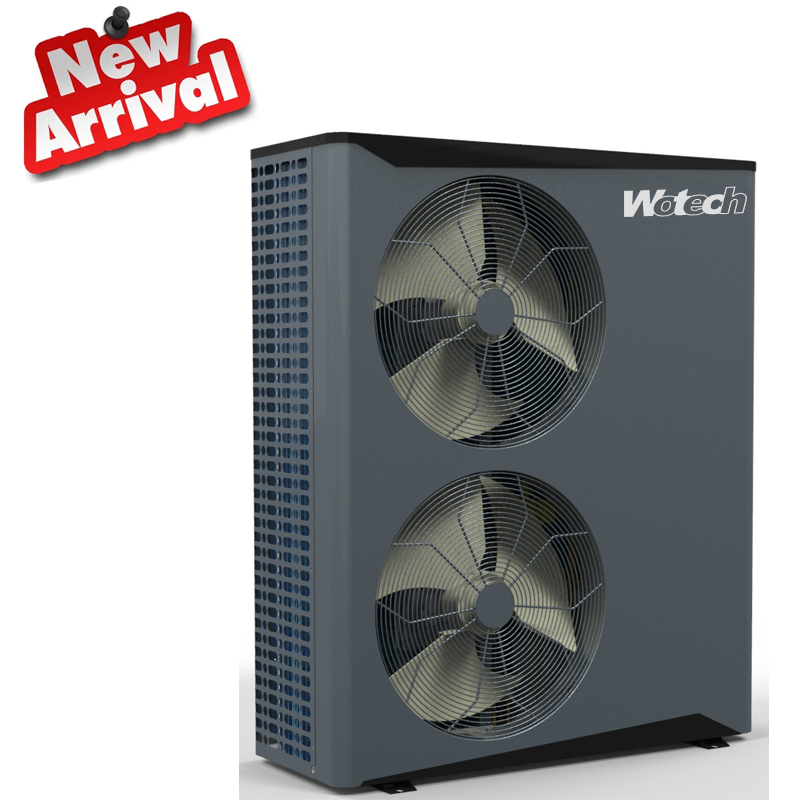

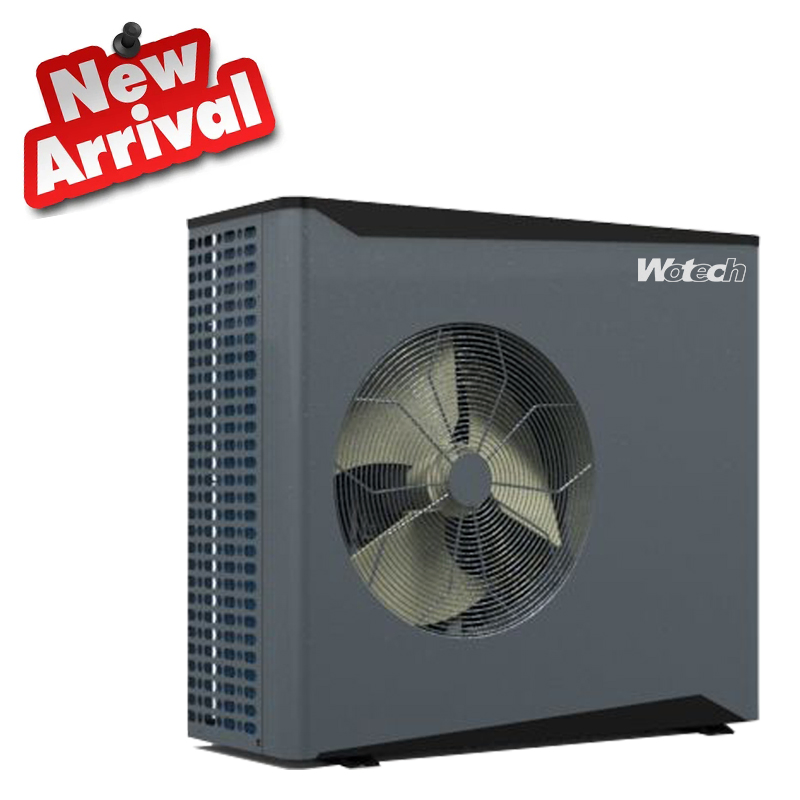

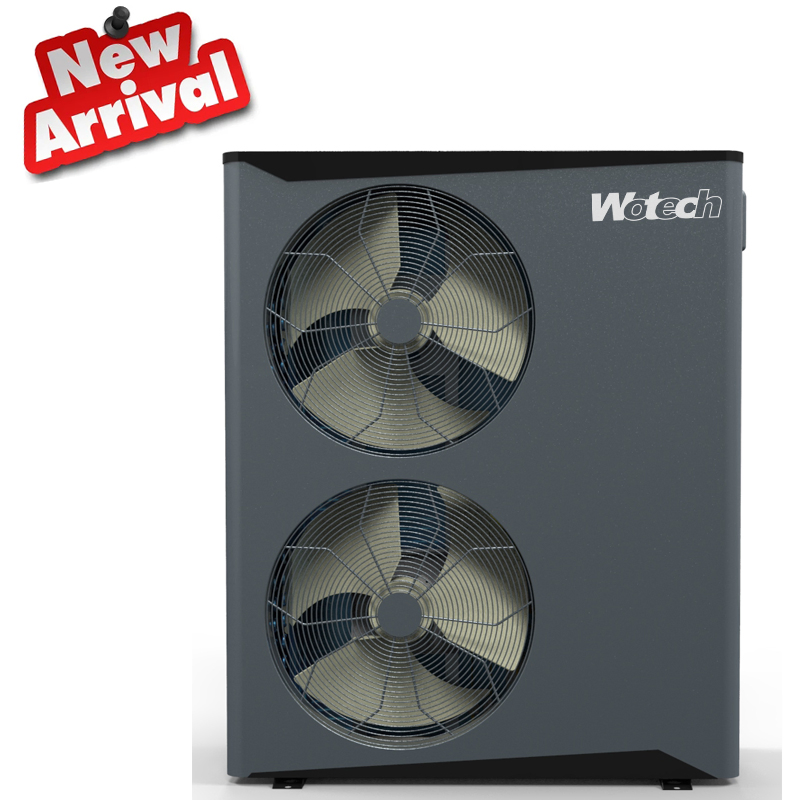

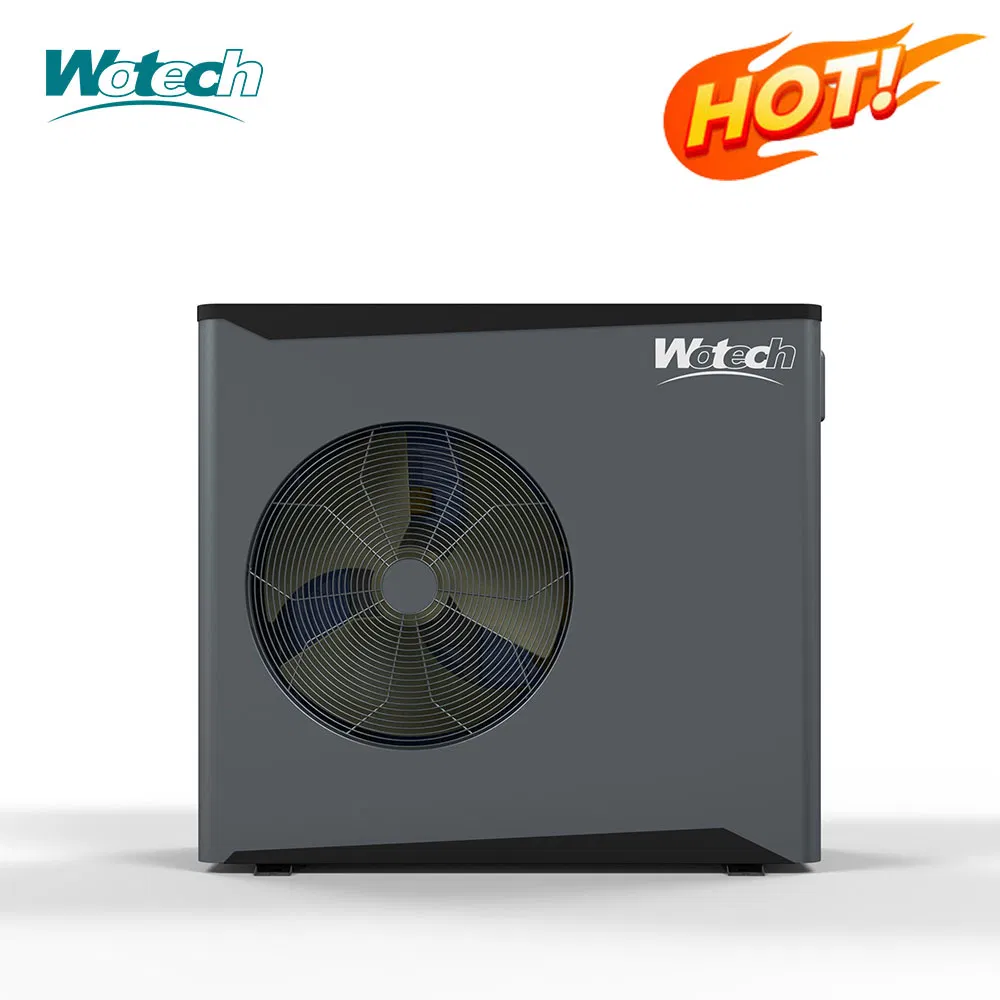

4-16kw R290 Full DC Inverter A+++ Air to Water Monoblock Heat Pump designed for high-efficiency Heating, Cooling, and Domestic Hot Water (DHW).

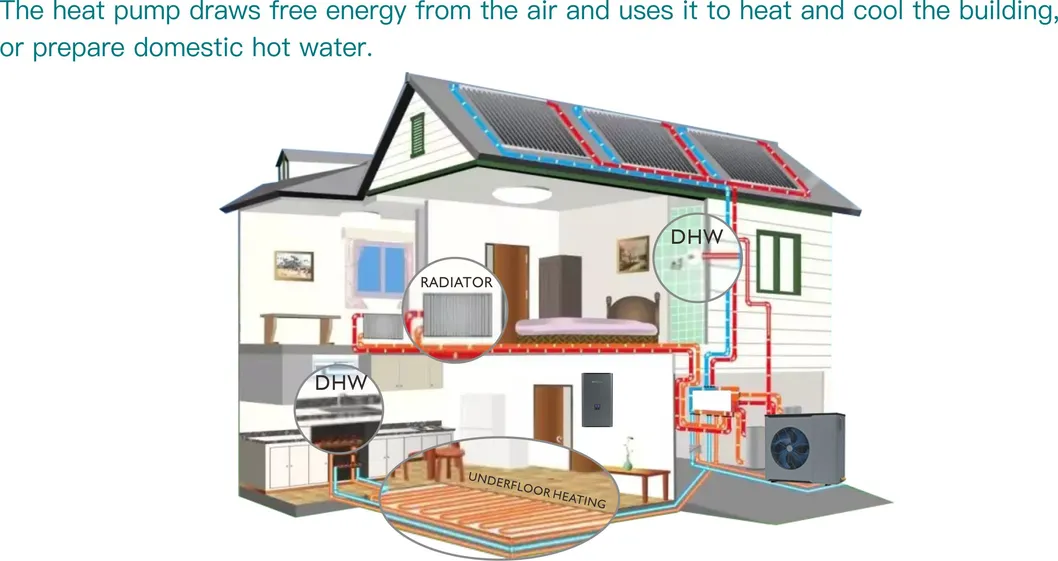

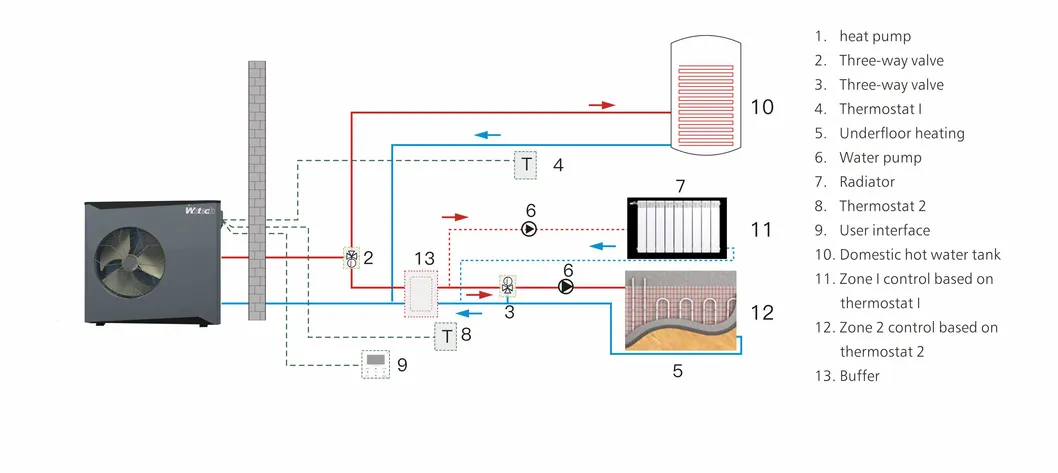

Enhanced flexibility with dual-zone control. Independent temperature settings for underfloor heating and radiators. The user interface displays both zone temperatures simultaneously.
| Model | WW07VM | WW09VM | WW12VM | WW15VM | WW20VT | WW22VT |
|---|---|---|---|---|---|---|
| Heating Capacity (A7/W35) kW | 2.84~7.20 | 3.61~9.17 | 4.75~12.06 | 5.83~14.80 | 8.03~20.38 | 8.71~22.12 |
| COP (A7/W35) | 4.56~5.52 | 4.43~5.36 | 4.51~5.46 | 4.40~5.32 | 4.41~5.34 | 4.35~5.26 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |

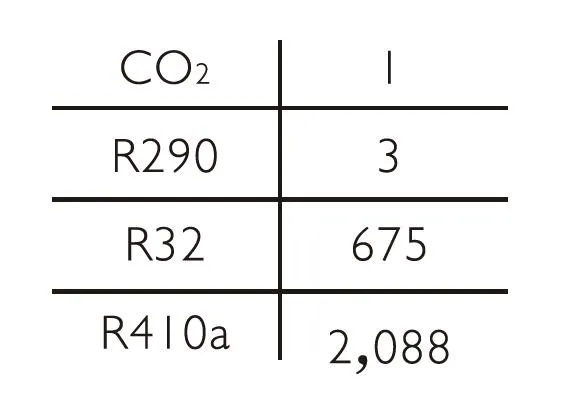

| Refrigerant | R290 | |||||
| Power Supply | 220-240V/1/50Hz | 380-415V/3/50Hz | ||||

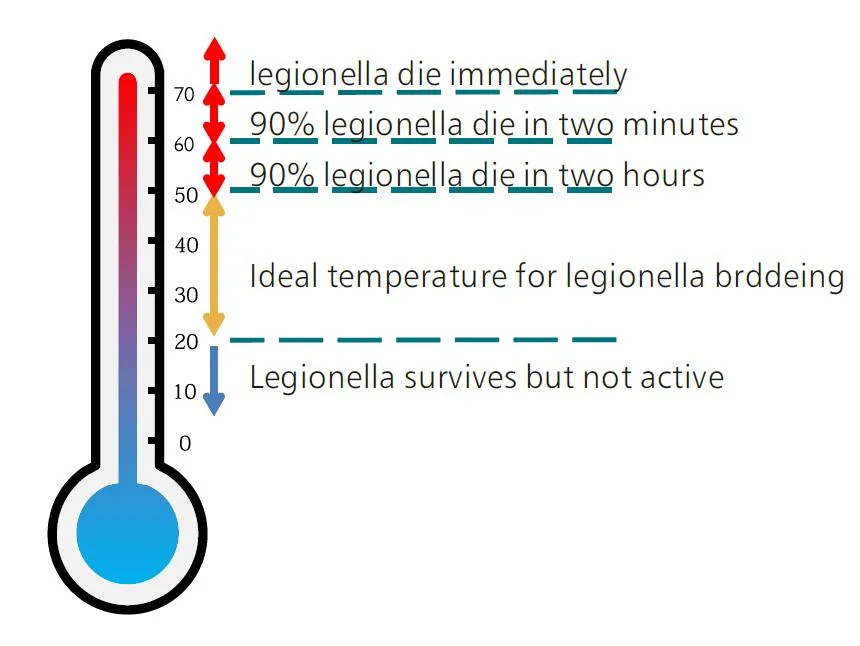

| Max Water Temp | 75°C | |||||

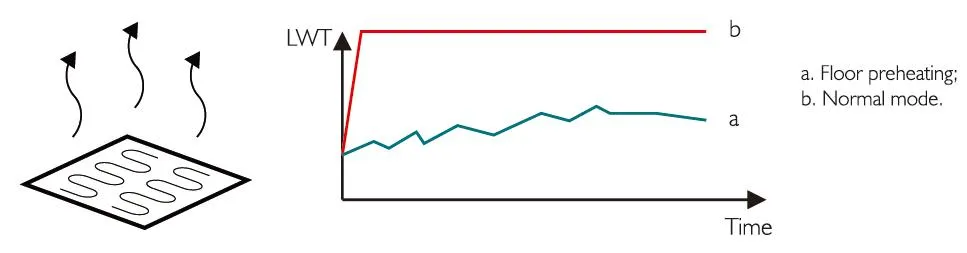

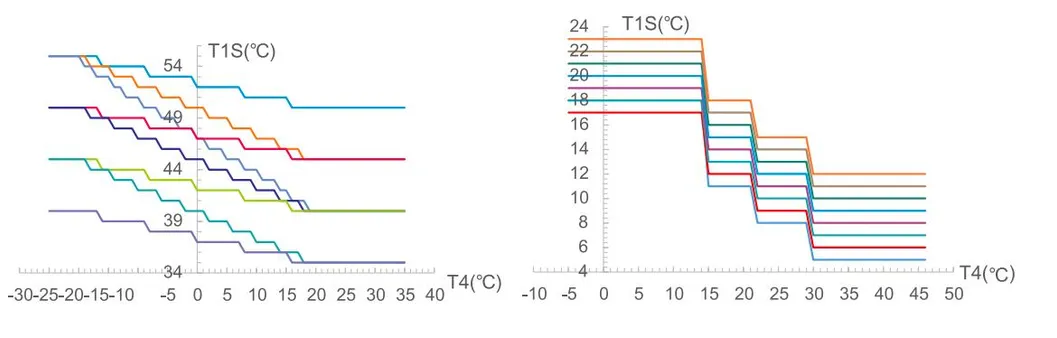

Select from multiple climate correlation curves to automatically adjust outlet water temperature based on outdoor conditions. Includes Floor Preheating and Floor Drying functions to protect new installations.
