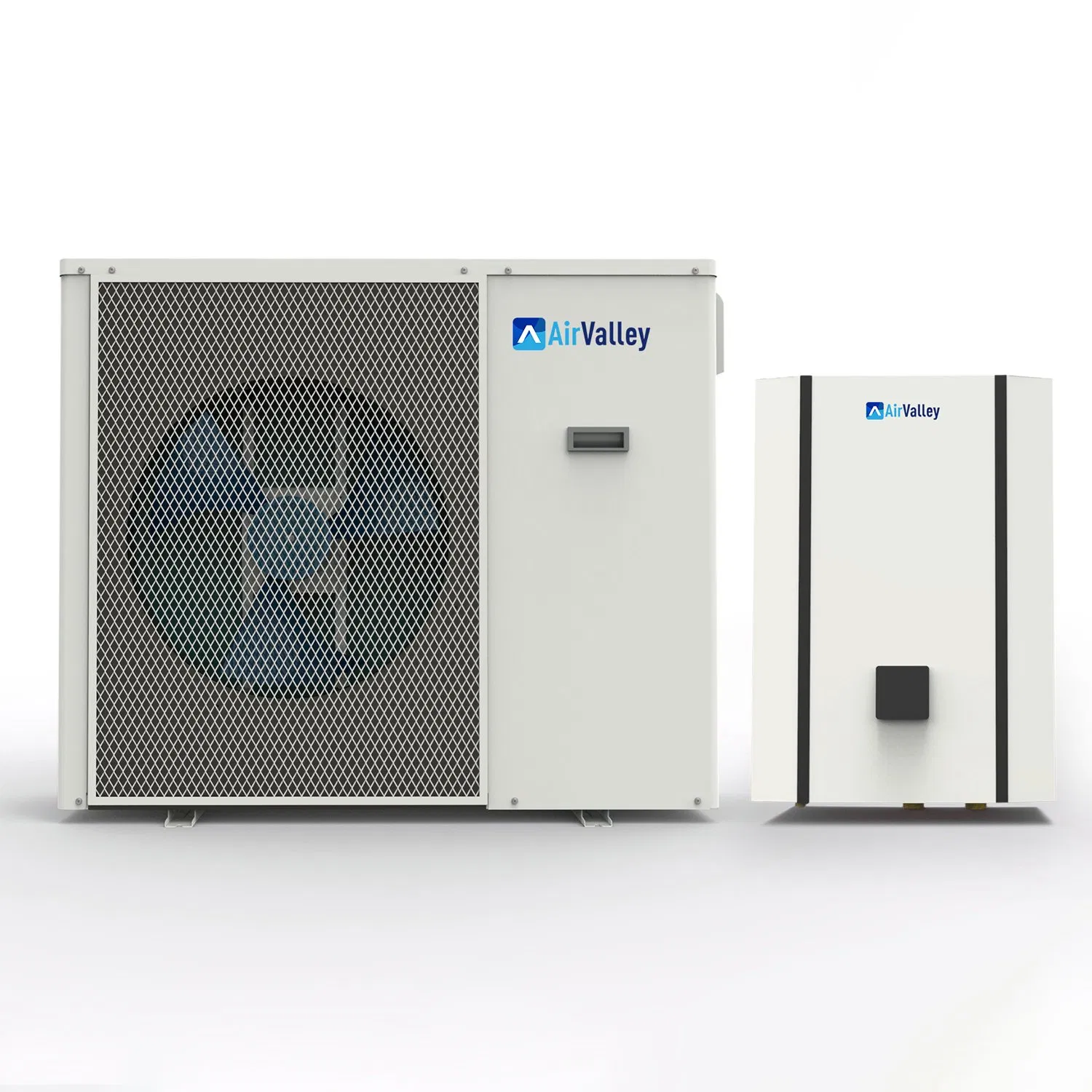

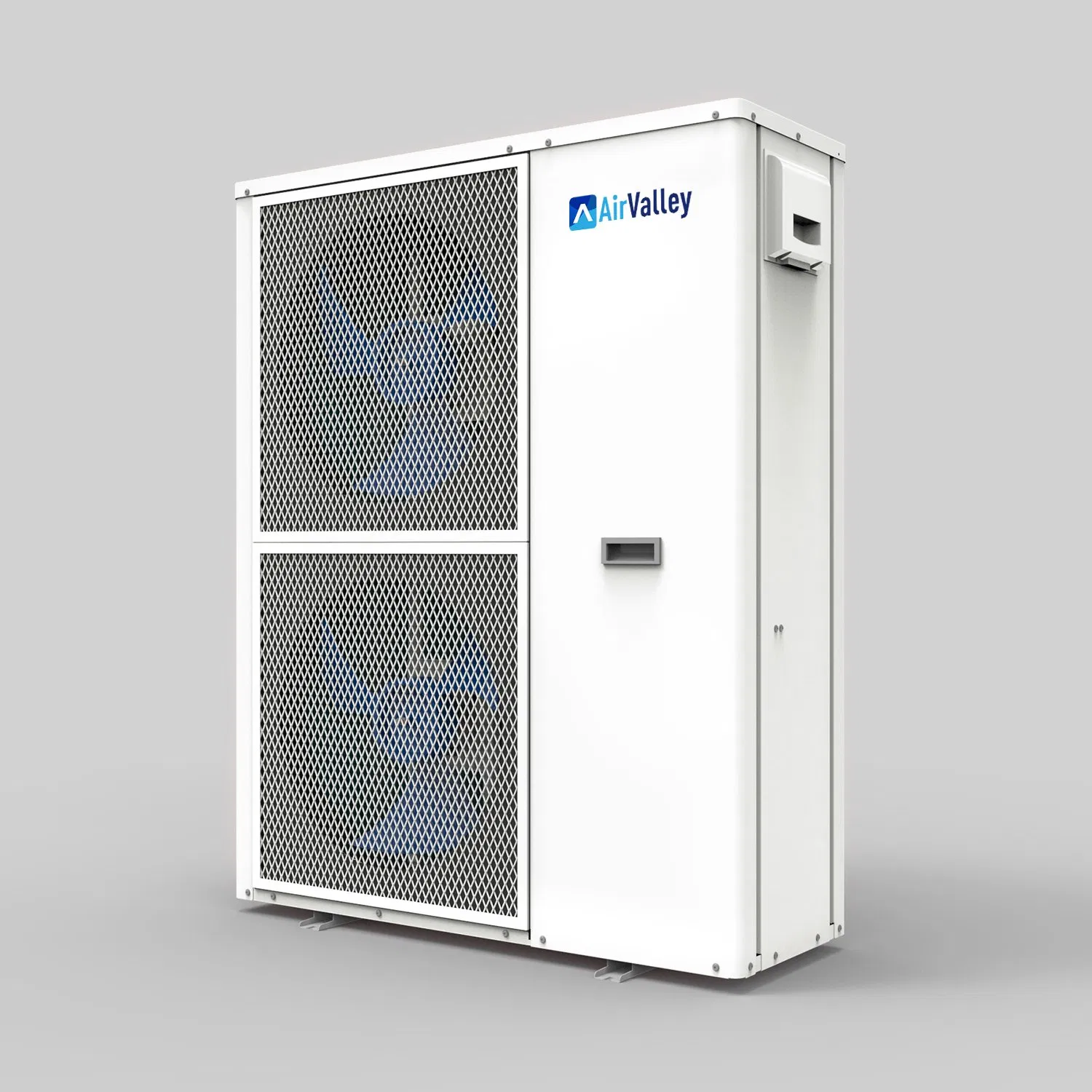

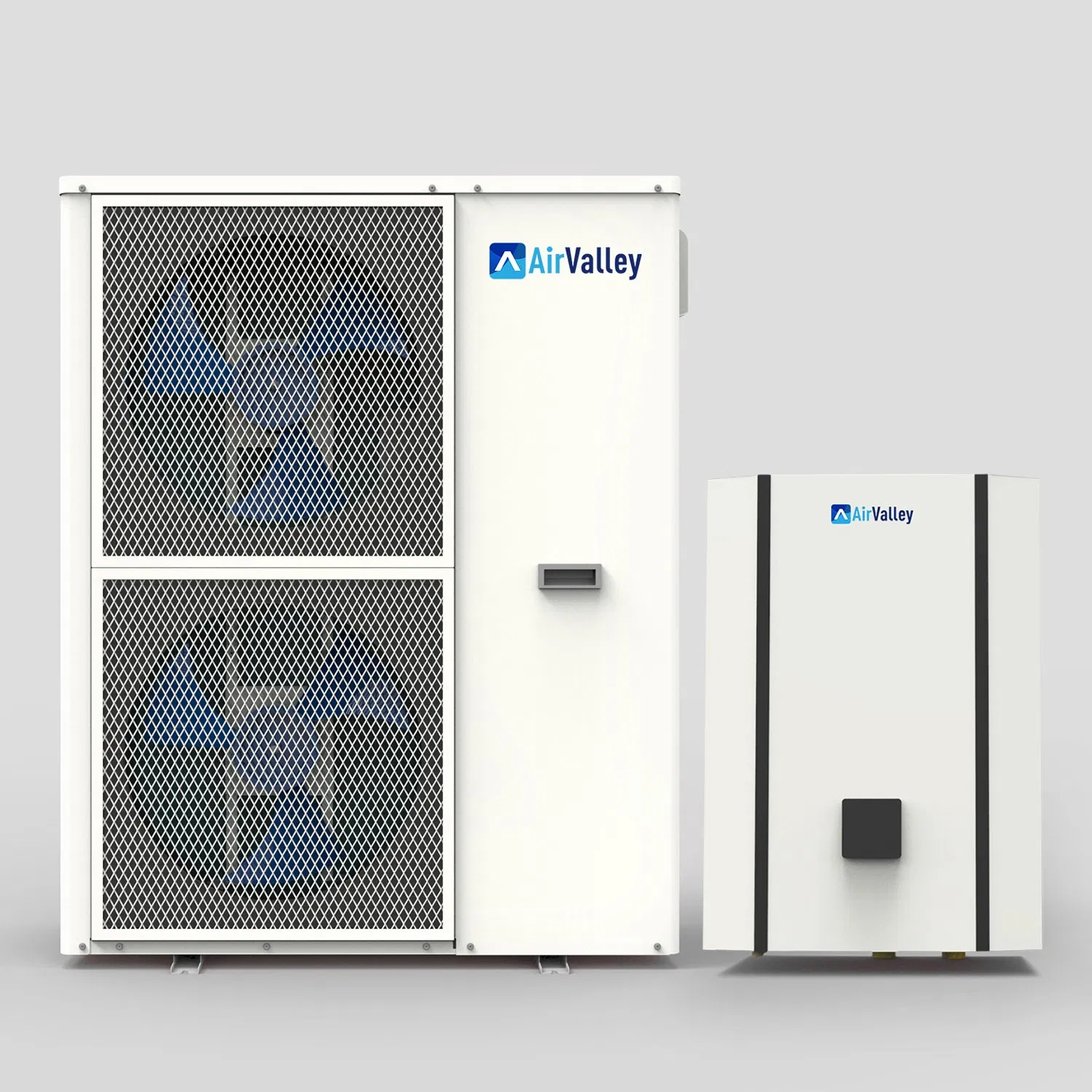

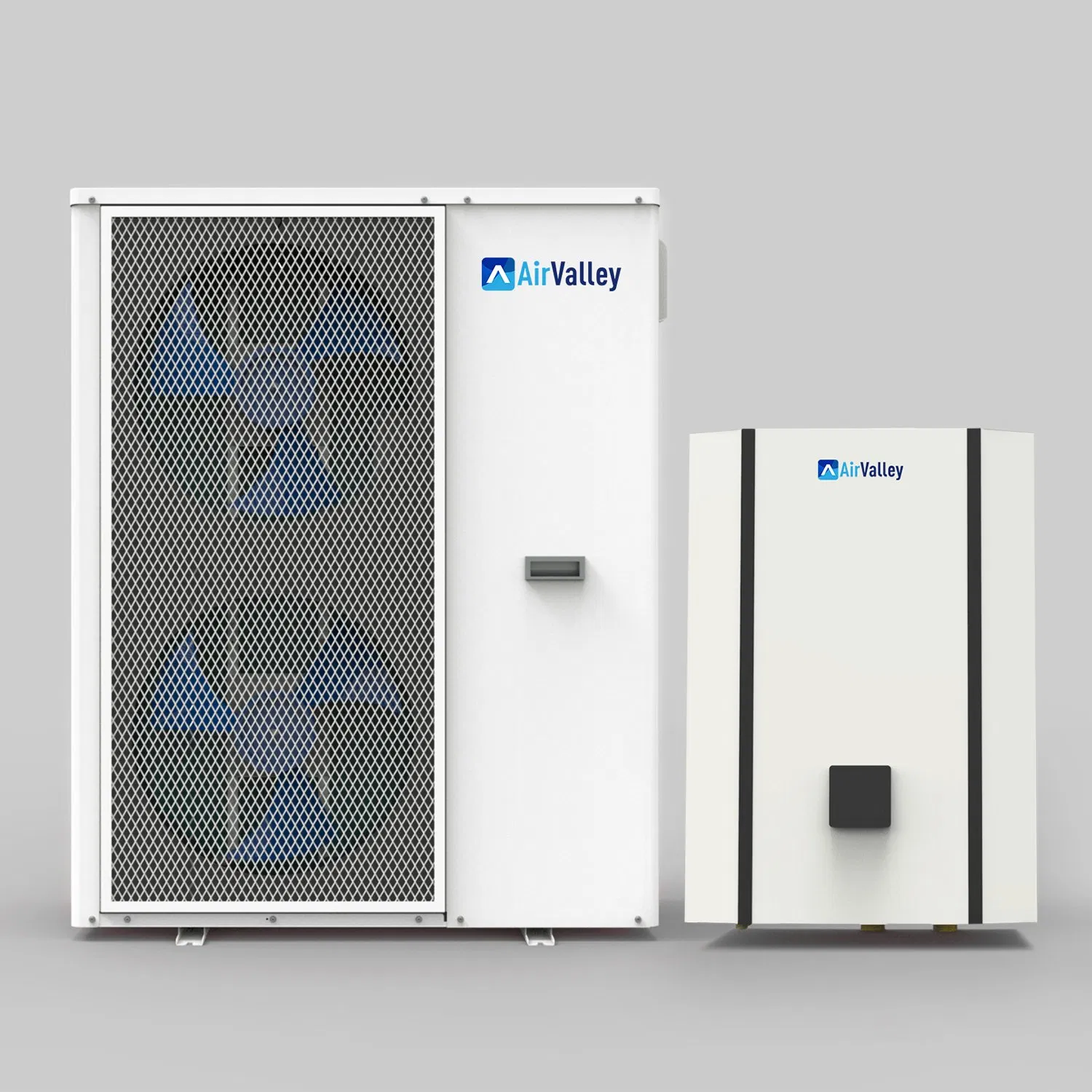

Residential Split DC Inverter EVI Air to water heat pump for heating + cooling + hot water

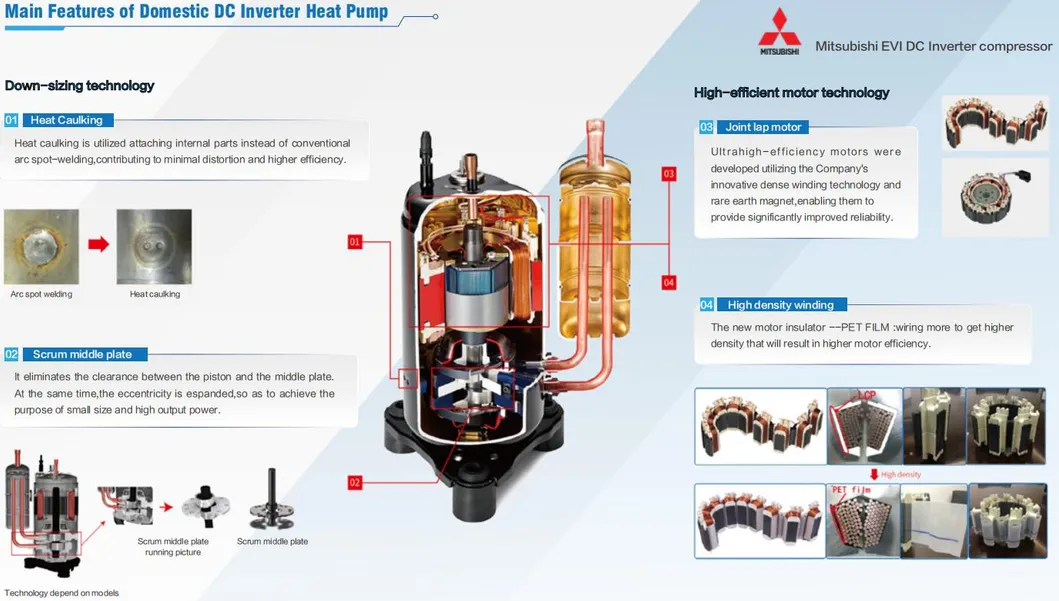

Equipped with DC Inverter compressor, DC Brushless fan motor, and DC Inverter circulation pump for maximum efficiency.
High Energy Efficiency:
Heating level A+++ at 35°C
Heating level A++ at 55°C
EVI Technology:
Stable operation at -35ºC
Wide running range: -35ºC to 43ºC

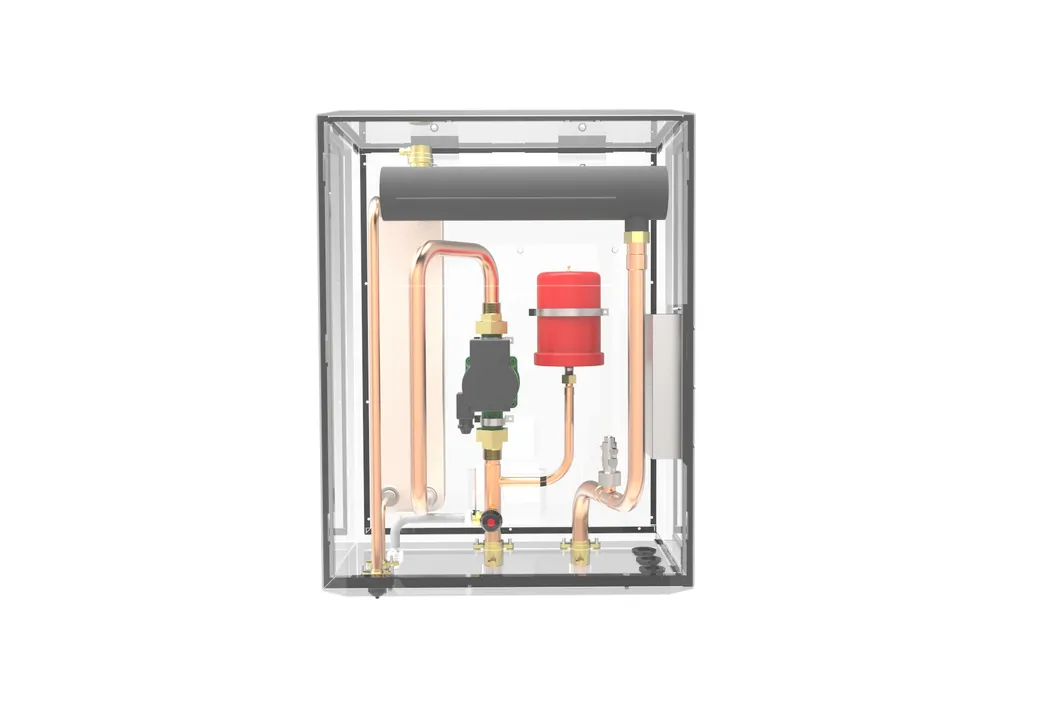

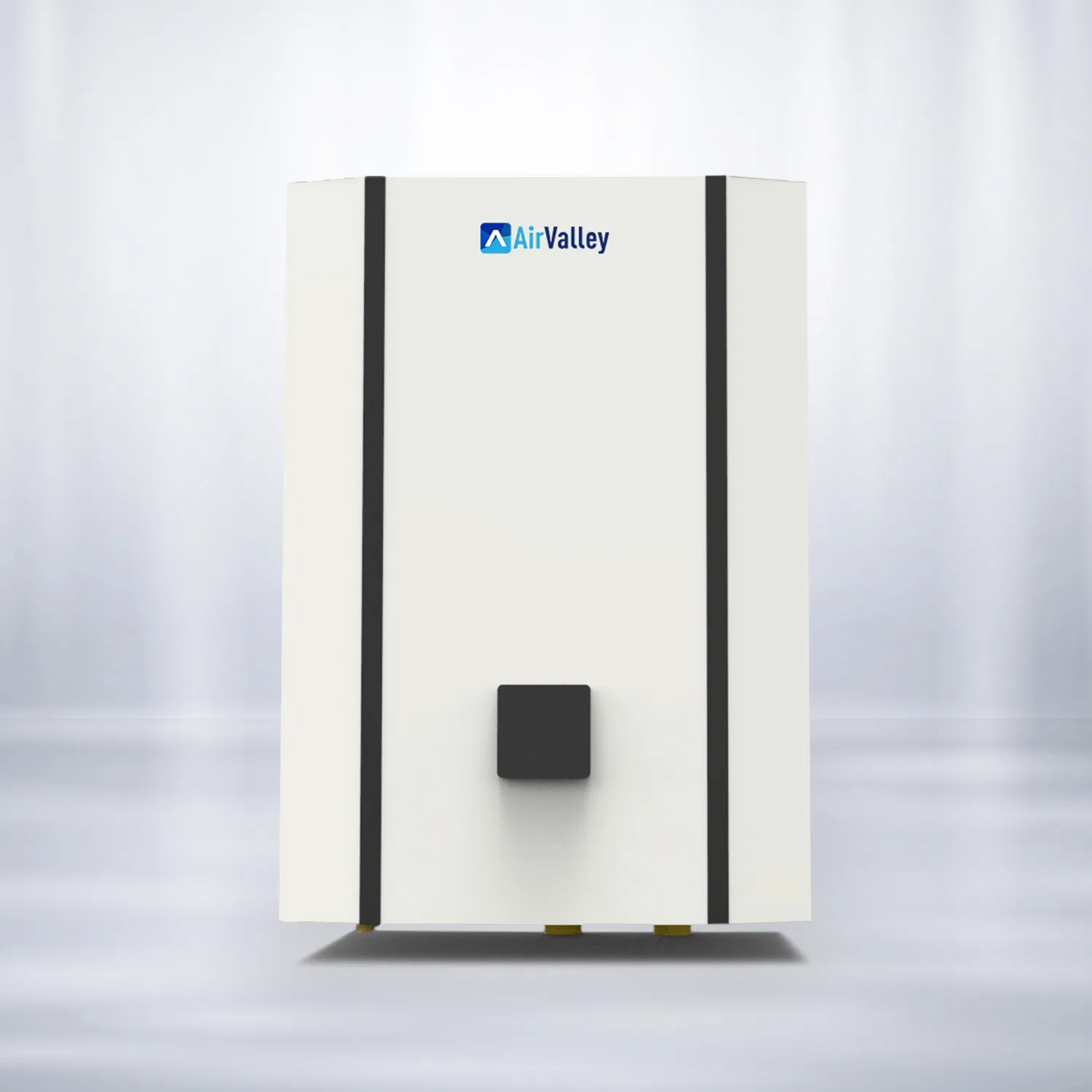

The water system is fully equipped with a built-in DC Inverter water pump, water flow switch, electric heater, expansion tank, and Y-shaped filter to save installation time and costs.

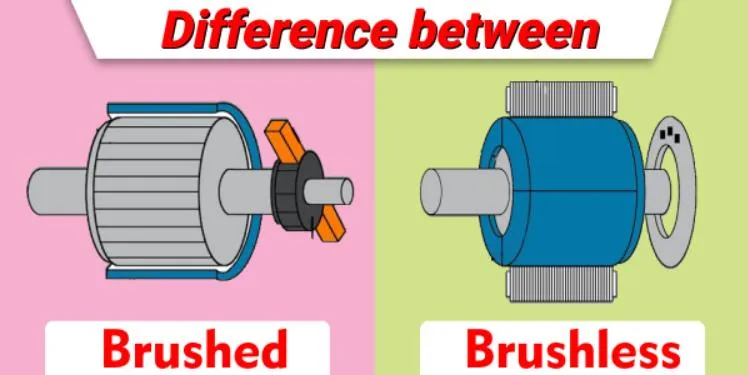

The high-quality DC speed-regulating motor adjusts air volume intelligently, reducing power consumption by over 30% compared to AC motors. Sound insulation covering ensures low noise operation.

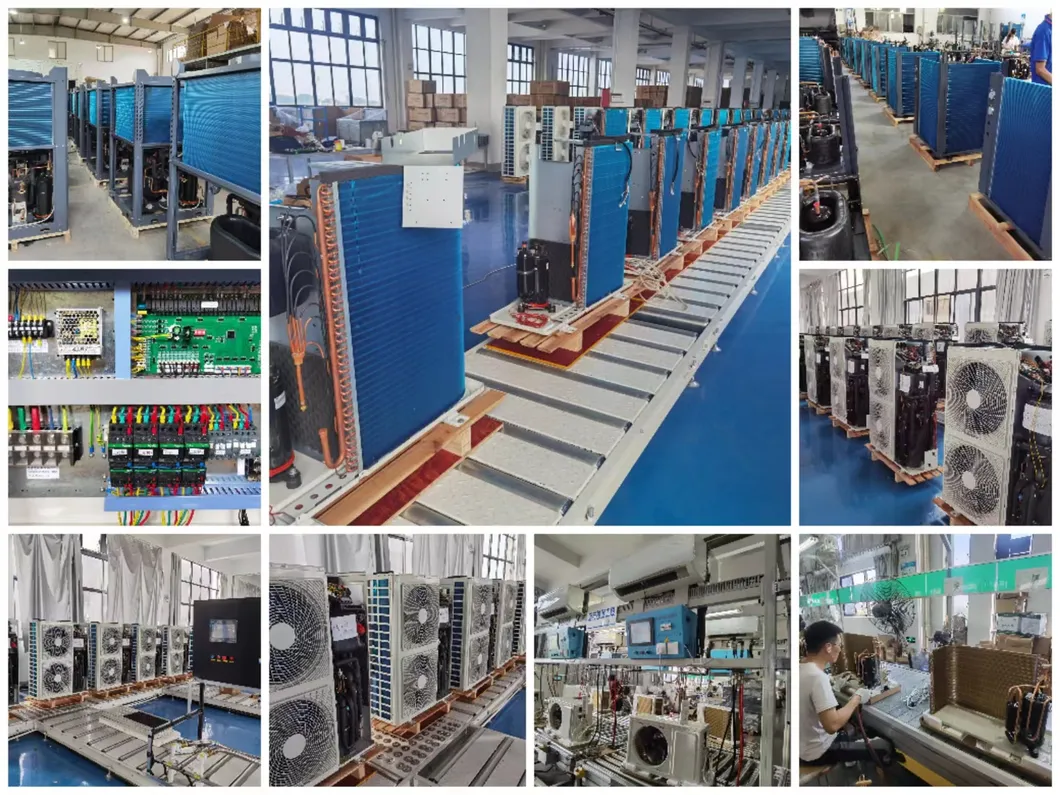

As a professional heat pump manufacturer focusing on OEM and ODM, we employ expert R&D engineers with over 10 years of industry experience. Our strategic cooperation with leading component manufacturers ensures high performance and stability.

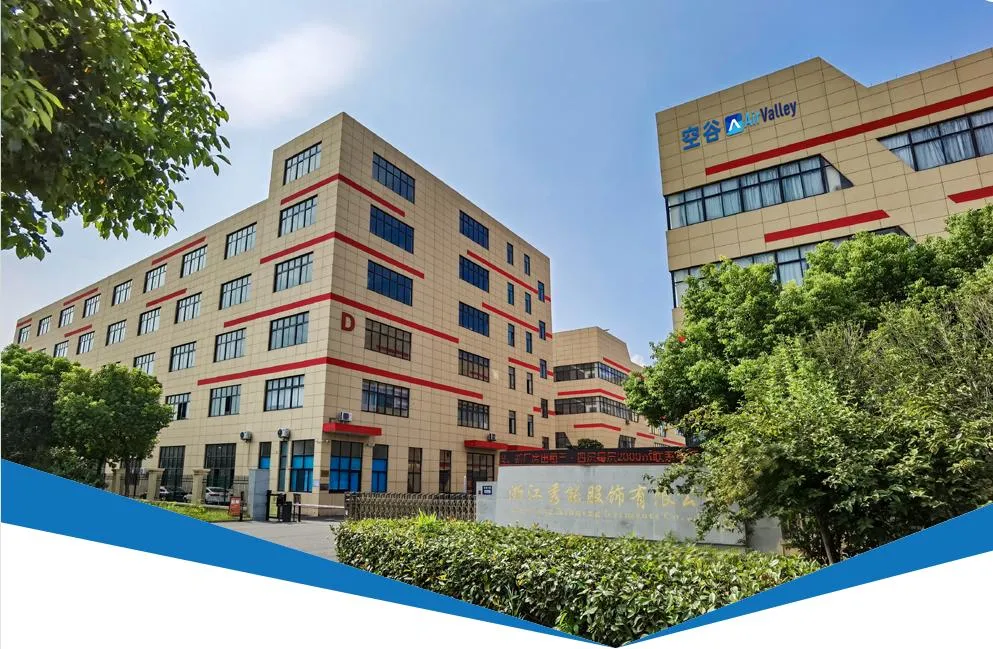

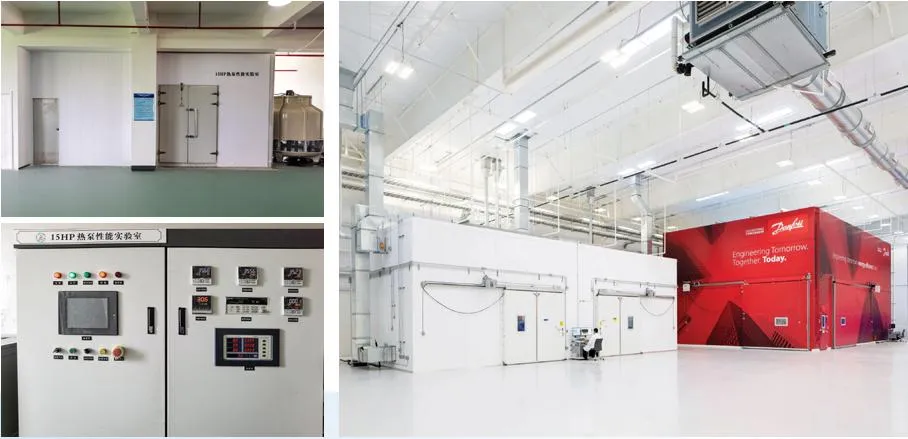

Our facilities include a -35ºC 15HP performance laboratory and long-term operation labs. We test units from -40ºC to 55ºC, with capacity testing up to 300kW.
| Model | DFC10I/BPF | DFC15I/BPF | DFC16I/BPF | DFC20I/BPF | DFC16II/BPF | DFC20II/BPF | ||
|---|---|---|---|---|---|---|---|---|
| Rated Heating (A7 W45) | Capacity | kW | 10.00 | 15.00 | 16.00 | 20.00 | 16.00 | 20.00 |
| Input Power | kW | 2.81 | 4.36 | 4.55 | 5.70 | 4.55 | 5.68 | |
| COP | W/W | 3.56 | 3.55 | 3.52 | 3.51 | 3.52 | 3.52 | |
| Power Supply | V/Ph/Hz | 220V/1/50Hz | 380V/3/50Hz | |||||
| Refrigerant | - | R32 | ||||||
| Operation Temp Range | ºC | -35 ~ 43 ºC | ||||||
