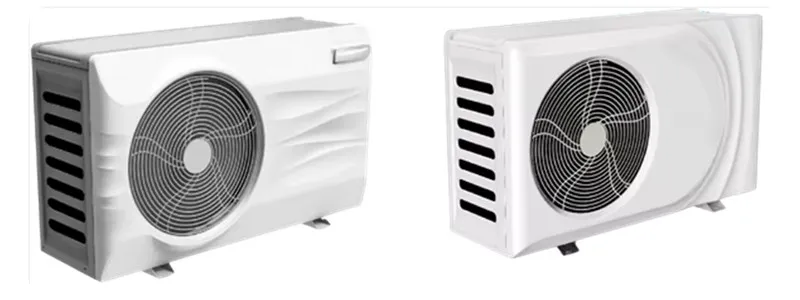

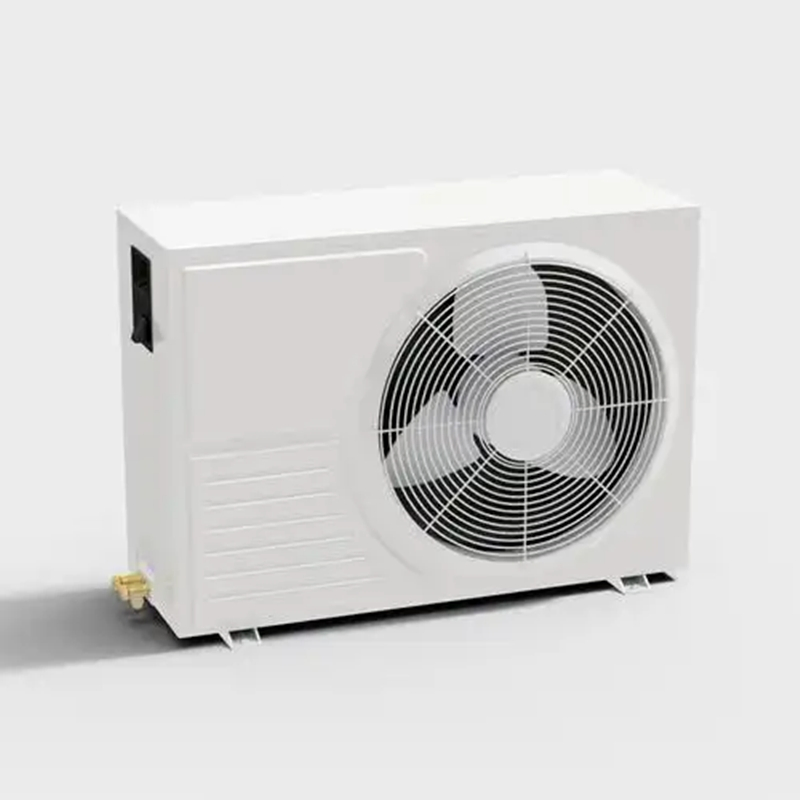

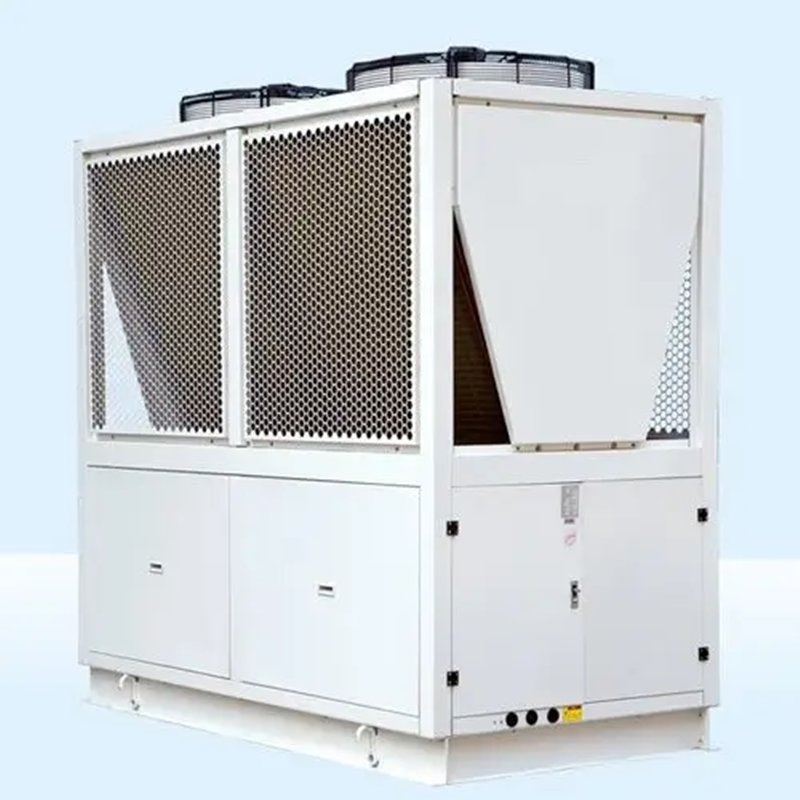

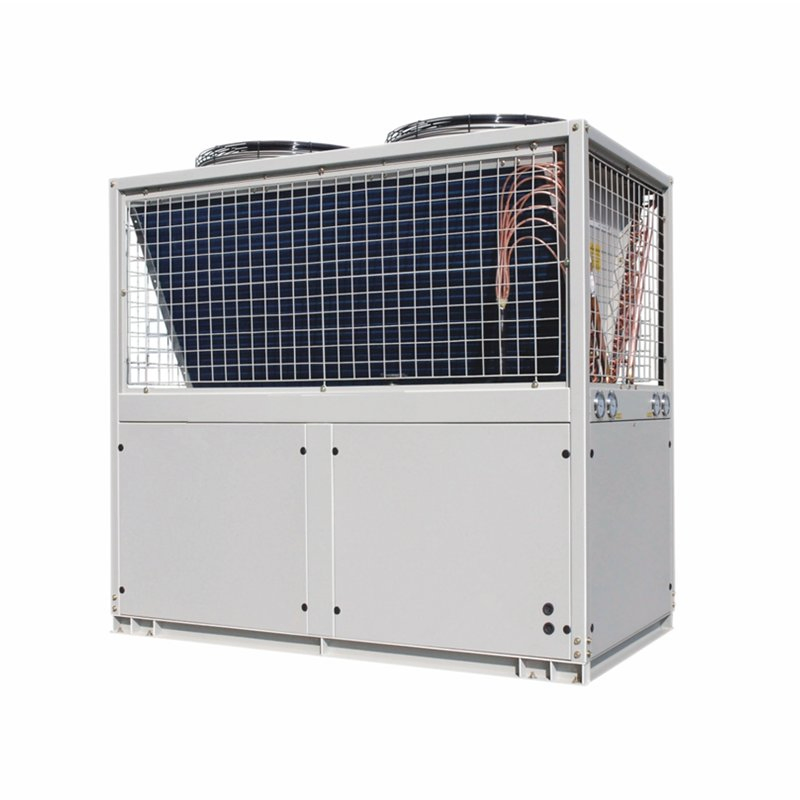

Our Swimming Pool Heat pumps are specially designed and engineered for water temperature control of swimming pool and spa. The units work as chillers in summer and heat pumps in other seasons, offering the most energy efficient pool & spa chilling and heating.

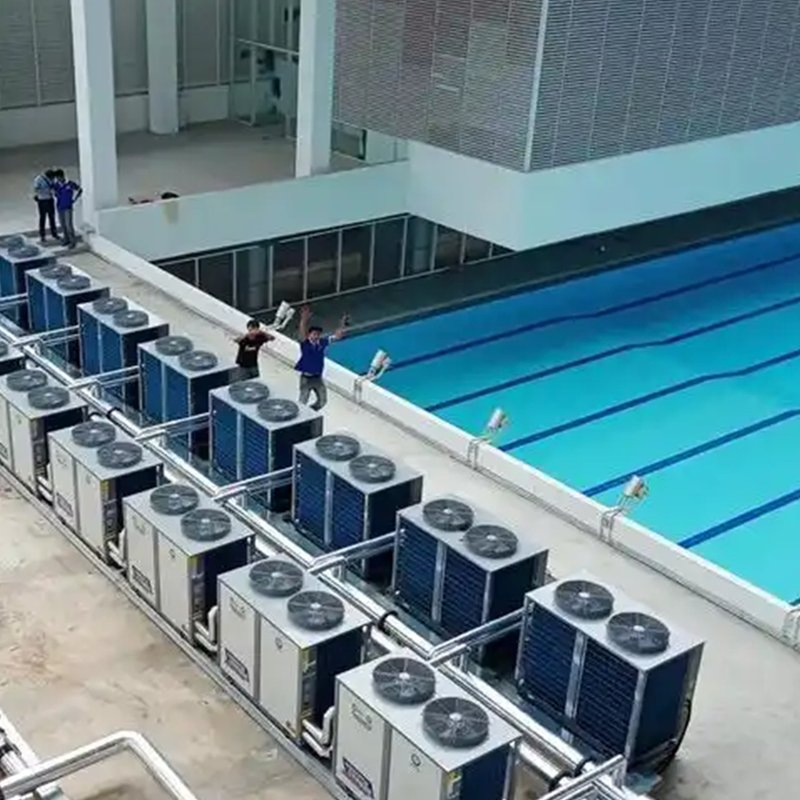

Compared to gas, oil, or electric heaters, operation cost of swimming pool water chiller & heat pumps is up to 60%~80% less, saving your expenses in energy costs each year. These units are especially suitable for household and commercial swimming pools.
| Item | Unit | L/1.5Y | L/2Y | L/2.5Y | L/3Y | L/5Y | L/6Y |
|---|---|---|---|---|---|---|---|
| Rated heating capacity | KW | 6.5 | 9 | 10.5 | 12.8 | 22.5 | 26.2 |
| Rated cooling capacity | KW | 4.55 | 6.3 | 7.35 | 8.96 | 15.7 | 18.3 |
| Input power | KW | 1.2 | 1.67 | 1.95 | 2.43 | 4.24 | 5.12 |
| COP | W/W | 5.42 | 5.39 | 5.38 | 5.27 | 5.31 | 5.12 |
| Voltage | V/Hz | 220V-240V 50Hz / 1ph | 380V-400V / 50Hz / 3ph | ||||
| Water flow | m3/h | 2.5 | 3.4 | 4.3 | 5 | 8.7 | 13 |
| Noise level | dB(A) | <48 | <48 | <48 | <50 | <55 | <58 |
| Ambient temp | °C | -10ºC -- 50ºC | |||||

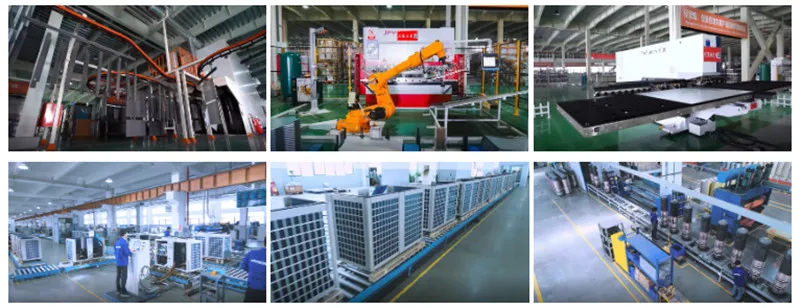

Established in 2005, the manufacturer boasts three modern production bases covering 580,000 square meters, with an annual production capacity of 1.2 million units and over 1,500 employees. As a leading air source heat pump manufacturer, the company possesses a strong team of R&D engineers and experts dedicated to energy-efficient solutions.
The company has independently developed advanced technologies in EVI and variable frequency heat pumps, swimming pool heat pumps, and central hot water systems. Quality management systems are certified under ISO9001 and ISO14001, with products obtaining CE, EMC, ERP, and CB certifications for global distribution.
