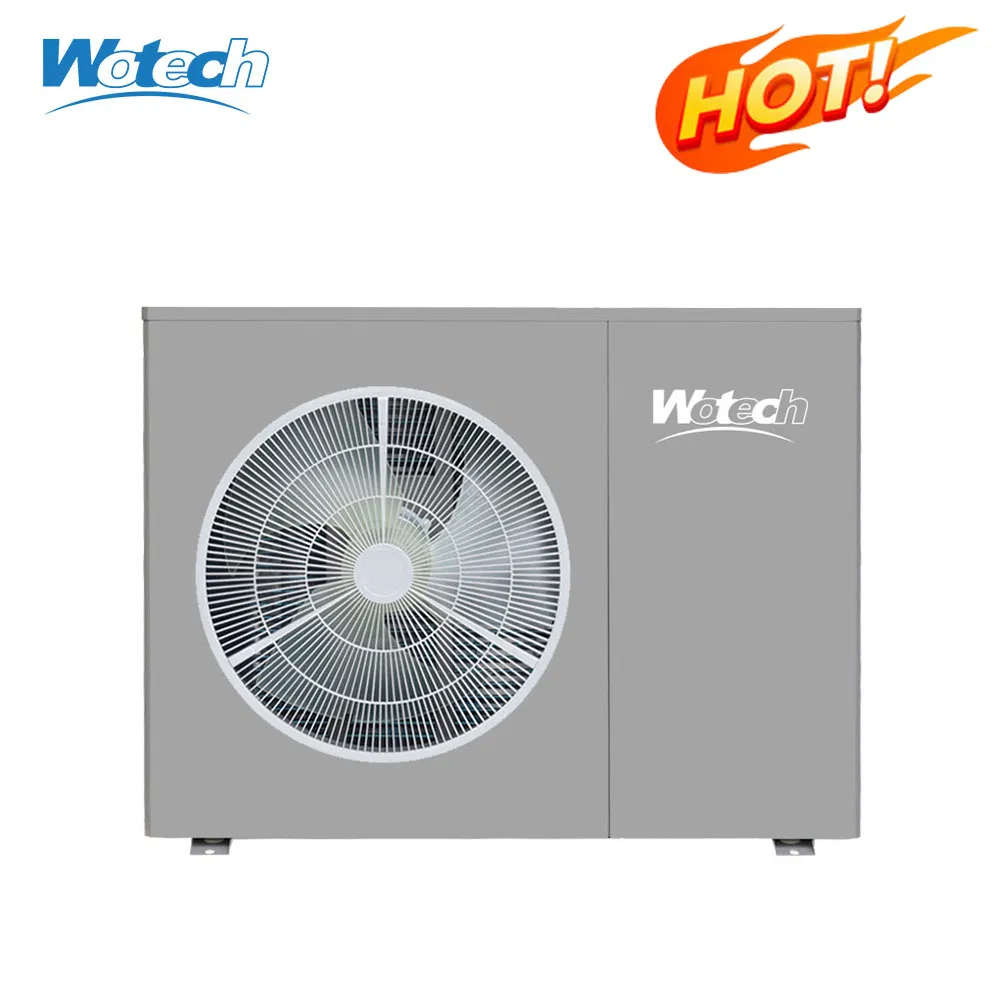

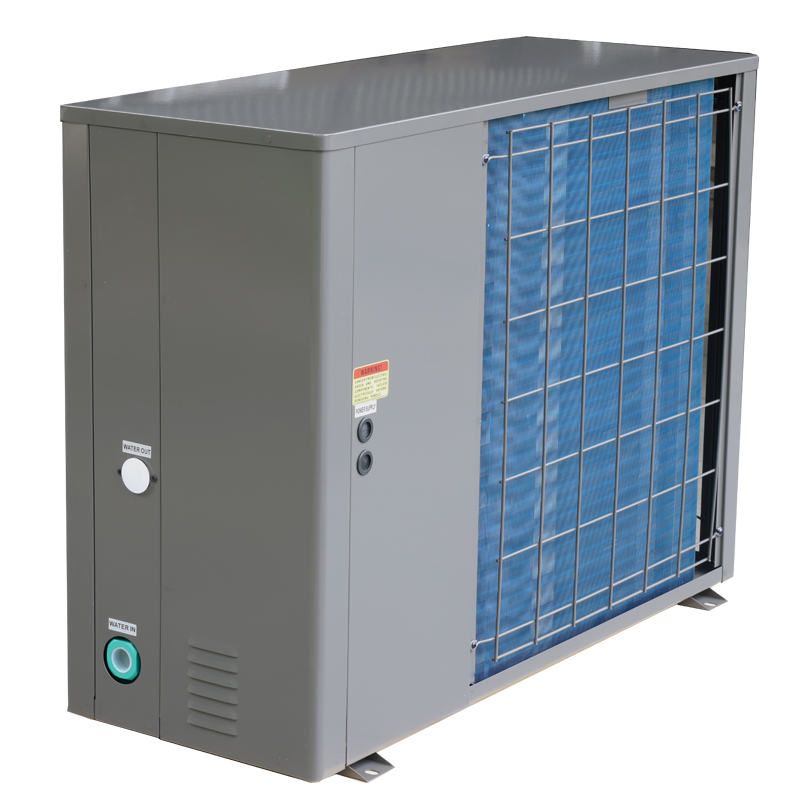

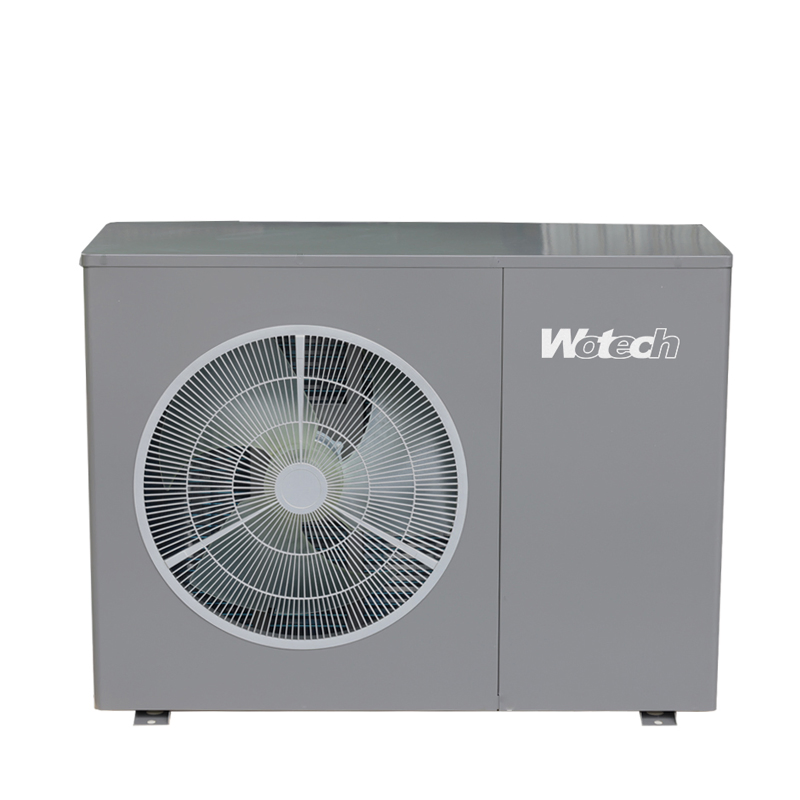

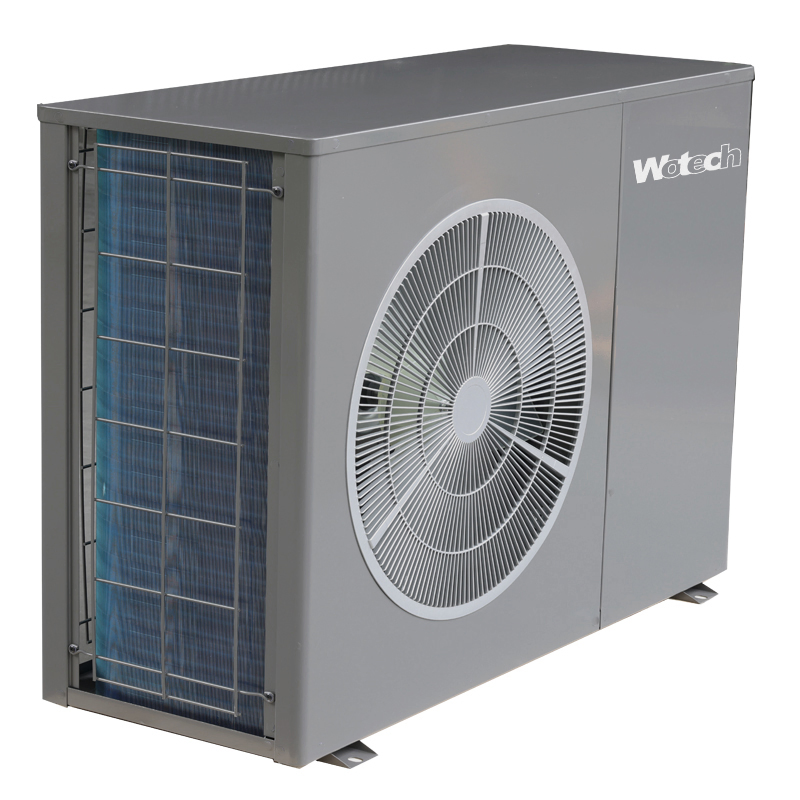

10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
1 / 5
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System
10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System

10-30kw R410A Inverter Heater Air to Water Heat Pump for Central House Heating and Dhw with Monoblock System

Customization: Available
Certification: RoHS, CB, ISO9001, CE
Heat Source Type: Air Source Heat Pump
Send Inquiry

Product Description

Basic Specifications
Model NO.
WW-V
Heating Capacity
10-30kw
Compressor
Panasonic Rotary
Thermostat Setting
55°C (Max 60°C)
Unit Type
Inverter
Power Supply
220V/1/50Hz
Electric Heater
Yes
Origin
China
Specification
1165*410*800mm
Product Description

10-30KW R410a Inverter Air to Water Heat Pump for Central House Heating and Domestic Hot Water

Inverter Air to Water Heat Pump
Key Features:
  • ✔ Design suitable for tropical or subtropical regions (Southeast Asia, South Europe, etc.).
  • ✔ Hot water up to 60ºC, ideal for underfloor and radiator heating.
  • ✔ Intelligent EE valve for excellent efficiency at various ambient temperatures.
  • ✔ Plug & play motherboard for easy servicing.
  • ✔ Unique fan motor construction, super quiet and efficient.
  • ✔ Full Inverter technology for high performance.
  • ✔ Multi-function: Cooling, Heating, and Sanitary Hot Water.

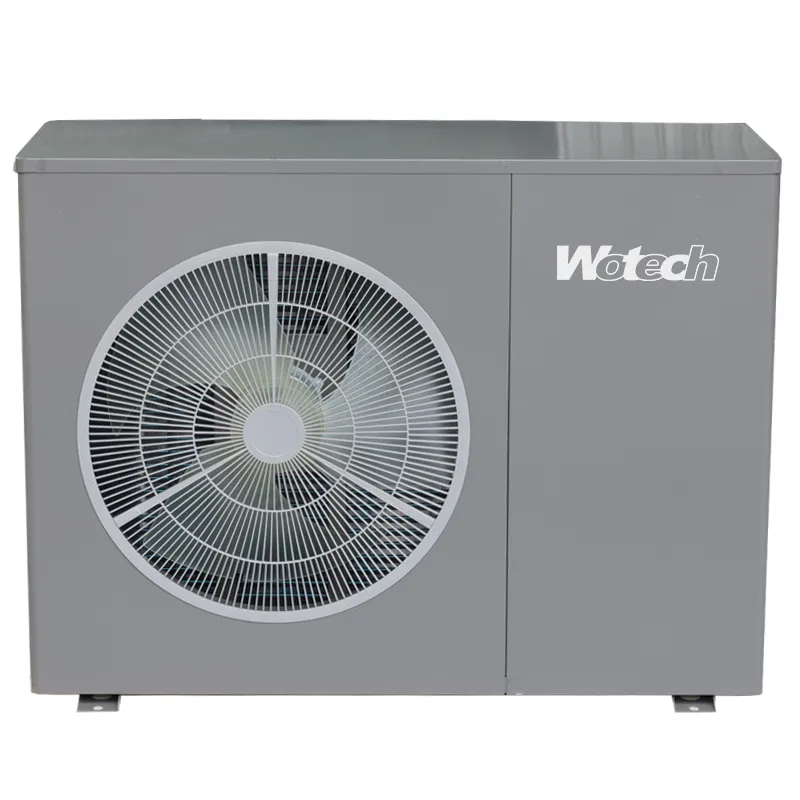

Heat Pump Unit
Technical Parameters
Market Model WW09V WW14V WW18V WW25V WW30V
Heating (A7/W35) Capacity kW 9.8 14 18.4 25.3 30.1
COP - 10.6 5.9 7.1 11.3 12.6
Cooling (A35/W7) Capacity kW 6.7 10.4 13.1 19.3 22.4
COP - 11.3 6.8 8.5 12.6 13.6
Power Supply V/Ph/Hz 220V/1/50 380V/3/50 380V/3/50 380V/3/50 380V/3/50
Refrigerant - R410A R410A R410A R410A R410A
Max Water Temp ºC 60 60 60 60 60
Installation & Key Components

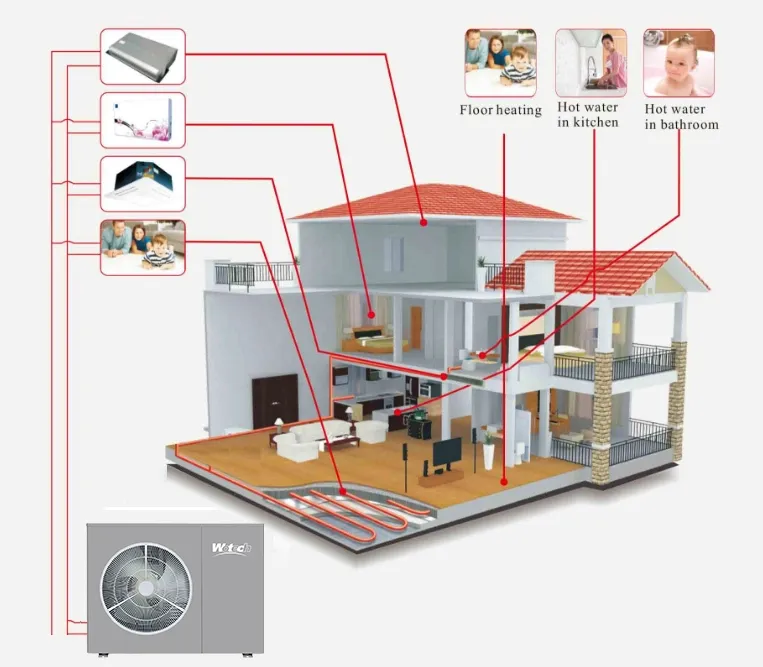

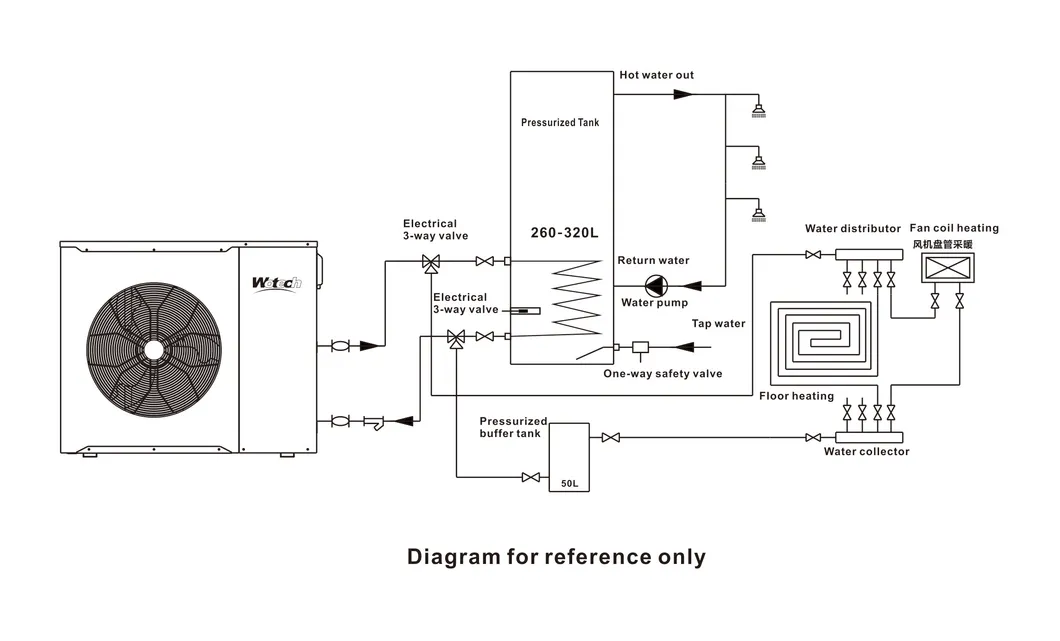

Installation Diagram 1 Installation Diagram 2

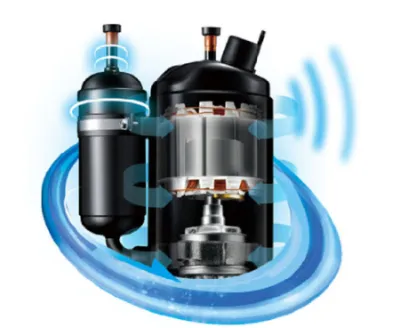

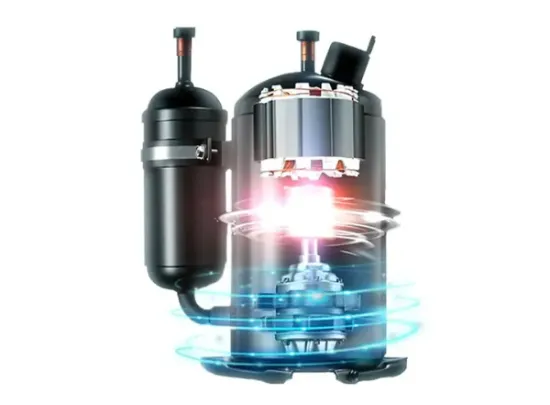

★ World-Class Compressor: Uses international brands with enhanced vapor injection technology for peak efficiency and stability.

Compressor Compressor Tech

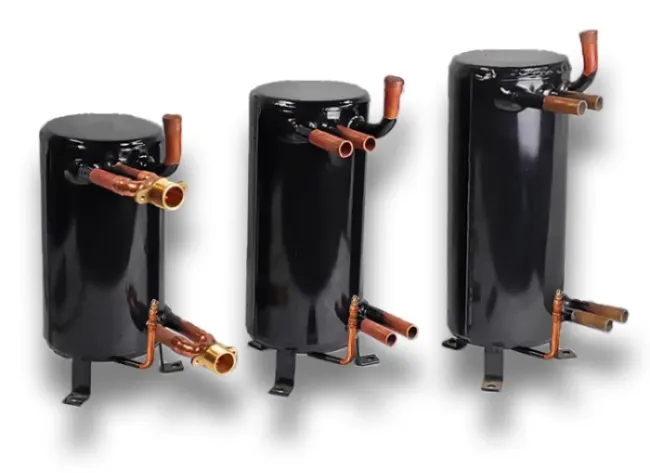

★ Coil Heat Exchanger: Efficiently pushes water temperature up to 80ºC, suitable for replacing traditional heating equipment.

Heat Exchanger

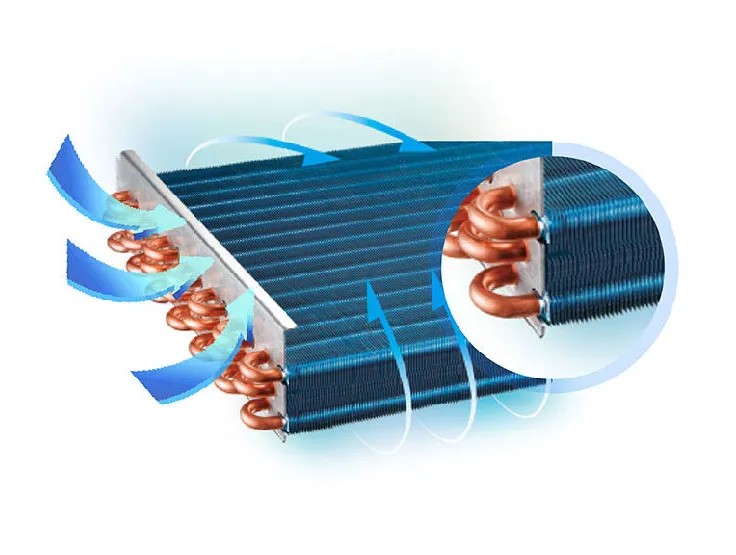

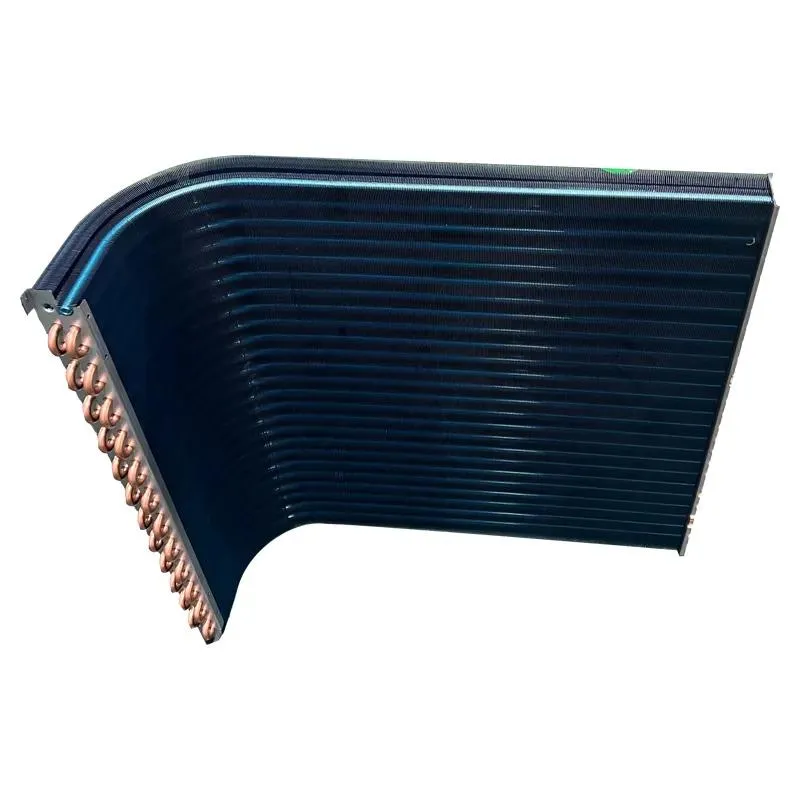

★ Nanometer Gold Plating Evaporator: Hydrophilic concave-convex fins provide higher thermal efficiency and effective defrosting.

Evaporator 1 Evaporator 2 Evaporator 3
Project Cases & Manufacturing

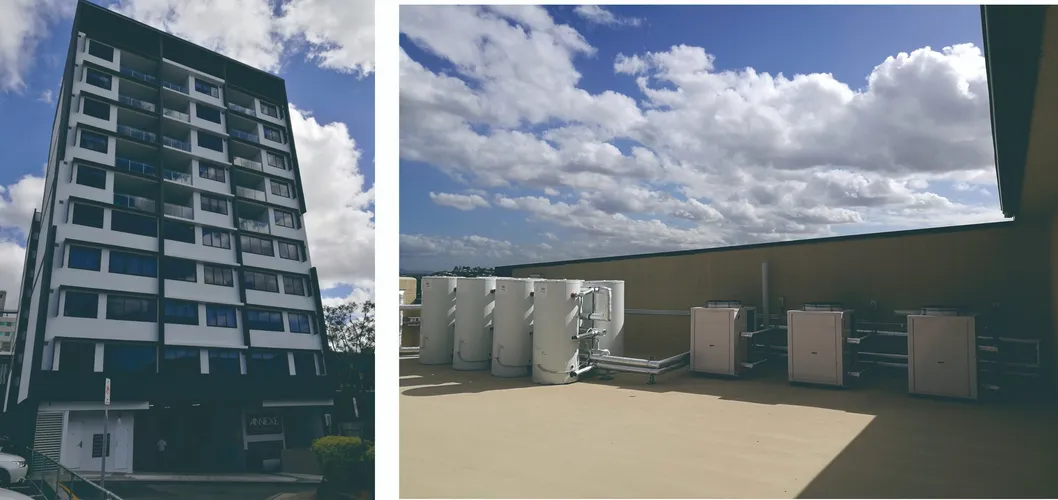

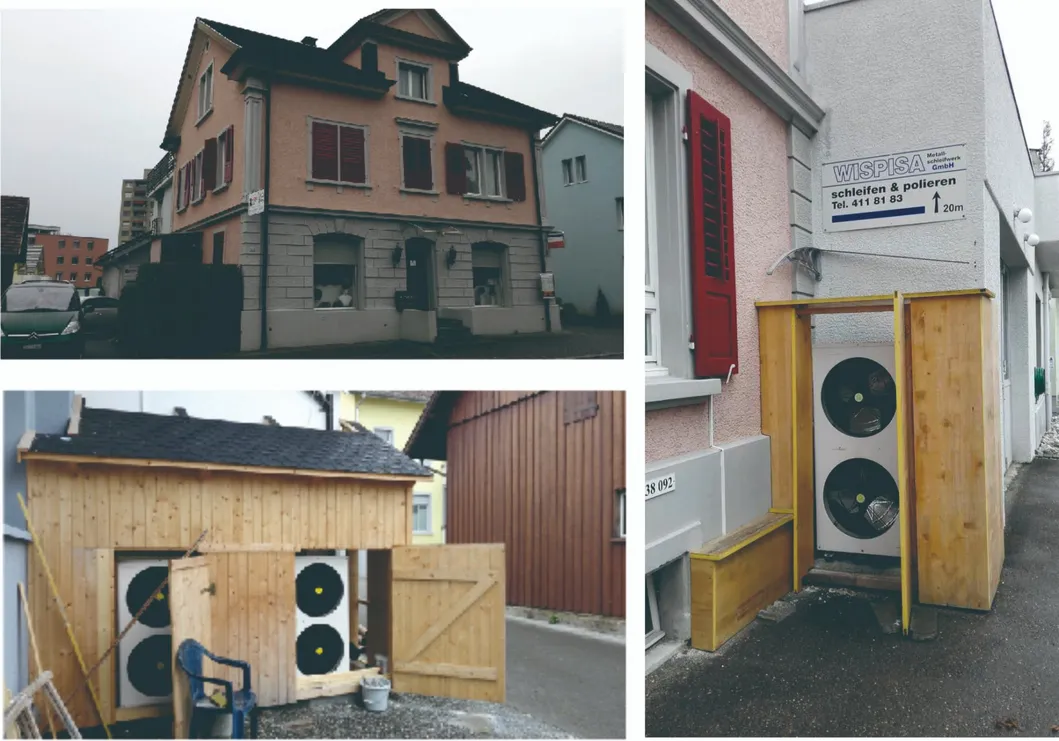

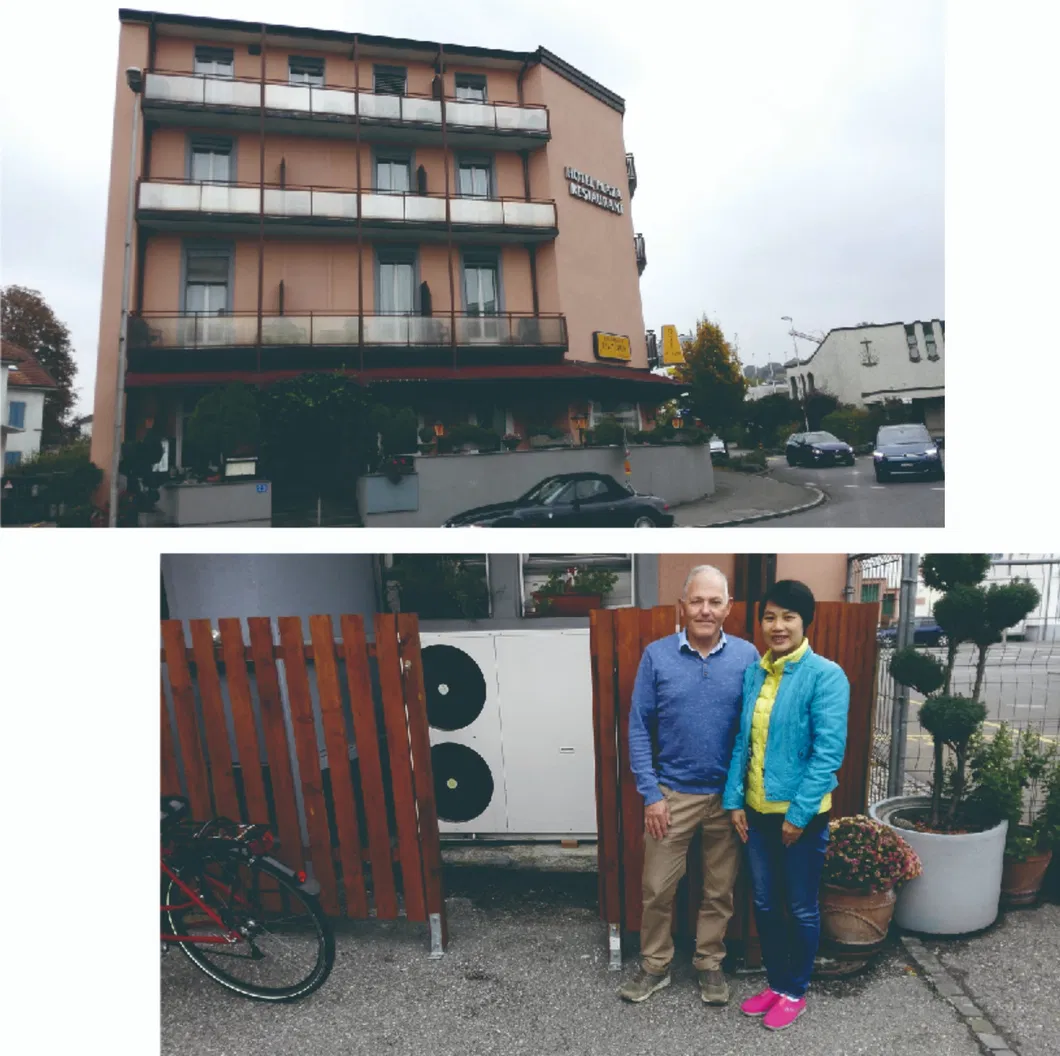

Case 1 Case 2 Case 3

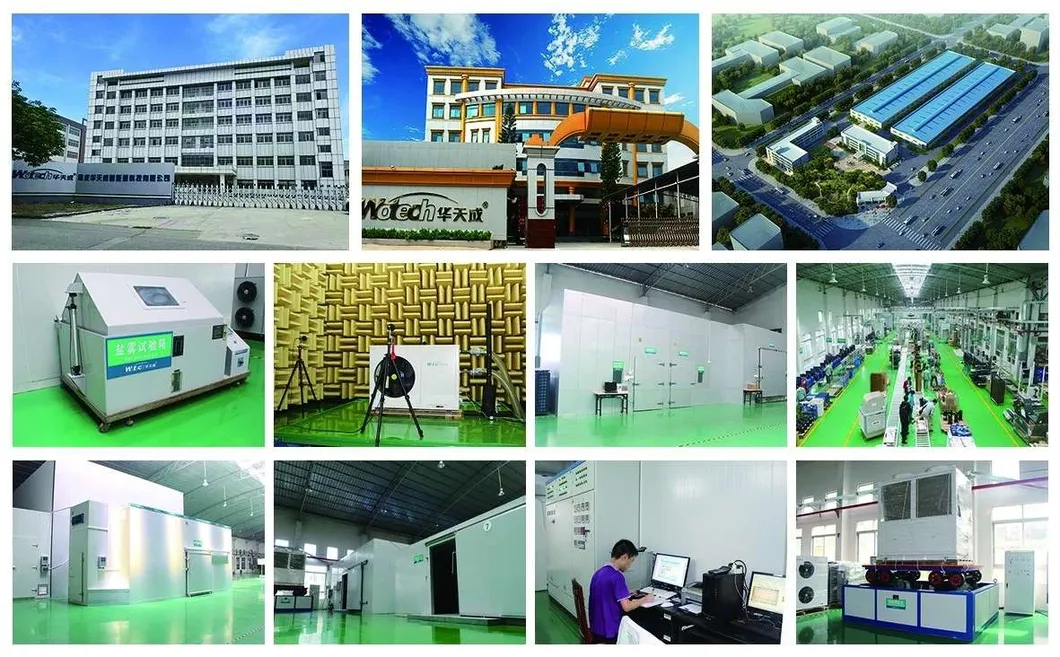

Laboratory
Frequently Asked Questions
What is the heating capacity range of this series?
The heating capacity ranges from 10kW to 30kW, making it suitable for various residential and central heating needs.
What brand of compressor is used in these units?
These heat pumps are equipped with high-efficiency Panasonic Rotary compressors, known for their stability and long service life.
Can this system provide domestic hot water?
Yes, the system is designed for a monoblock setup that provides cooling, house heating, and sanitary domestic hot water.
What is the maximum water temperature the unit can reach?
The thermostat can be set to a maximum of 60°C, which is ideal for underfloor heating and radiators.
Is the unit suitable for cold weather?
Yes, the unit features an automatic defrosting system using a SAGINOMIYA 4-way valve and has a working ambient temperature range of -10°C to 43°C.
What refrigerant does this heat pump use?
This series uses R410A refrigerant, which is efficient and standard for modern inverter heat pump systems.
