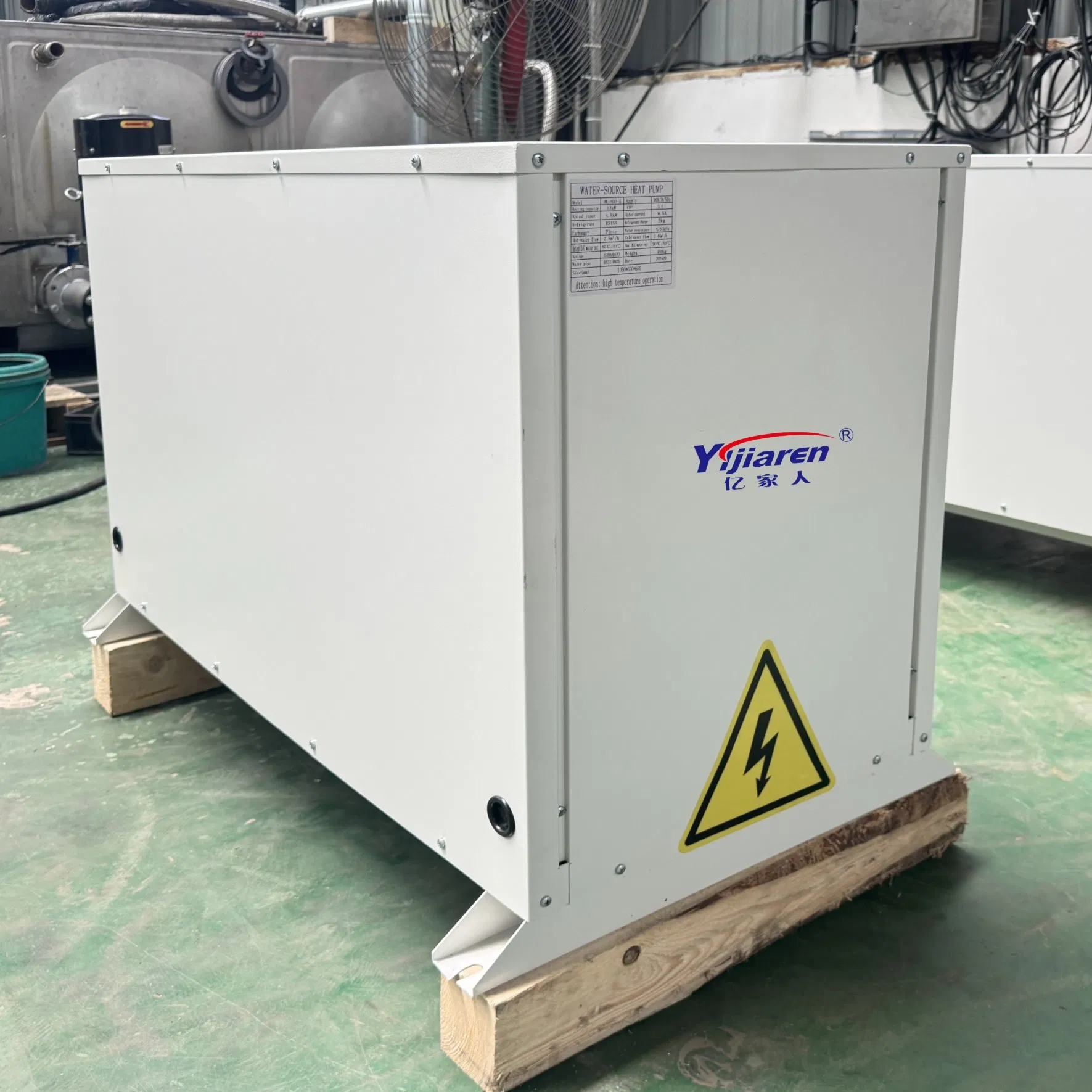

PeakWay Pump
1 / 5
Water source heat pumps currently offer one of the best energy efficiency ratios (COP values) for cooling and heating in air conditioning systems. The theoretical COP can reach up to 7, while in practical operation, it typically ranges from 4 to 6.
In winter, units can utilize water bodies between 12–22°C. Since the water temperature is higher than the ambient air, the evaporation temperature increases, leading to an improved energy efficiency ratio. In summer, water temperatures range from 18–35°C, providing better cooling efficiency compared to air-source systems.
High Performance operation with COP 20-60% higher than air-source pumps.
Renewable energy technology with low-carbon emission footprint.

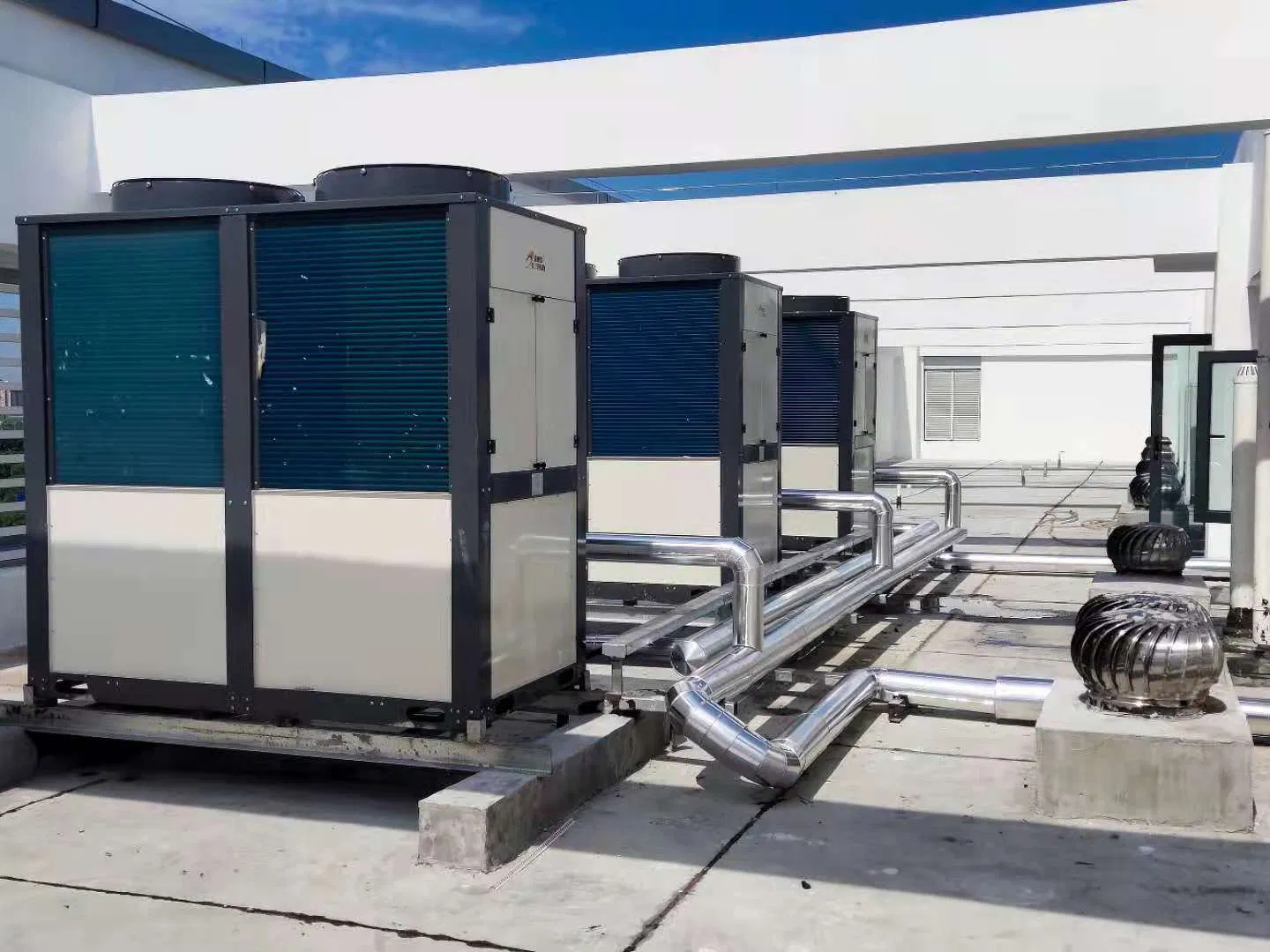

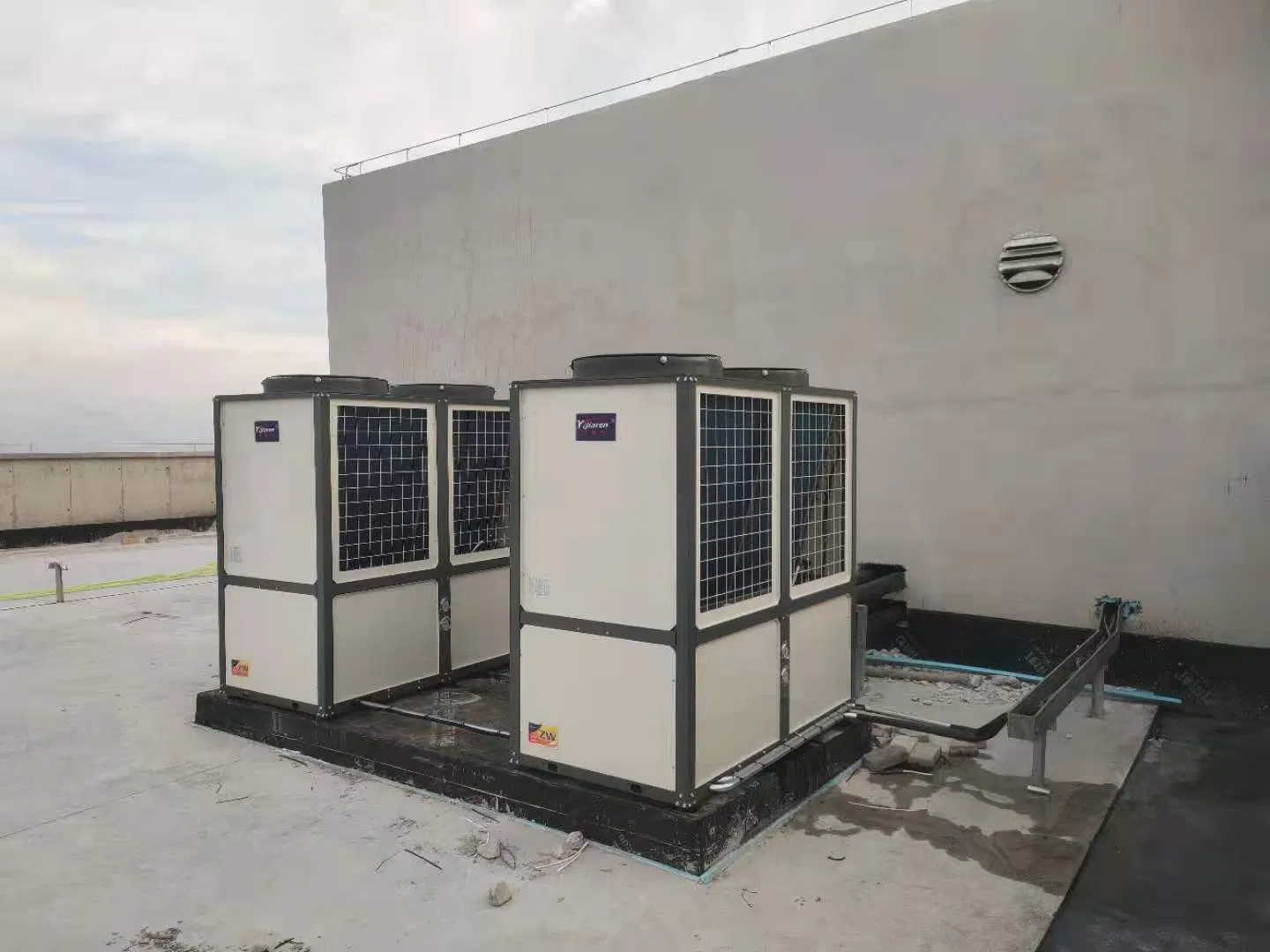

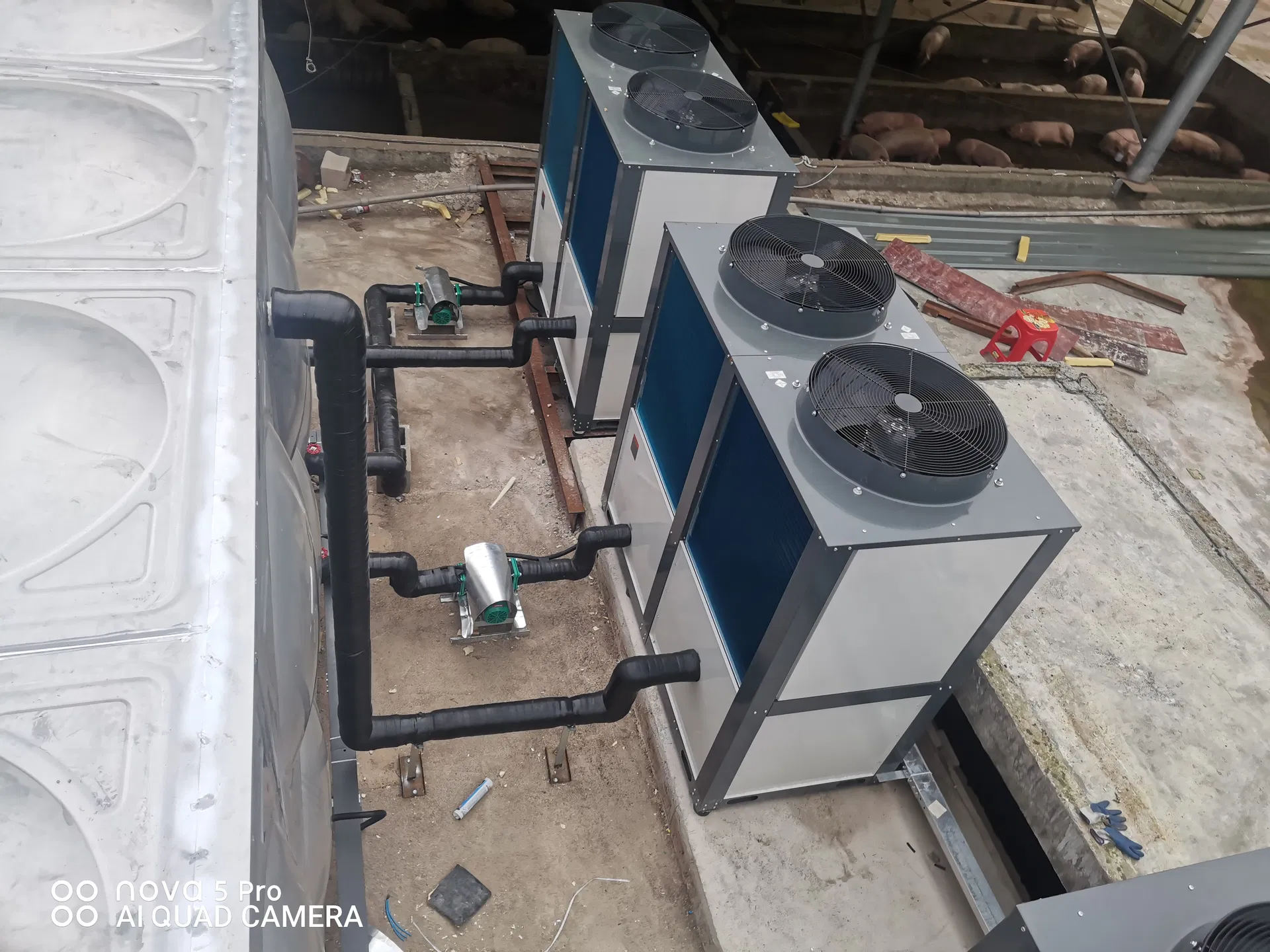

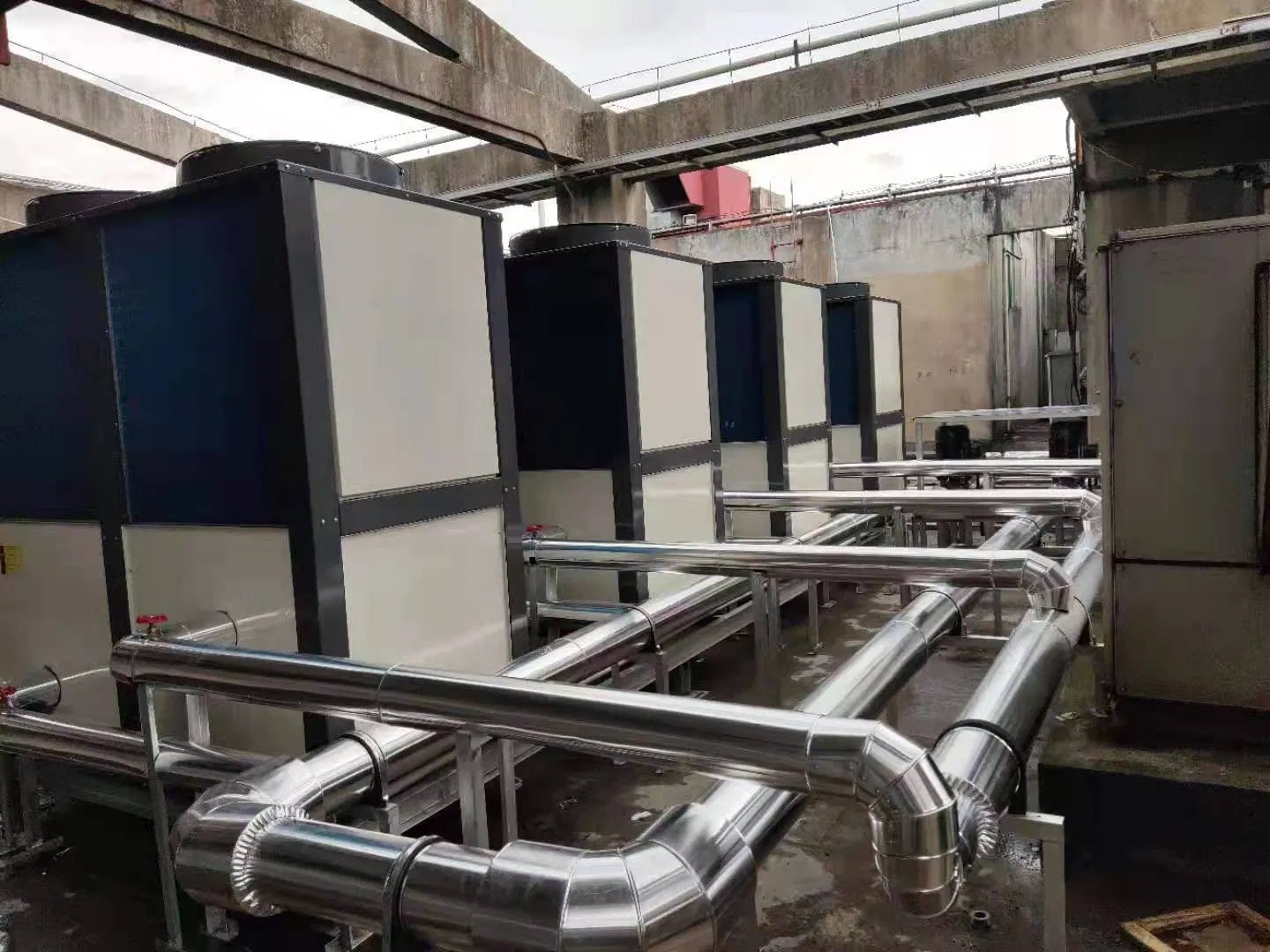

Wide applications for industrial, commercial and agricultural sectors.

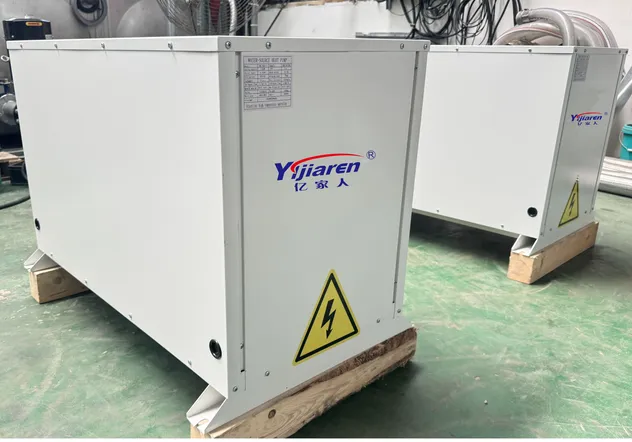

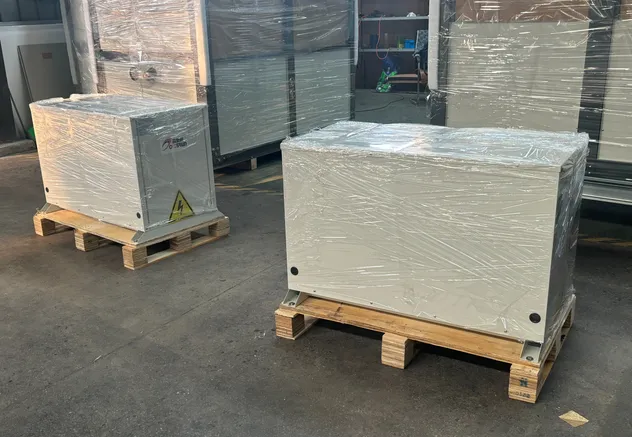

| HIGH TEMPERATURE WATER SOURCE HEAT PUMP (YJR-050GS-II) | ||
|---|---|---|
| Heating Capacity | 36 KW | Rated Input: 4.5 KW |
| Power Supply | 3N/380V/50Hz | COP: 3.4 |
| Refrigerant | R515B | Qty: 3kg |

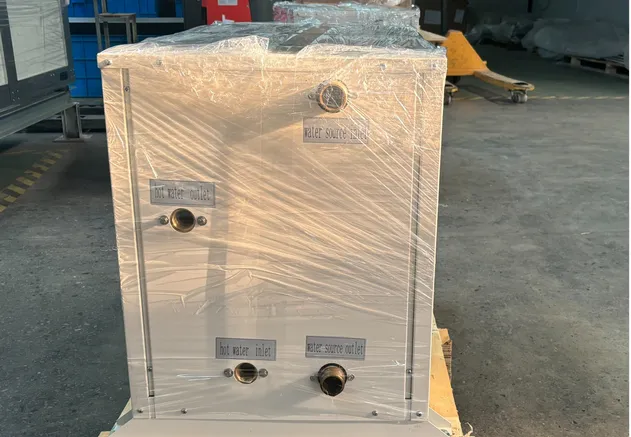

| Water Flow | Hot: 2.5 m³/h | Cold: 1.46 m³/h |
| Water Temp Out | Rated: 85℃ | Max: 90℃ |
| Noise Level | ≤60 dB(A) | |
| Dimensions | 1050 * 600 * 650 mm | |

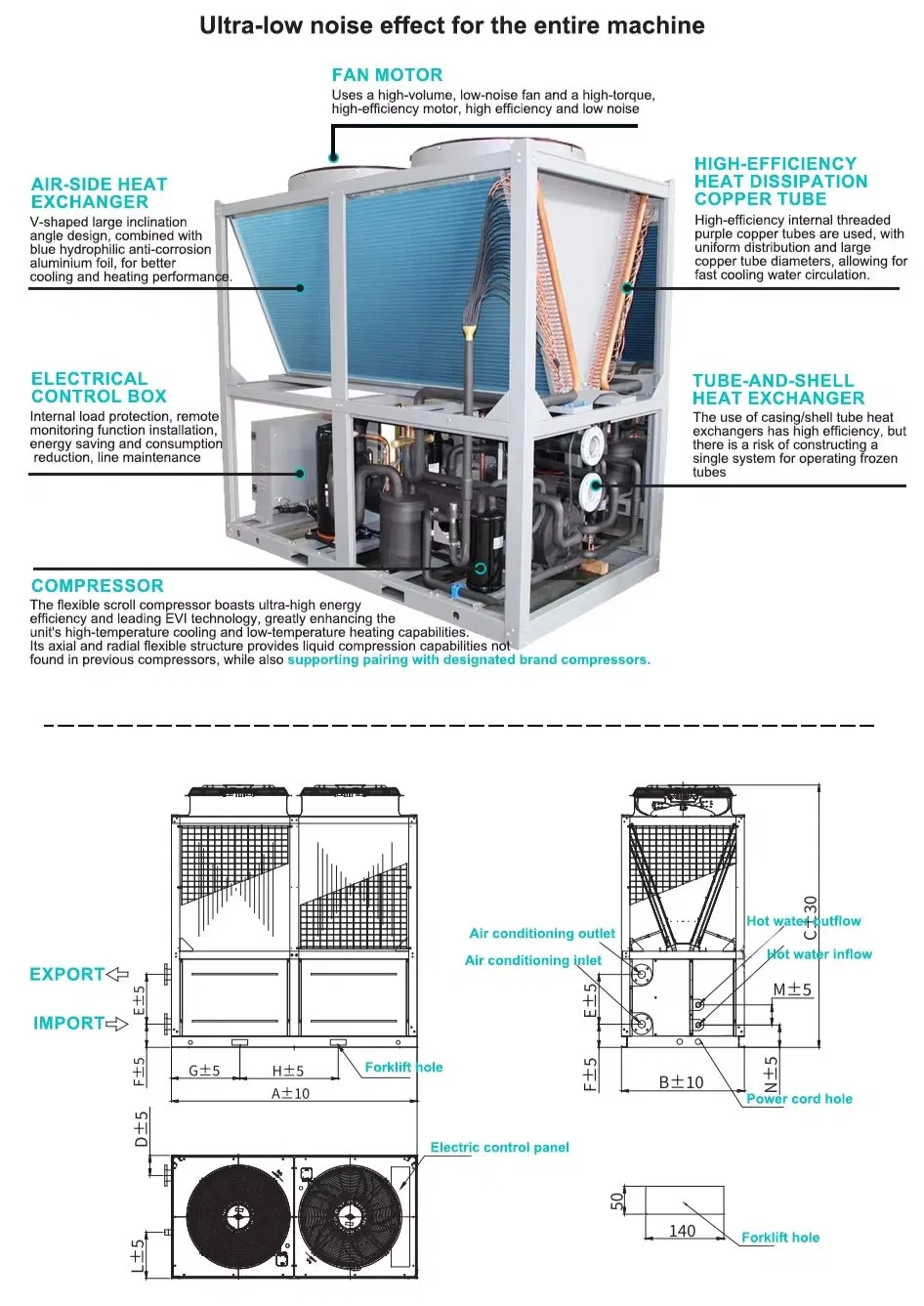

The unit is equipped with a well-known brand of semi-hermetic screw compressor. As the core component, it plays a vital role in reliability and service life. The shell-and-tube heat exchanger uses internally threaded copper tubes, significantly improving heat transfer efficiency.
Equipped with protection modules for exhaust temperature, high/low pressure, overload, and water shortage. All piping uses gas-shielded welding to ensure system cleanliness and durability.
We are an integrated industrial and trading enterprise specializing in the design and production of solar and heat pump products. With ISO and CCC certifications, we provide energy-saving intelligent manufacturing and smart control solutions globally.
