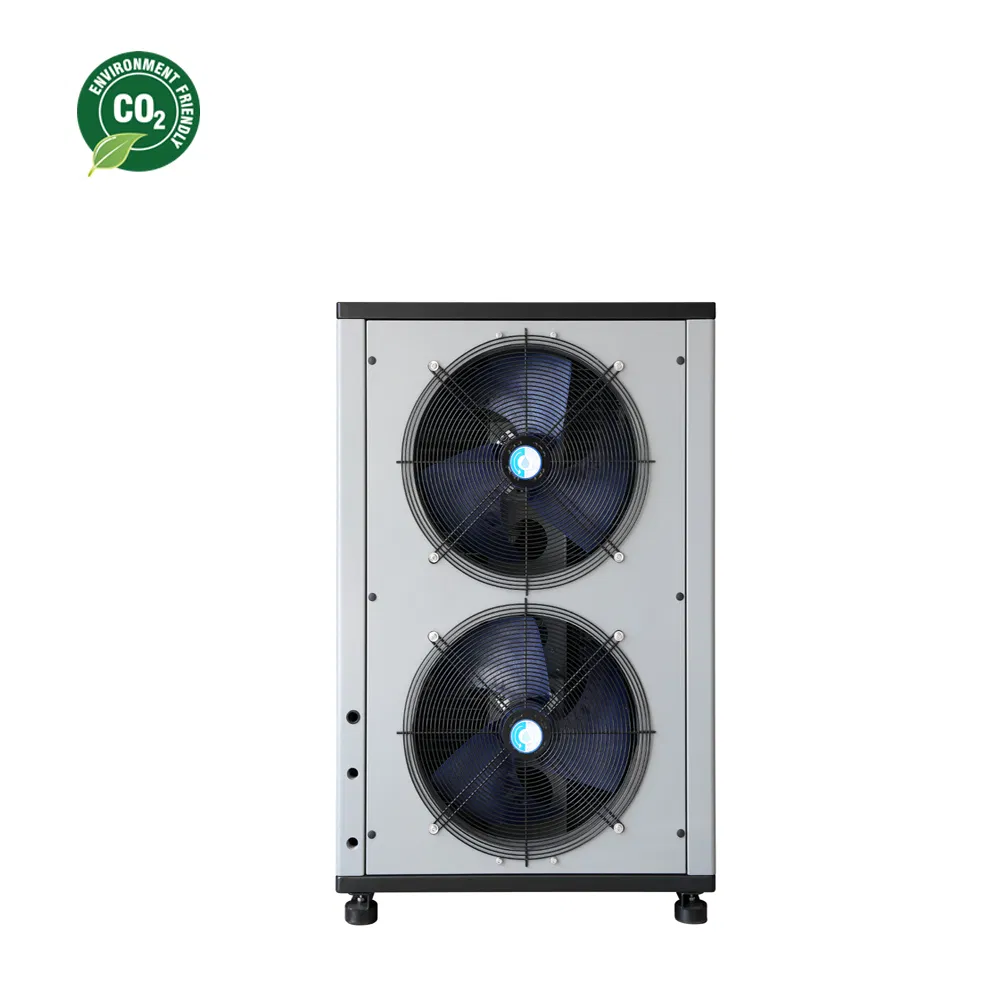

Residential and Commercial R744 Heat Pump Manufacturer

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	80-90°C

Basic Info.

Model NO.

8ZW

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Multi-power Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, CCC, RoHS

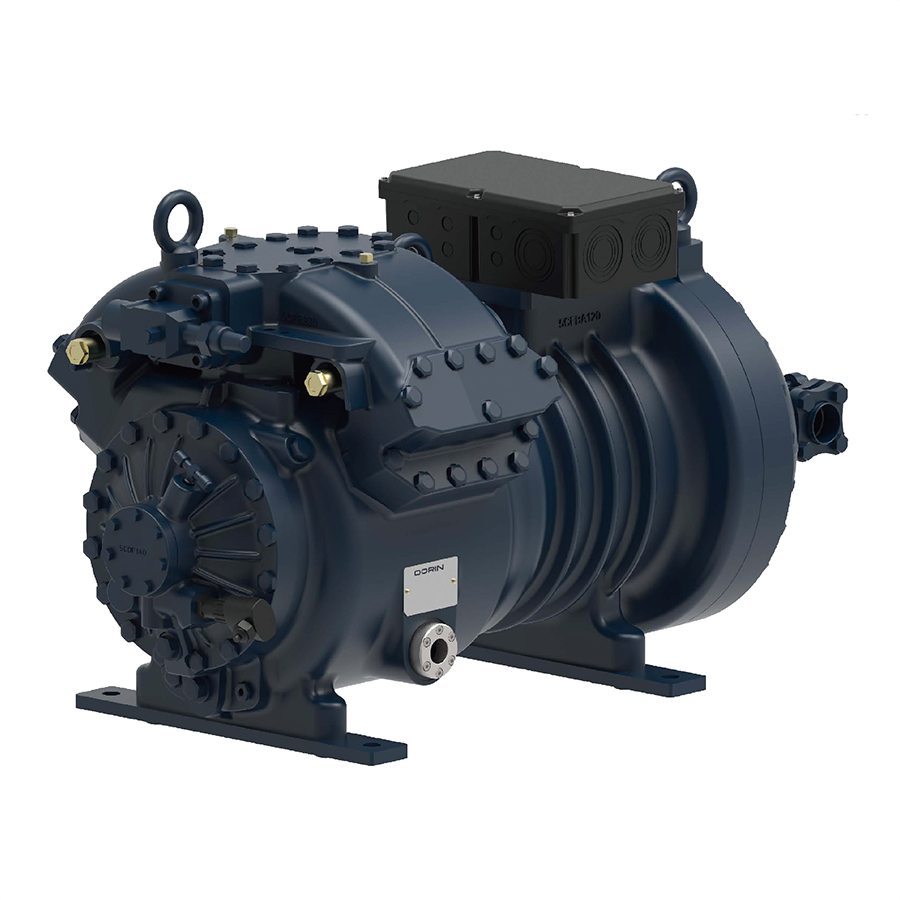

Compressor

Dorin

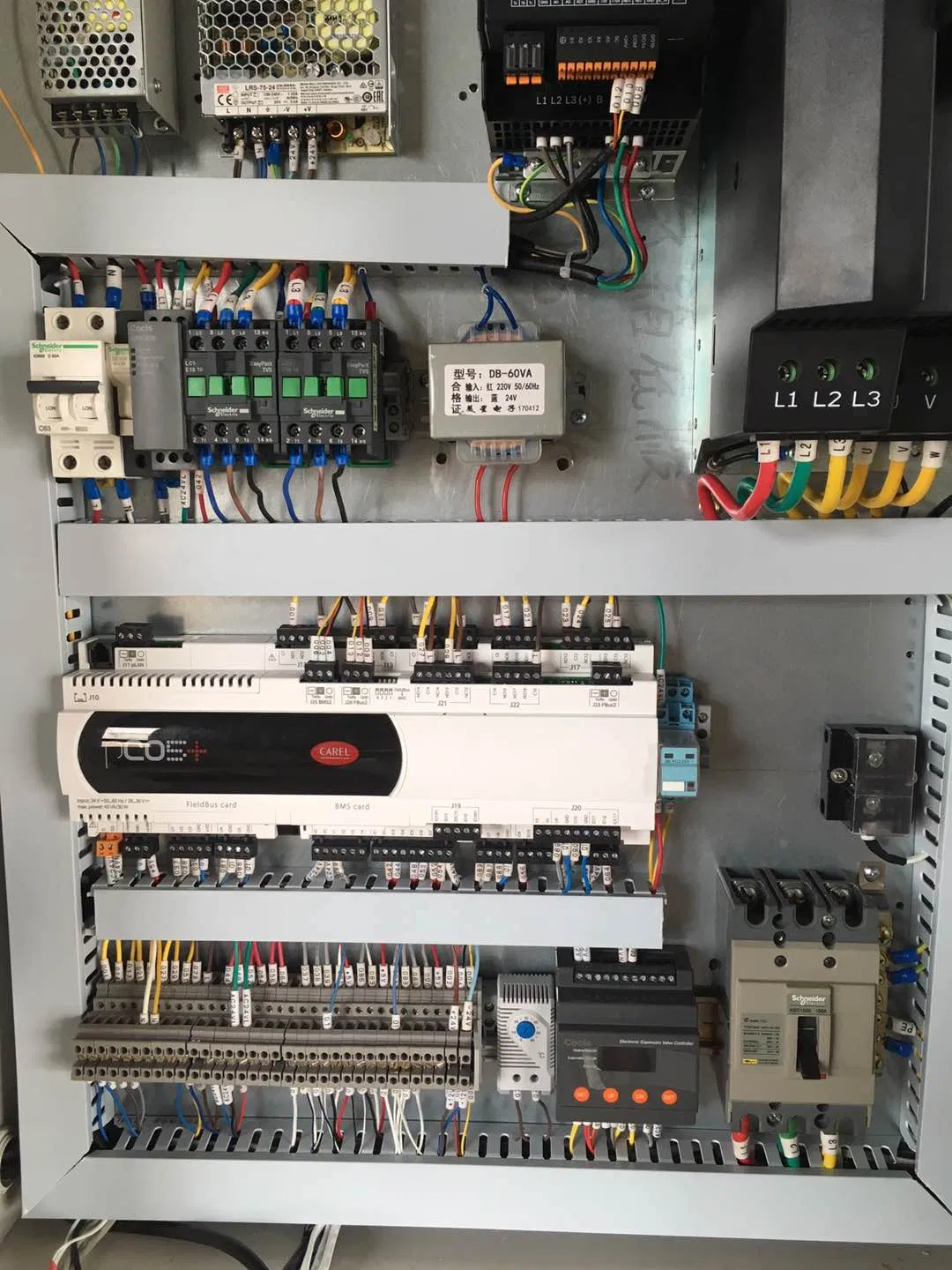

Control

Carel

PCB Circuit

Inverter

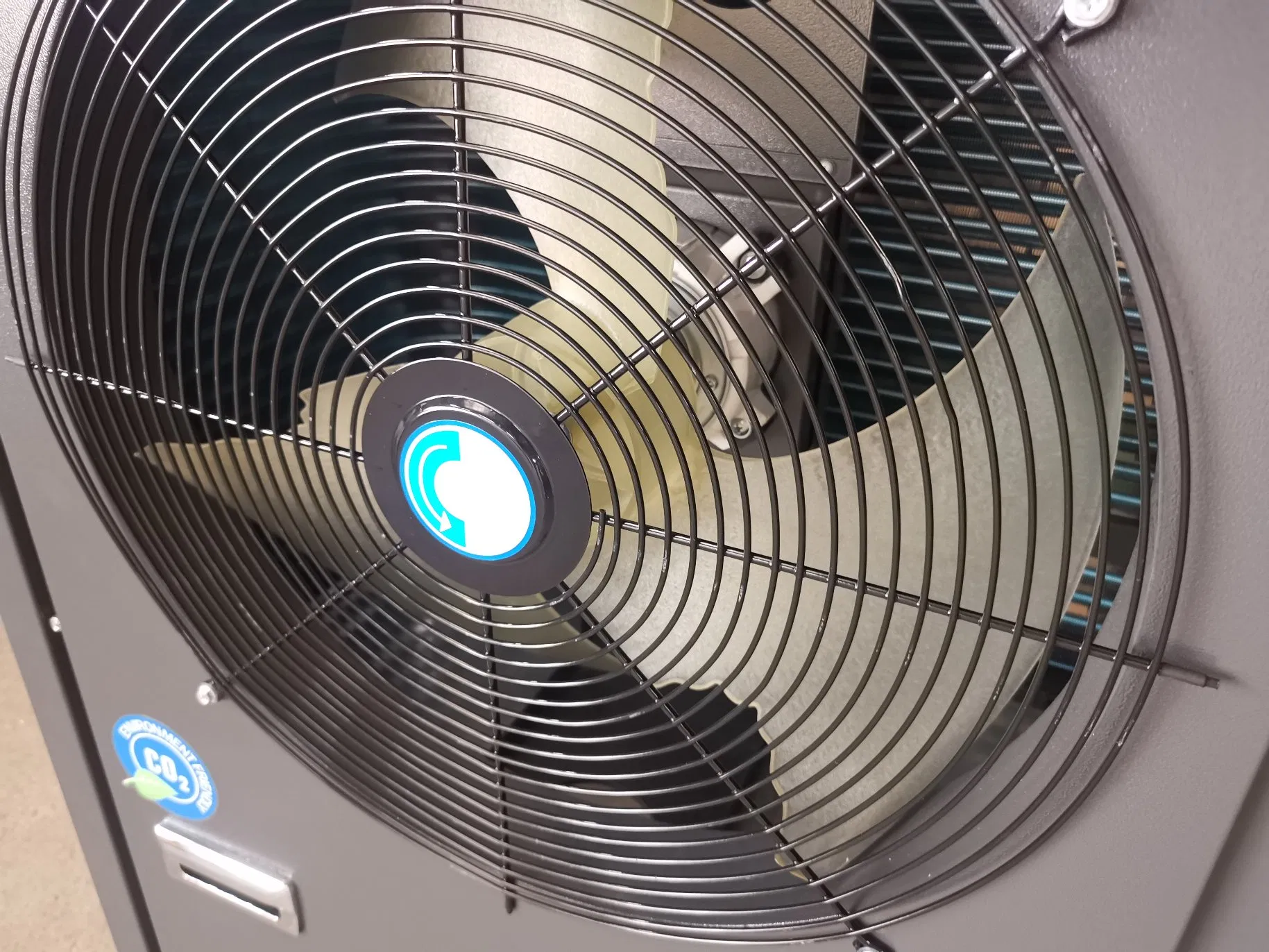

Fan

Ec Fan

Transport Package

Wooden Box

Specification

8~160KW

Origin

China

HS Code

8415812000

Production Capacity

2000/Year

Product Description

✔ Real CO2 heat pump water heater utilizing advanced Inverter technology.

✔ Uses CO2 (R744), the next-generation refrigerant: non-flammable, non-toxic, and natural.

✔ Stable operation at -25ºC with high COP; no auxiliary heater required even in low-temperature areas.

✔ High-temperature output: Capable of producing water at 85ºC, meeting specialized hot water requirements where EVI units fail.

✔ Full Inverter System: Both compressors and motors are Inverter-driven for maximum energy savings.

Advantages of CO2 (R744) Refrigerant

✦Climate-neutral and environmentally friendly (GWP = 1, ODP = 0).

✦No hazardous decomposition products or disposal constraints.

✦Safety Group A1: Non-toxic, non-flammable, and thermally stable.

✦High Efficiency: Achieves 1.55 EER even at -15°C ambient temperature.

Technical Specifications

Model			7ZW	8ZW	14ZW	25ZW	40ZW	50ZW	75ZW	120ZW
Standard Condition	Capacity	kW	6.8	7.8	13.6	24	40	51	75.5	125.4
	Hot Water	L/H	129.9	149	259.8	458	764	974	1442	2396
	COP	W/W	4.5	4.58	4.6	4.5	4.4	4.5	4.5	4.7
Low Temp Condition	Capacity	kW	5.8	7	12.1	20	35	45.6	64	95
	Hot Water	L/H	97.7	118	203.9	337	590	768	1079	1602
	COP	W/W	3.9	4.1	4.1	4	3.7	3.8	3.8	3.9
Max Water Temp			95ºC
Ambient Range			-25ºC to 43ºC
Refrigerant			R744 / CO2

Frequently Asked Questions

What are the environmental benefits of using CO2 (R744) refrigerant?

CO2 is a natural refrigerant with an Ozone Depletion Potential (ODP) of 0 and a Global Warming Potential (GWP) of 1. It is non-toxic and non-flammable, making it the most environmentally friendly choice for next-generation heating.

How high can the water temperature reach?

This CO2 heat pump can reach a maximum output water temperature of 95ºC, which is significantly higher than standard EVI heat pumps, making it ideal for industrial and specialized commercial use.

Can this unit operate in extremely cold climates?

Yes, the system is designed to work efficiently in ambient temperatures as low as -25ºC. It maintains a high COP even in low-temperature conditions without needing auxiliary electric heaters.

How does Inverter technology improve performance?

The system utilizes full inverter technology for both the compressor and motors. This allows the unit to adjust its output based on demand, leading to significant energy savings and more stable water temperatures.

What applications is this heat pump suitable for?

It is versatile and suitable for luxury villas, hotels, hospitals, student apartments, beauty salons, and large-scale facilities like swimming pools and saunas.

Is the unit safe for indoor installation?

Yes, CO2 is classified under Safety Group A1. It is a natural, non-toxic, and non-flammable gas, ensuring high safety standards for all types of building installations.
