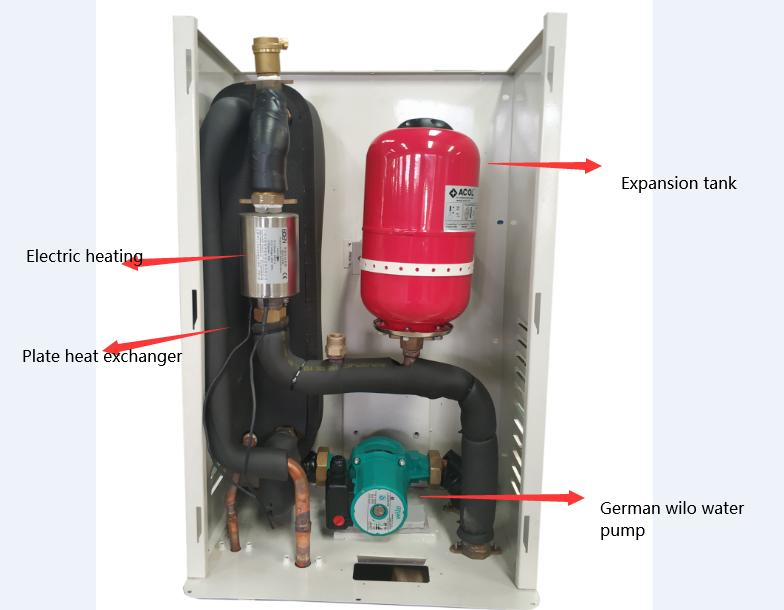

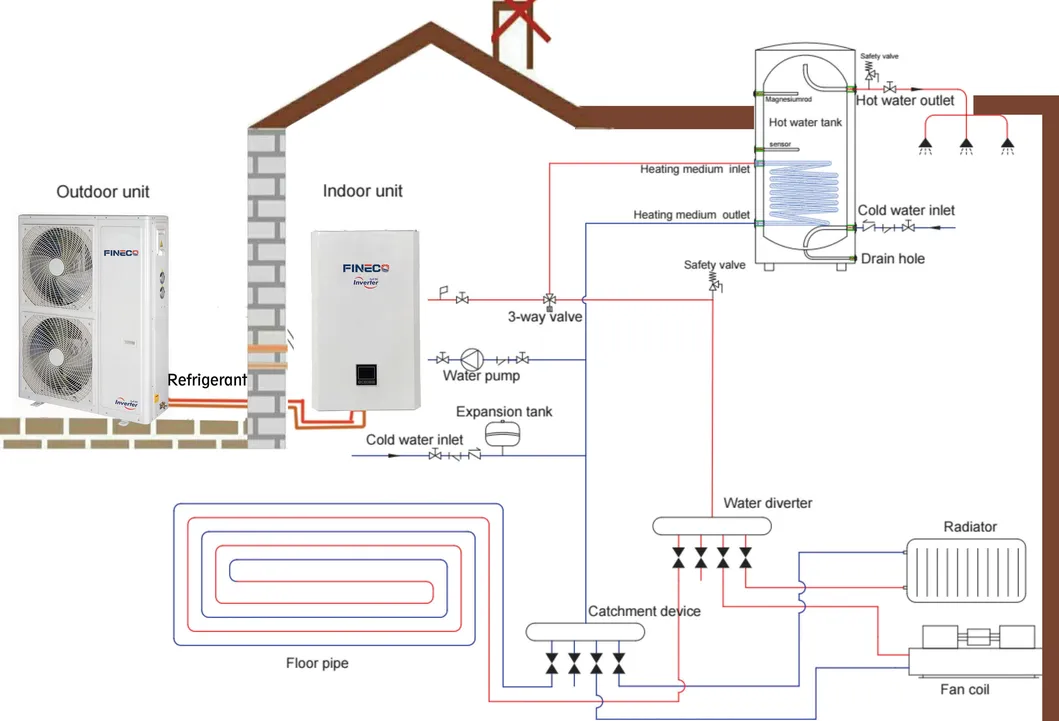

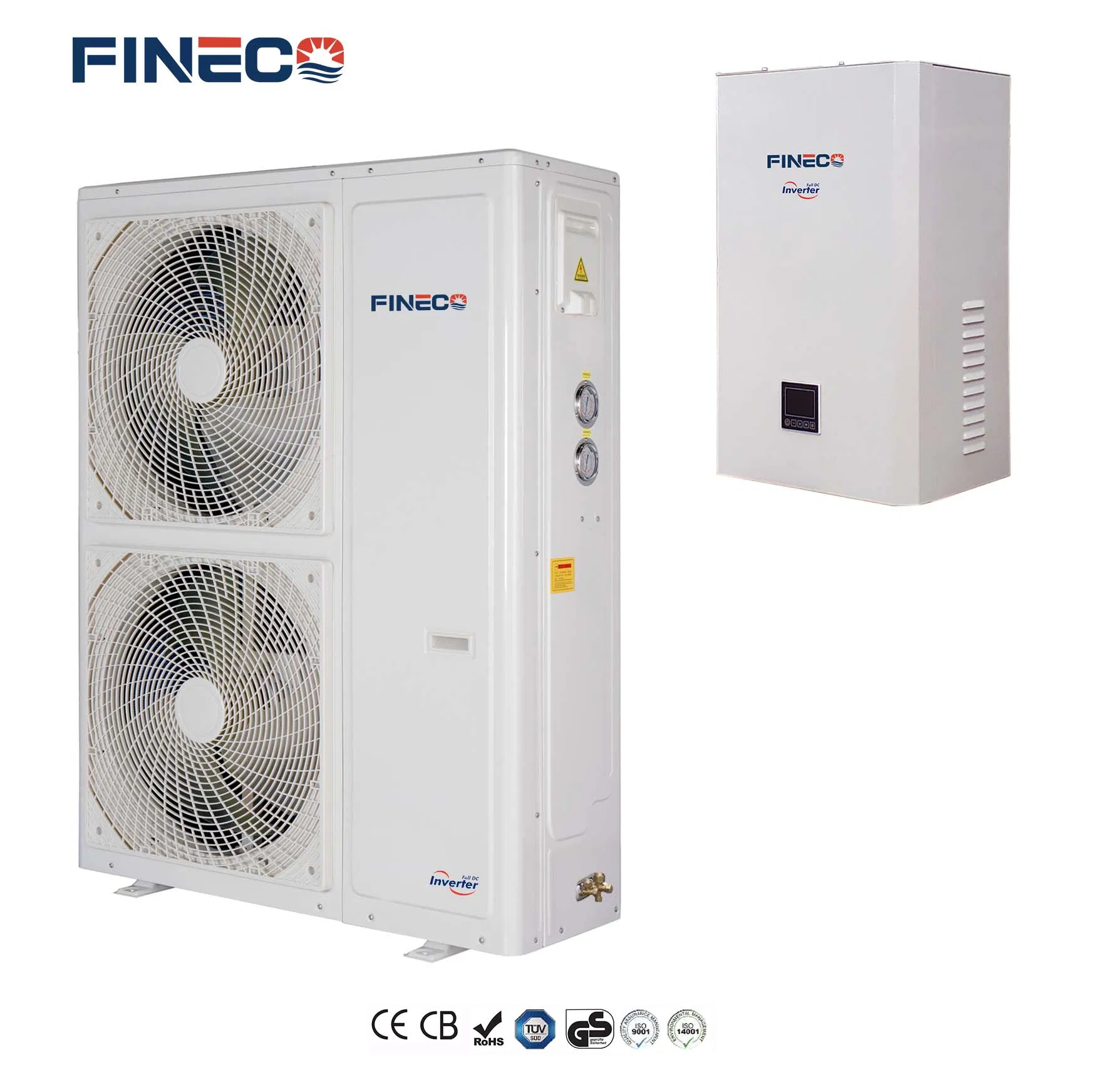

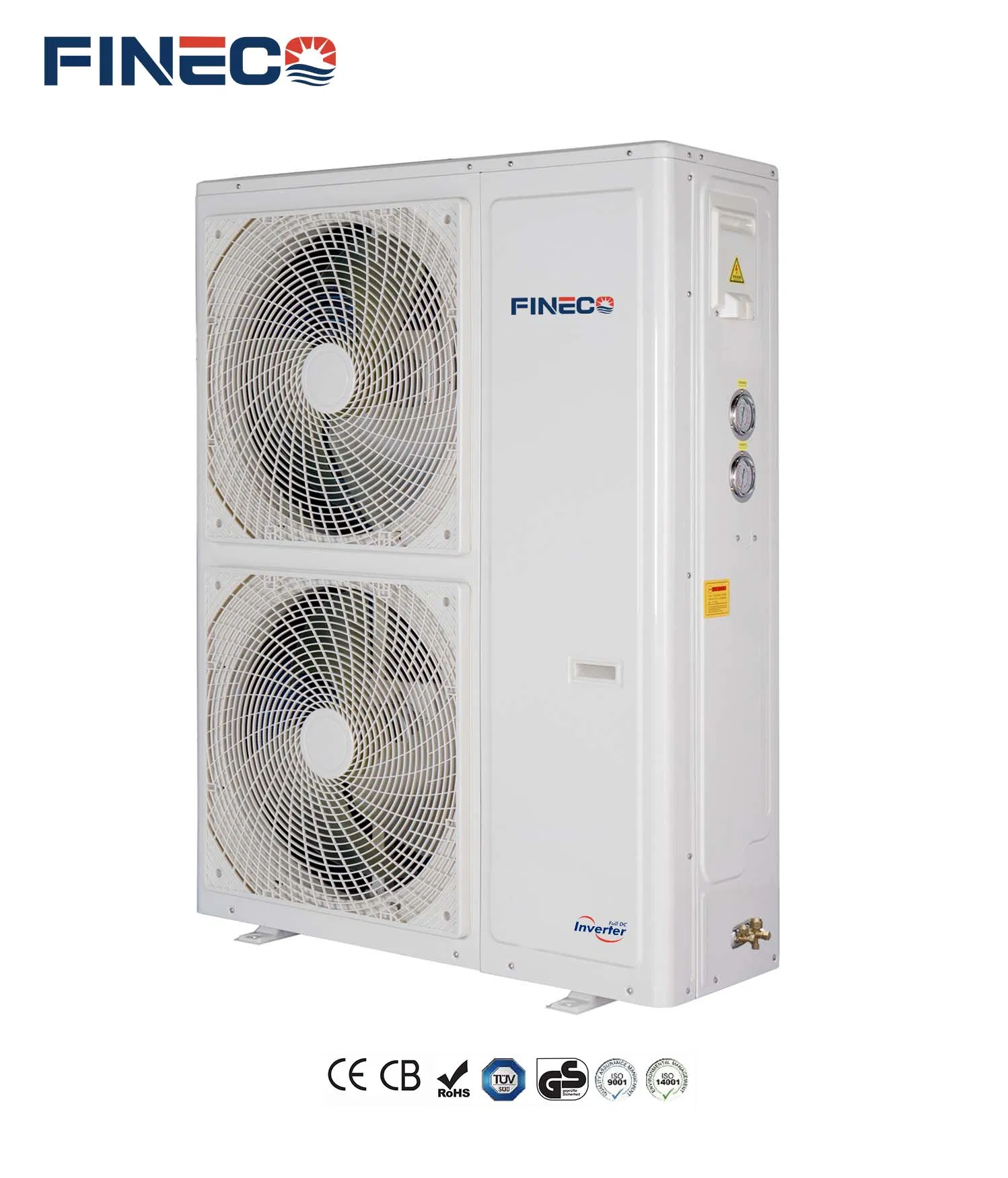

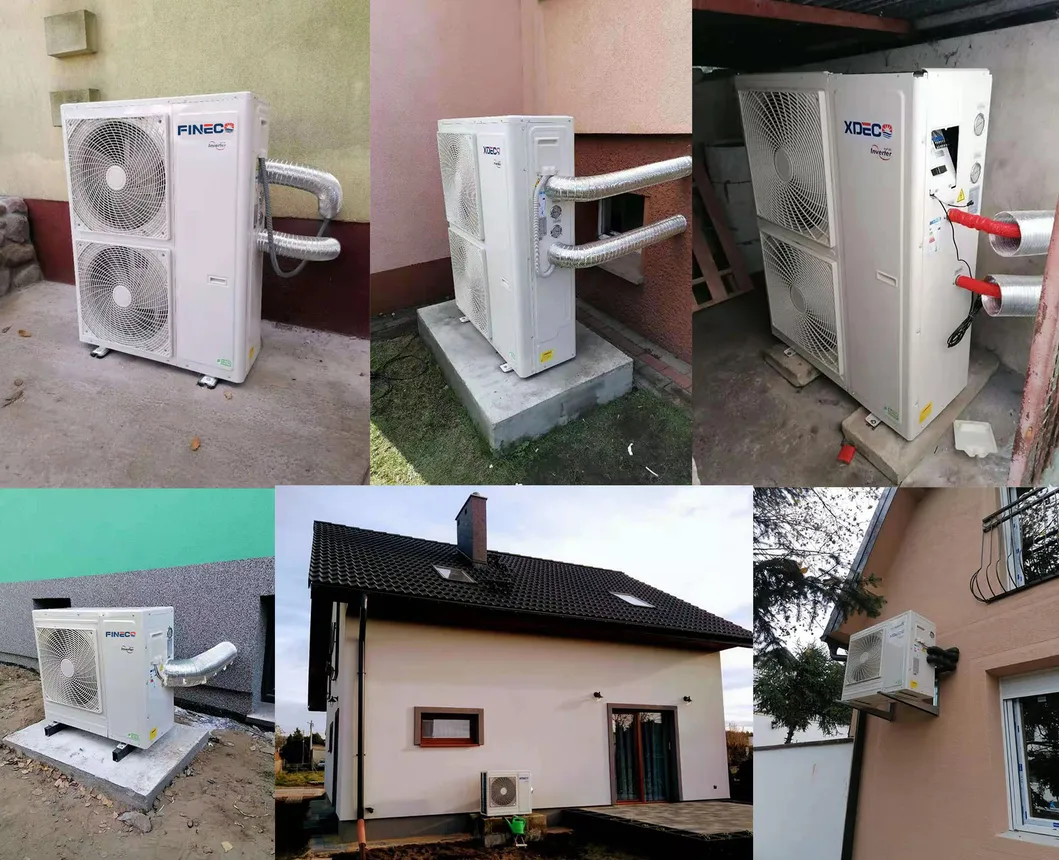

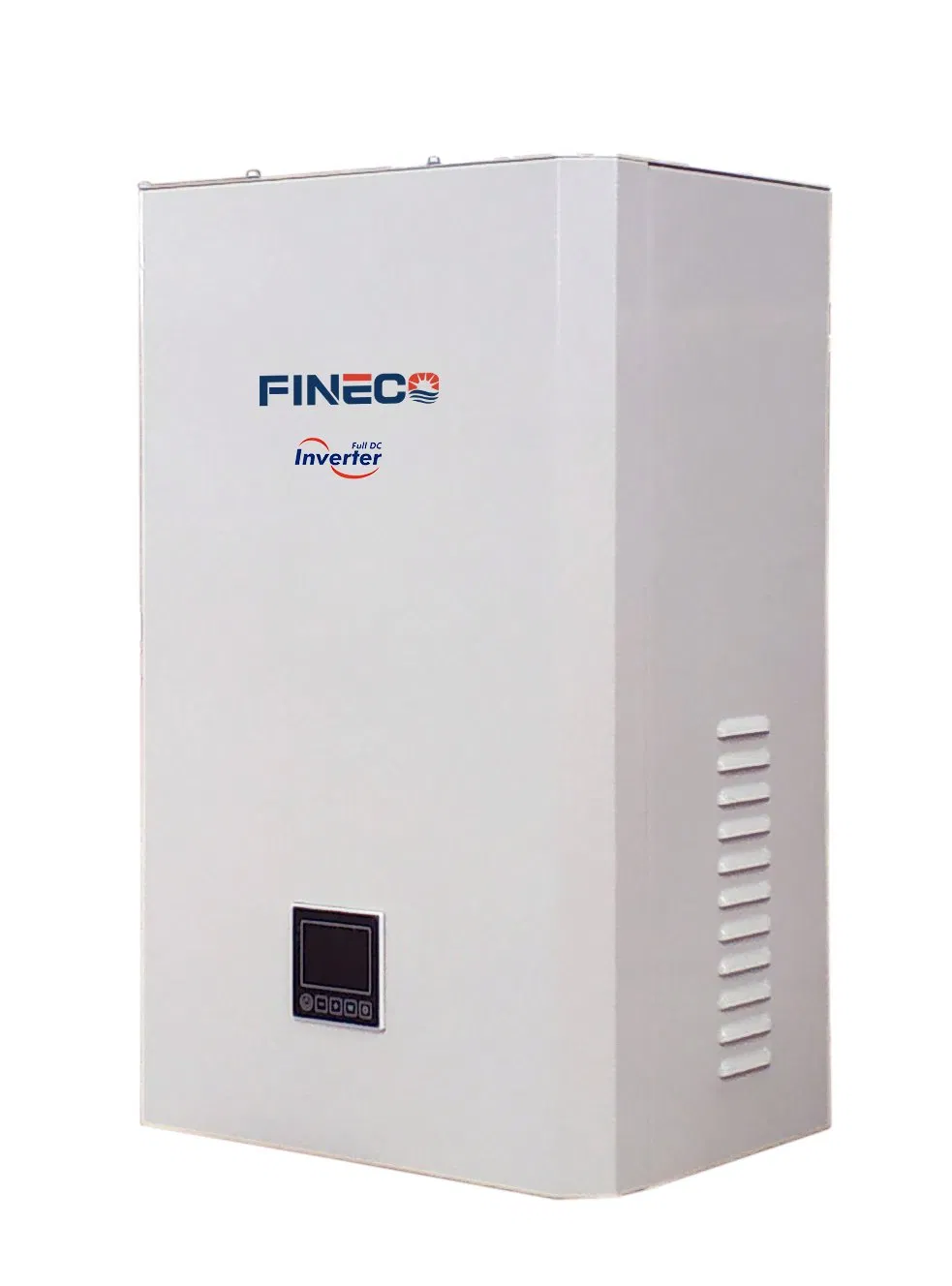

The EVI Split Heat pump adopts advanced EVI (Enhanced Vapor Injection) technology to achieve high efficiency even in extreme conditions. Designed with a split system, the water components remain indoors to prevent freezing, while the intelligent WIFI control system ensures convenient management. This quiet and reliable solution is ideal for villas, schools, hotels, and office buildings.
| MODEL | XD-03SP | XD-04SP | XD-05SP | XD-06SP | XD-08SP | |
|---|---|---|---|---|---|---|
| Heating capacity (kW) | 9.40 | 11.50 | 15.00 | 18.00 | 23.00 | |
| Input power (kW) | 2.30 | 2.90 | 3.80 | 4.50 | 5.80 | |
| COP | 4.00 | 3.97 | 3.95 | 4.00 | 4.00 | |
| Power supply | 380-415V / 3N / 50Hz | |||||
| Max Outlet Temp (ºC) | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | |
| Working Temp. Range | -30ºC ~ 43ºC | |||||
| Noise Level (dB(A)) | ≤55 | ≤55 | ≤58 | ≤58 | ≤65 | |

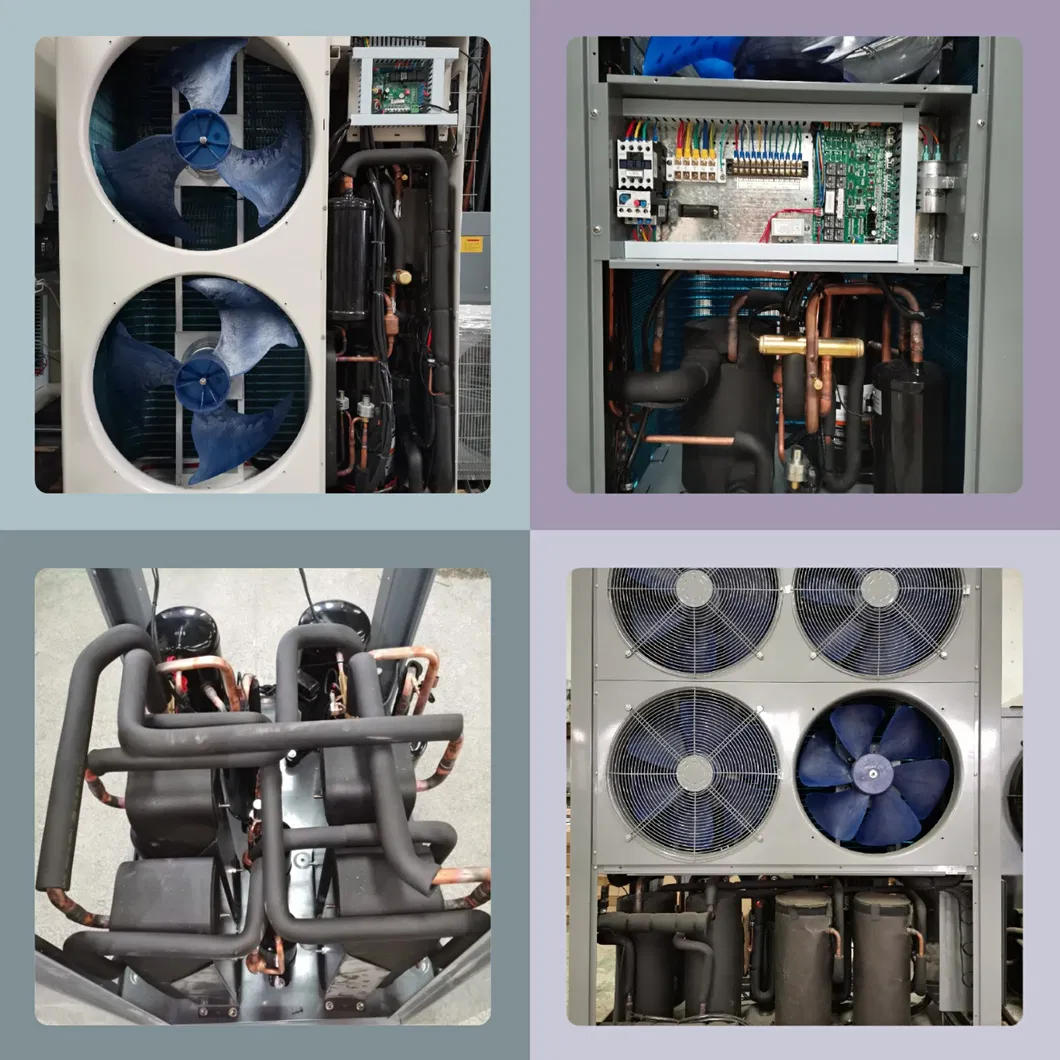

Pipeline & Circuit Layout: Our design effectively avoids stress vibration and resonance, ensuring a long system lifespan and reduced noise. The circuit layout is organized with clear distinction between strong and weak electric lines for easy maintenance. High-density insulation cotton is used on pipes to minimize heat loss.

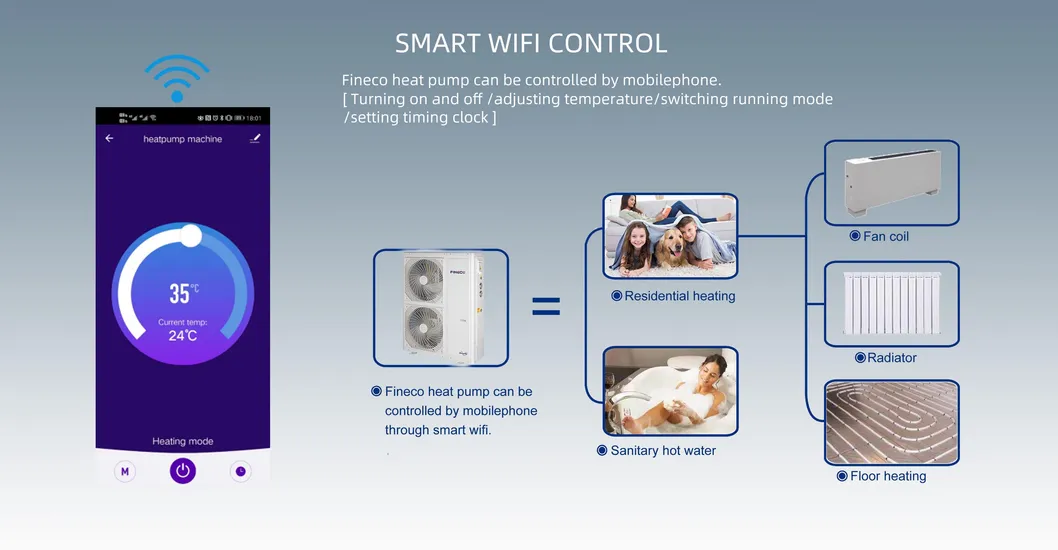

Equipped with multiple intelligent protection functions and Smart WIFI control, allowing users to manage their heating system remotely via smartphone.
