Residential Heat Pump Water Heating Split Type

1 / 5

Residential Heat Pump Water Heating Split Type

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

🔥 Heat Source: Air-source

🔄 Heating Type: Circulating Heat

🏠 Application: Villa Family, Sauna, Swimming Pool, Hotels, Factory, Hospital

📜 Certification: ISO9001, CCC

📏 Specification: 100-600 Liters

📦 HS Code: 84199010

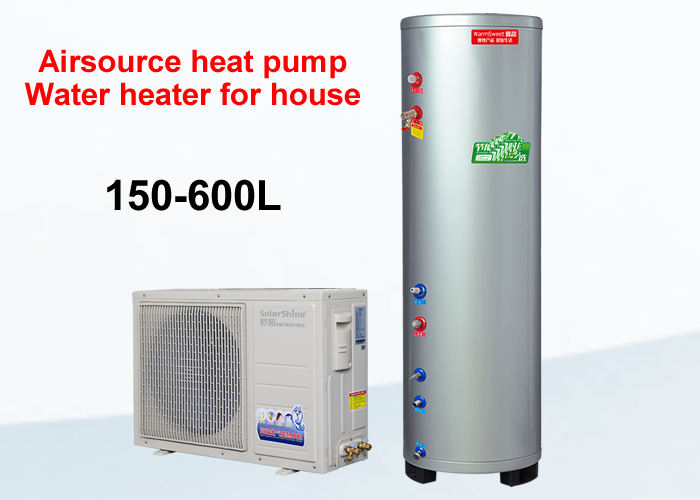

Air Source Heat Pump Water Heater

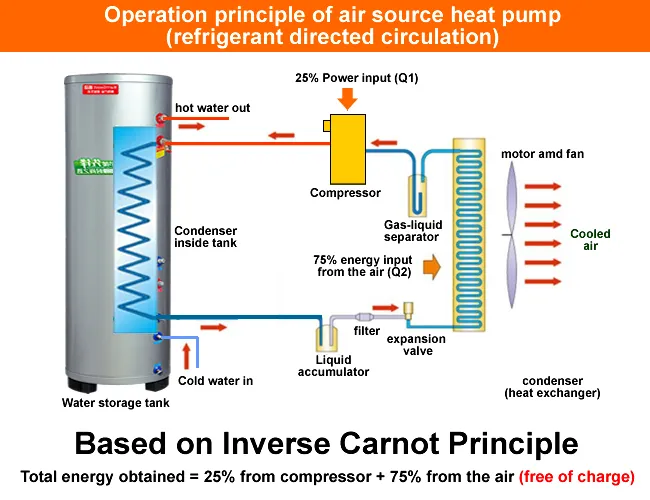

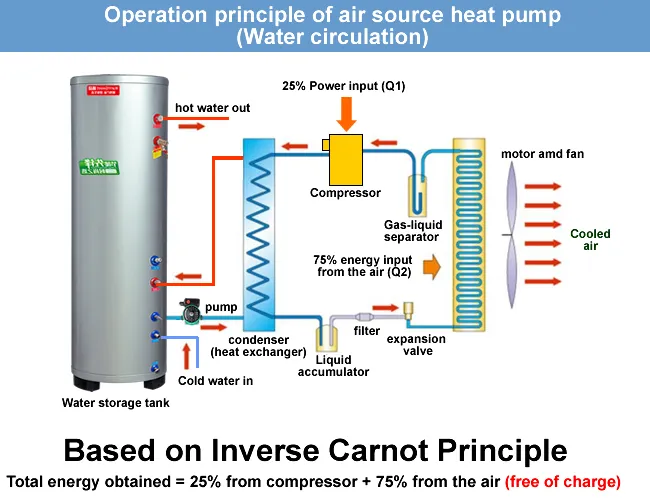

The air source heat pump water heater is a green energy product based on the Inverse Carnot Principle. Powered by a compressor with approximately 25% energy consumption, it extracts the remaining 75% of heat energy from the air via refrigerant evaporation. Its working efficiency can reach over 400%, saving up to 70% energy compared to traditional electric heaters. Ideal for warm climate regions such as Southeast Asia, Middle East, and Southern China.

💰

Economical & High-efficiency

Save average 70% heating cost compared to electric heaters.

💧

Water Circulation

Easy installation and maintenance for residential use.

🔇

Quiet Running

Low noise rotary compressor and fan for extremely quiet operation.

🧠

Intelligent Control

Fully automatic controller requiring no manual operation.

Technical Specifications

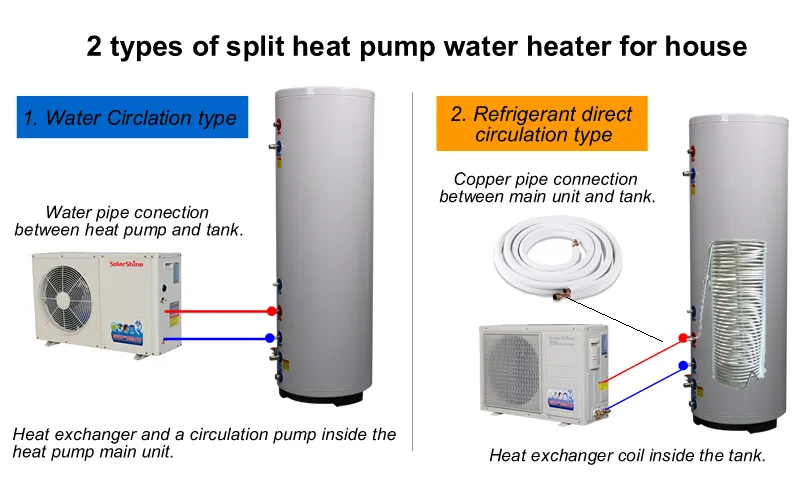

Water Circulation Type Air Source Heat Pump (Pressurized)
MODEL	S-150L-1HP	S-200L-1HP	S-250L-1.5HP	S-300L-1.5HP	S-400L-2HP	S-500L-2HP
Tank Volume	150 Liters	200 Liters	250 Liters	300 Liters	400 Liters	500 Liters
Tank Size(mm)	Φ470*1545	Φ520*1545	Φ560*1625	Φ560*1915	Φ700*1625	Φ700*1915
Inner Cylinder	SUS304/1.0mm	SUS304/1.2mm	SUS304/1.5mm	SUS304/1.5mm	SUS304/1.5mm	SUS304/1.5mm
Power Consumption	1KW	1KW	1.32KW	1.32KW	1.32KW	1.67KW
Heating Capacity	3.5KW	3.5KW	4.73KW	4.73KW	4.73KW	6.5KW
Refrigerant	R410A / R407C (Environmental Friendly)
Power Supply	AC220V/50Hz

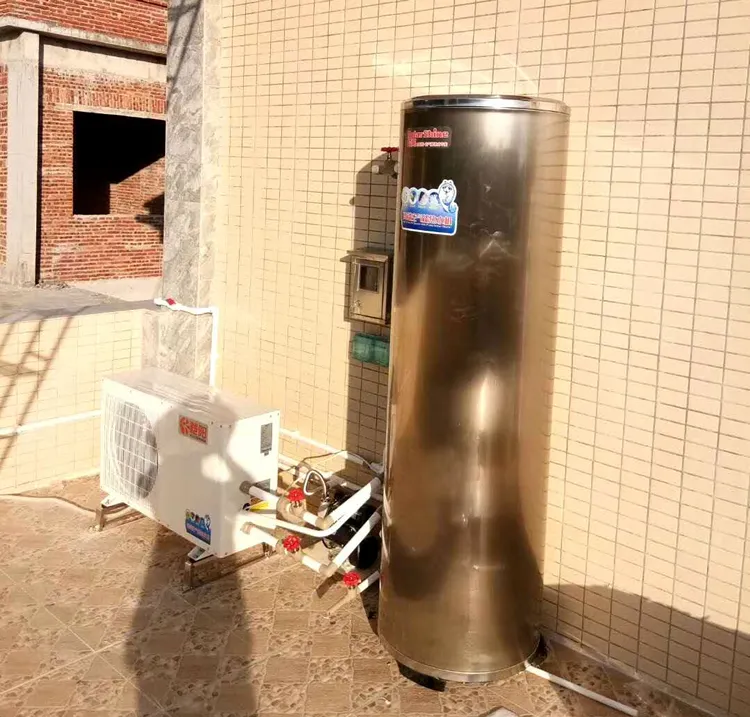

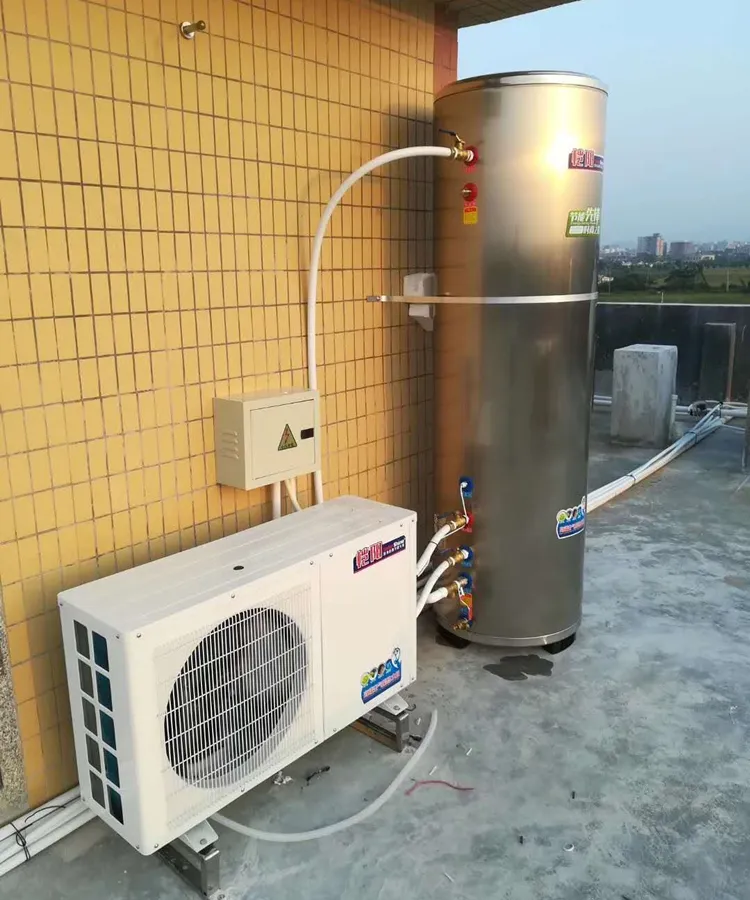

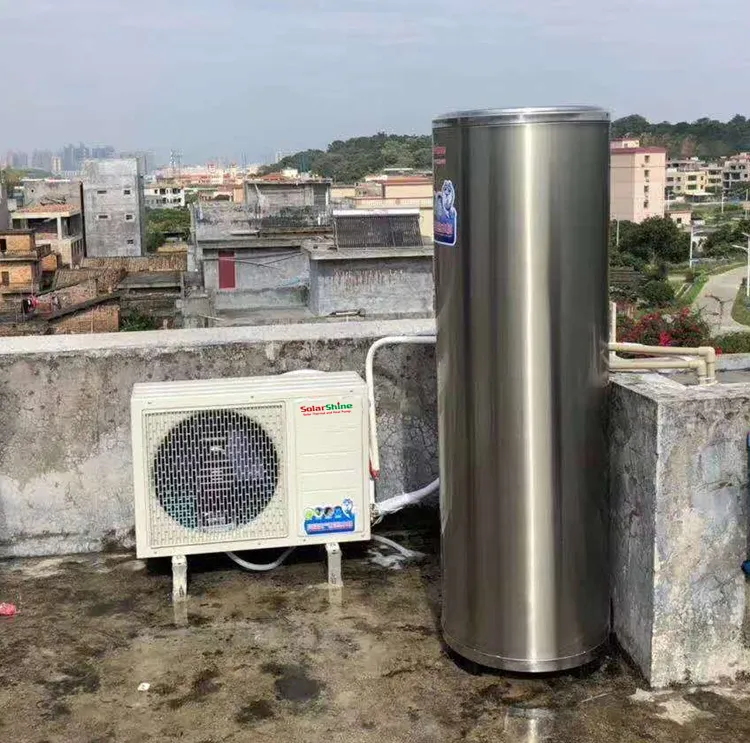

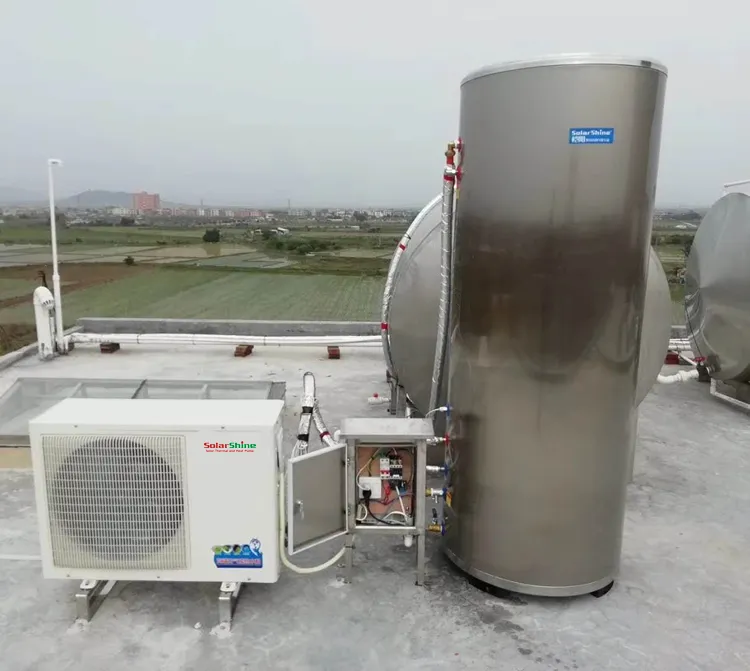

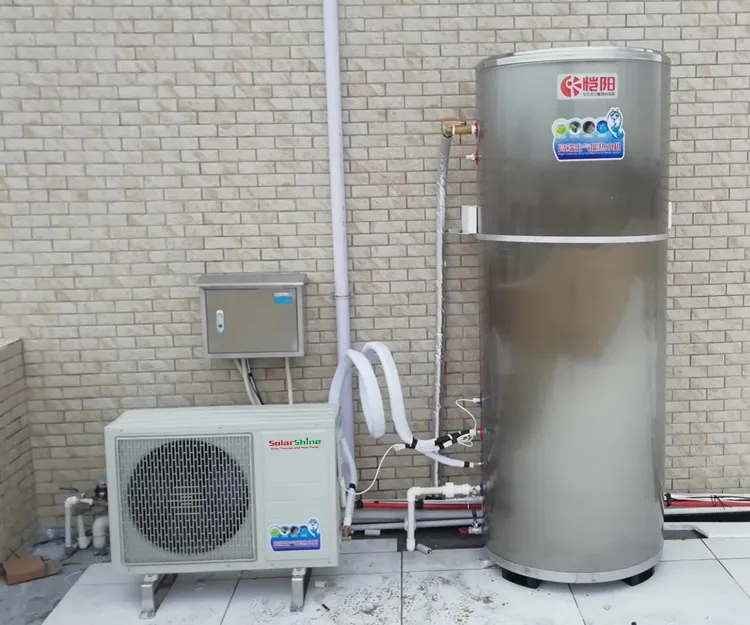

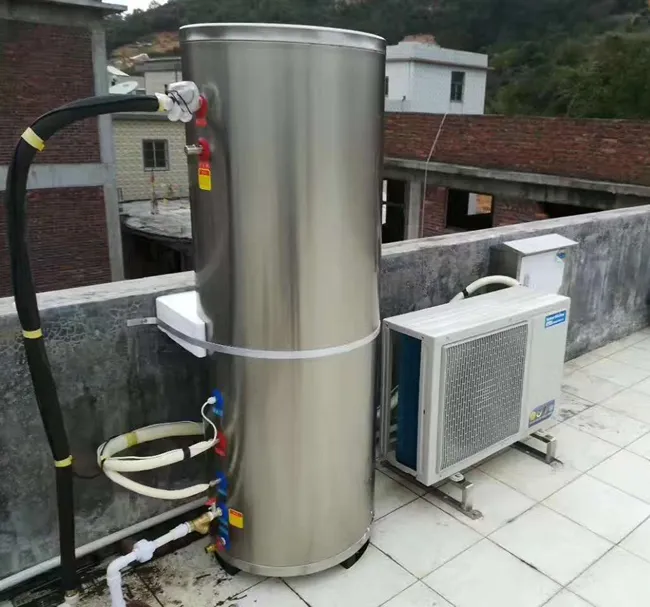

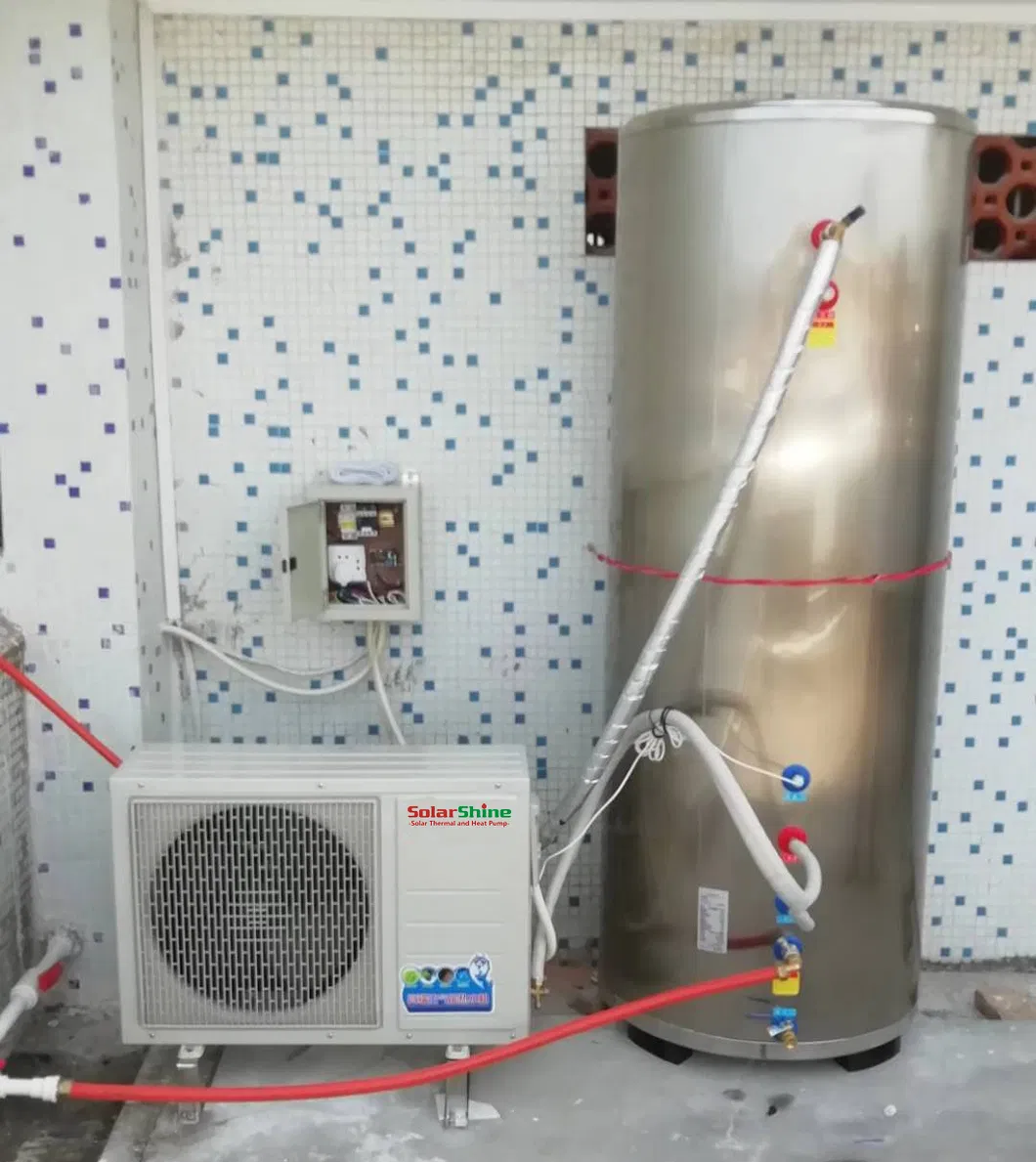

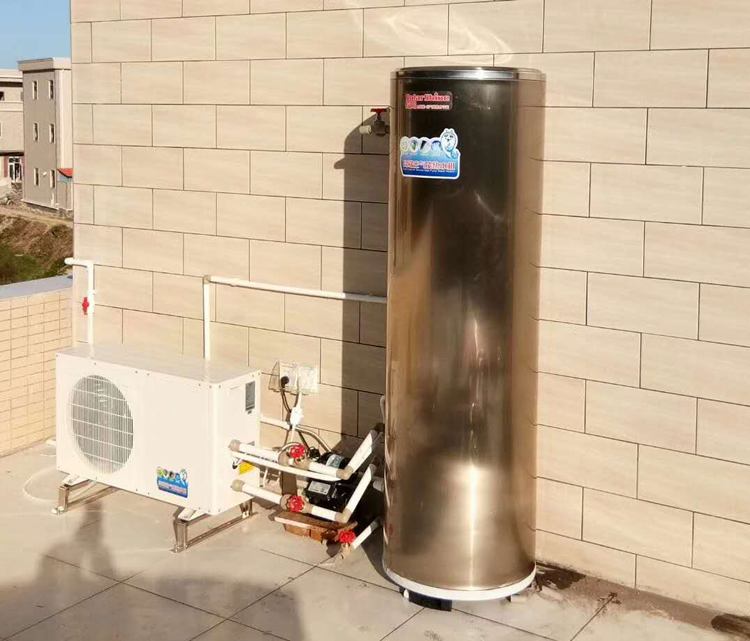

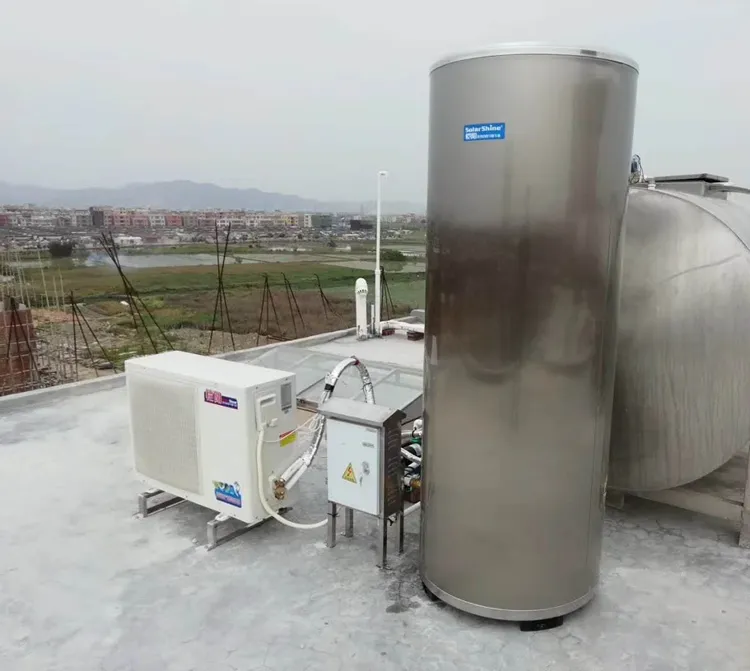

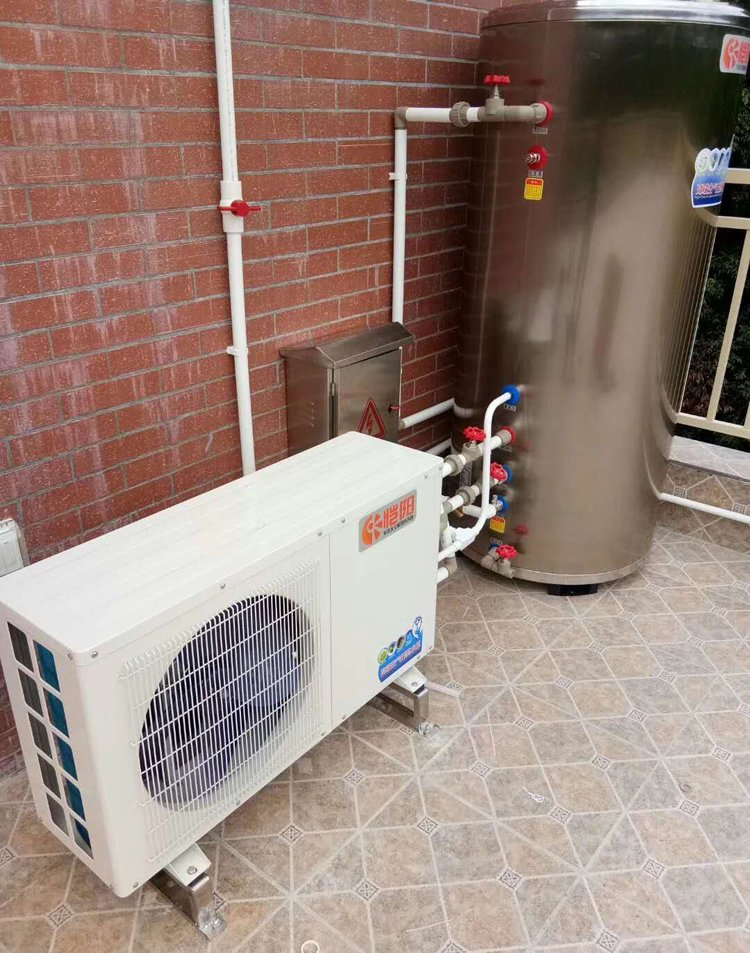

Successful Applications

Frequently Asked Questions

❓ How does an air source heat pump save energy?

It uses the Inverse Carnot Principle to absorb heat from the surrounding air. For every 1 unit of electricity used to run the compressor, it generates about 3-4 units of heat energy.

❓ Is this system suitable for all climates?

These units are highly efficient and ideal for warm climate regions such as Southeast Asia, the Middle East, and Southern China.

❓ What is the noise level of the main unit?

The unit utilizes a high-efficiency rotary compressor and low-noise fans, ensuring extremely quiet operation suitable for residential areas.

❓ Does the water heater require manual monitoring?

No, it comes with a full automatic intelligent controller that manages the heating process without the need for manual operation.

❓ What materials are used for the water tank?

The inner cylinder is made of high-quality SUS304 stainless steel with thicknesses ranging from 1.0mm to 1.5mm, ensuring durability and corrosion resistance.

❓ Can this be used for commercial applications like hotels?

Yes, with tank capacities up to 500 liters and high heating capacities, it is suitable for villas, hotels, hospitals, and student apartments.
