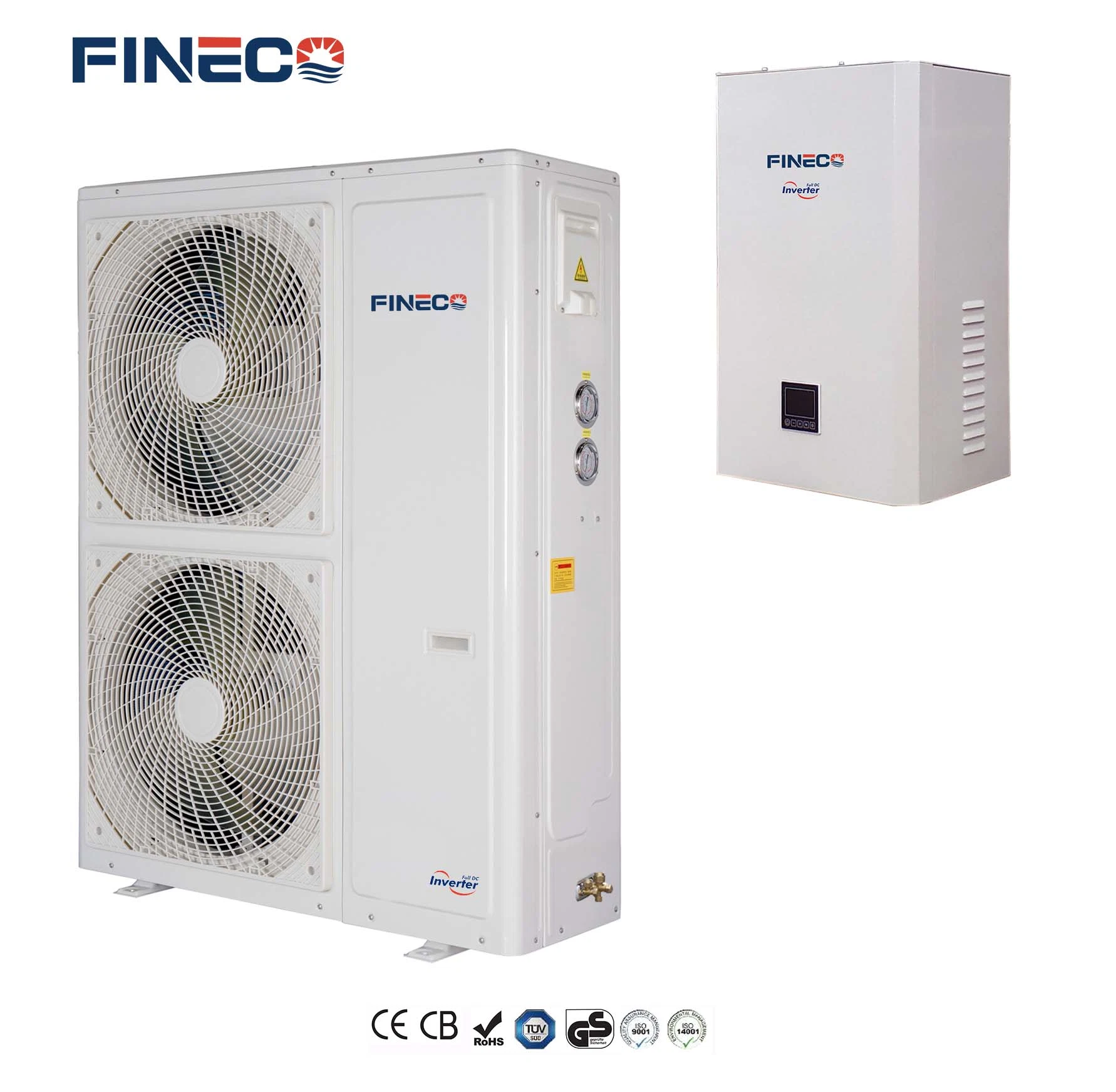

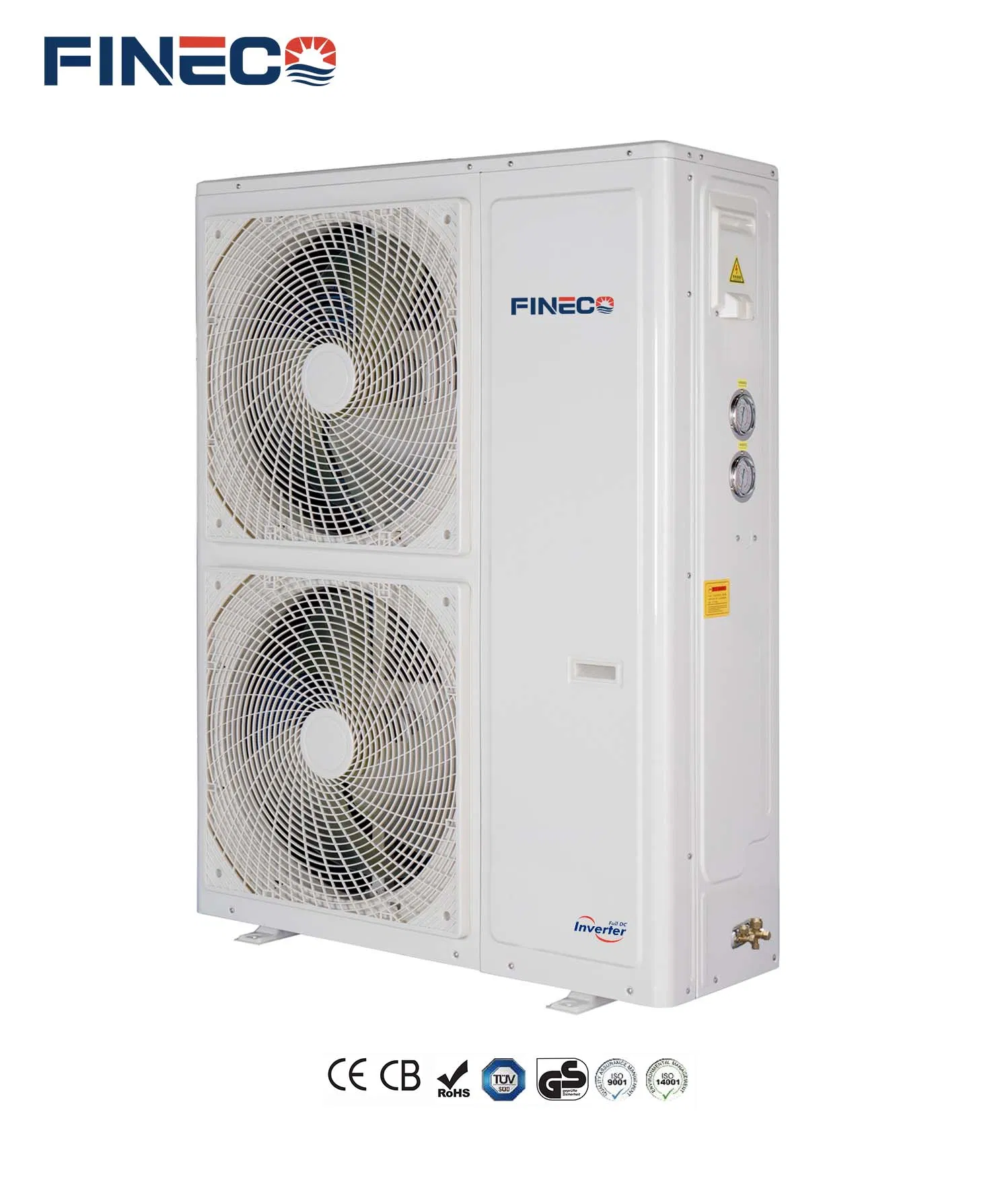

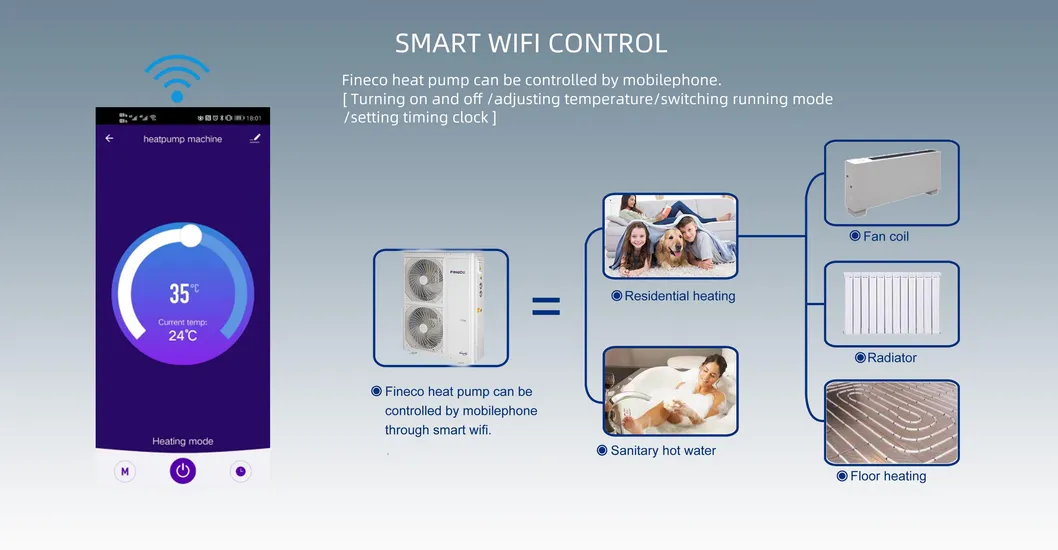

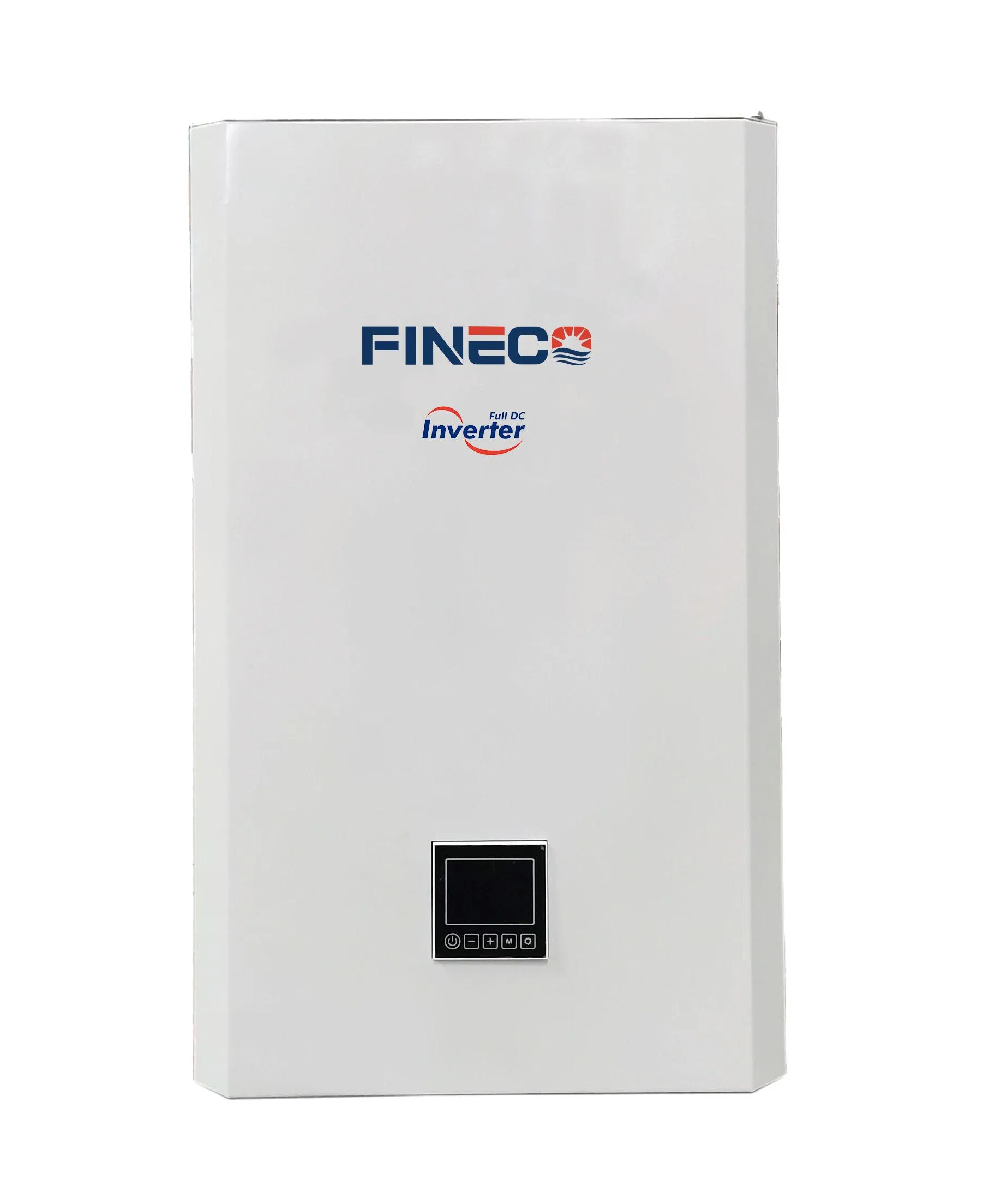

The DC inverter EVI Split Heat pump utilizes advanced EVI and DC inverter technology to achieve maximum efficiency. Featuring an intelligent WIFI control system, it offers convenient remote management. The split design ensures the unit runs quietly outdoors, providing a comfortable and peaceful indoor environment. Ideal for villas, schools, hotels, and office spaces.
| MODEL | XD-03BSPM | XD-05BSPM (220V) | XD-06BSPM (220V) | XD-05BSPM (380V) | XD-06BSPM (380V) | XD-08BSPM |
|---|---|---|---|---|---|---|
| Working Temp Range | -25 ~ 43ºC | |||||
| Power Supply | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 380-415V/50Hz | 380-415V/50Hz | 380-415V/50Hz |
| Heating Capacity (kW) | 10(3-11) | 15(4-16) | 18(4-20) | 15(4-16) | 18(4-20) | 24(5-27) |
| COP (A7W35) | 4.00 | 4.11 | 4.04 | 4.03 | 4.10 | 4.00 |
| Noise Level (dB(A)) | ≤55 | ≤60 | ≤60 | ≤60 | ≤60 | ≤70 |

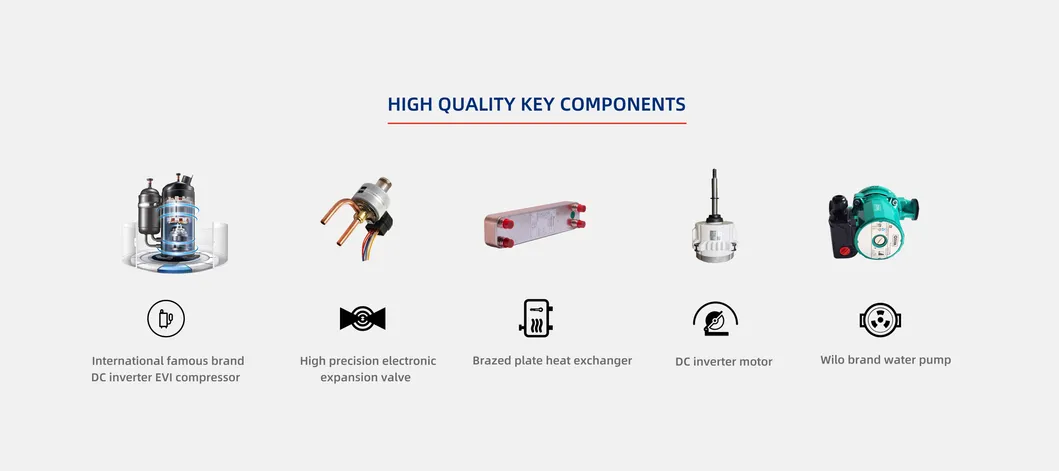

| Compressor | Panasonic Rotary EVI DC inverter / Mitsubishi Inverter | |||||
