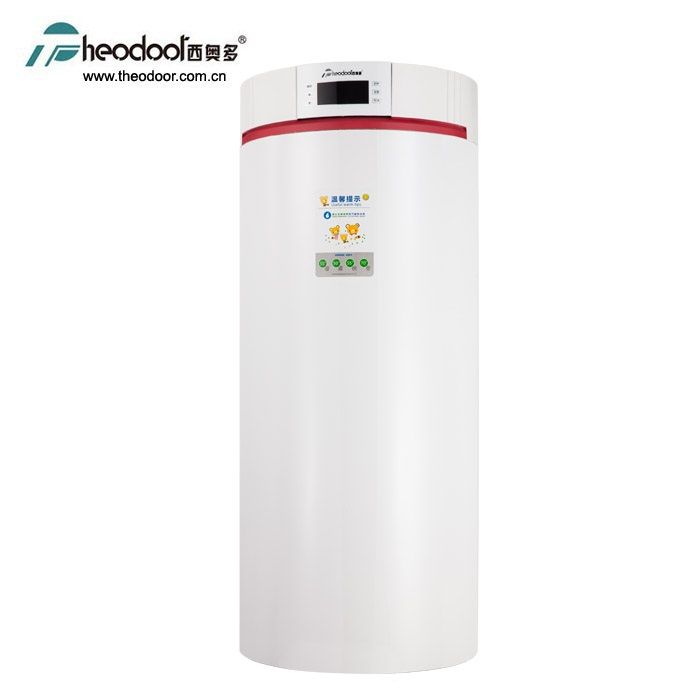

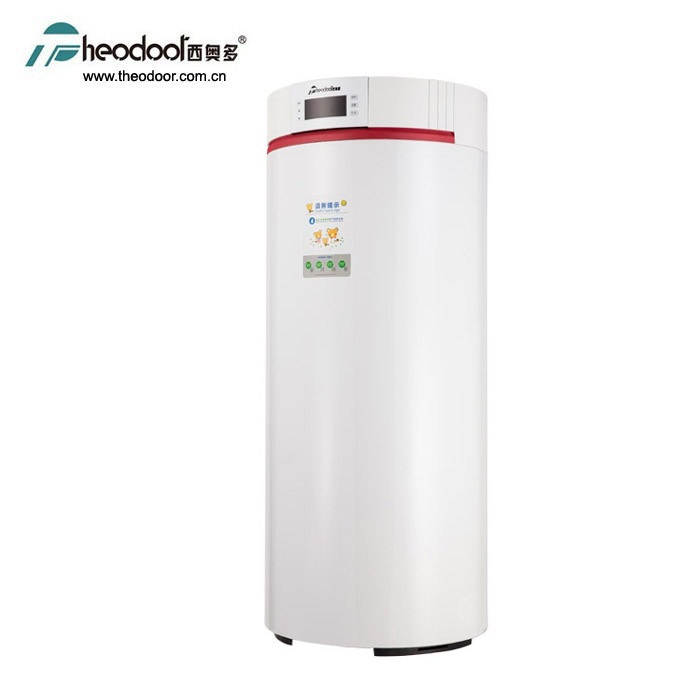

Split Type Air to Water Heat Pump Dwh Cylinder 150L-200L Water Heater

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	50-70°C

Send Inquiry

Product Description

Basic Specifications

Model NO.

X5-E

Heat Source

Air-source

Heating Type

Multi-power Heat

Application

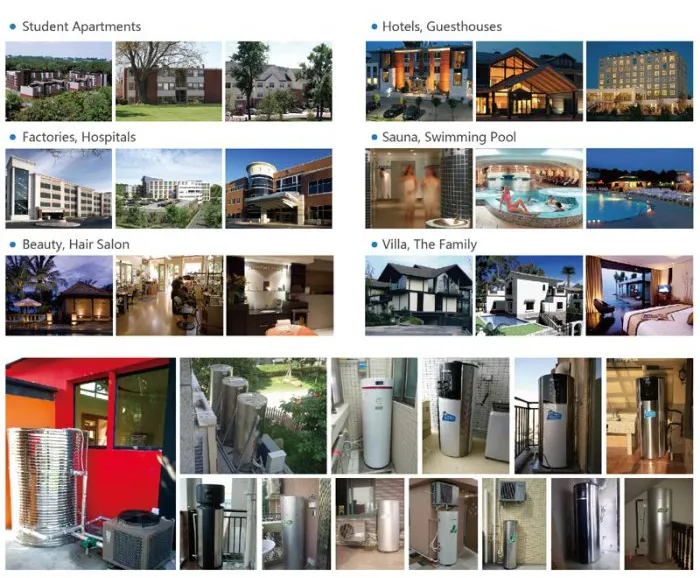

Villa, Hotels, Factory Hospital, Student Apartments

Certification

CE, ISO9001, CCC

Water Tank

100L-200L

Housing Material

SUS 304 Stainless Steel

Working Temp

-10 to 43 Degrees

Compressor

Panasonic

Refrigerant

R410A / R134A

Auto Defrost

Yes

Energy Efficiency

Class 1 (4.5 COP)

Product Overview

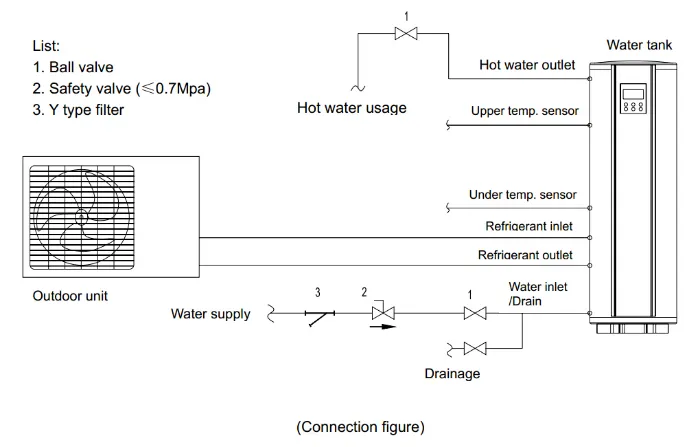

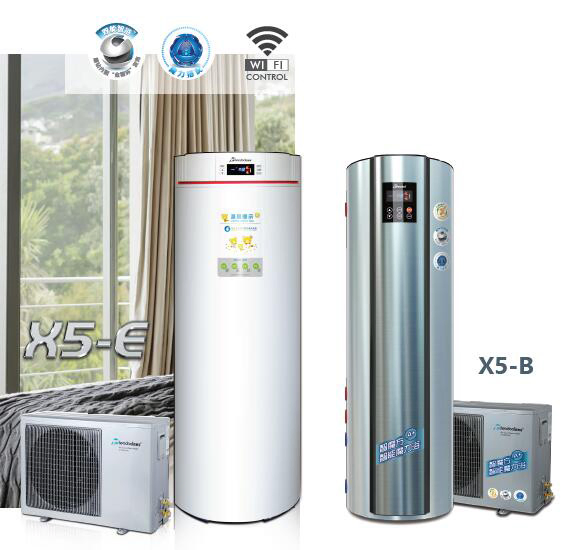

The Split Air Source Heat Pump system features a separate host and heat exchanger water tank design. Connected via durable piping, the host efficiently heats the water tank to your desired temperature. This flexible installation allows the host to be placed outdoors while the water tank can be situated either indoors or outdoors, making it an ideal choice for homes, villas, and commercial establishments.

🌡️

Constant Temperature & Comfort

Equipped with double water temperature control for extreme accuracy. Our unique resistance mixing technology ensures a constant temperature flow. The system features a 360-degree supercharged foaming insulation layer with 50mm polyurethane thickness.

💎

Superior Materials

Powered by a specialized Panasonic compressor designed for heat pumps. Includes built-in extended copper or 316 stainless steel heat exchange coils. The inner tank is constructed from food-grade 304 stainless steel with digital auto-welding for lifelong durability.

⚡

Energy Efficiency

Achieving a 4.5 COP, which exceeds national Level 1 standards. The high heating capacity, supported by an auxiliary heater, allows hot water temperatures to reach up to 70ºC.

⚙️

Intelligent Control

Features three heating modes: AUTO, ECO (Economic), and HEATER (Fast Heating). Built-in magnesium anode rods provide sterilization and prevent scaling, complemented by an intelligent reverse defrosting system.

Technical Specifications

Model	Input Power	Output Power	Standard Temp	Max Temp	Backup Heater	Tank Size	Unit Size
RS-3.6FJ/150L	0.8KW	3.6KW	55 C	70 C	2KW	520X1265mm	780x255x540mm
RS-3.6FJ/200L	0.8KW	3.6KW	55 C	70 C	2KW	520X1515mm	780x255x540mm
RS-4.8FJ/150L	1.2KW	4.8KW	55 C	70 C	2KW	520x1265mm	780x255x540mm
RS-4.8FJ/200L	1.2KW	4.8KW	55 C	70 C	2KW	520x1515mm	780x255x540mm

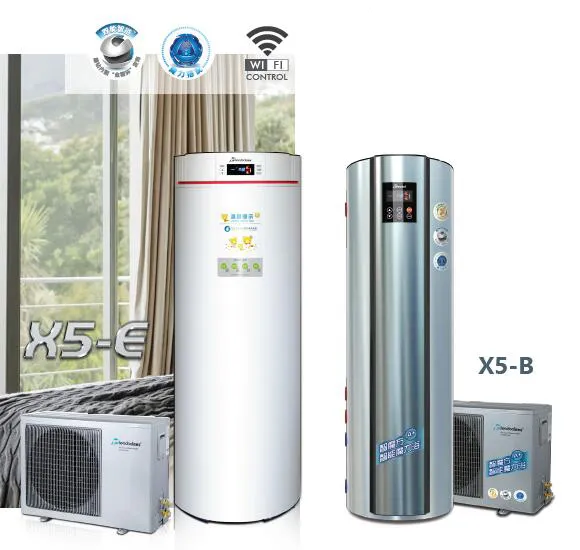

Product Visuals

Frequently Asked Questions

Why is an air source heat pump the most energy-saving option?

Unlike traditional heaters, it doesn't use direct heating elements. Instead, it uses a small amount of electricity to drive a compressor, extracting heat from the air. Power consumption is only 1/4 of a traditional electric water heater.

How do I choose the suitable capacity for my home?

Capacity selection depends on the number of users, the number of bathrooms, presence of bathtubs, and overall kitchen hot water demand. Usually, 150L-200L is ideal for family villas.

What are your standard payment and delivery terms?

We generally accept T/T with a 30% deposit and 70% before delivery. Standard delivery terms include EXW, FOB, CFR, and CIF.

How long does the delivery usually take?

The typical lead time is 30 to 60 days after receiving the advance payment, depending on the specific items and order quantity.

Do you test all goods before they are shipped?

Yes, we perform a 100% comprehensive test on every unit before delivery to ensure stability and performance.

Can the water temperature reach 70ºC safely?

Yes, while the standard heat pump cycle reaches 55ºC, the built-in auxiliary heater allows the water temperature to reach up to 70ºC for specialized needs or sterilization.
