Basic Information
Work Environment
Common Heat Pump
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Hot Water Supply
1600(L/H)
Power Supply
380V/50Hz/3pH
Outlet Water Temp C
55-60c

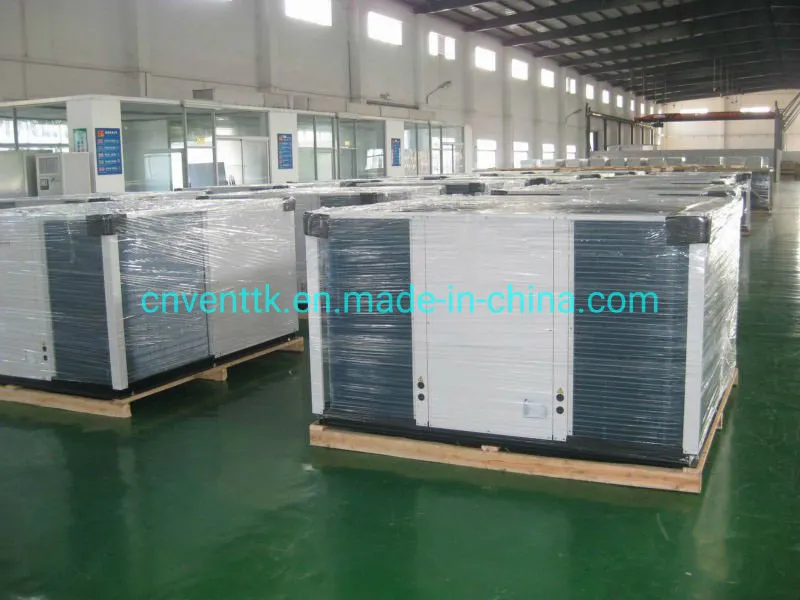

Transport Package
Export Packaging
Production Capacity
1500units Per Month
Product Description

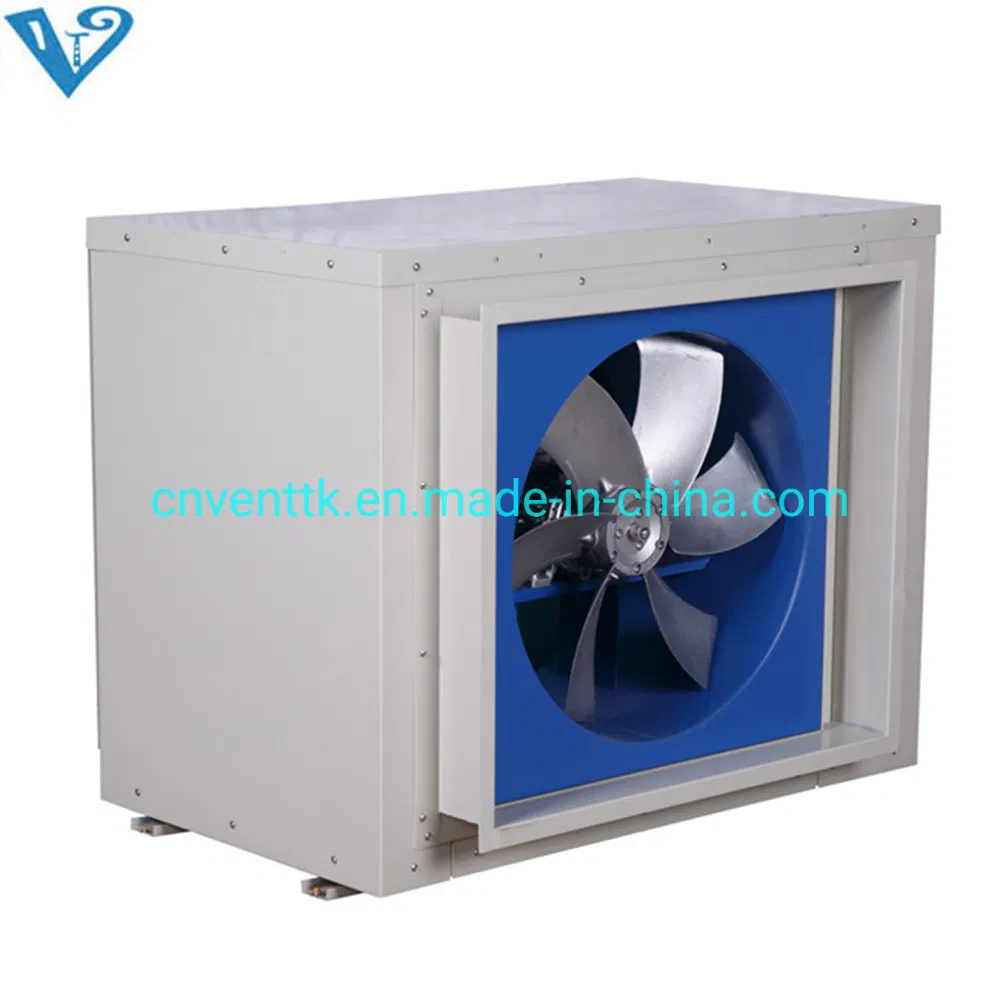

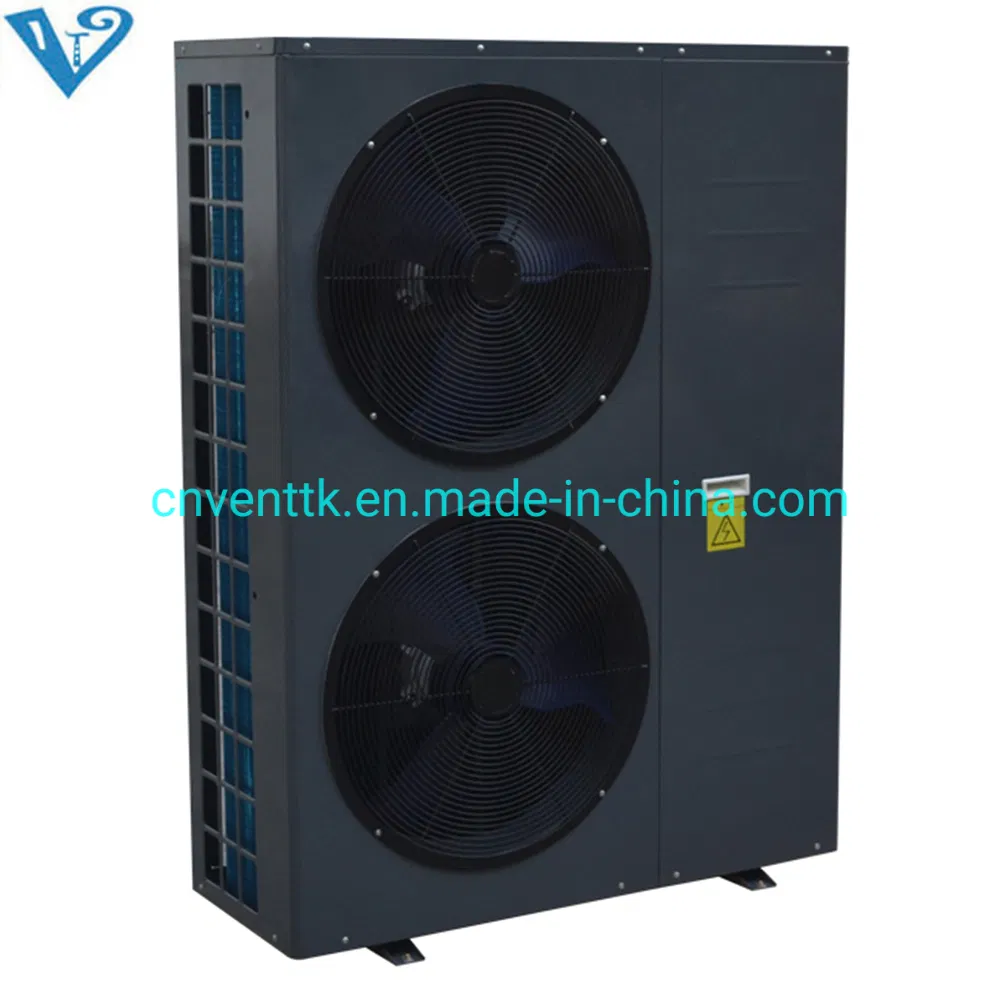

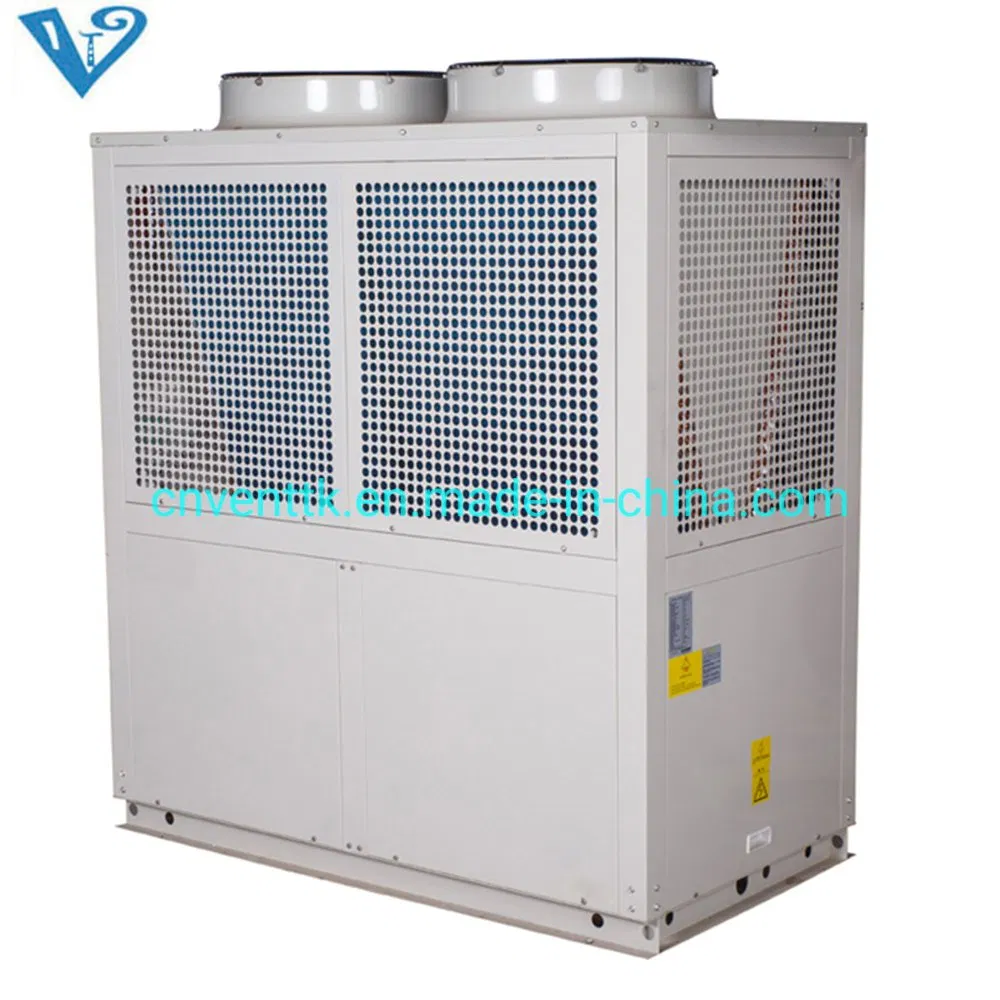

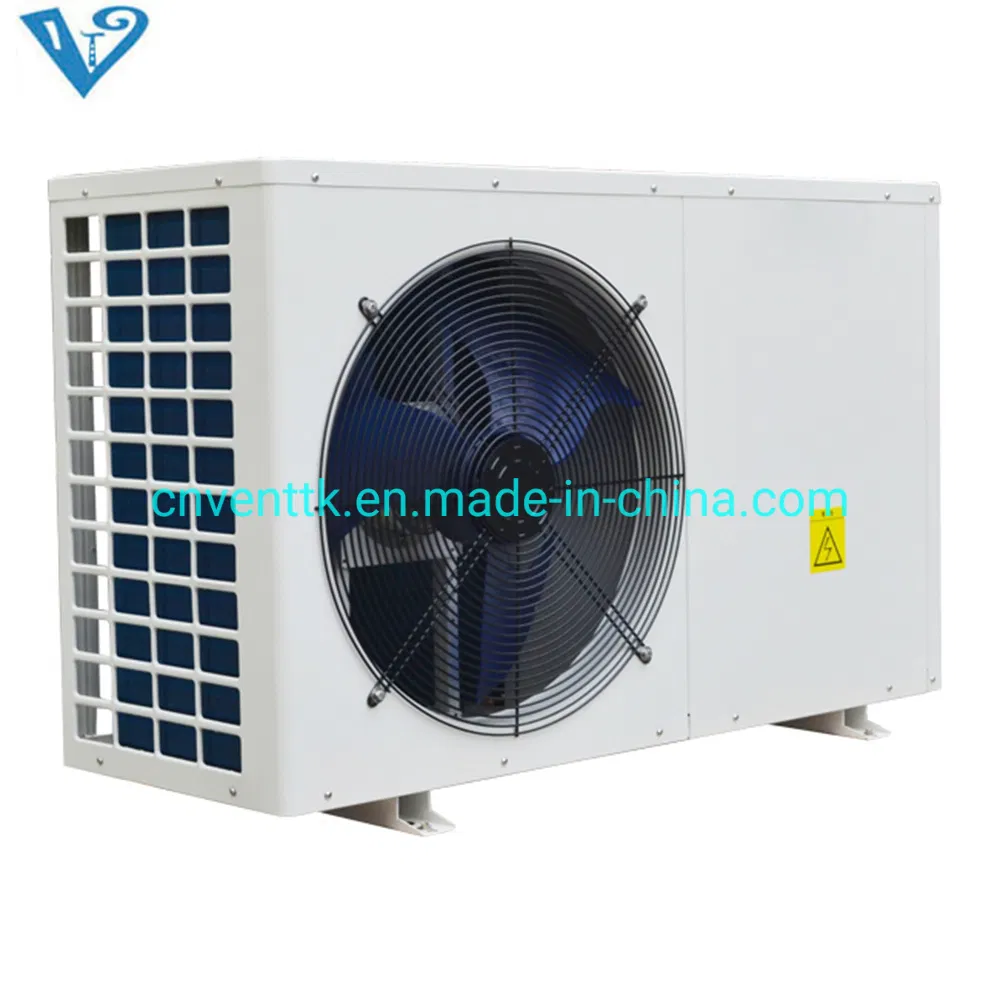

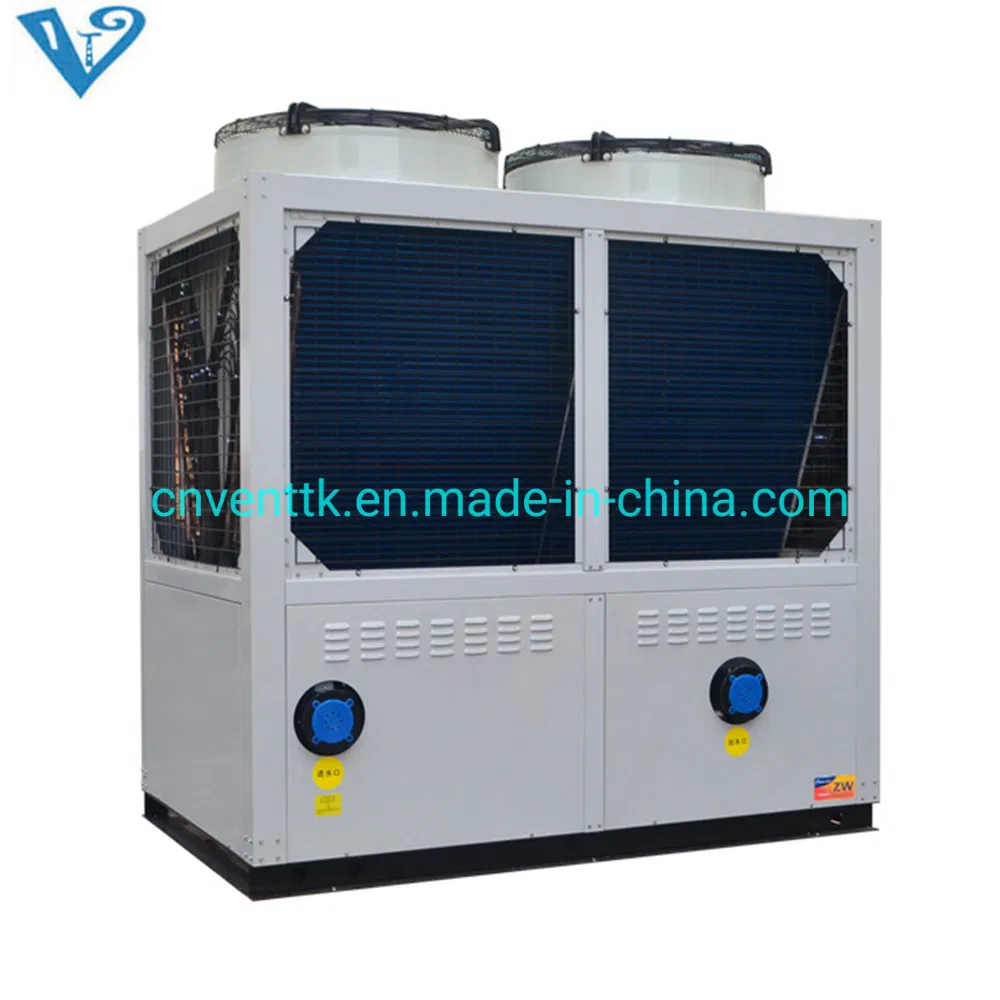

Split type air to water heat pump with Heating cooling hot water Indoor unit and outdoor unit R407

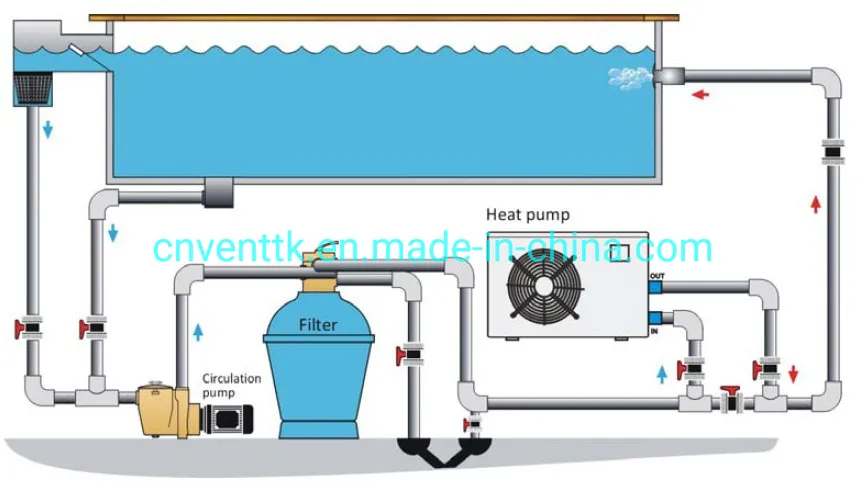

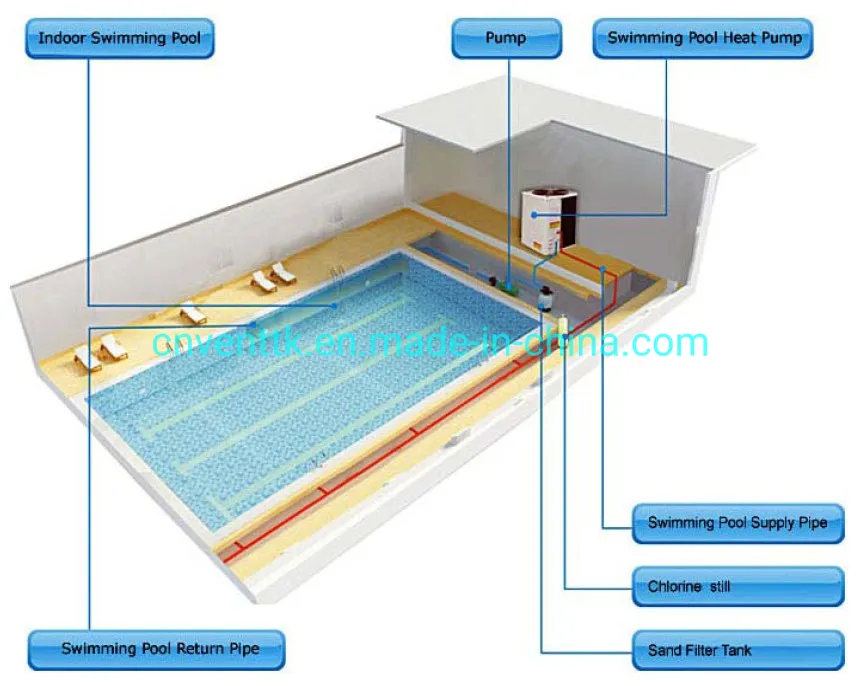

Swimming Pool Heat Pump Features:
- Complying with ISO standard. High Quality Ensured with the European standard.

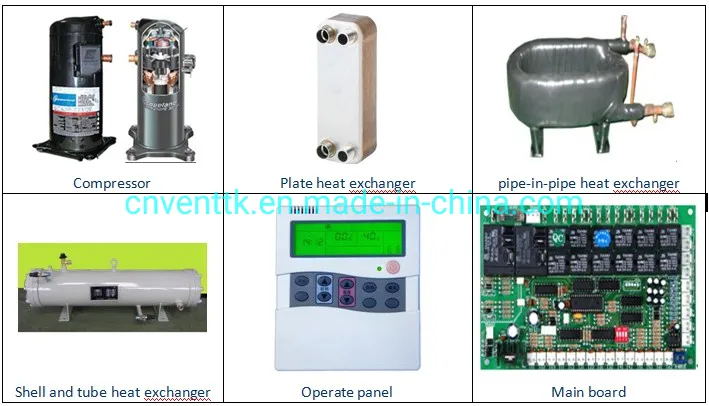

- Using reliable compressor (Copeland Scroll/Panasonic) with R417A/407C/R404A refrigerant.

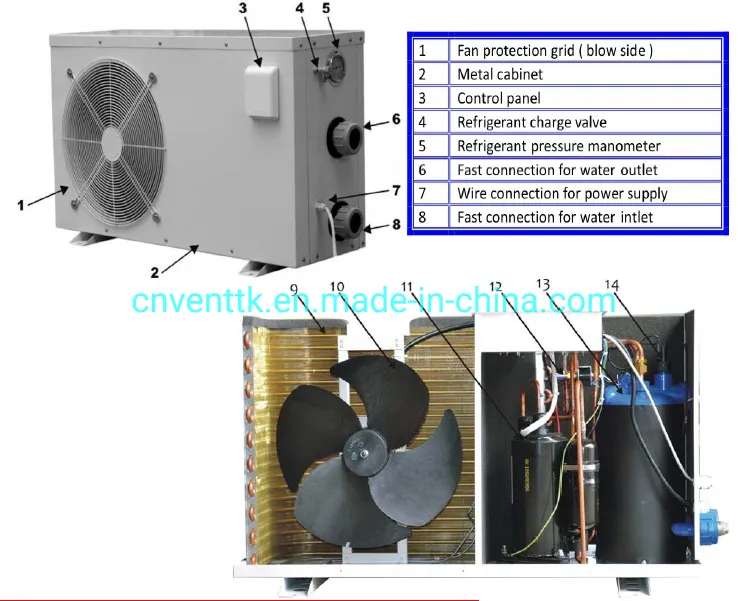

- Equipped with high efficiency tube in shell heat exchanger, finned heat exchanger or plate heat exchanger. All heat exchangers with insulation to prevent heat loss.
- Evaporator using surface modification of wave hydrophilic aluminous foil.
- Intelligent controller with LCD display control panel. Intellectual control over water pump, water supplement, water discharge and defrosting system.
- Automatic defrosting function included (with reverse valve inside).
- Low noise fan motor.
- General and operational test carried out for every unit before package in the factory.
Side Discharge Series Features:
- Refrigerant: R407C.
- LCD Digital Control Panel for a precise adjustment of the desired temperature.
- Compressor: Sanyo Compressor.
- Automatic unit on/off timer clock.
- Corrosion resistant Titanium heat exchanger.
- High/Low pressure protection.
- Energy saving up to 80% compared with conventional water heaters.
Technical Specifications
| Swimming pool heat pump specifications |
| Model | MDY20D | MDY30D | MDY50D | MDY60D | MDY100D | MDY200D |
| Input power (KW) | 1.84 | 2.98 | 4.6 | 5.4 | 9.2 | 19 |
| Heating capacity (KW) | 7 | 14 | 20 | 24 | 38 | 78 |
| Rated voltage (V) | 220 | 220/380 | 380 | 380 | 380 | 380 |
| Rated current (A) | 8 | 13/6 | 9 | 12 | 18 | 32 |
| Water flow (L/H) | 2000 | 3600 | 5500 | 7000 | 11000 | 22000 |
| Pipe Size | DN50 | DN50 | DN50 | DN50 | DN63 | DN75 |
| Dimensions (mm) | 1050*350*650 | 1120*490*790 | 1120*490*1260 | 1120*490*1260 | 1450*760*1060 | 1990*980*2080 |
| Weight (KG) | 75 | 105 | 170 | 180 | 280 | 550 |
| Noise (Db) | <=40 | <=50 | <=55 | <=60 | <=70 | <=75 |
| Refrigerant | R417A/R407C/R404A/R410A/R22/R134A |
Frequently Asked Questions
What are the primary applications for this heat pump?
This unit is highly versatile and suitable for villa families, sauna and swimming pool facilities, hotels, factories, hospitals, student apartments, and beauty salons.
Does the heat pump support both heating and cooling?
Yes, this split type air to water heat pump is designed to provide heating, cooling, and hot water supply.
How much energy can I save using this system?
Our heat pump can save up to 80% in energy costs compared to conventional water heaters like gas/oil boilers and electric resistance heaters.
What kind of compressor and refrigerant does it use?
The system utilizes high-quality Copeland Scroll or Panasonic compressors and is compatible with R417A, R407C, R404A, R410A, and other refrigerants.
Is the unit durable for winter use?
Yes, it features an automatic reversing defrosting function and an intelligent controller, ensuring reliable operation even during hard winter conditions.
What are the safety and quality certifications?
The product complies with ISO standards and has received CE certification, ensuring high quality and safety for European and global standards.
