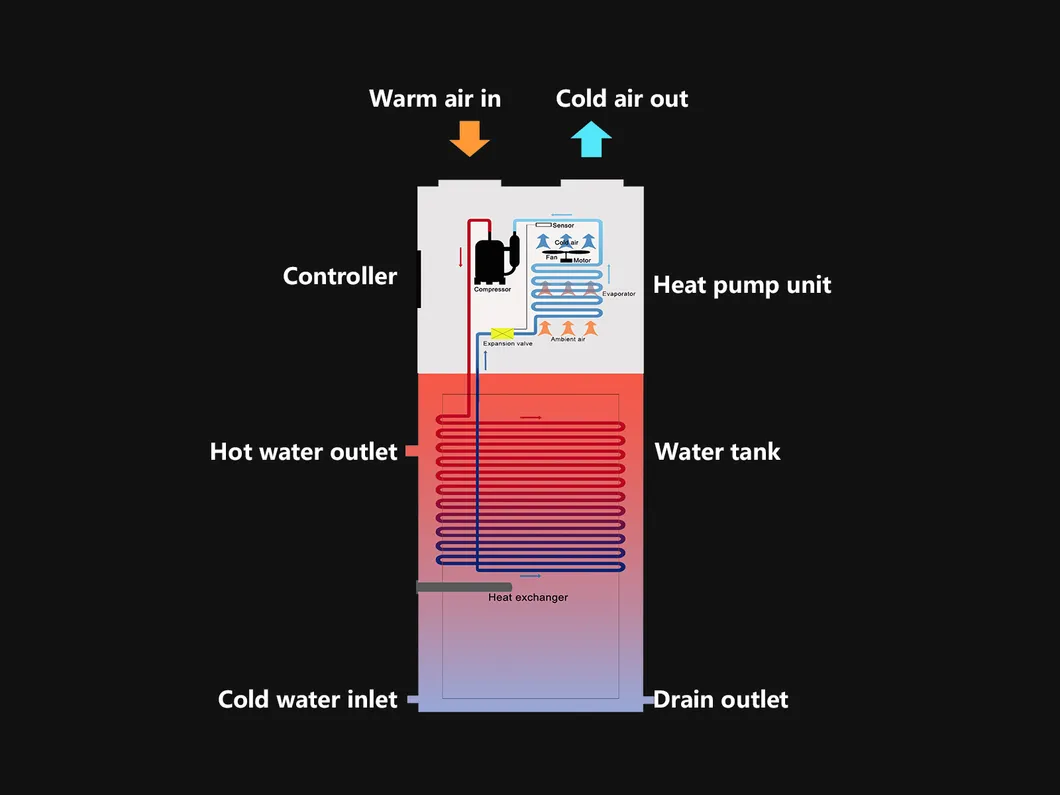

How Does Air Source Heat Pump Work

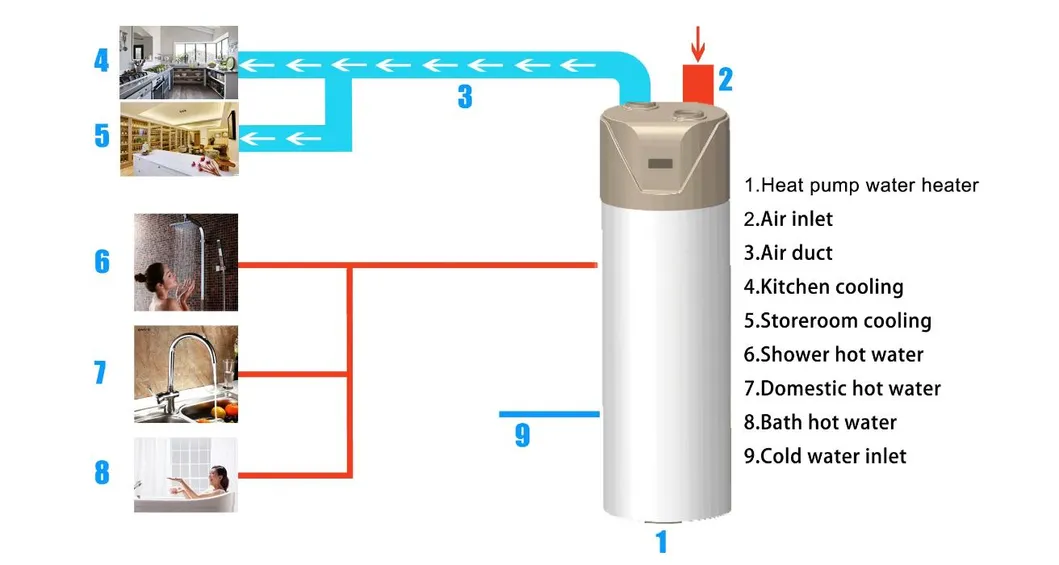

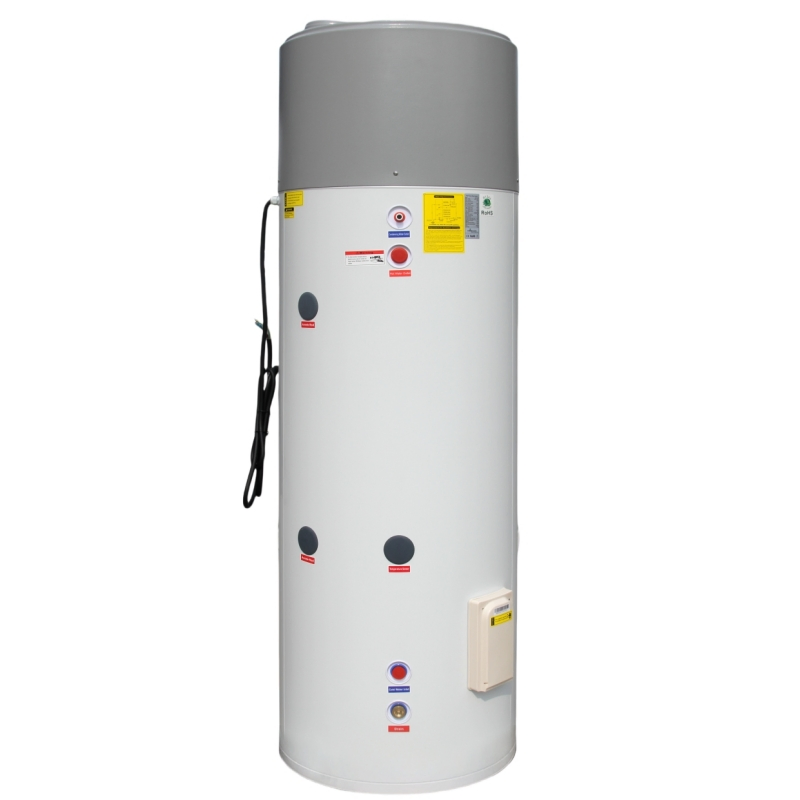

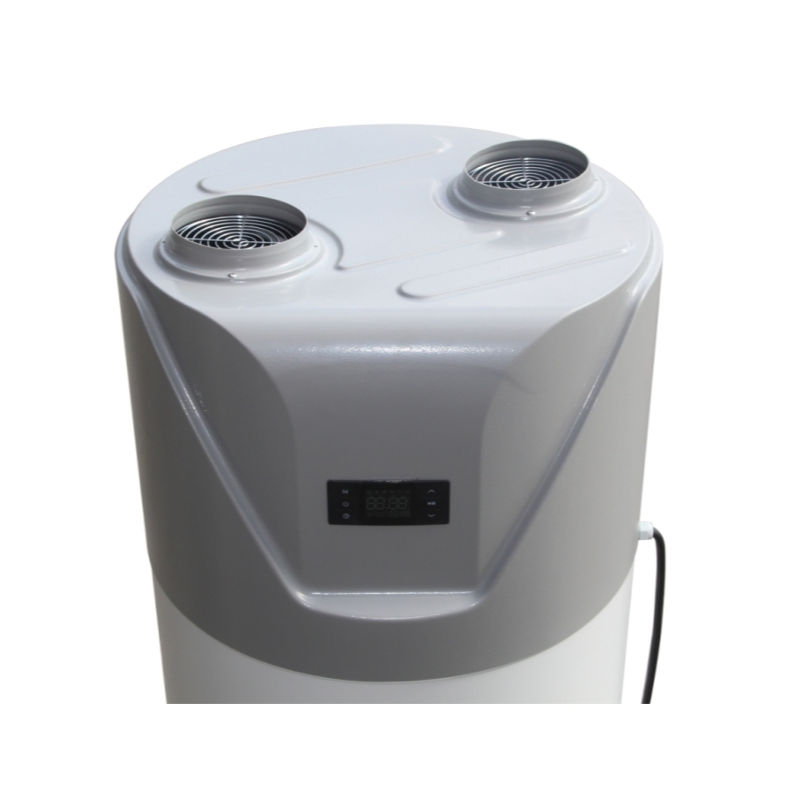

Recovering wasted energy from ventilated air and transferring it to water, heat recovery models can be installed in various locations like laundry rooms, basements, attics, or garages where waste air is generated. The unit features two duct connections: one discharges cool, dehumidified air to areas needing ventilation, while the other draws air from warm areas to recover energy for hot water production.

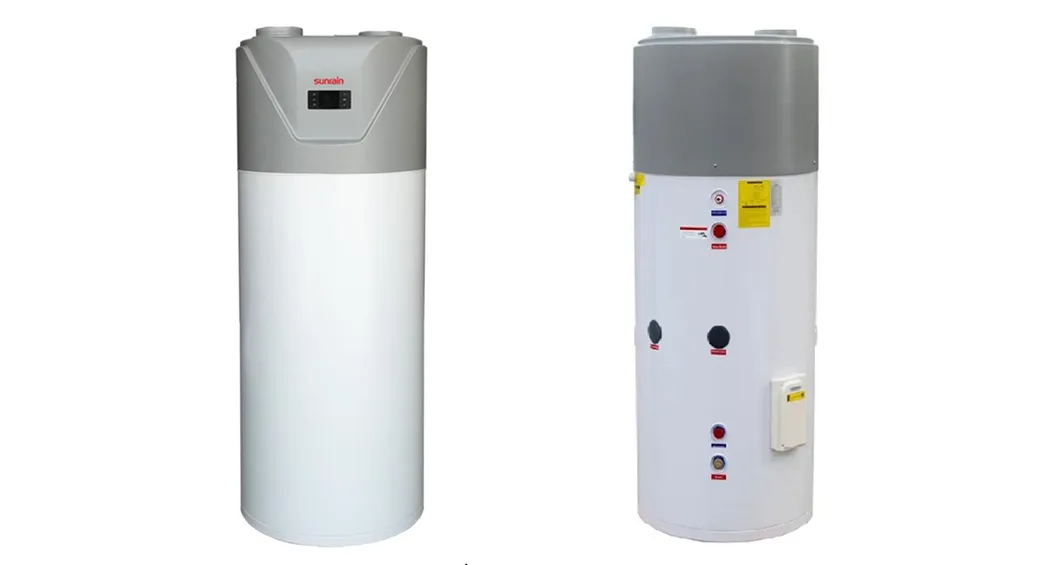

| Model | YT-200TB1 | YT-250TB1 | YT-300TB1 |
|---|---|---|---|
| Water tank volume | 200L | 250L | 300L |
| Heating Capacity (KW) | 2.5 | ||
| Power Input (KW) | 0.6 | ||
| COP | 4.16 | ||
| Refrigerant | R134a | ||
| Working Temp Range (ºC) | -7~43 | ||
| Max Water Temp (ºC) | 60 | ||
| Noise (dB) | 46 | ||
| Net Dimension (mm) | 620*620*1638 | 620*620*1868 | 620*620*2038 |

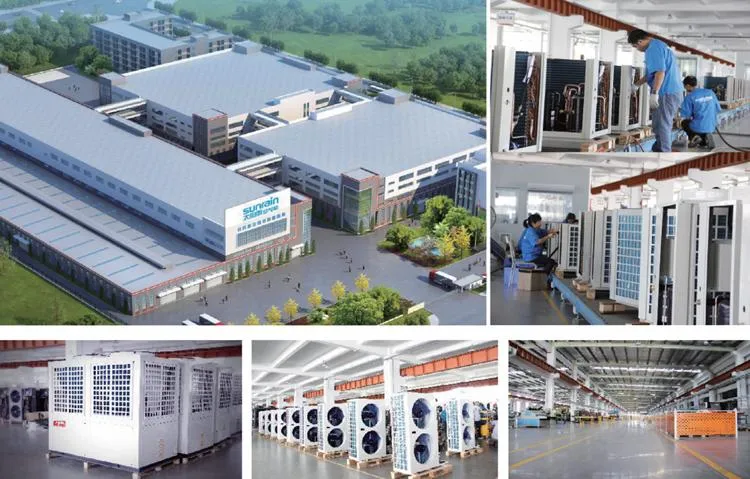

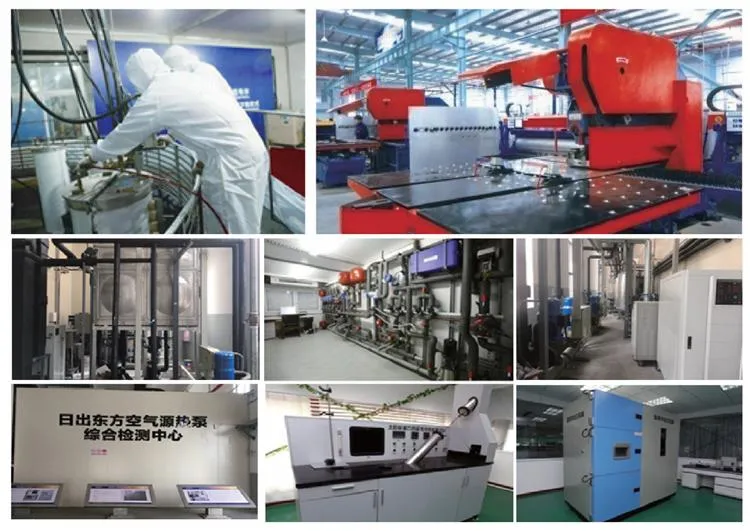

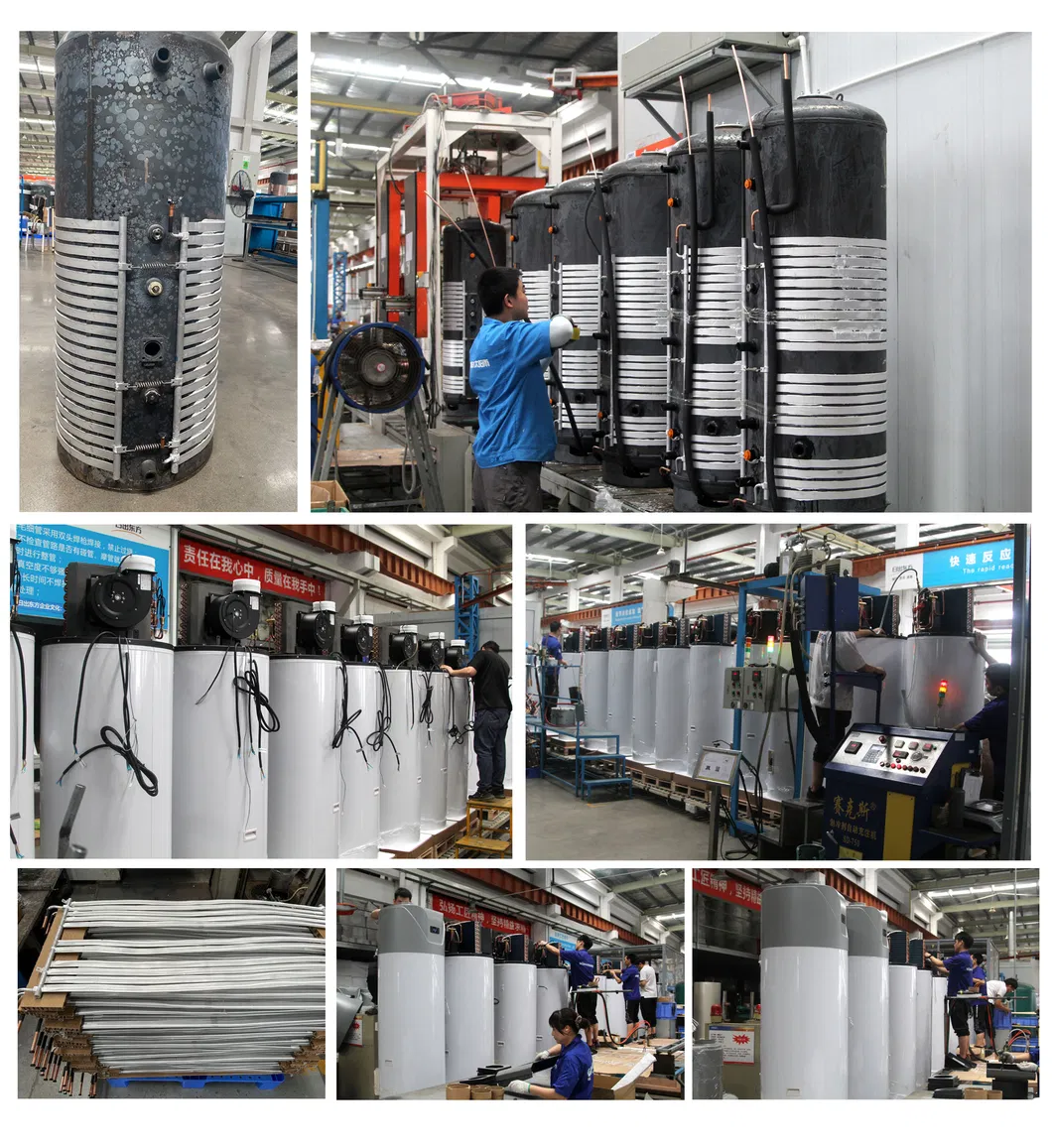

Our production base is equipped with a strong R&D team of more than 100 professional engineers. The annual production capacity exceeds one million sets of heat pump water heaters. We are leading the era of Industry 4.0 by building smart factories, smart production, and smart logistics.

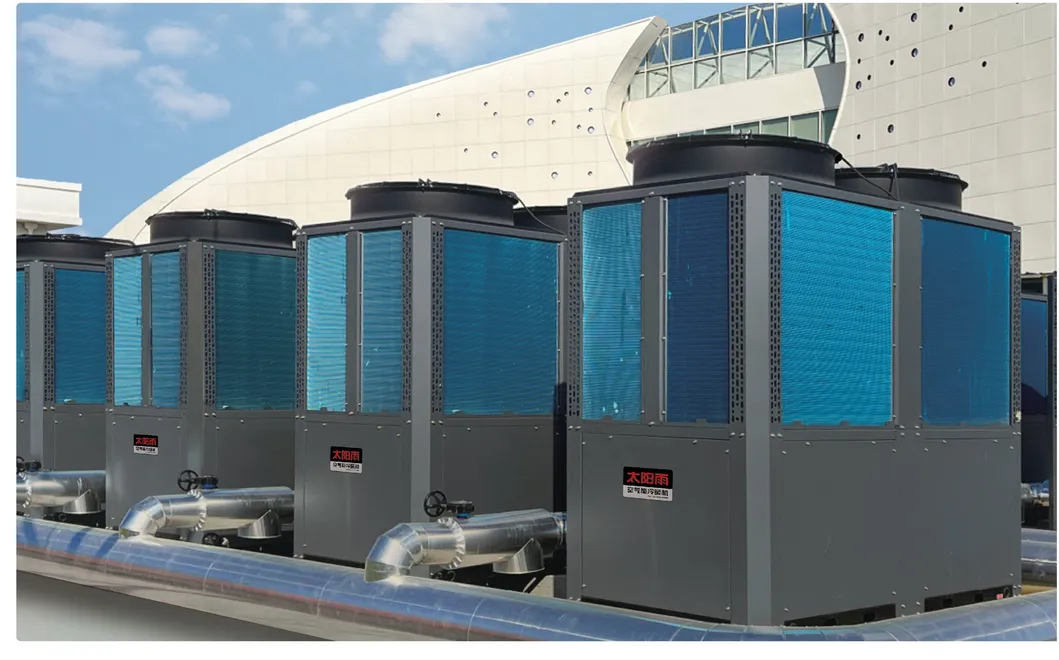

We have completed many successful projects and participated in major exhibitions worldwide. Our products have obtained numerous international certificates ensuring quality and safety.
Sample and LCL orders are packed in secure plywood cases. Full container orders use high-quality export-standard cartons to ensure safety during transit.
