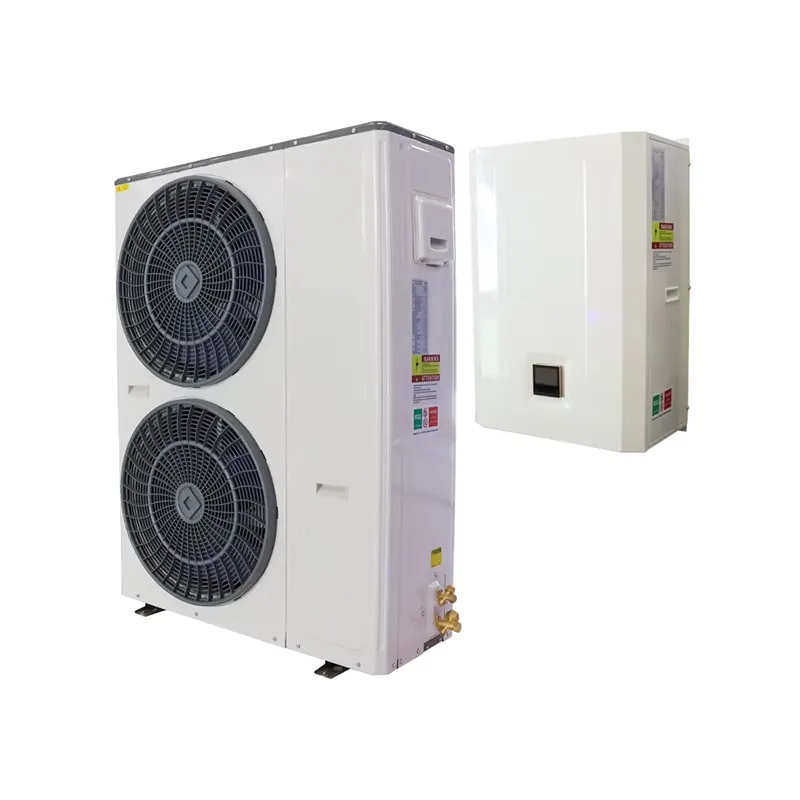

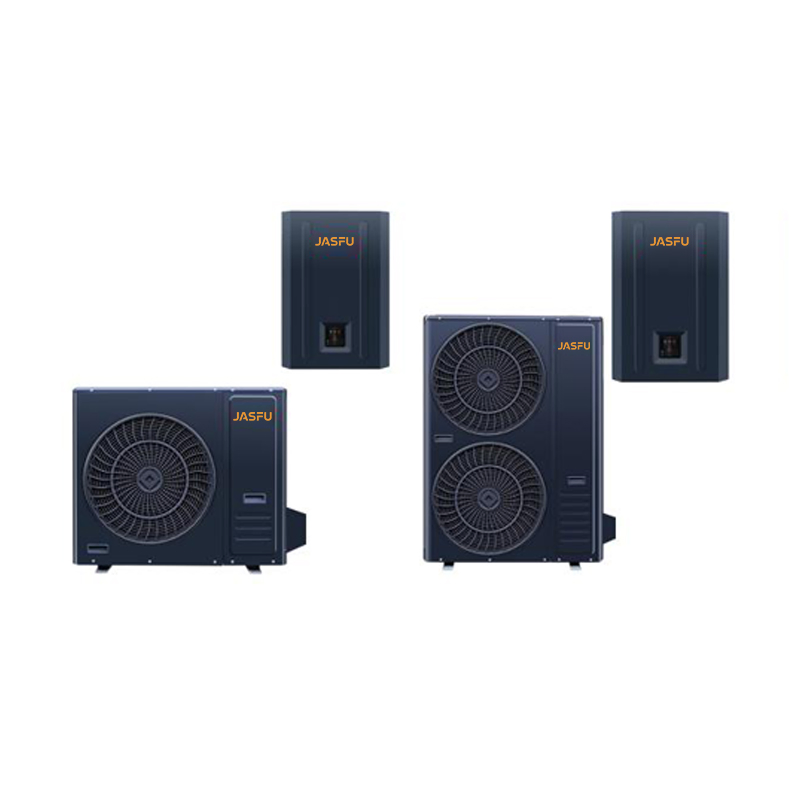

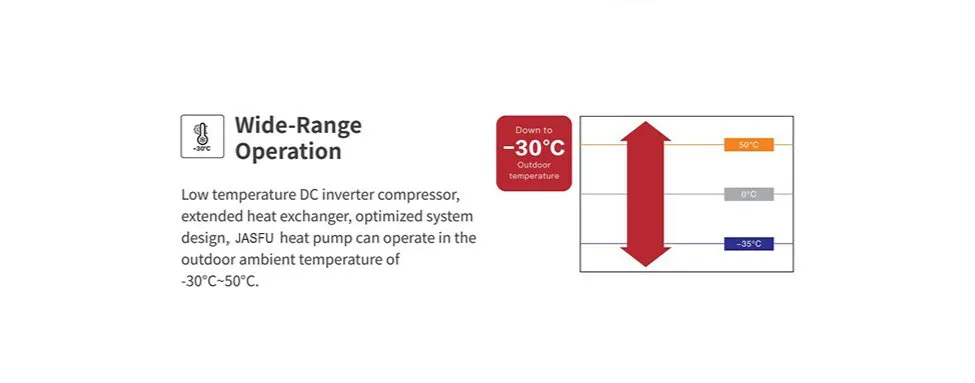

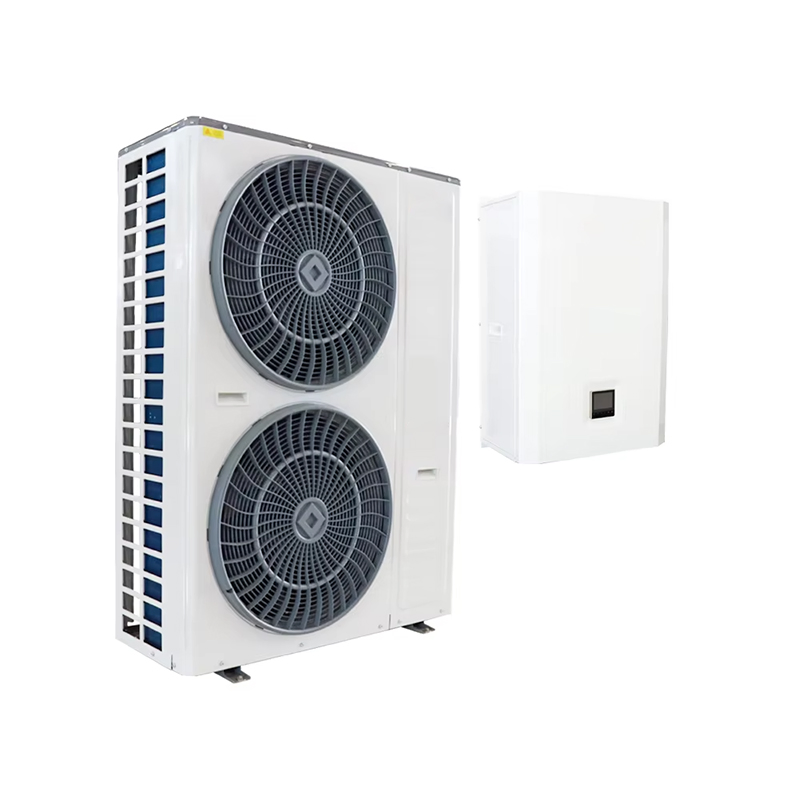

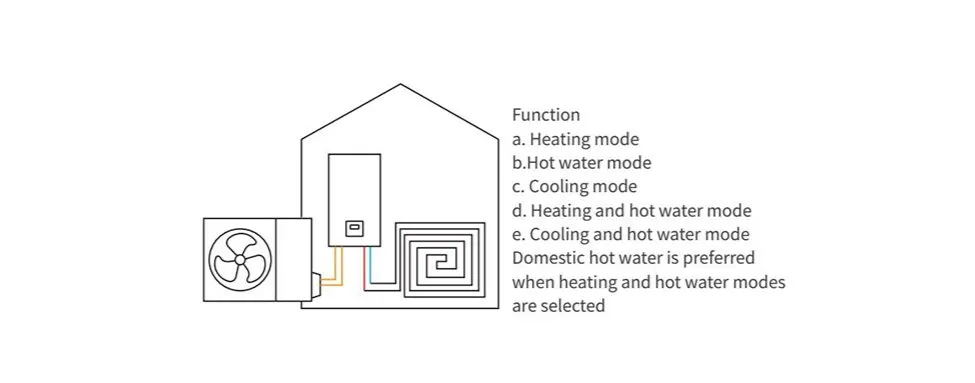

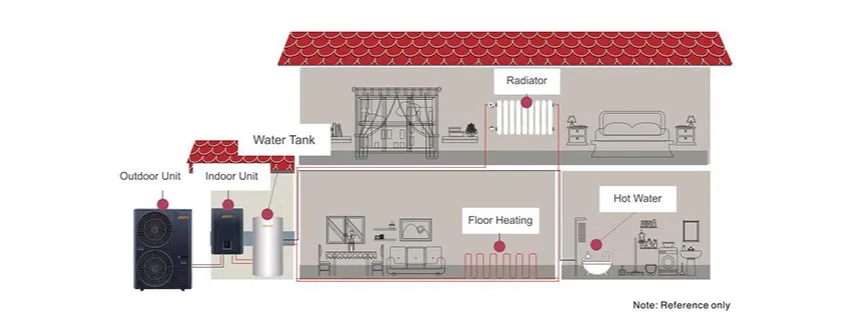

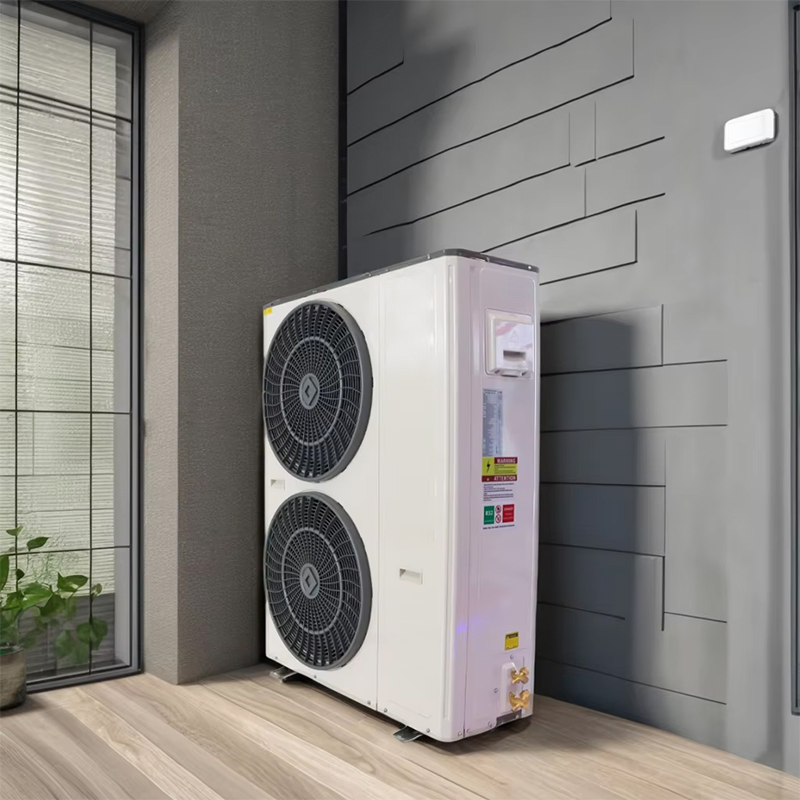

The FR Series Split Type R32 Gas Heat Pump is a high-performance solution designed for efficient heating, cooling, and domestic hot water supply. Featuring a DC inverter compressor and an extended heat exchanger, this heat pump operates efficiently in a wide range of outdoor temperatures, from -30°C to +50°C. With its eco-friendly R32 refrigerant, the FR Series provides a sustainable and energy-efficient option for homes and businesses. The versatile functionality supports multiple modes, including heating, cooling, and hot water modes, ensuring year-round comfort and convenience.
| Model Parameter | Unit | 10kW | 15kW | 18kW | 25kW | 30kW |
|---|---|---|---|---|---|---|
| Power Supply | V/Hz | 220-240/50 | 220-240/50 | 380-415/50 | 380-415/50 | 380-415/50 |
| ErP Level (35℃) | - | A+++ | A+++ | A+++ | A+++ | A+++ |
| ErP Level (55℃) | - | A++ | A++ | A++ | A++ | A++ |
| Heating Cap. (A7/W35) | kW | 3.45-10.15 | 5.29-15.65 | 5.58-17.89 | 9.31-25.12 | 11.02-29.94 |
| COP Range | w/w | 4.70~4.16 | 4.75-4.22 | 4.70-4.16 | 4.72-4.21 | 4.66-4.01 |
| Refrigerant Type | - | R32 | R32 | R32 | R32 | R32 |
| Compressor Type | - | DC Inverter + EVI | ||||
| Outdoor Temp Limit | ℃ | -30 to 45 | ||||
