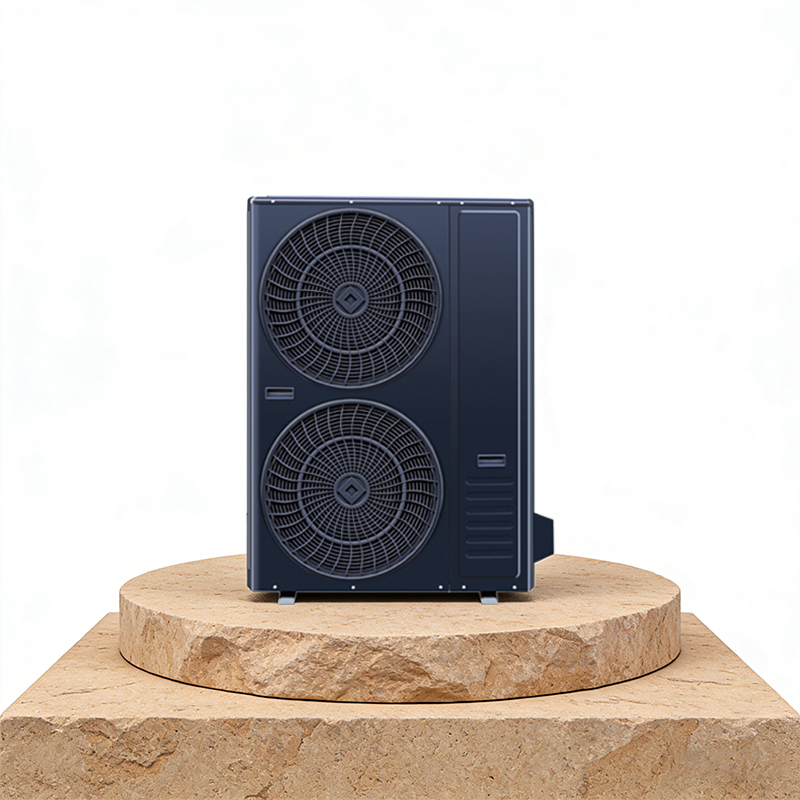

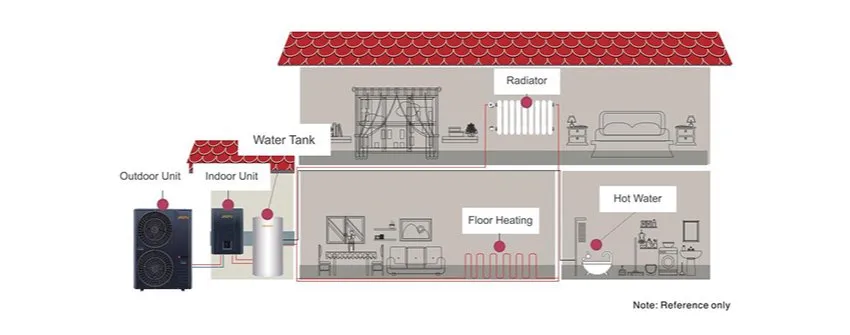

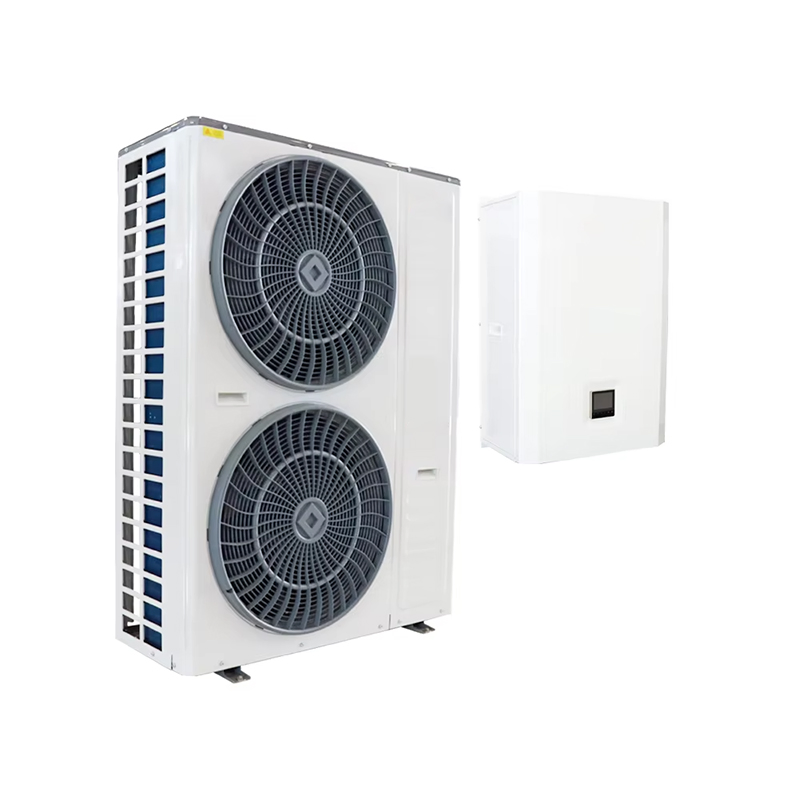

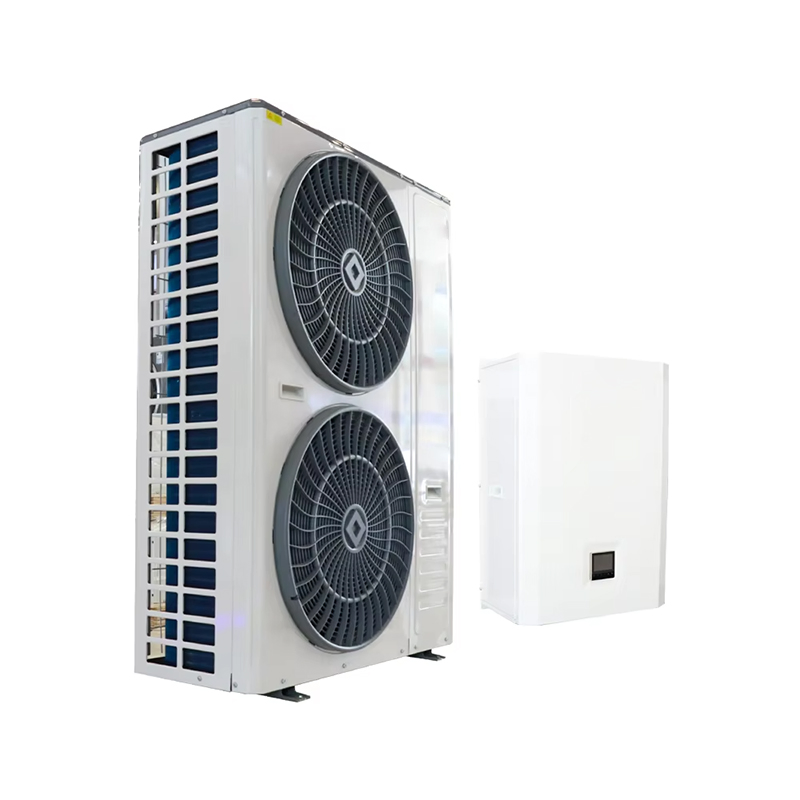

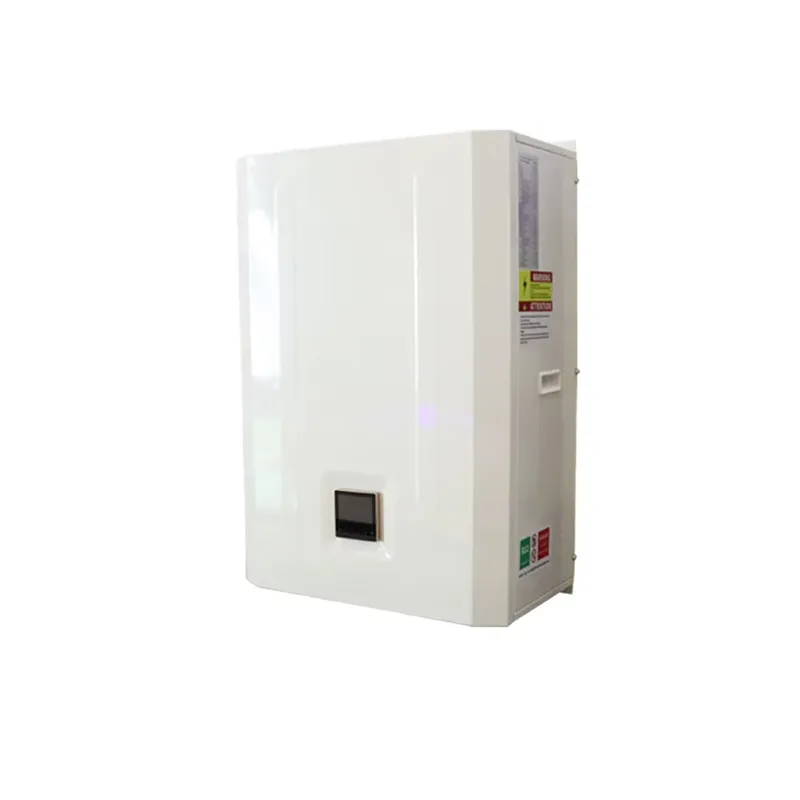

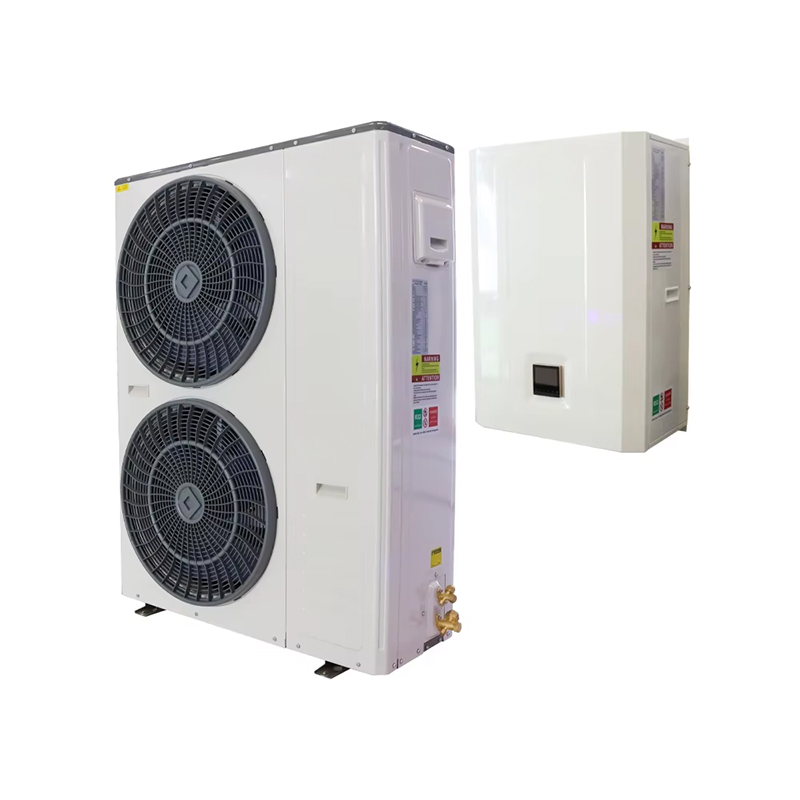

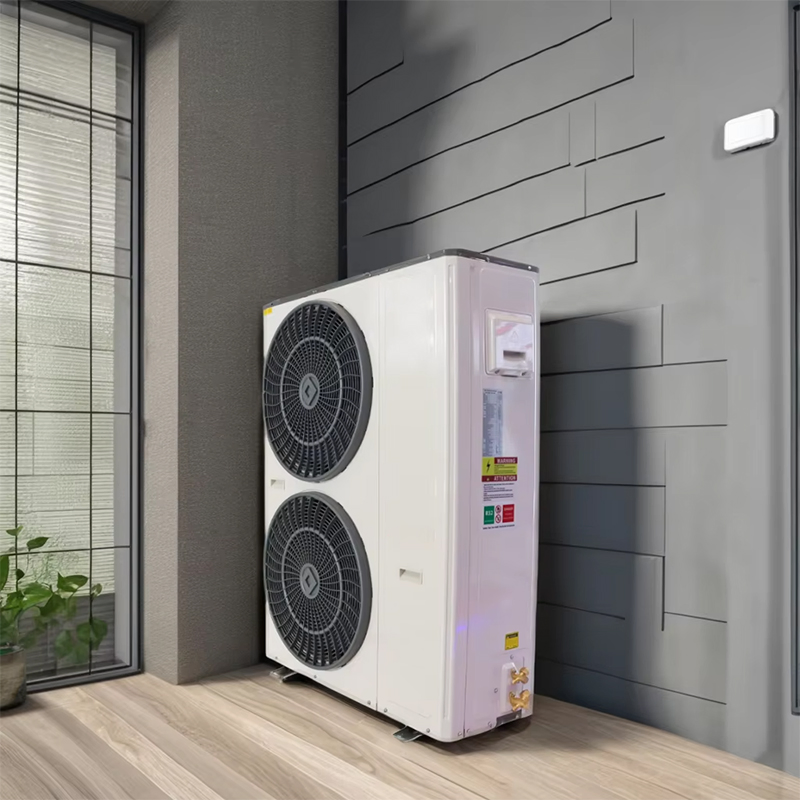

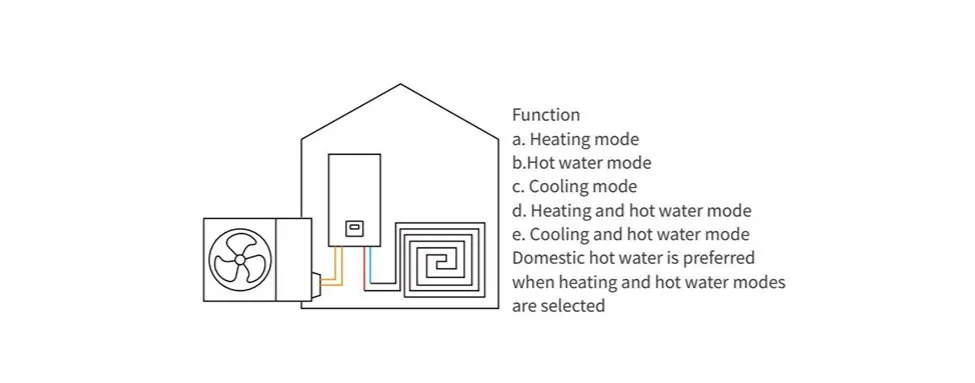

The FR Series Split Type R32 Gas Heat Pump is a high-performance solution designed for efficient heating, cooling, and domestic hot water supply. Featuring a DC inverter compressor and an extended heat exchanger, this heat pump operates efficiently in a wide range of outdoor temperatures, from -30°C to +50°C. With its eco-friendly R32 refrigerant, the FR Series provides a sustainable and energy-efficient option for homes and businesses.
Equipped with DC inverter technology, the system adjusts output based on actual demand, providing significant energy savings compared to non-inverter models.

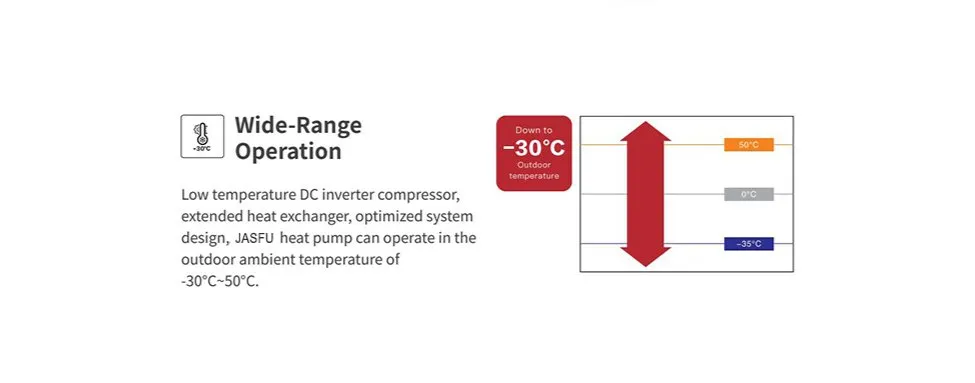

Built to withstand harsh winters and hot summers, ensuring reliable operation in all climate conditions.
| Model Parameters | 10kW | 15kW | 18kW | 25kW | 30kW | ||
| Power Supply | V/Hz | 220-240/50 | 220-240/50 | 380-415/50 | 380-415/50 | 380-415/50 | |
| ErP Level (35℃) | - | A+++ | A+++ | A+++ | A+++ | A+++ | |
| Heating Capacity Range | kW | 3.45-10.15 | 5.29-15.65 | 5.58-17.89 | 9.31-25.12 | 11.02-29.94 | |
| COP Range | w/w | 4.70-4.16 | 4.75-4.22 | 4.70-4.16 | 4.72-4.21 | 4.66-4.01 | |
| Refrigerant Type | kg | R32/1.6 | R32/2.4 | R32/2.4 | R32/3.6 | R32/3.9 | |
| Unit Weight | Indoor | kg | 47 | 50 | 52 | 55 | 58 |
| Outdoor | kg | 75 | 102 | 110 | 151 | 164 | |
Products are manufactured in compliance with international standards including ISO9001, CE, UL, and CCC. Dedicated R&D ensures high energy efficiency and environmental sustainability for global markets across Europe, North America, and Asia.
