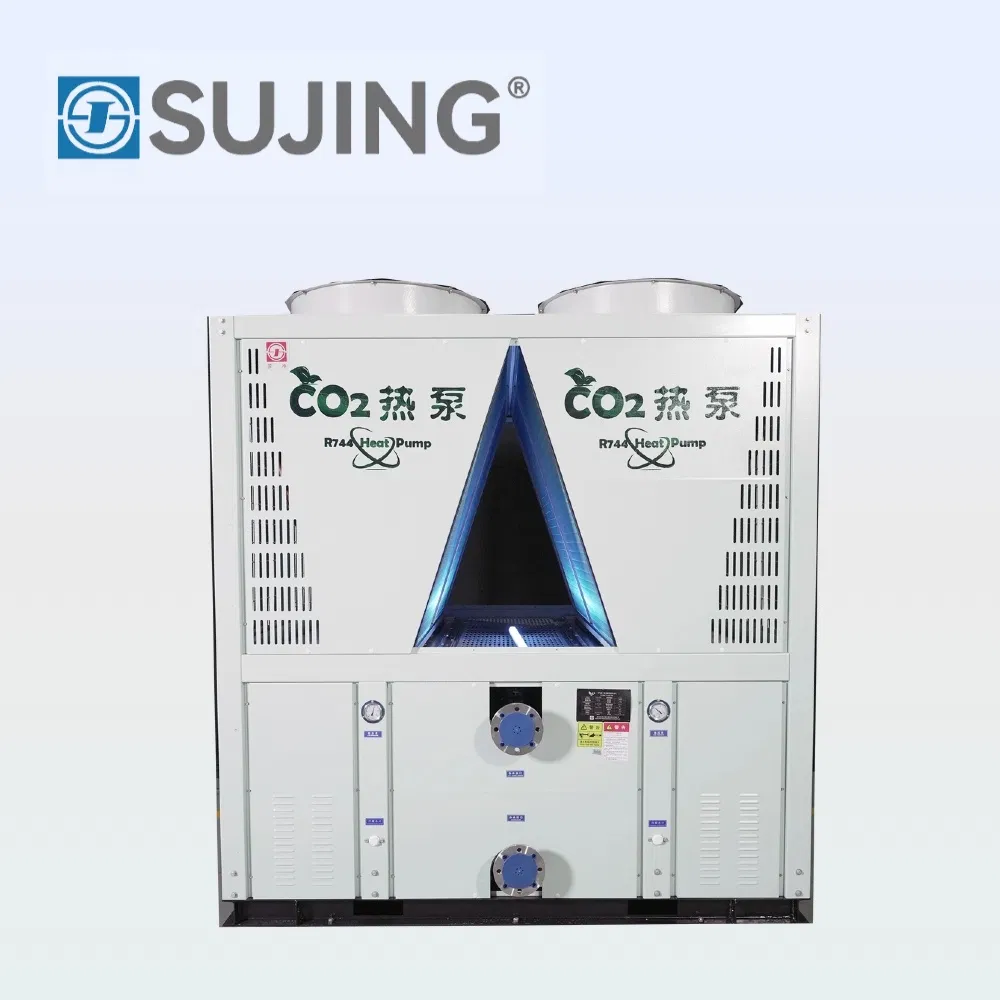

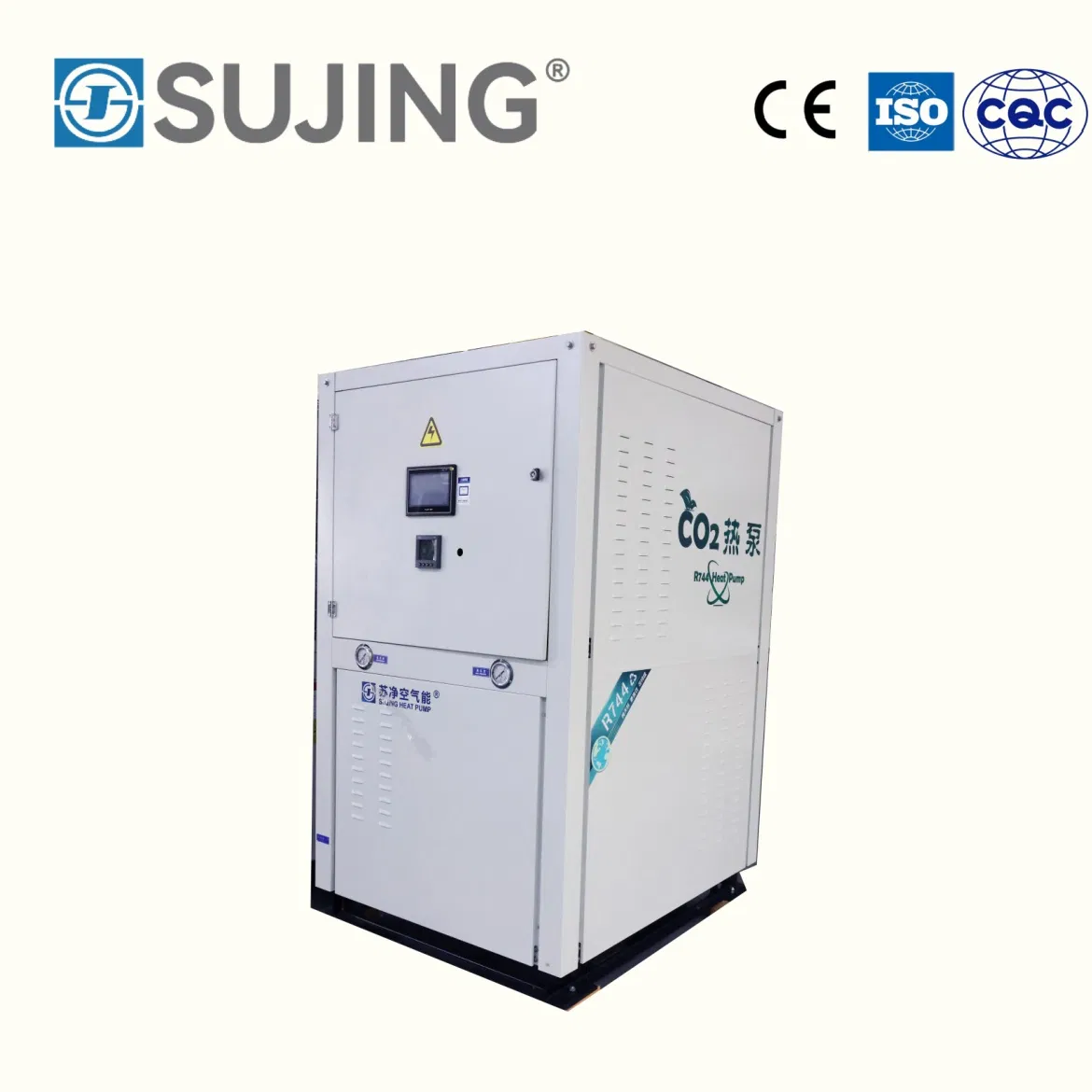

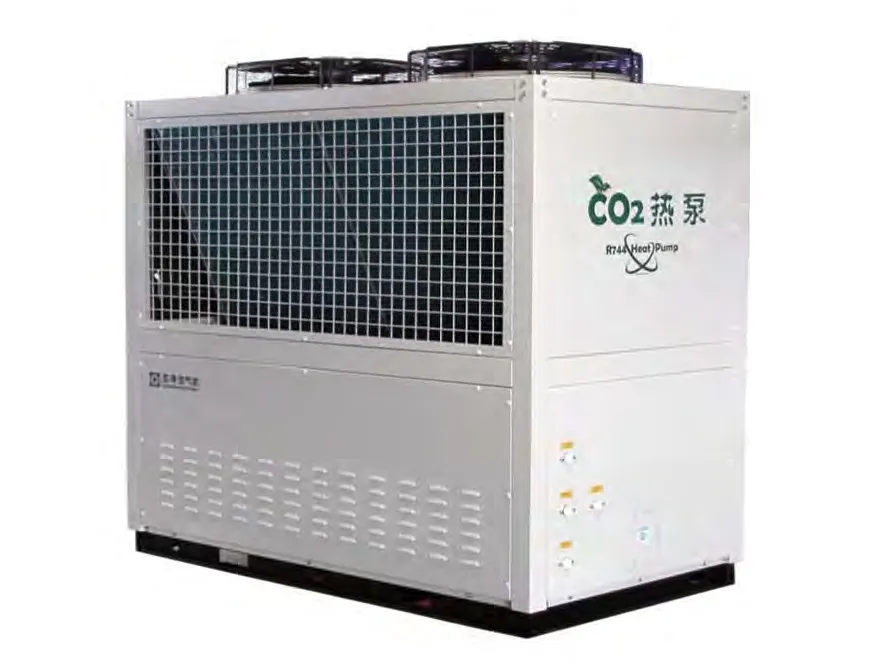

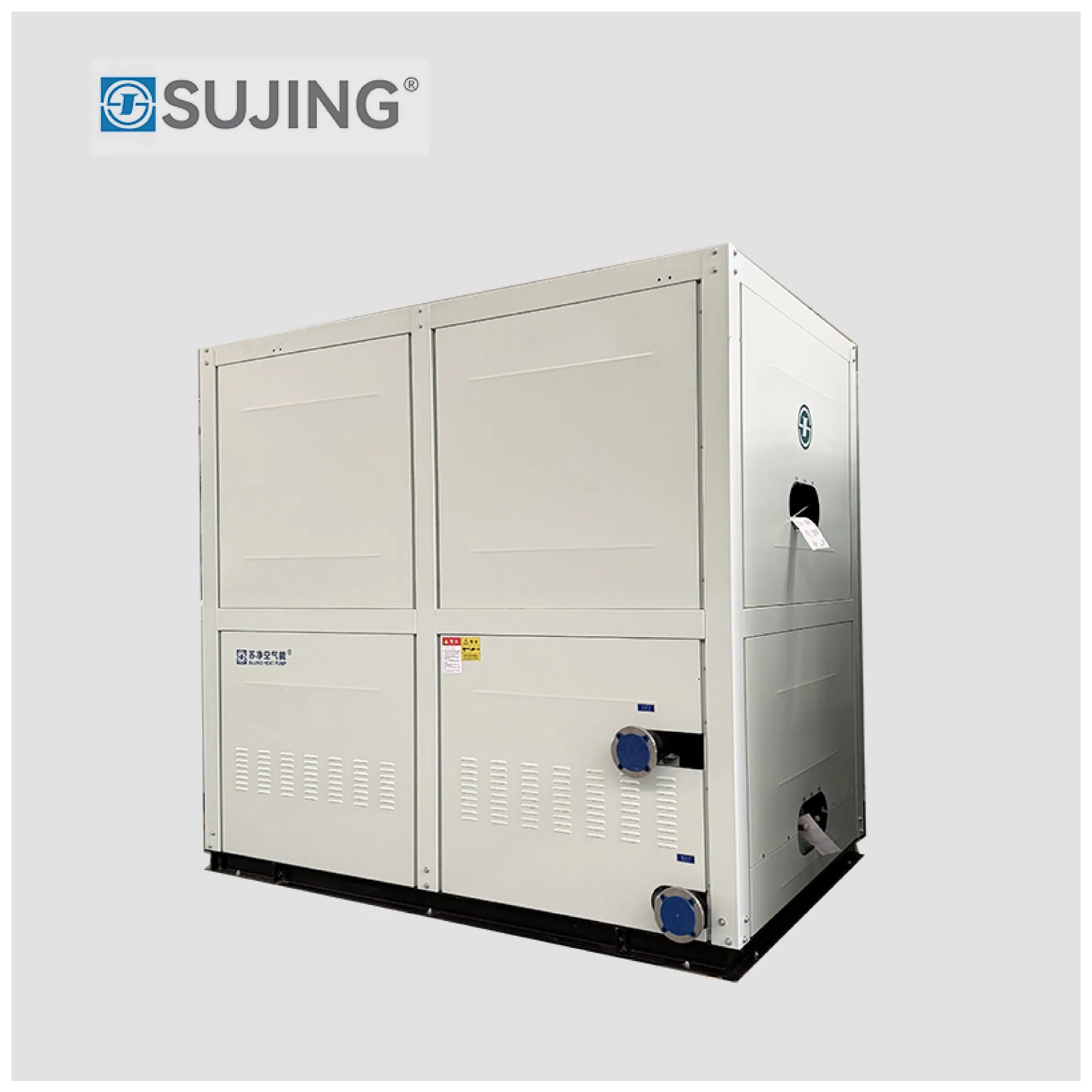

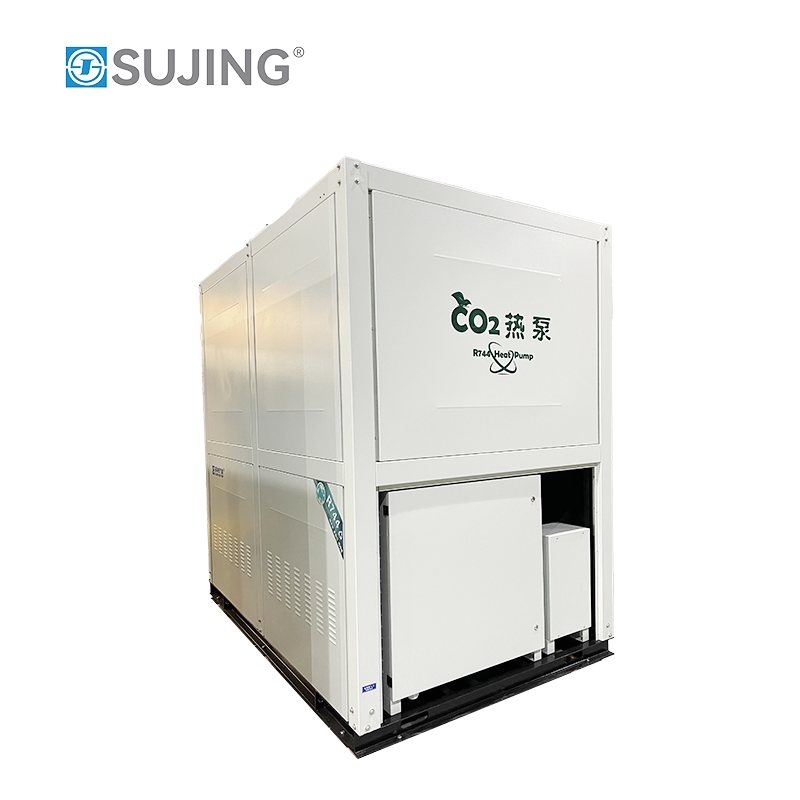

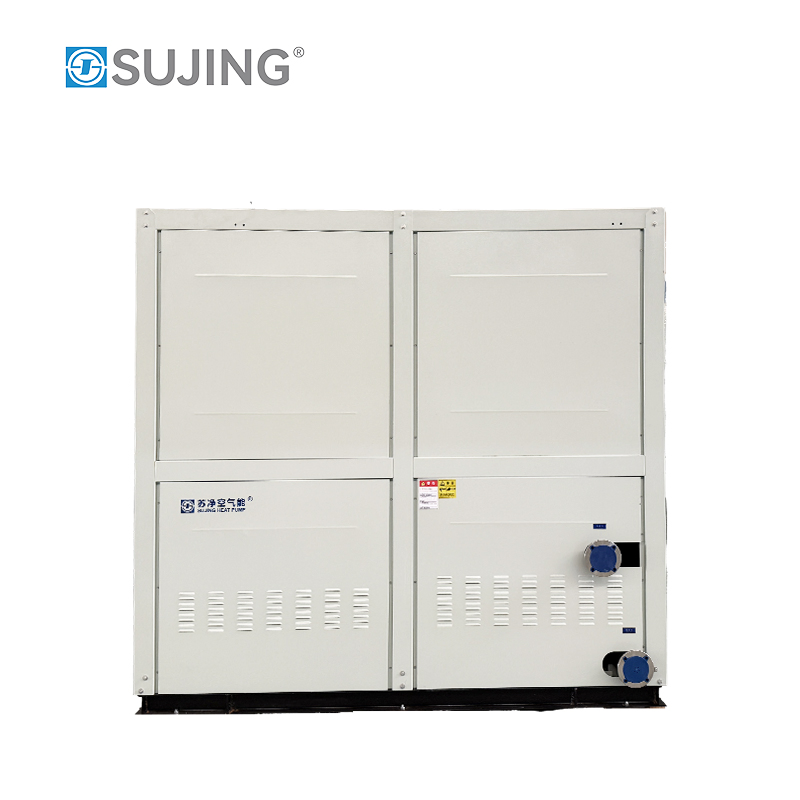

From Waste Heat to Useful Energy: Sujing’s CO2 Heat Pump Innovations

Customization:	Available
After-sales Service:	Engineers Available to Service 24/7 Online
Warranty:	18 months

Basic Specifications

Type:Air-Cooled

Unit Structure:Integral

Selected Voltage:220V/50HZ

Noise Level:Ultra Low (≤56 dB)

Application:Food Processing / Precision Machine Tool

Certification:RoHS, ISO, CE, CQC

Refrigerant:R744 (CO2)

Max Water Temp:95℃

Heating Mode:Direct Heating / Circulation

Compressor:Semi-Closed Reciprocating

Product Description

As a professional manufacturer of purification air conditioners and HVAC equipment, we specialize in high-efficiency heat pump systems. Our CO2 air source heat pump water heater is designed for sustainable and cost-effective heating across industrial, agricultural, and commercial sectors.

✓ High-temperature heating: Water output reaches over 90°C.

✓ Low-temperature resilience: Operates efficiently at -30°C.

✓ Energy Efficiency: Standard COP not less than 4.6.

✓ Eco-Friendly: Uses R744 (Natural CO2) refrigerant.

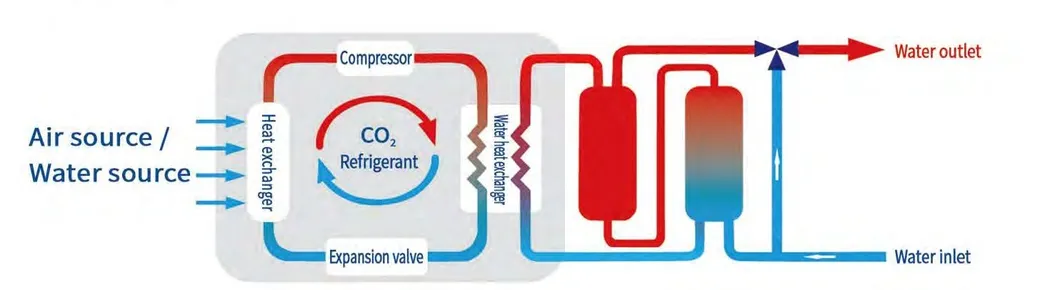

Operating Principle

The compressor absorbs low-temperature and low-pressure gaseous CO2 refrigerant and compresses it into a supercritical fluid. This fluid enters the gas cooler to release heat into the water. After pressure reduction via the expansion valve, it evaporates by absorbing heat from the ambient air, completing the high-efficiency cycle.

Product Parameters

Parameter Item	Specifications	Performance Data
Model / Capacity	SJKRS-28 II/C	7.5 HP
Heating Capacity	Standard Condition	28.1 Kw
Input Power / COP	Standard Condition	6.1 Kw / 4.6
Max Outlet Temp	Heating Mode	90ºC - 95ºC
Ambient Range	Operating Temp	-30ºC to 43ºC
Dimensions	L * W * H (mm)	1450 * 950 * 1450

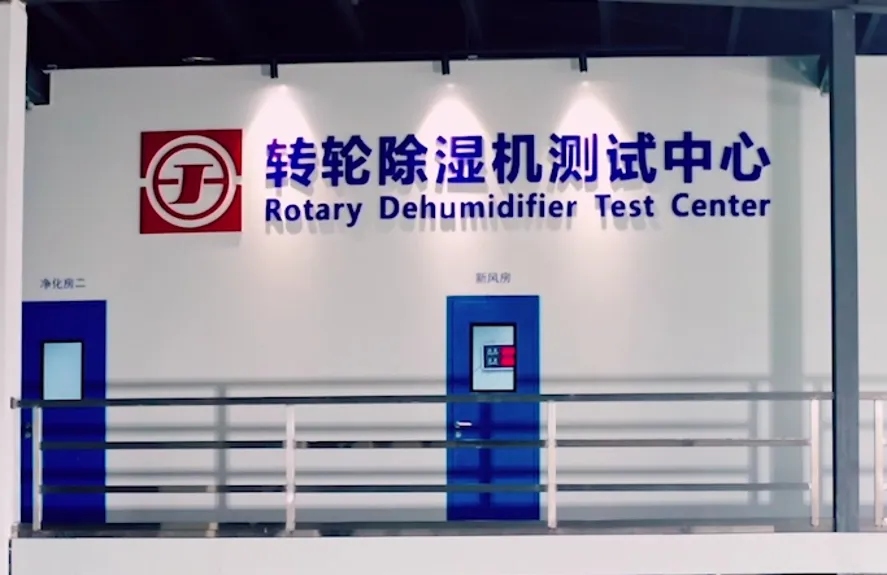

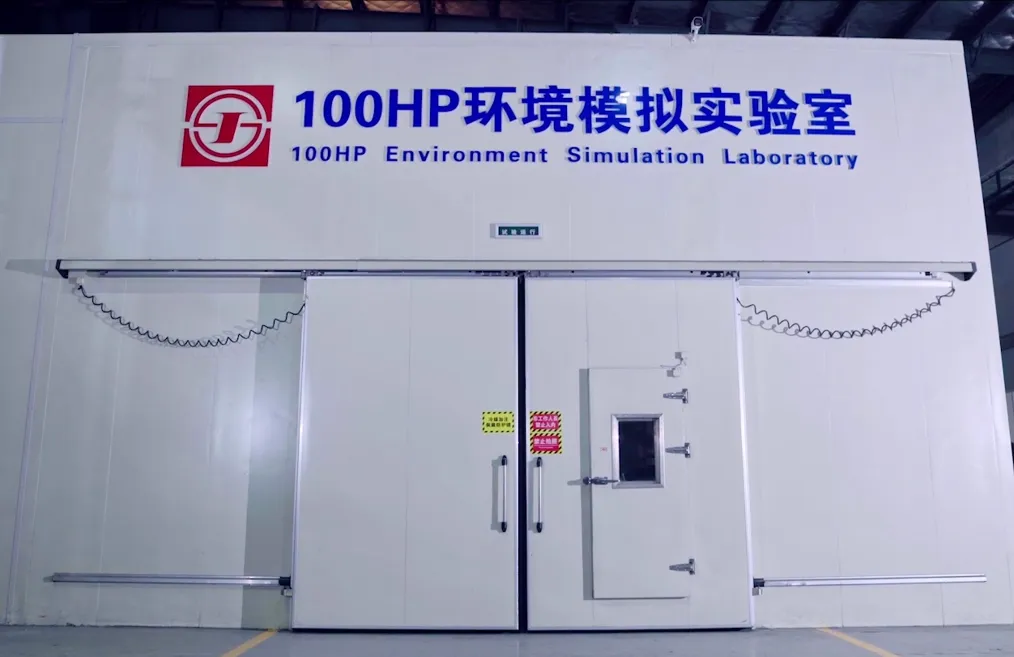

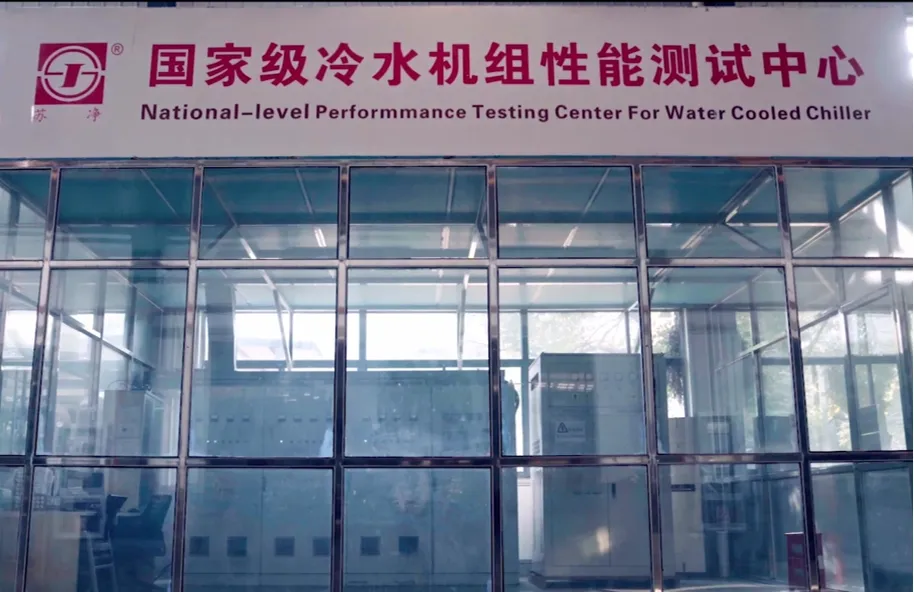

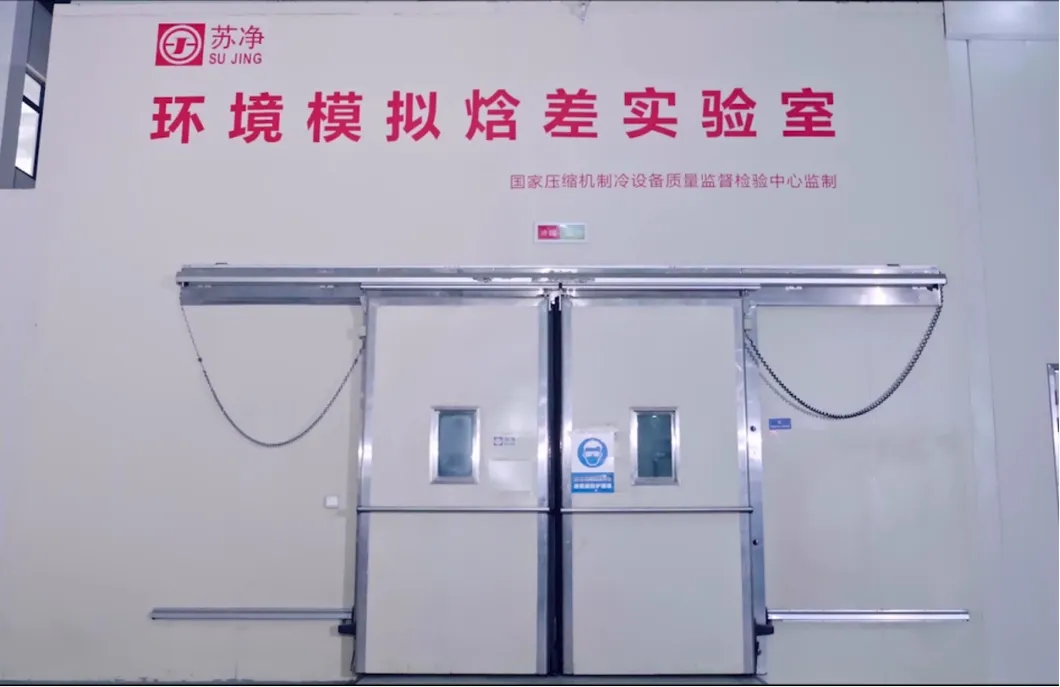

Advanced Testing Centers

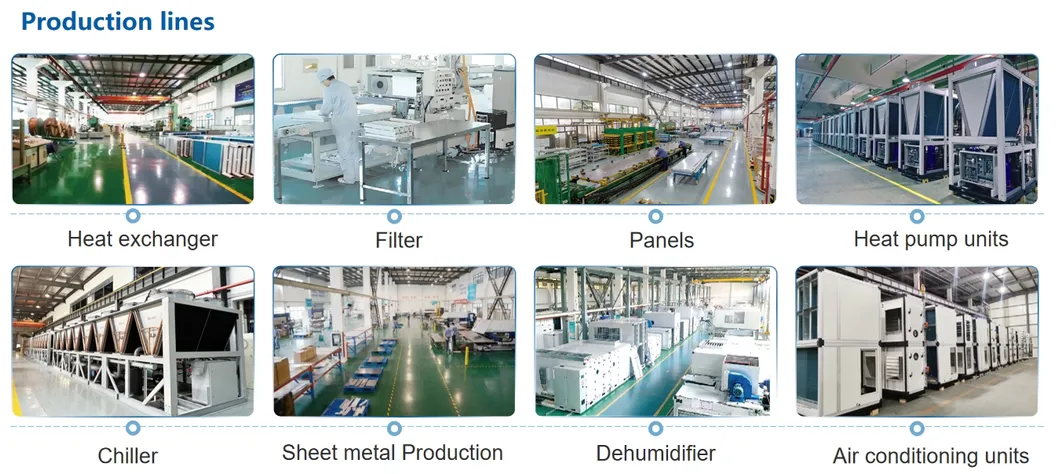

Manufacturing Excellence

Frequently Asked Questions

How do you guarantee product quality?

We maintain a strict quality control process, including raw material inspection, production checks, and 100% performance testing in our simulation laboratories before delivery.

What is the typical lead time for orders?

Our regular lead time is approximately 25 to 30 days after receiving the deposit. For urgent requirements, we strive to expedite the production schedule.

Can you provide customized OEM or ODM solutions?

Yes, we offer comprehensive OEM and ODM services. You can customize specifications, logos, colors, and packaging based on your specific market needs.

What certifications do your heat pumps hold?

Our products are certified with international standards including CE, ISO, RoHS, and CQC, ensuring compliance with global safety and efficiency requirements.

What is your after-sales service policy?

We provide an 18-month warranty and lifetime technical support. Our engineering team offers online guidance and training to ensure stable equipment operation.

Is the packaging safe for international sea freight?

Yes, we use reinforced export-standard wooden cases designed for long-distance transport, ensuring the equipment remains protected during international shipping.
