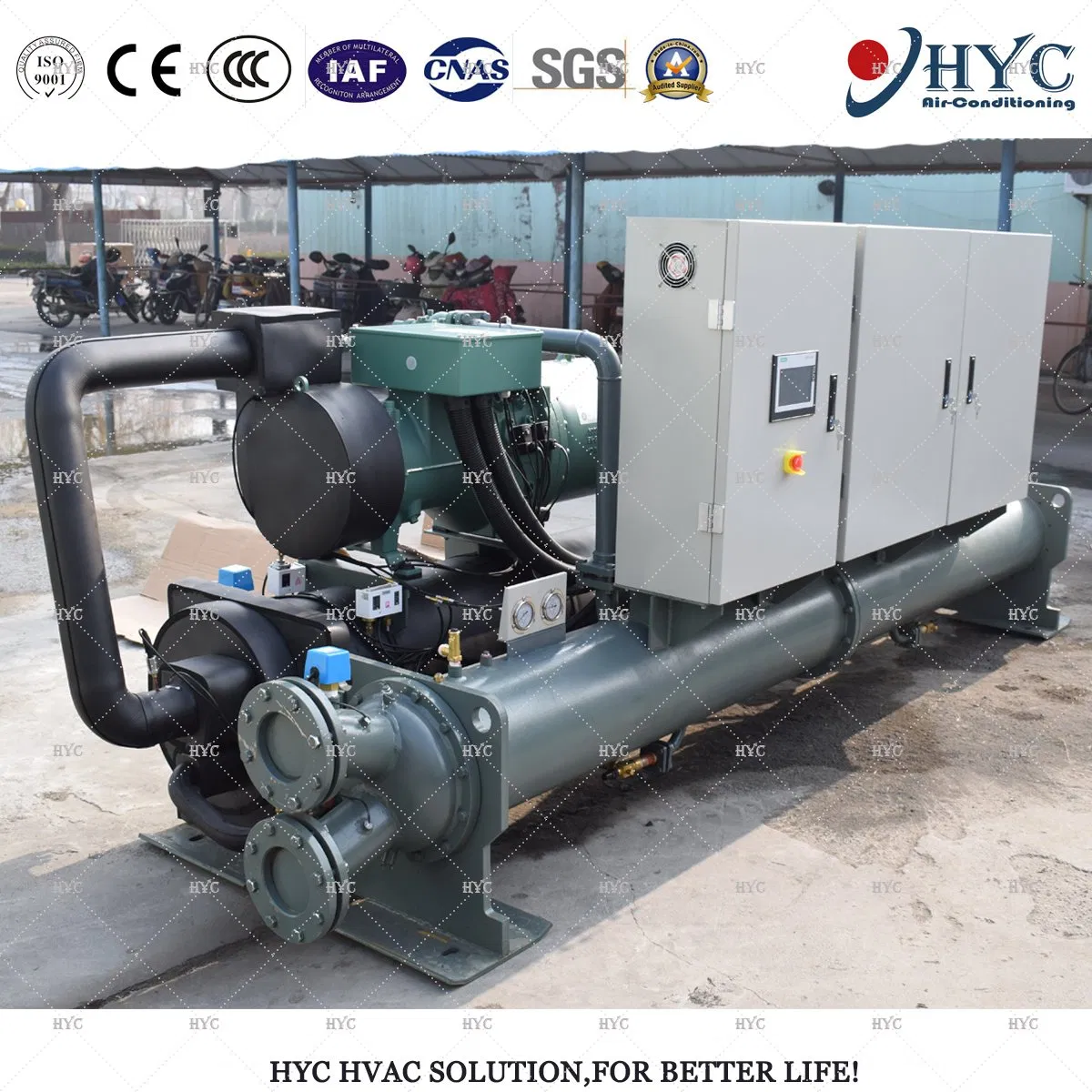

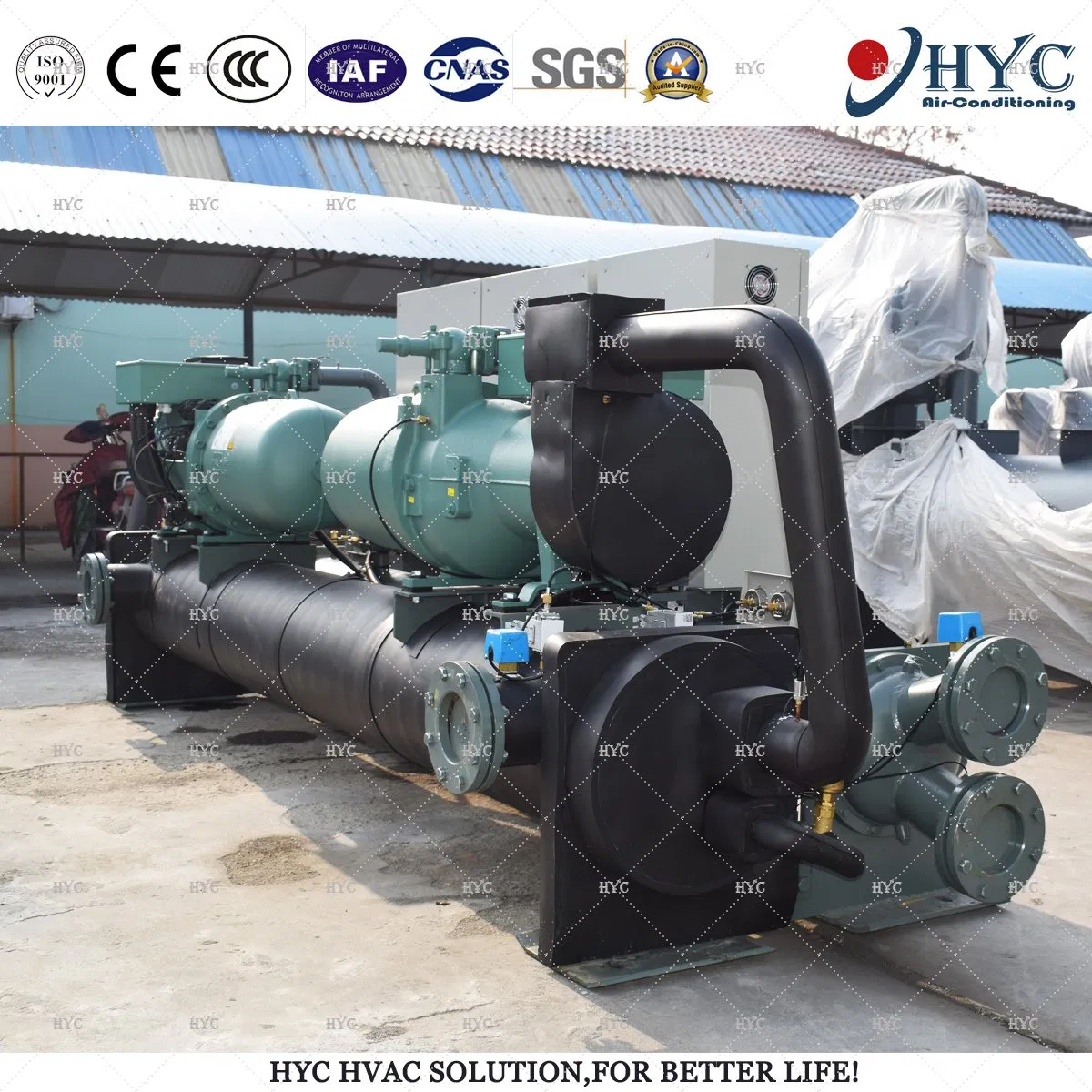

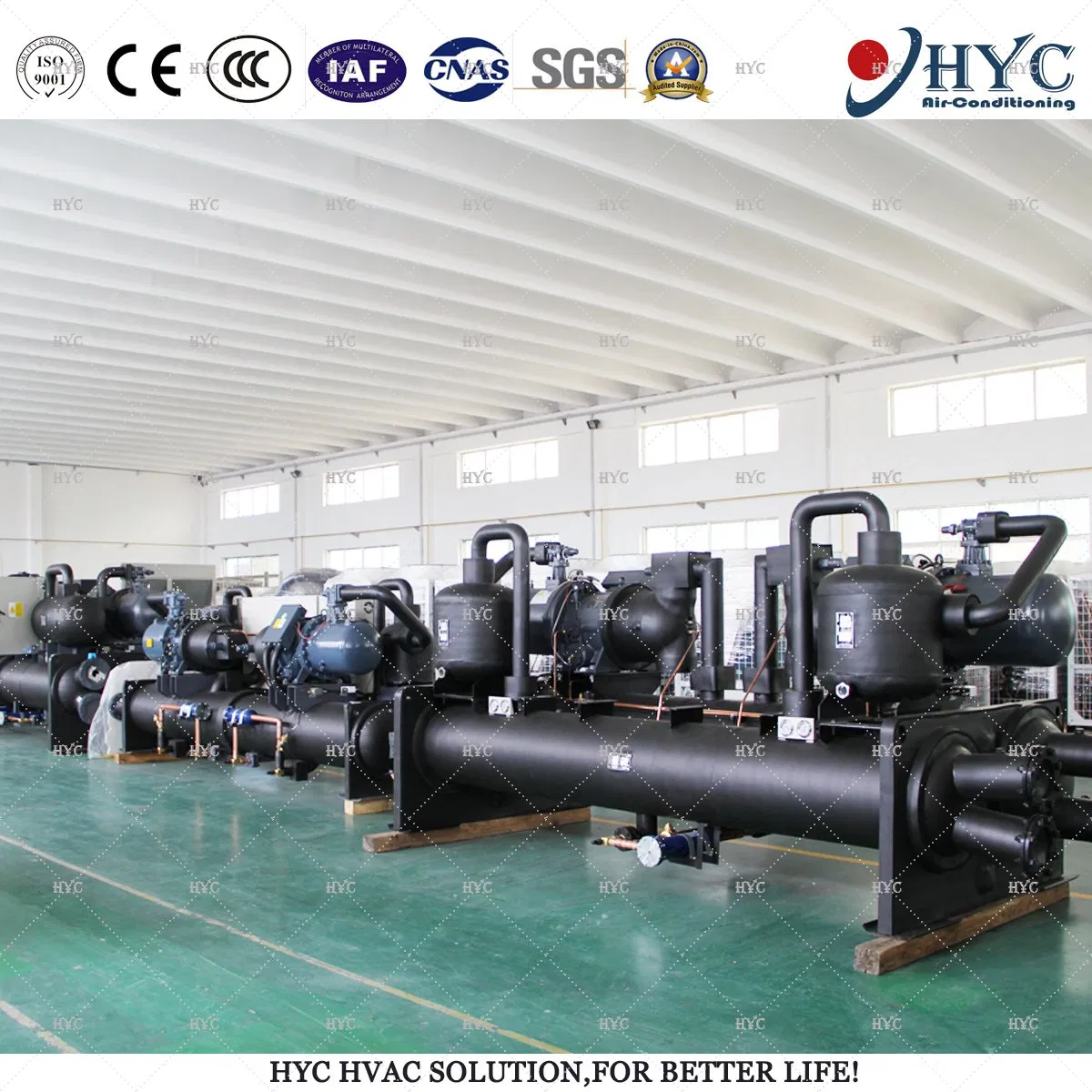

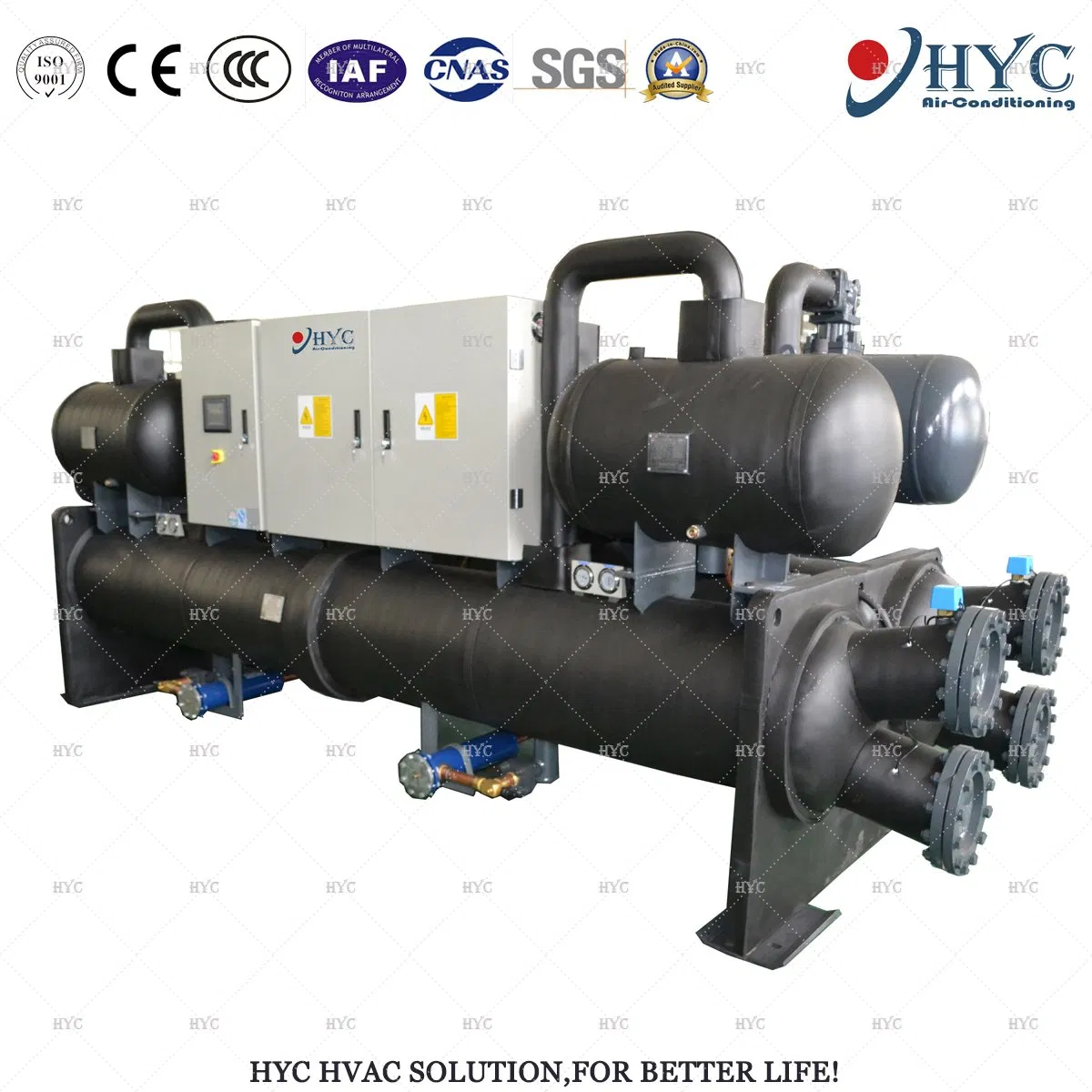

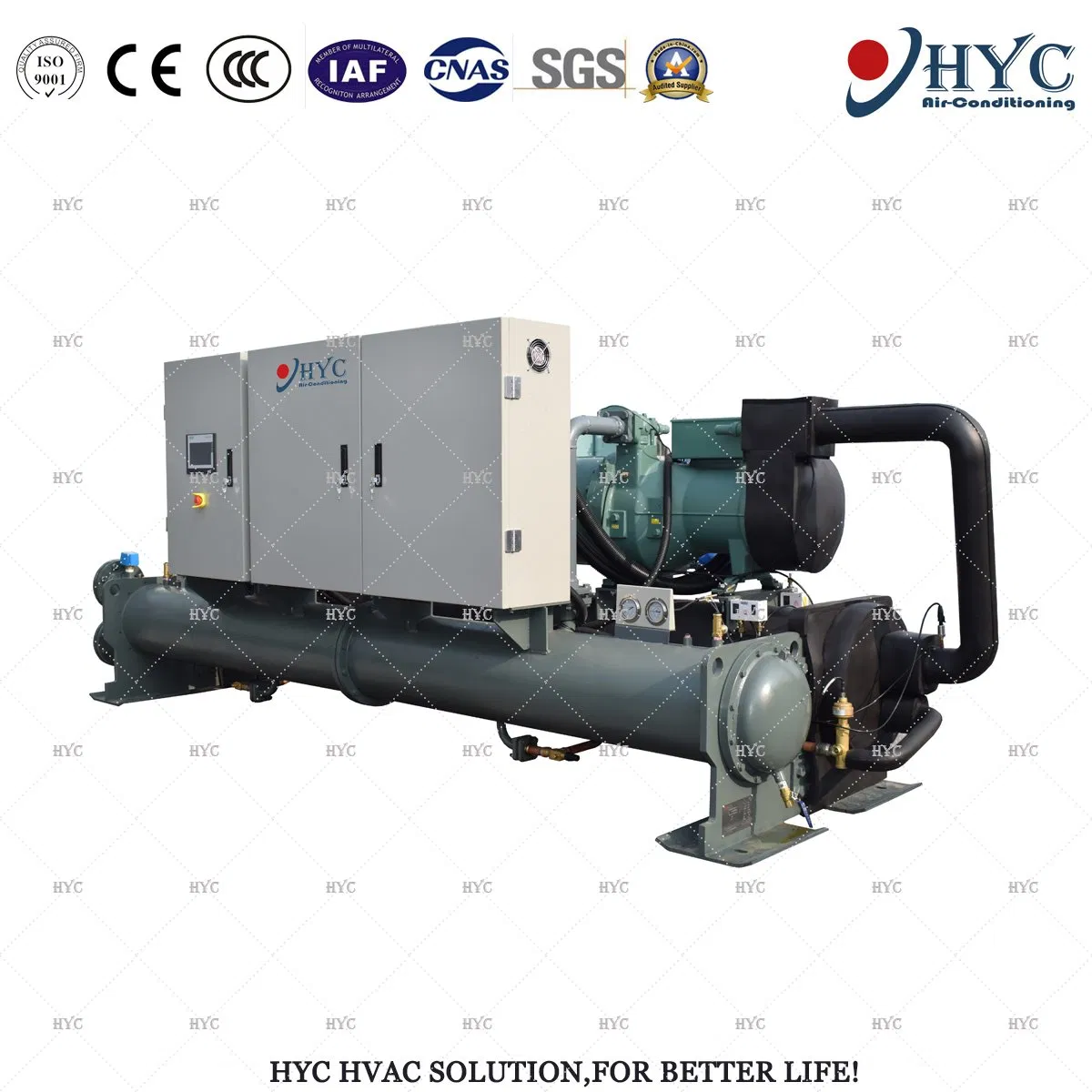

Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
1 / 5
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump
Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump

Water Cooled Screw Water Chiller/Geothermal Ground Source Heat Pump

Customization: Available
Certification: CCC, CE
Working Medium: R22
Send Inquiry

Product Description

Basic Specifications
Model NO.
hsw
Heat Source Type
Ground Source Heat Pump (GSHP)
Color
White/Optional Other Colors
Delivery Time
30 days
Tailor Made
Available
OEM/ODM
Available
Capacity
288-2306kw
Refrigerant
R22/R407c/R134A
Compressor Type
Screw
Compressor Brand
Fusheng/Hanbell/Bitzer
Transport Package
Film/Wooden Package
Trademark
OEM/ODM
Origin
China
Production Capacity
1000 sets
Water Cooled Screw Water Chiller
Product Description
SEMI-HERMETIC COMPRESSOR
Semi-hermetic screw compressor for the whole range. Each compressor is equipped with a crankcase heater and a built-in electronic protection. The compressor features steps or stepless energy control to adapt to changes in different part loads.
EVAPORATOR
Built with a high-efficiency flooded type shell and tube heat exchanger, significantly increasing the heat exchange coefficient and system operation efficiency. Unit COP/EER exceeds 5.0.
CONDENSER
Horizontal type shell and tube heat exchanger, offering stable, low resistance, and efficient heat exchange.
REFRIGERANT CIRCUIT
Circuit complete with sight glass, filter drier, high and low pressure gauges, solenoid valve, electronic expansion valve, pressure switches, and safety valve.
ELECTRICAL PROTECTION
Equipped with recognized brand electrical parts, including breakers, AC contactors, and phase protection systems.
CONTROL SYSTEM
PLC control system provides precise and stable long-term operation. Offers excellent communication functions for interface with building control systems.
OPTIONAL CONFIGURATIONS
BMS Integration; Stainless steel covering for electrical boxes.
Technical Parameters
Model 85TF95TF106TF140TF170TF200TF225TF250TF280TF300TF330TF
Cooling capacity kW 28832537149159269678088097010301149
ton 8595106140170200225250280300330
Cooling input kW 55607090108126160.1179.3197205228
Power supply / 380-415V/3Ph/50Hz
Compressor Type / semi-hermetic screw
Compressor Qty / 1 2
Evaporator Flow m³/h 50566484102120134151167177198
Water Pipe mm DN80DN80DN100DN100DN125DN125DN150DN150DN150DN150DN200
Manufacturing Facility

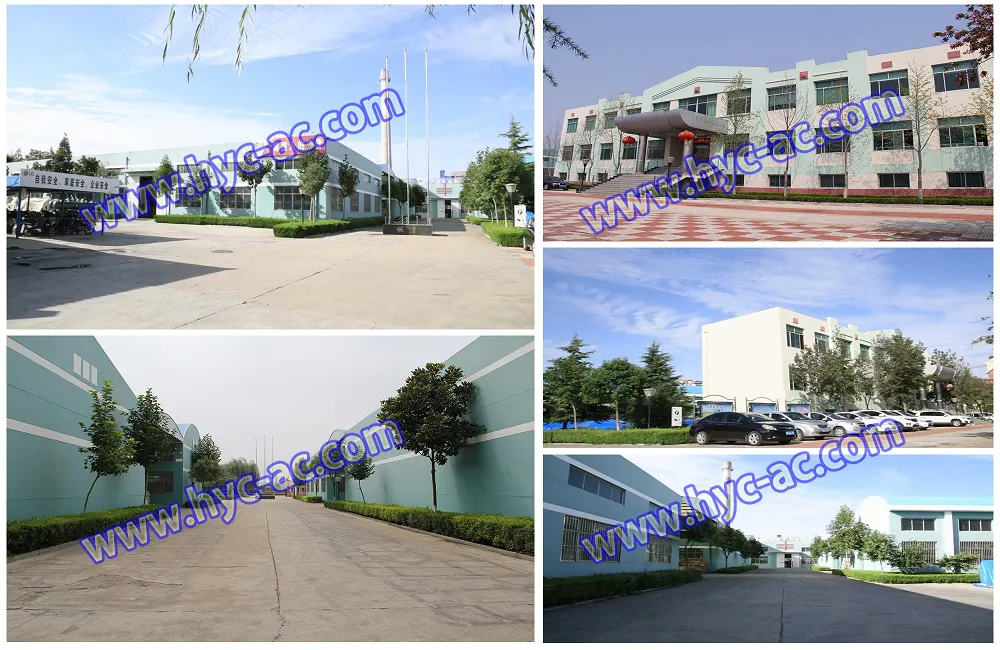

Factory View
Factory View

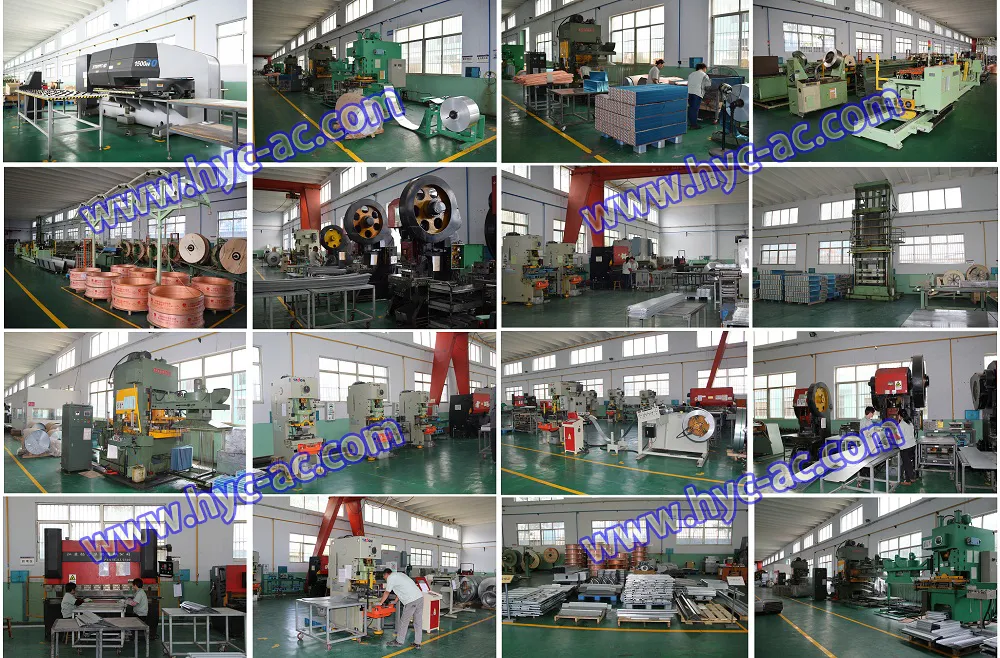

Production Machinery
Production Machinery

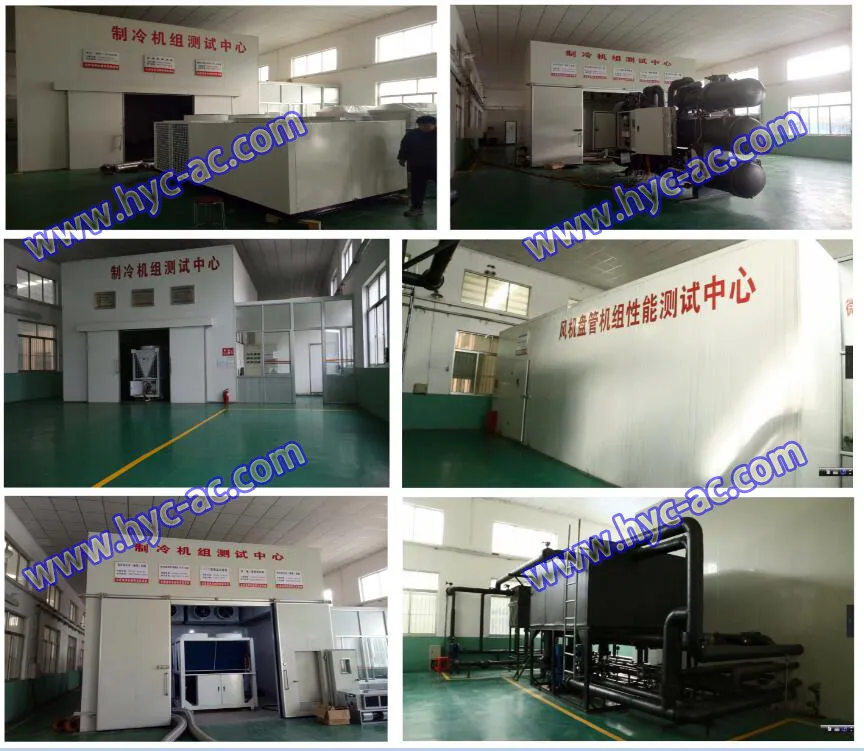

Test Lab
Test Lab

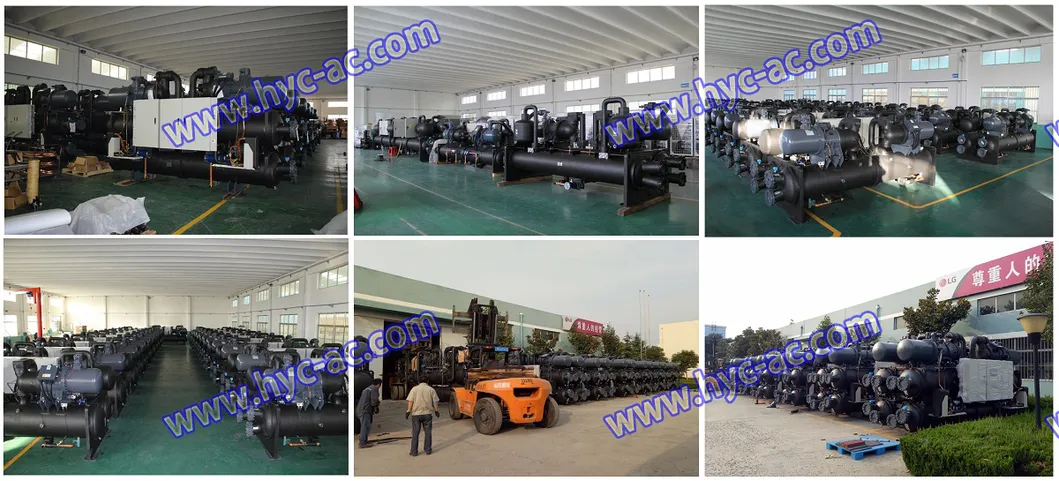

Production Line

Heat Pump & Chiller Production Line

Frequently Asked Questions
What is the capacity range of these ground source heat pumps?
The cooling capacity ranges from 288kW up to 2306kW, catering to various industrial and large-scale commercial needs.
Which compressor brands are integrated into the units?
We use world-renowned semi-hermetic screw compressors from brands such as Fusheng, Hanbell, and Bitzer.
What is the energy efficiency of the flooded type evaporator?
The flooded type shell and tube heat exchanger significantly boosts heat exchange efficiency, allowing the system to achieve a COP/EER of over 5.0.
Are the units customizable for specific projects?
Yes, we provide full tailor-made solutions and OEM/ODM services to meet specific technical or aesthetic requirements.
What is the typical production lead time?
The standard production and delivery time is approximately 30 days from the date of order confirmation.
What refrigerants are compatible with these systems?
Our systems are designed to be compatible with R22, R407c, and R134A refrigerants.
